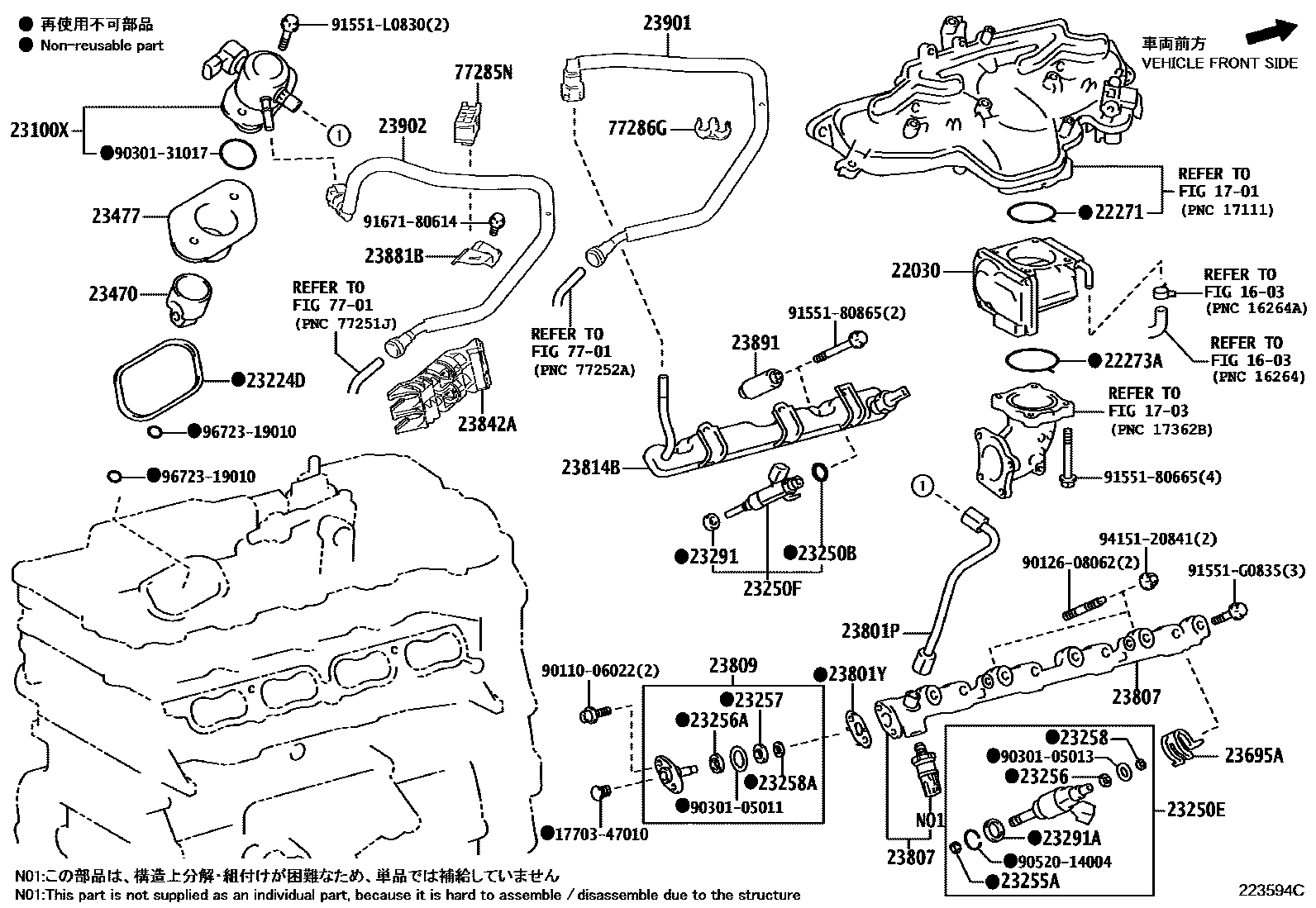

Toyota CROWN/HYBRID — FUEL INJECTION SYSTEM
1603
1701
1703
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
22273AGASKET, THROTTLE BODY, NO.2
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
23250FINJECTOR ASSY, FUEL(FOR PORT)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23256ARING, FUEL PIPE, NO.1
23257RING, FUEL INJECTOR BACK-UP, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
23258ARING, FUEL PIPE, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
main23291-31020iA25AFXS..AZSH20;A25AFXS,8ARFTS..ARS220,AZSH21..B,GEXEF,GF,RSADF,RSADV,RSF,SF¥430201806-202204
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23801YGASKET
23807PIPE SUB-ASSY, FUEL DELIVERY
23809SUPPORT SUB-ASSY, FUEL PIPE
23814BPIPE, FUEL DELIVERY
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23881BBRACKET, FUEL HOSE
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
23902TUBE SUB-ASSY, FUEL
7701
77285NCLAMP, FUEL TUBE, NO.1
77286GCLAMP, FUEL TUBE, NO.2
1770347010CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER
9011006022
9012608062
9030105011
9030105013
9030131017
9052014004
9155180665
9155180865
91551G0835
91551L0830
9167180614
9415120841
9672319010
49 parts on this diagram · 4 diagrams in section
