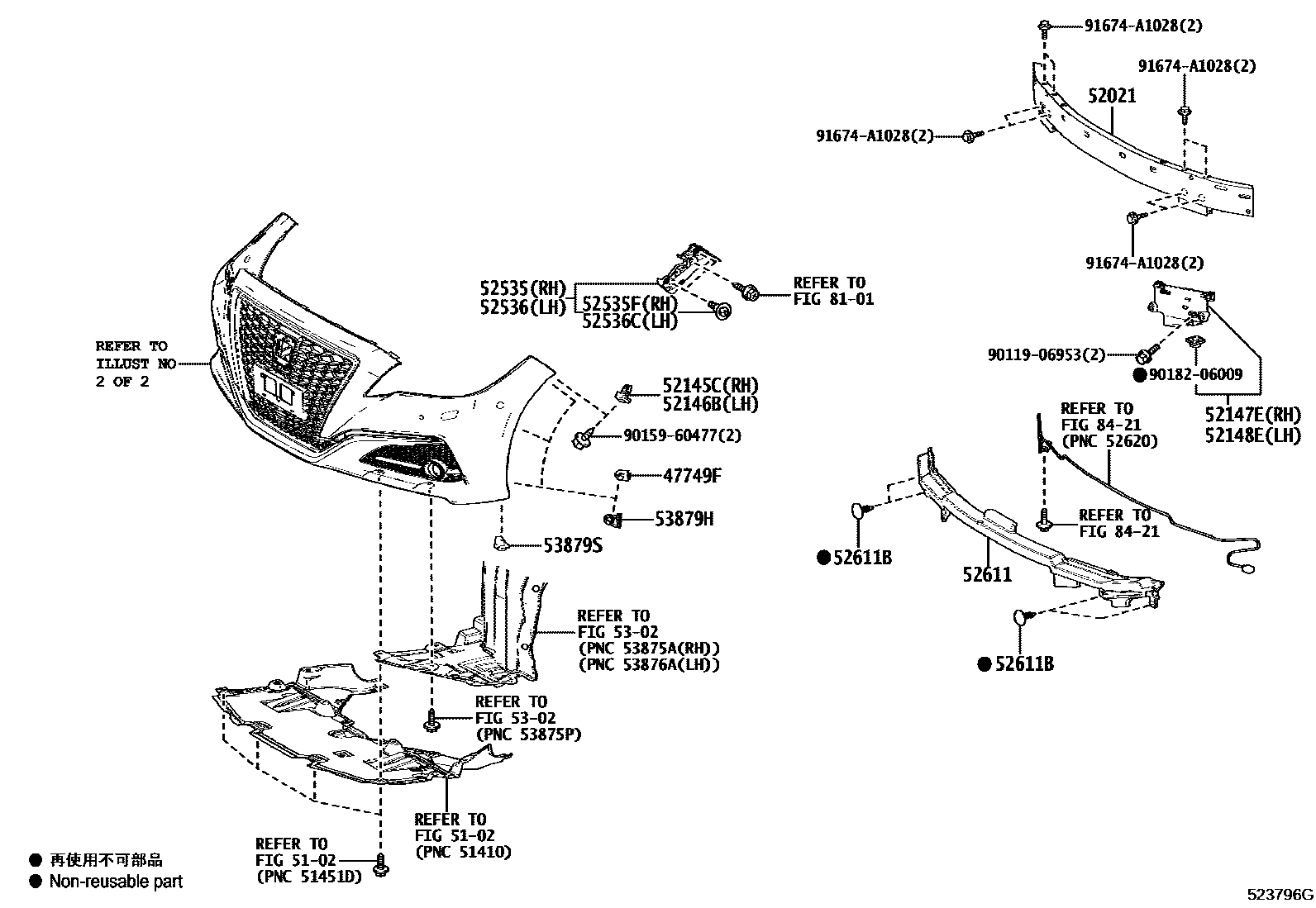

Toyota CROWN/HYBRID — FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-30090iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥200202011-202204

main47749-30090iARS220,AZSH2#,GWS224¥200202001-202010

main47749-30090iARS220,AZSH21..RS,RSB¥200202011

main47749-33030iARS220,AZSH2#,GWS224¥200201806-202001

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-30170iARS220,AZSH2#,GWS224¥20,900201806-202010

main52021-30170iARS220,AZSH2#,GWS224¥20,900202011

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-33110iARS220,AZSH2#,GWS224¥200201806-202010

main52145-33110iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥200202011-202204

main52145-33110iARS220,AZSH21..RS,RSB¥200202011

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-33110iARS220,AZSH2#,GWS224¥200201806-202010

main52146-33110iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥200202011-202204

main52146-33110iARS220,AZSH21..RS,RSB¥200202011

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-30110iARS220,AZSH2#,GWS224¥2,030201806-202010

main52147-30110iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥2,030202011-202204

main52147-30110iARS220,AZSH21..RS,RSB¥2,030202011

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52148-30120iARS220,AZSH2#,GWS224¥2,190201806-202010

main52148-30120iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥2,190202011-202204

main52148-30120iARS220,AZSH21..RS,RSB¥2,190202011

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30250iARS220,AZSH2#,GWS224¥2,330201806-202010

main52535-30250iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥2,330202011-202204

main52535-30250iARS220,AZSH21..RS,RSB¥2,330202011

52535FCLIP, FRONT BUMPER SIDE RETAINER

main90467-09237iARS220,AZSH2#,GWS224¥80201806-202010

main90467-09237iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥80202011-202204

main90467-09237iARS220,AZSH21..RS,RSB¥80202011

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-30240iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥2,330202011-202204

main52536-30240iARS220,AZSH2#,GWS224¥2,330201806-202010

main52536-30240iARS220,AZSH21..RS,RSB¥2,330202011

52536CCLIP, FRONT BUMPER SIDE RETAINER

main90467-09237iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥80202011-202204

main90467-09237iARS220,AZSH21..RS,RSB¥80202011

main90467-09237iARS220,AZSH2#,GWS224¥80201806-202010

52611ABSORBER, FRONT BUMPER ENERGY

main52611-30590iARS220,AZSH2#,GWS224¥5,300201806-202010

main52611-30590iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥5,300202011-202204

main52611-30590iARS220,AZSH21..RS,RSB¥5,300202011

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-07049-23iARS220,AZSH21..RS,RSB202011

BLACK

sub90467-07049¥90

main90467-07049-23iARS220,AZSH2#,GWS224201806-202010

BLACK

sub90467-07049¥90

main90467-07049-23iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF202011-202204

BLACK

sub90467-07049¥90

5302

53879HRETAINER, FRONT FENDER LINER

main53879-30090iARS220,AZSH21..RS,RSB¥270202011

main53879-30090iARS220,AZSH2#,GWS224¥270202001-202010

main53879-30090iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥270202011-202204

main53879-33030iARS220,AZSH2#,GWS224¥270201806-202001

53879SRETAINER, FRONT FENDER LINER

main53879-17020iARS220,AZSH2#,GWS224¥180201806-202010

main53879-17020iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥180202011-202204

main53879-17020iARS220,AZSH21..RS,RSB¥180202011

8101

8421

9011906953

main90119-06953¥80

9015960477

main90159-60477¥70

9018206009

main90182-06009¥100

91674A1028

main91674-A1028¥120

22 parts on this diagram · 4 diagrams in section
