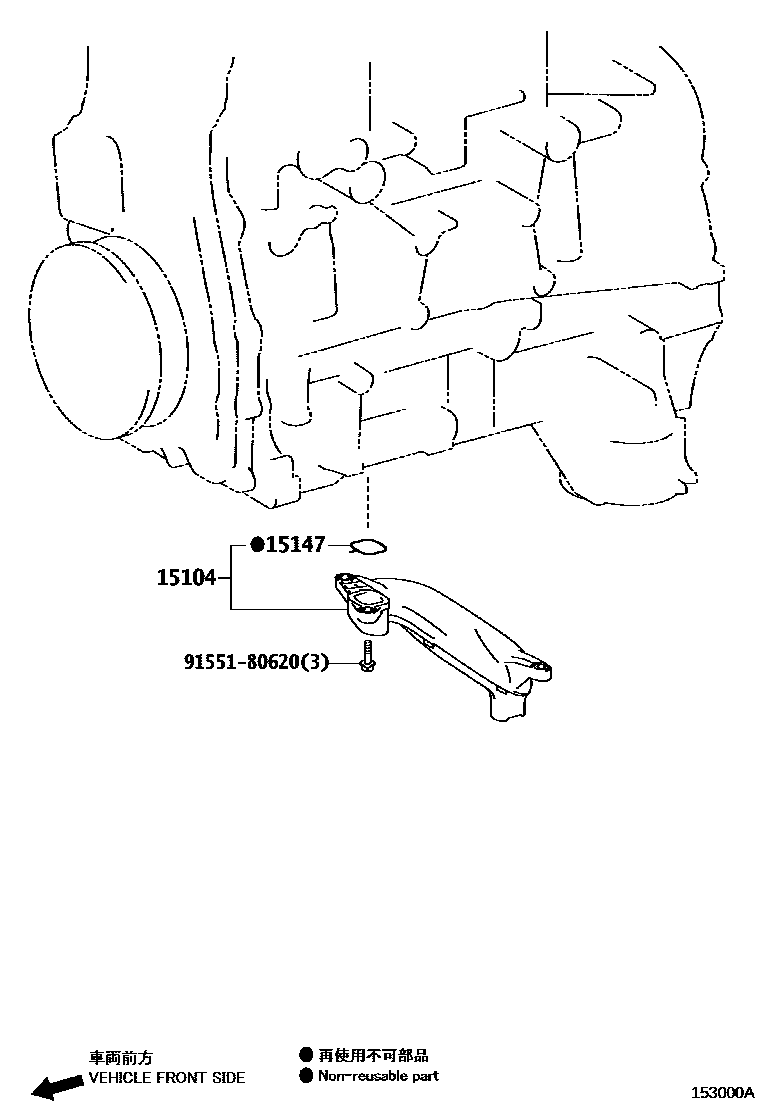

Toyota CROWN/HYBRID — ENGINE OIL PUMP

0001 1 0002 1 0003 1

15104STRAINER SUB-ASSY, OIL

main15104-25070iA25AFXS..AZSH20¥1,160201806-202010

main15104-25070iA25AFXS..AZSH20¥1,160202011-202204

main15104-25080iA25AFXS..AZSH21..B,GEXEF,GF,RSADF,RSF,SF¥1,620202011-202204

main15104-25080iA25AFXS..AZSH21¥1,620201806-202010

main15104-25080iA25AFXS..AZSH21..RSB¥1,620202011

main15104-31080i8GRFXS..GWS224¥6,900202011-202204

main15104-31080i8GRFXS..GWS224¥6,900201806-202010

main15104-36040i8ARFTS..ARS220..RSADV¥1,980202011-202204

main15104-36040i8ARFTS..ARS220¥1,980201806-202010

main15104-36040i8ARFTS..ARS220..RS¥1,980202011

15147GASKET, OIL STRAINER

main15147-25020iA25AFXS..AZSH2#¥340201806-202010

main15147-25020iA25AFXS..AZSH21..RSB¥340202011

main15147-25020iA25AFXS..AZSH20;A25AFXS..AZSH21..B,GEXEF,GF,RSADF,RSF,SF¥340202011-202204

main15147-31060i8GRFXS..GWS224¥270202011-202204

main15147-31060i8GRFXS..GWS224¥270201806-202010

main15147-36020i8ARFTS..ARS220..RS¥340202011

main15147-36020i8ARFTS..ARS220¥340201806-202010

main15147-36020i8ARFTS..ARS220..RSADV¥340202011-202204

9155180620

main91551-80620¥60

3 parts on this diagram · 3 diagrams in section
