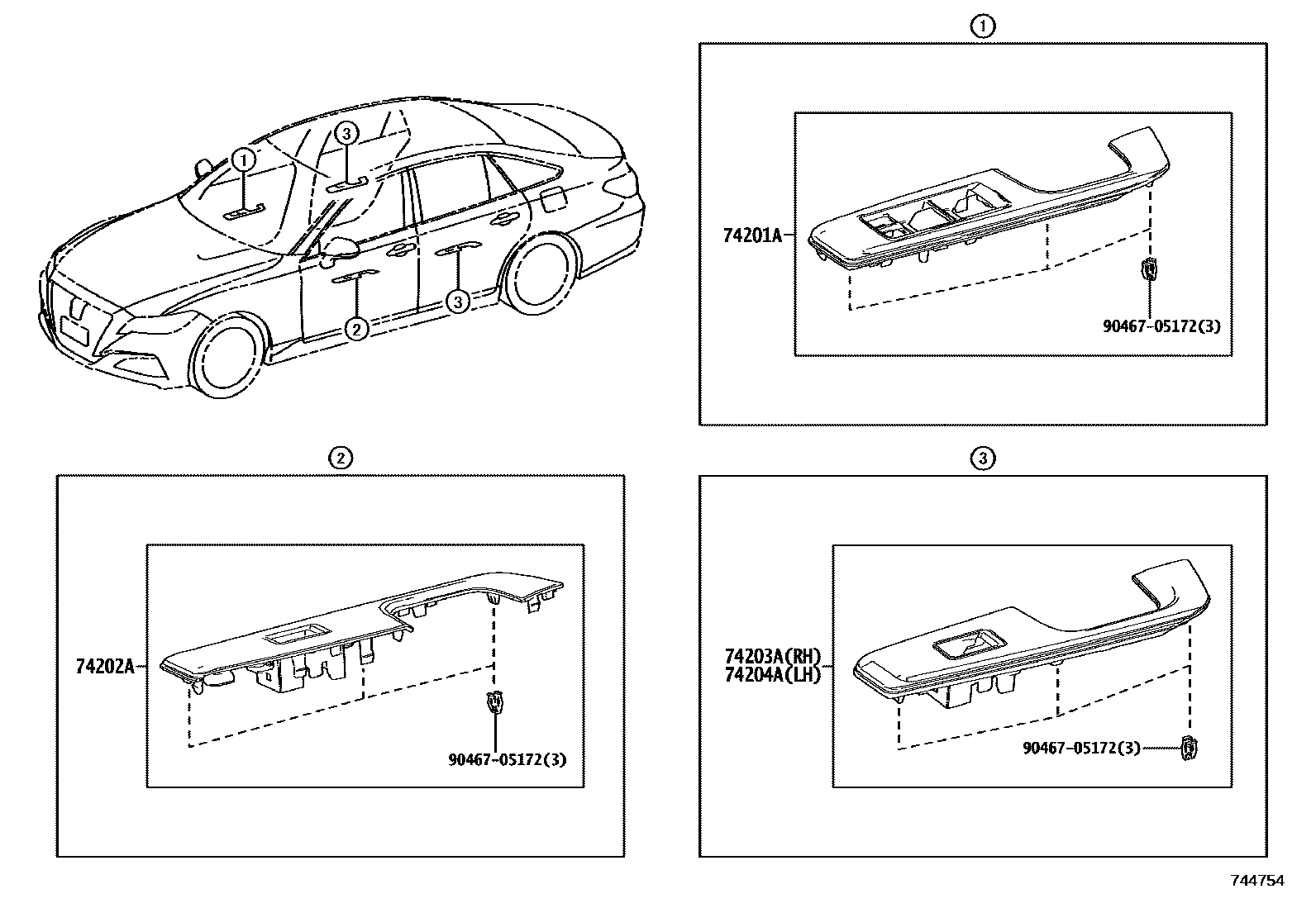

Toyota CROWN/HYBRID — ARMREST & VISOR

0001 1������ 0002 1�����&����������

74201APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER RH

main74201-30160iARS220,AZSH2#,GWS224..B,G,GF,S,SF¥3,740201806-202010

main74201-30180iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF¥5,600201806-202006

main74201-30181iAZSH20..RS,RSADV,RSB;ARS220,AZSH21,GWS224..RSADF,RSADV,RSF¥4,660202006-202204

main74201-30190iAZSH21,GWS224..GEXEC,GEXEF¥7,100201806-202006

main74201-30191iAZSH21,GWS224..GEXEC,GEXEF¥7,100202006-202010

main74201-30200iAZSH2#..B,G,GF,S,SF¥2,820202011-202204

main74201-30210iAZSH21,GWS224..GEXEC,GEXEF¥6,400202011-202204

74202APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER LH

main74202-30160iARS220,AZSH2#,GWS224..B,G,GF,S,SF¥4,140201806-202010

main74202-30180iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF¥5,600201806-202006

main74202-30181iAZSH20..RS,RSADV,RSB;ARS220,AZSH21,GWS224..RSADF,RSADV,RSF¥4,660202006-202204

main74202-30190iAZSH21,GWS224..GEXEC,GEXEF¥7,100201806-202006

main74202-30191iAZSH21,GWS224..GEXEC,GEXEF¥7,100202006-202010

main74202-30200iAZSH2#..B,G,GF,S,SF¥3,140202011-202204

main74202-30210iAZSH21,GWS224..GEXEC,GEXEF¥6,400202011-202204

74203APANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH

main74203-30160iARS220,AZSH2#,GWS224..B,G,GF,S,SF¥3,500201806-202010

main74203-30180iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF¥5,300201806-202006

main74203-30181iAZSH20..RS,RSADV,RSB;ARS220,AZSH21,GWS224..RSADF,RSADV,RSF¥4,380202006-202204

main74203-30190iAZSH21,GWS224..GEXEC,GEXEF¥6,600201806-202006

main74203-30191iAZSH21,GWS224..GEXEC,GEXEF¥6,600202006-202010

main74203-30200iAZSH2#..B,G,GF,S,SF¥2,640202011-202204

main74203-30210iAZSH21,GWS224..GEXEC,GEXEF¥6,000202011-202204

74204APANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH

main74204-30160iARS220,AZSH2#,GWS224..B,G,GF,S,SF¥3,500201806-202010

main74204-30180iARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF¥5,300201806-202006

main74204-30181iARS220,AZSH21..RS,RSB¥4,380202006-202204

main74204-30190iAZSH21,GWS224..GEXEC,GEXEF¥6,600201806-202006

main74204-30191iAZSH21,GWS224..GEXEC,GEXEF¥6,600202006-202010

main74204-30200iAZSH2#..B,G,GF,S,SF¥2,640202011-202204

main74204-30210iAZSH21,GWS224..GEXEC,GEXEF¥6,000202011-202204

9046705172

main90467-05172¥60

5 parts on this diagram · 2 diagrams in section
