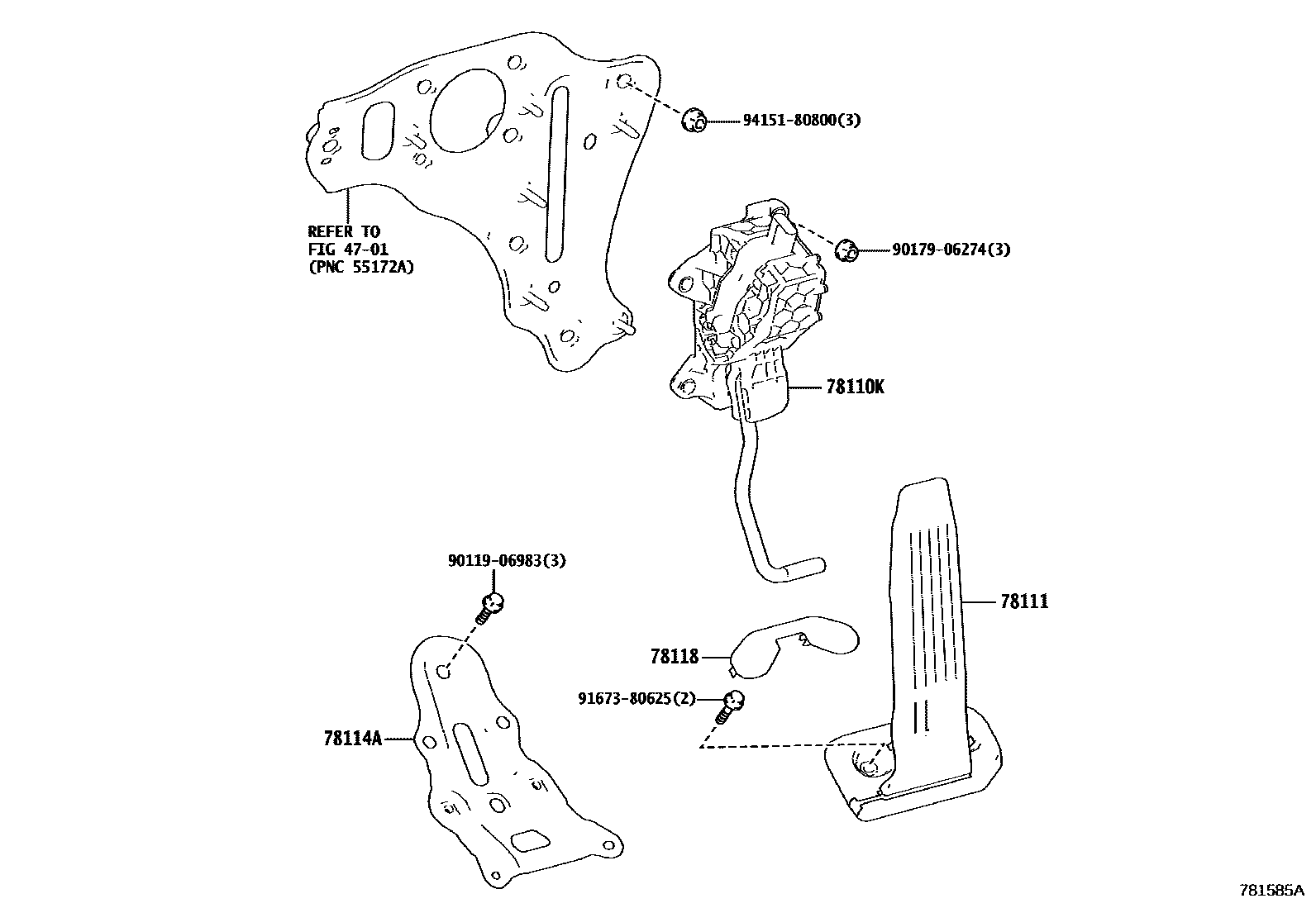

Toyota CROWN/HYBRID — ACCELERATOR LINK

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-11020iARS220,AZSH2#,GWS224¥10,700201806-202010

sub78110-11021¥8,000

main78110-11021iAZSH20;ARS220,AZSH21,GWS224..B,GEXEC,GEXEF,GF,RSADF,RSADV,RSF,SF¥8,000202011-202204

78111PEDAL, ACCELERATOR

main78101-50050iARS220,AZSH2#,GWS224¥1,490201806-202204

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-11010iARS220,AZSH2#,GWS224¥1,300201806-202204

78118PAD, ACCELERATOR PEDAL

main78117-11010iARS220,AZSH2#,GWS224¥200201806-202204

9011906983

main90119-06983¥60

9017906274

main90179-06274¥70

9167380625

main91673-80625¥80

9415180800

main94151-80800¥80

9 parts on this diagram · 1 diagram in section
