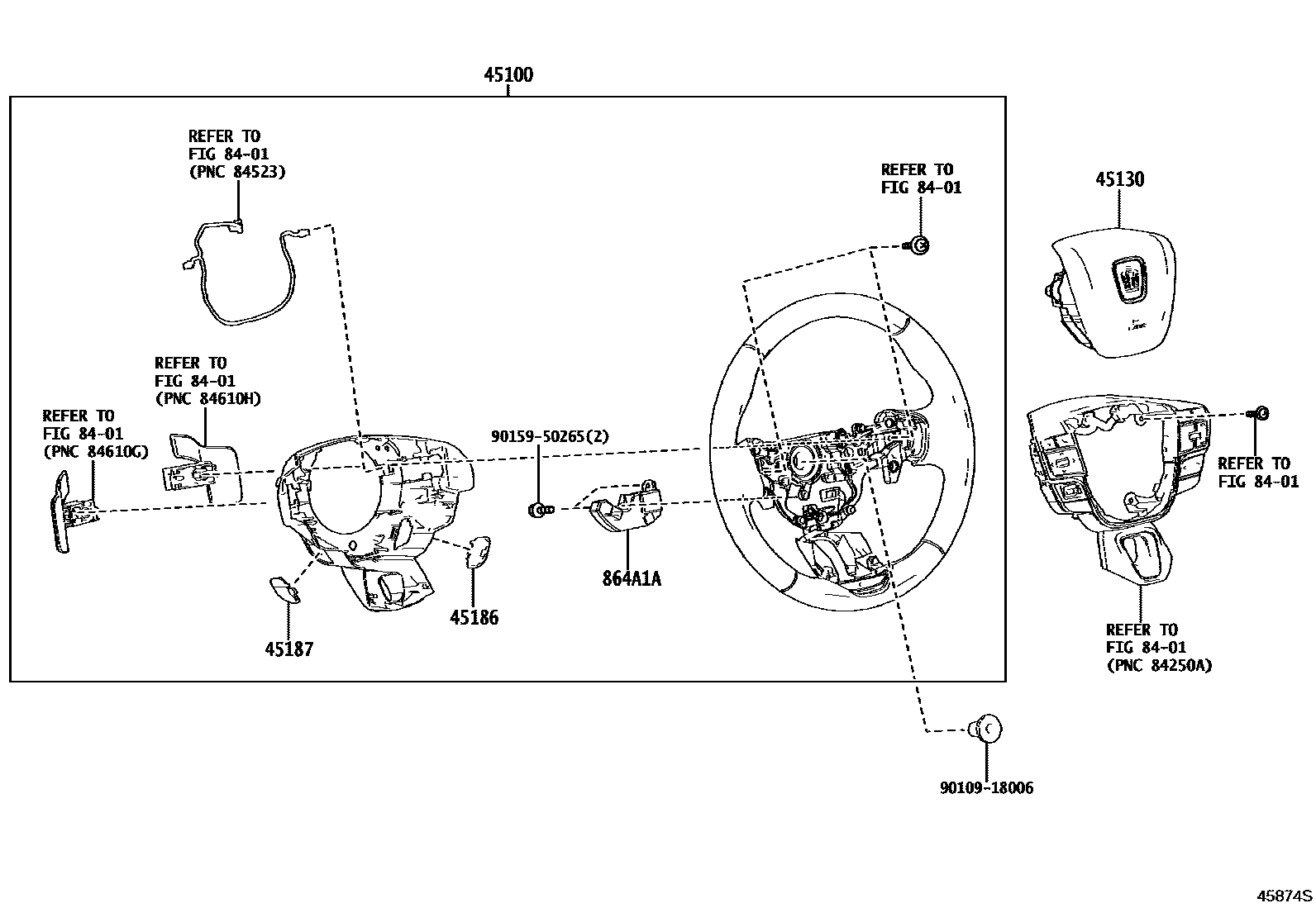

Toyota CROWN ESTATE — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-30J10-C1iAZSH38..Z202406

main45100-30J60-C2iAZSH39..G202407

main45100-30J70-C2iAZSH39..RS,Z202407

main45100-33C40-C2iAZSH38..G202406

45130BUTTON ASSY, HORN

main45130-30810-C0iAZSH3#..G202406

BLACK,TRIM2#,4#

main45130-30810-C0iAZSH3#..RS,Z202406

BLACK,TRIM0#,2#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-30200-C0iAZSH39;AZSH38..G202406

BLACK,TRIM2#,4#

main45186-30200-C0iAZSH38..Z202406

BLACK,TRIM0#,2#,4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30140-C0iAZSH38..Z202406

BLACK,TRIM0#,2#,4#

main45187-30140-C0iAZSH38..Z202406

BLACK,TRIM2#,4#

8401

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

main864A1-78020iAZSH39..G¥7,000202407

main864A1-78040iAZSH3#..RS,Z¥13,000202406

9010918006

main90109-18006¥240

9015950265

main90159-50265¥70

8 parts on this diagram · 1 diagram in section
