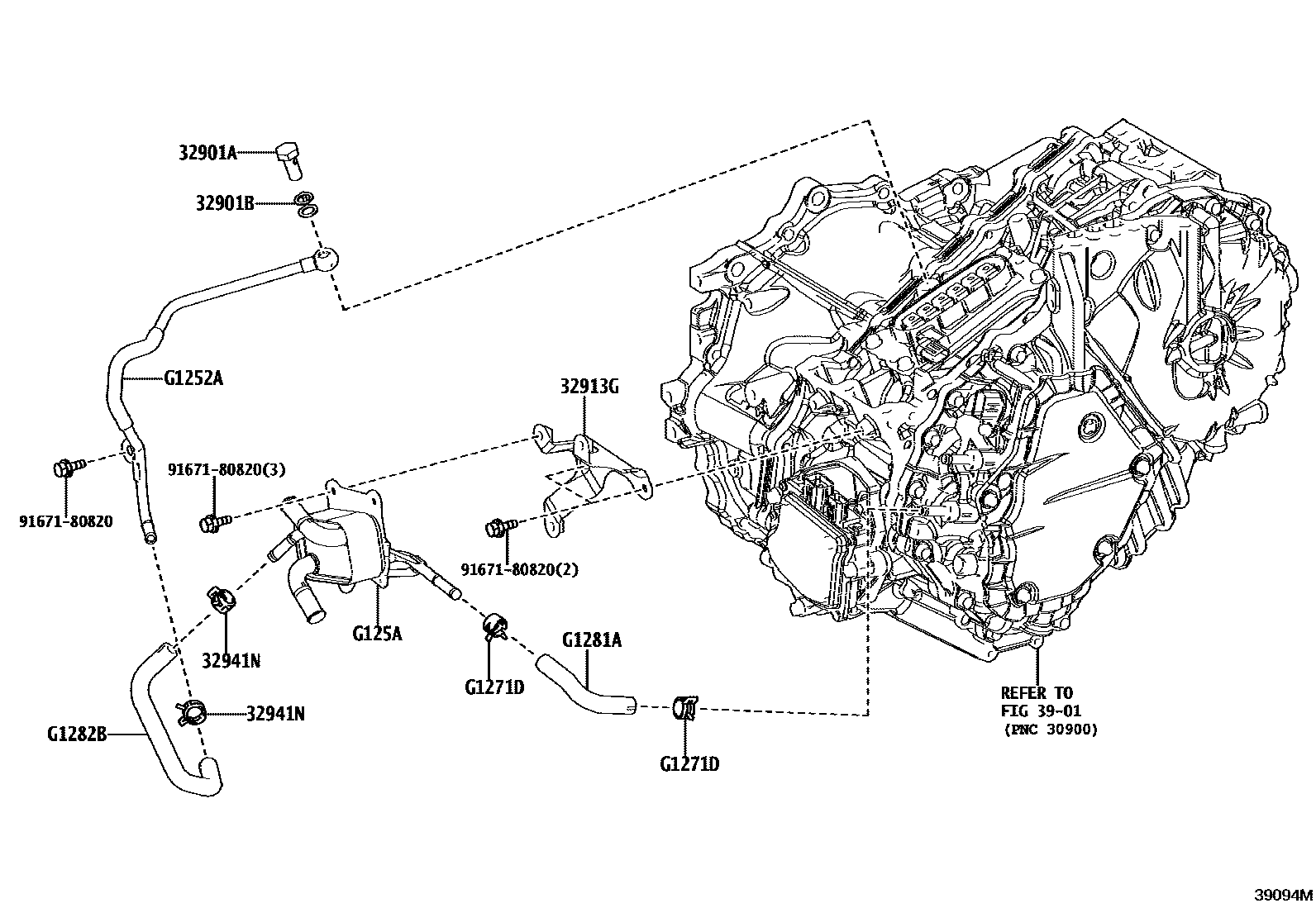

Toyota CROWN ESTATE — OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAZSH3#¥390202406

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAZSH3#¥80202406

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-42050iAZSH39¥520202407

main32913-78030iAZSH38¥820202406

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAZSH38¥180202406

3901

G1252APIPE, MOTOR COOLING, NO.2

mainG125242010iAZSH39202407

mainG125278010iAZSH38202406

G125ACOOLER, MOTOR COOLING

mainG125A48020iAZSH3#202406

G1271DCLIP, NO.1(FOR MOTOR COOLING HOSE)

main90466-16004iAZSH3#¥180202406

G1281AHOSE, MOTOR INLET

mainG128178010iAZSH38202406

G1282BHOSE, MOTOR OUTLET

mainG128278010iAZSH38202406

9167180820

main91671-80820¥80

11 parts on this diagram · 2 diagrams in section
