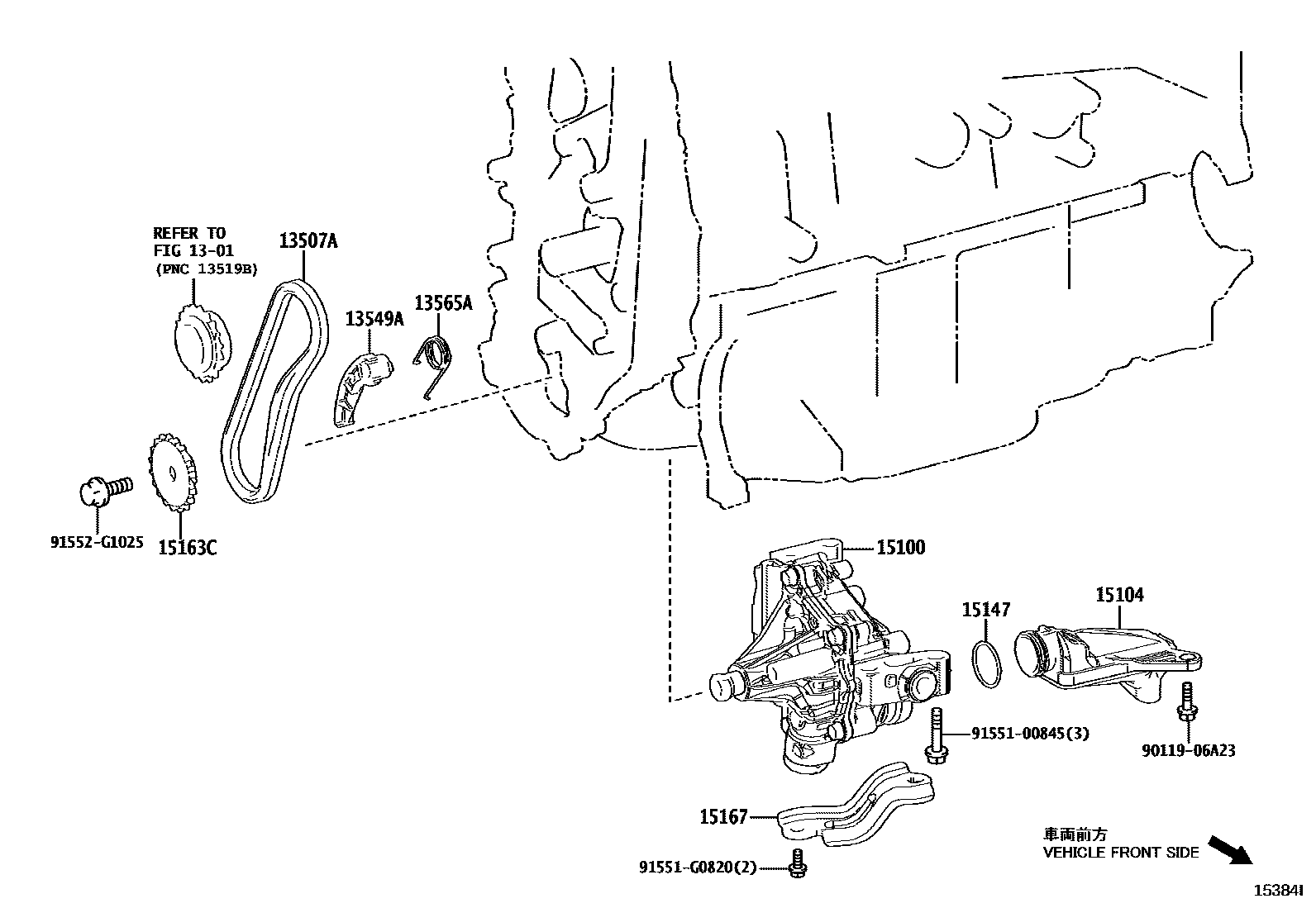

Toyota CROWN ESTATE — ENGINE OIL PUMP

1301

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-25010iA25..AZSH3#¥4,310202406

13549APLATE, CHAIN TENSIONER

main13549-25020iA25..AZSH3#¥550202406

13565ASPRING, CHAIN DAMPER

main13565-25010iA25..AZSH3#¥220202406

15100PUMP ASSY, OIL

main15100-25032iA25..AZSH3#¥12,600202406

15104STRAINER SUB-ASSY, OIL

main15104-25030iA25..AZSH3#¥1,110202406

15147GASKET, OIL STRAINER

main15147-25010iA25..AZSH3#¥340202406

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iA25..AZSH3#¥660202406

15167BRACKET, OIL PUMP

main15167-25011iA25..AZSH3#¥740202406

9011906A23

main90119-06A23¥60

9155100845

main91551-00845¥100

91551G0820

main91551-G0820¥80

91552G1025

main91552-G1025¥170

13 parts on this diagram · 1 diagram in section
