Toyota CROWN ESTATE — CONSOLE BOX & BRACKET
55524ACOVER, SWITCH BASE HOLE
BLACK
55630AHOLDER, REAR CONSOLE BOX, CUP
���������[�d�i���C�����X�[�d���j�|�L��
58804APANEL SUB-ASSY, CONSOLE, UPPER
���������[�d�i���C�����X�[�d���j�|�L��
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
BLACK,TRIM20
BLACK/SADDLE TAN,TRIM4#
BLACK/ORAGE,TRIM21
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
58825APOCKET, CONSOLE BOX
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
BLACK,TRIM2#
BLACK,TRIM20
SADDLE TAN,TRIM4#
ORAGE,TRIM21
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK,TRIM2#
BLACK,TRIM20
SADDLE TAN,TRIM4#
ORAGE,TRIM21
58860AREGISTER ASSY, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK/DK.GRAY,TRIM0#,2#,4#
BLACK/DK.GRAY,TRIM2#,4#
58916MAT, BOX BOTTOM
58920AARMREST ASSY, REAR CONSOLE
BLACK/SATIN SILVER,TRIM2#
BLACK/SATIN SILVER,TRIM20
SADDLE TAN/SATIN SILVER,TRIM4#
ORAGE/SATIN SILVER,TRIM21
58932AGARNISH, REAR CONSOLE BOX
58983RETAINER, UPPER CONSOLE
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
58993ABRACKET, CONSOLE BOX MOUNTING, LOWER
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8121
8202
9011908313
9015950327
9046705171
9046705172
9155180828
9167380616
9356014012
9356855014

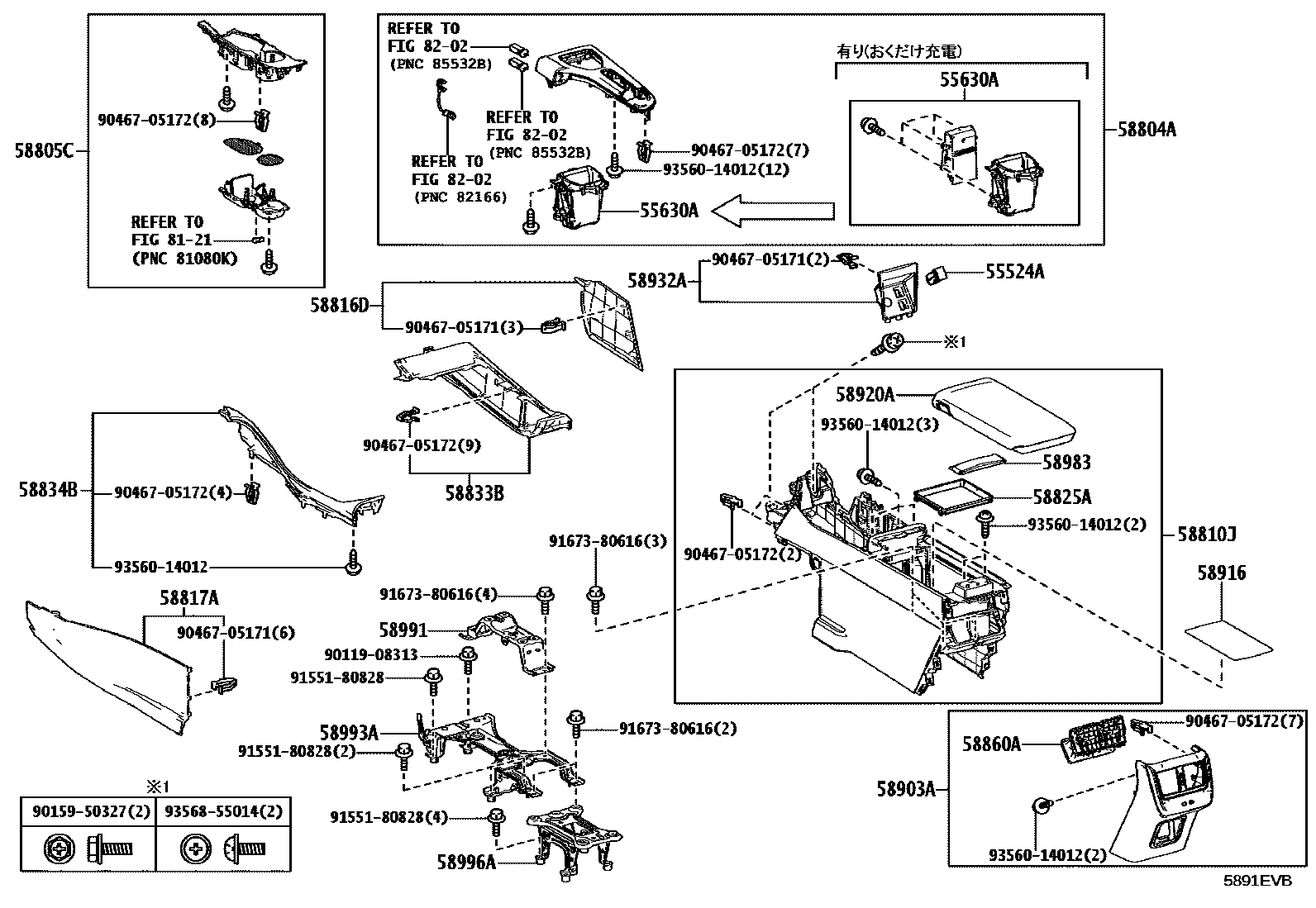

29 parts on this diagram · 1 diagram in section
