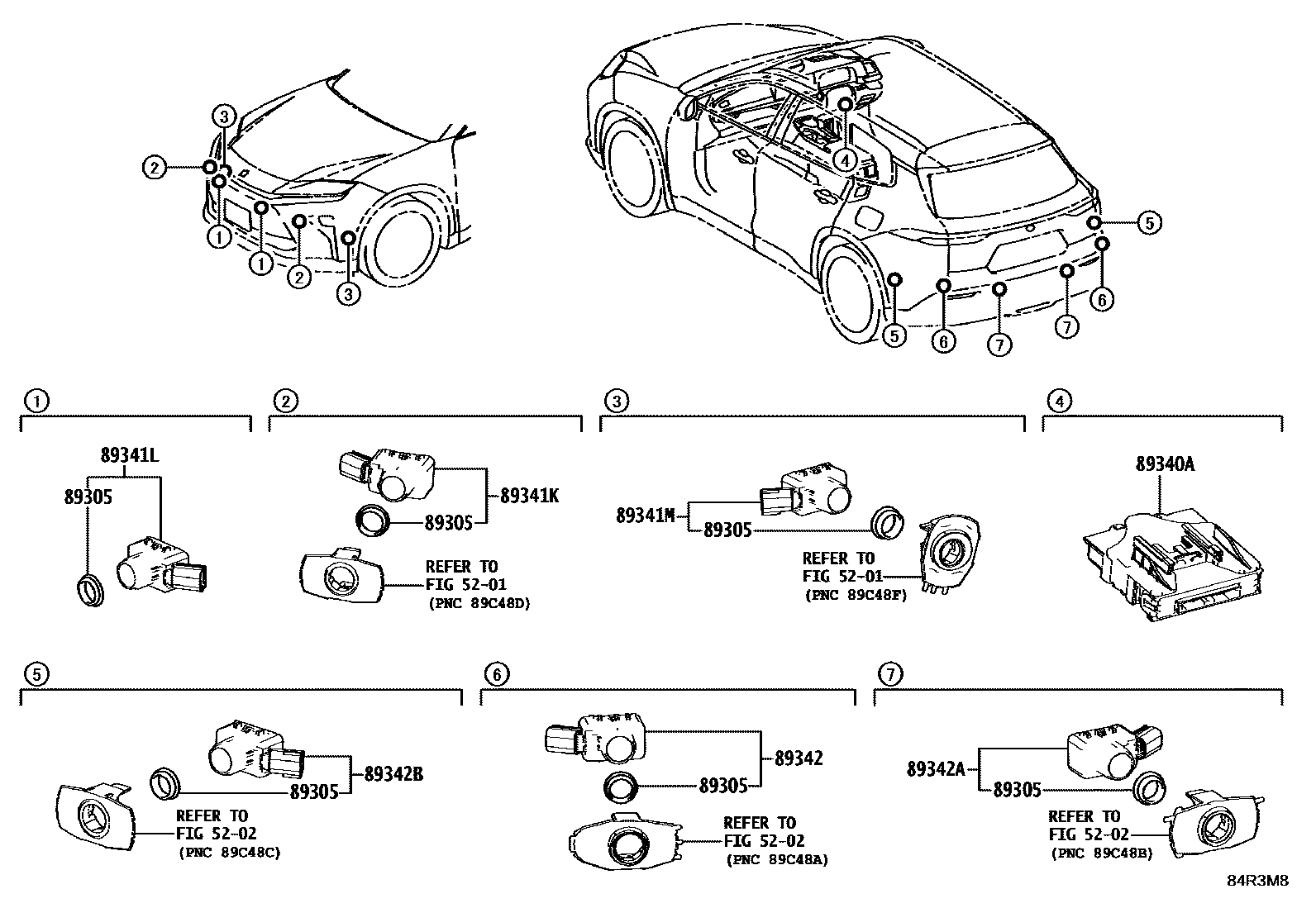

Toyota CROWN ESTATE — CLEARANCE & BACK SONAR
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
89341LSENSOR, ULTRASONIC, FRONT CENTER
DUMMY-MAT BLACK
89341MSENSOR, ULTRASONIC, FRONT SIDE
PRECIOUS WHITE PEARL,090 ,2XW ,M26
BLACK,202
PRECIOUS BRONZE,2XZ ,4Y6 ,M27
MASSIVE GRAY,1L6 ,2XY ,M22 ,M37
MASSIVE GRAY,1L6 ,2XY ,M22
GRAY METALLIC MATT,1M1
EMOTIONAL RED 3,2ZR ,3U9 ,M24
89342SENSOR, ULTRASONIC, REAR CORNER
89342ASENSOR, ULTRASONIC, REAR CENTER
89342BSENSOR, ULTRASONIC, REAR SIDE
PRECIOUS WHITE PEARL,090 ,2XW ,M26
BLACK,202
PRECIOUS BRONZE,2XZ ,4Y6 ,M27
MASSIVE GRAY,1L6 ,2XY ,M22
MASSIVE GRAY,1L6 ,2XY ,M22 ,M37
GRAY METALLIC MATT,1M1
EMOTIONAL RED 3,2ZR ,3U9 ,M24
10 parts on this diagram · 1 diagram in section
