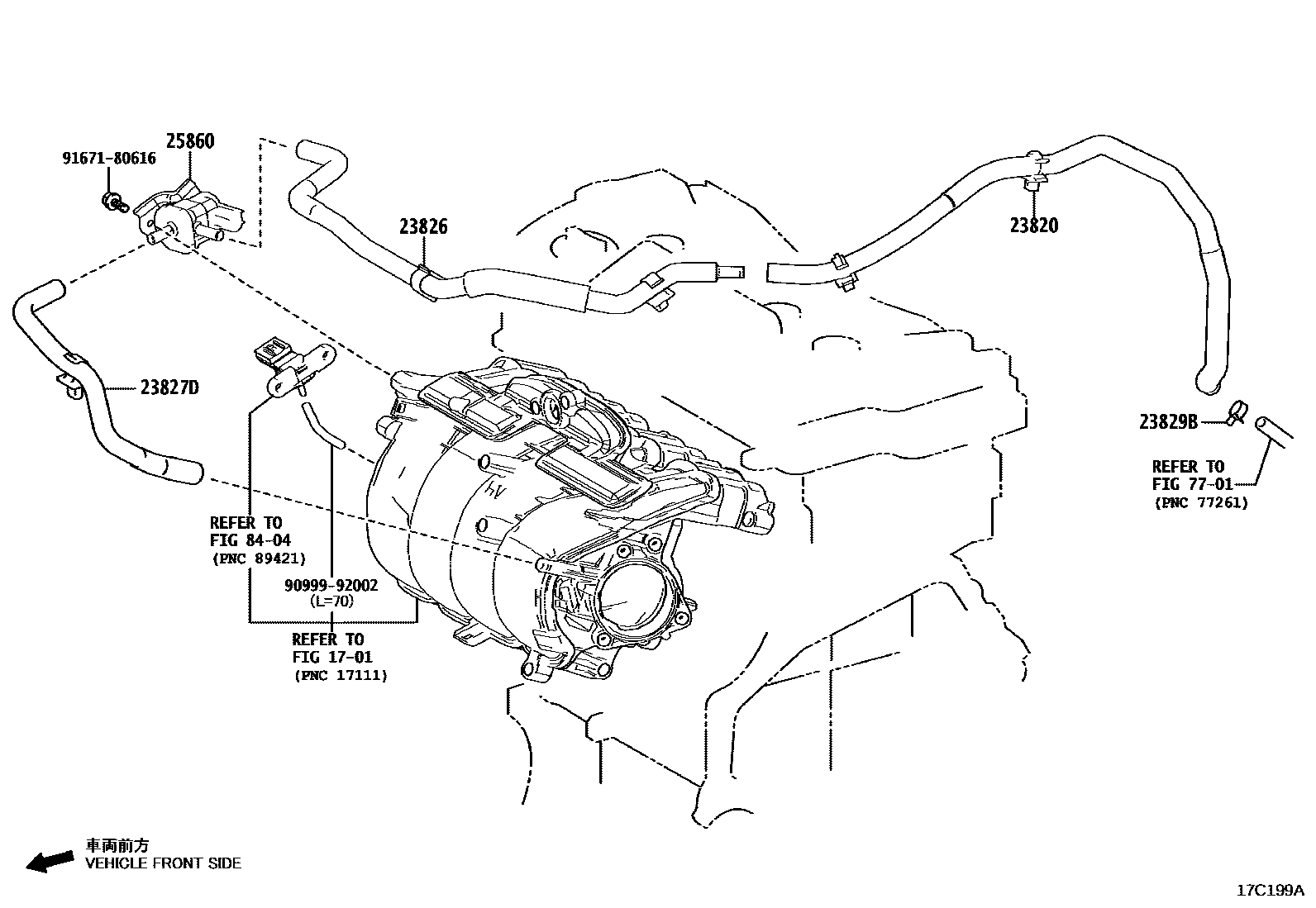

Toyota CROWN CROSSOVER — VACUUM PIPING

0001 1 0002 1

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25320iT24AFTS..TZSH35¥2,920202209

main23820-25380iA25AFXS..AZSH35¥3,570202209

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25150iA25AFXS..AZSH35¥3,540202209

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25160iA25AFXS..AZSH35¥2,200202209

main23827-25150iT24AFTS..TZSH35¥1,850202209

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96136-41901iT24AFTS..TZSH35¥120202212

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25070iA25AFXS..AZSH35¥3,480202209

main25860-25100iT24AFTS..TZSH35¥3,480202209

7701

8404

9099992002

main90999-92002¥460

9167180616

main91671-80616¥60

10 parts on this diagram · 2 diagrams in section
