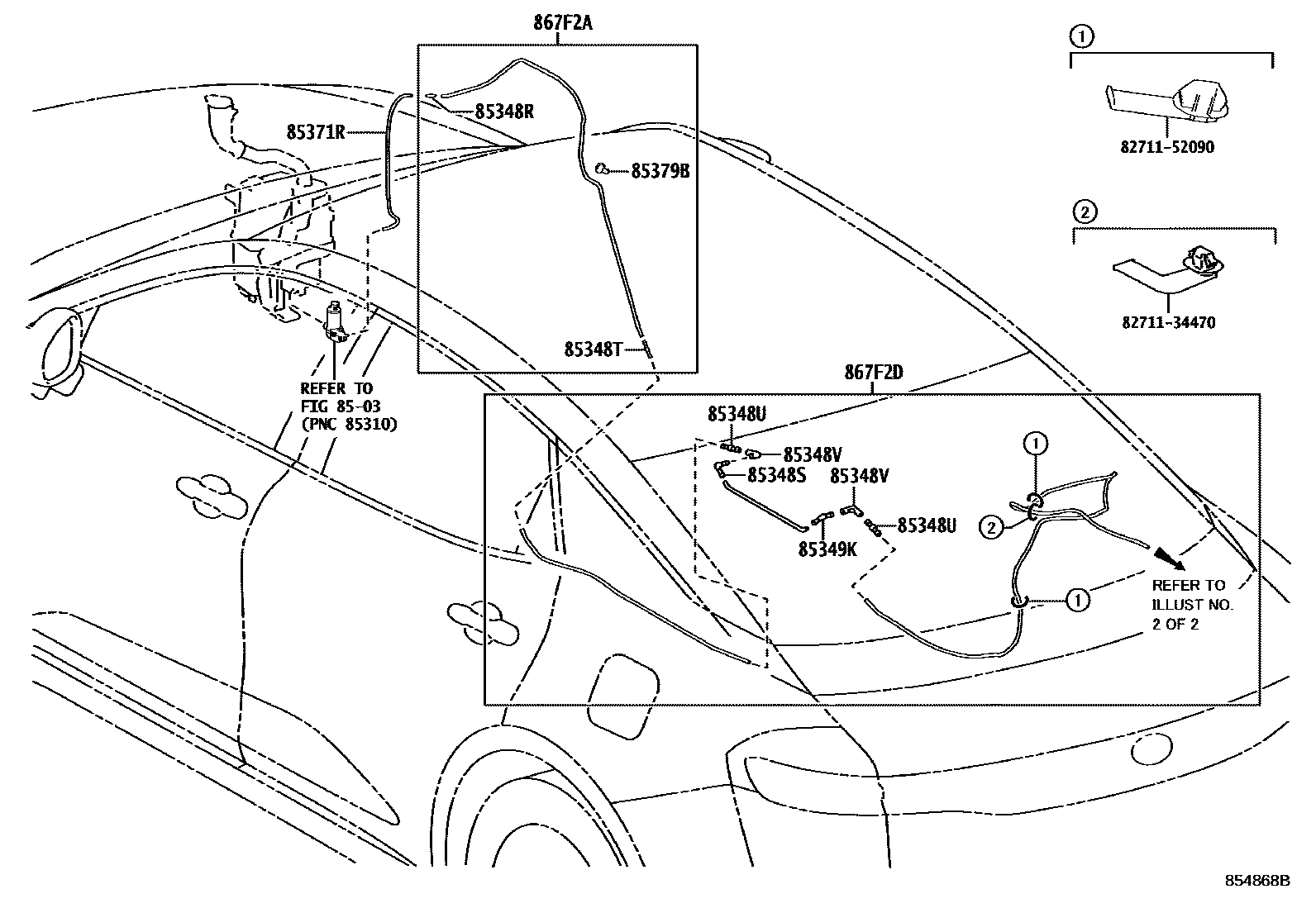

Toyota CROWN CROSSOVER — REAR WASHER
8503
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85349KJOINT, REAR WASHER ELBOW, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85379BGROMMET, WASHER, A
867F2AHOSE ASSY, CAMERA CLEANER
867F2DHOSE, CAMERA CLEANER, NO.3
8271134470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
13 parts on this diagram · 2 diagrams in section
