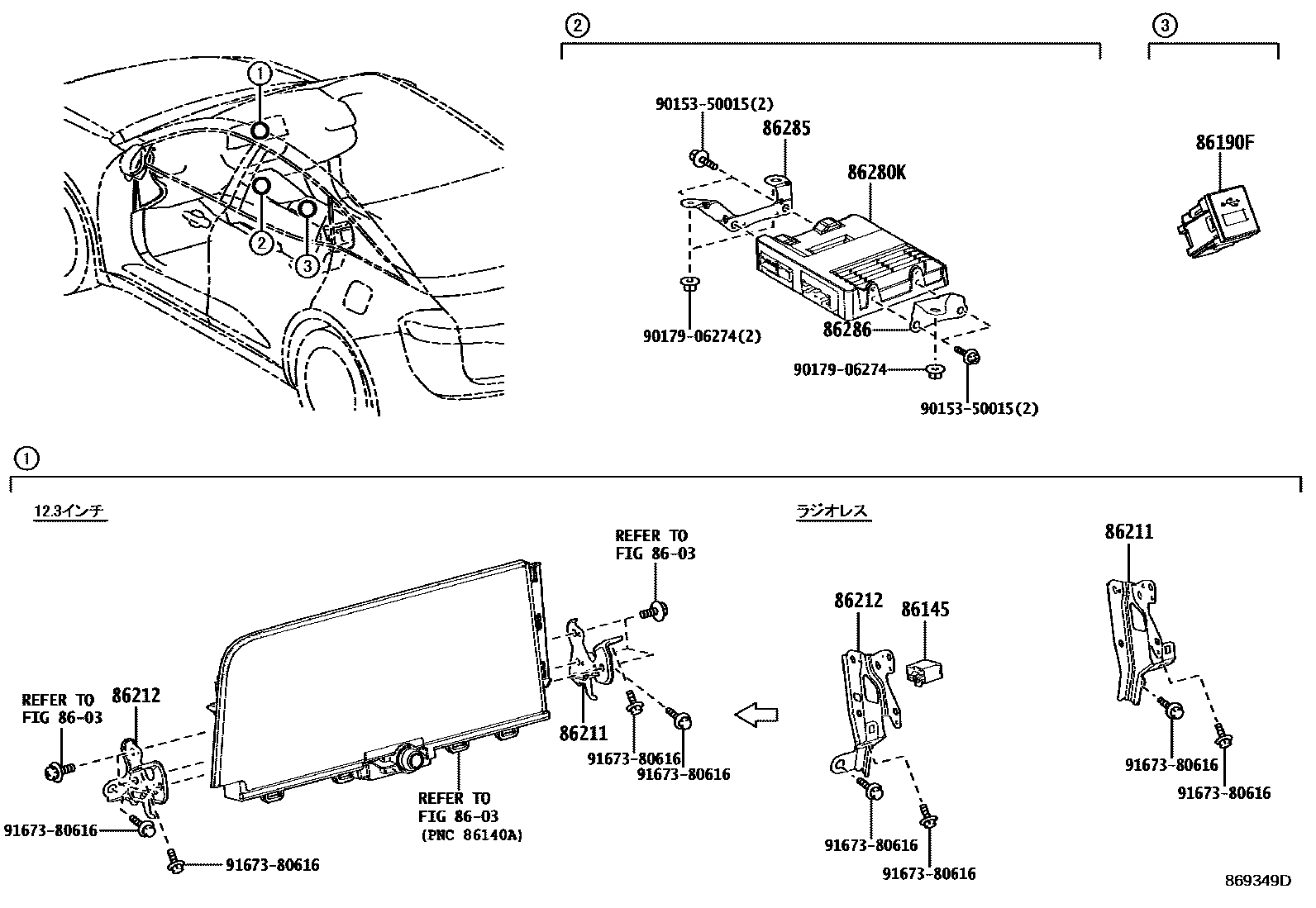

Toyota CROWN CROSSOVER — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

8603

86145CONNECTOR, ANTENNA MALE

main86145-52010iAZSH35..X¥170202209

86190FADAPTER ASSY, STEREO JACK

main86190-12080iAZSH35,TZSH35..G,RS,Z¥3,780202404

main86190-34010iAZSH35,TZSH35..G,RS,Z¥3,780202209-202404

86211BRACKET, RADIO, NO.1

main86211-12470iAZSH35,TZSH35..G,RS,Z¥260202209

main86211-30490iAZSH35..X¥380202209

86212BRACKET, RADIO, NO.2

main86212-12460iAZSH35,TZSH35..G,RS,Z¥320202209

main86212-30450iAZSH35..X¥380202209

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-30A10iAZSH35,TZSH35..RS,Z¥83,000202404

86285BRACKET, AMPLIFIER, NO.1

main86285-30440iAZSH35,TZSH35..RS,Z¥300202404

86286BRACKET, AMPLIFIER, NO.2

main86286-30160iAZSH35,TZSH35..RS,Z¥300202404

9015350015

main90153-50015¥60

9017906274

main90179-06274¥70

9167380616

main91673-80616¥60

11 parts on this diagram · 2 diagrams in section
