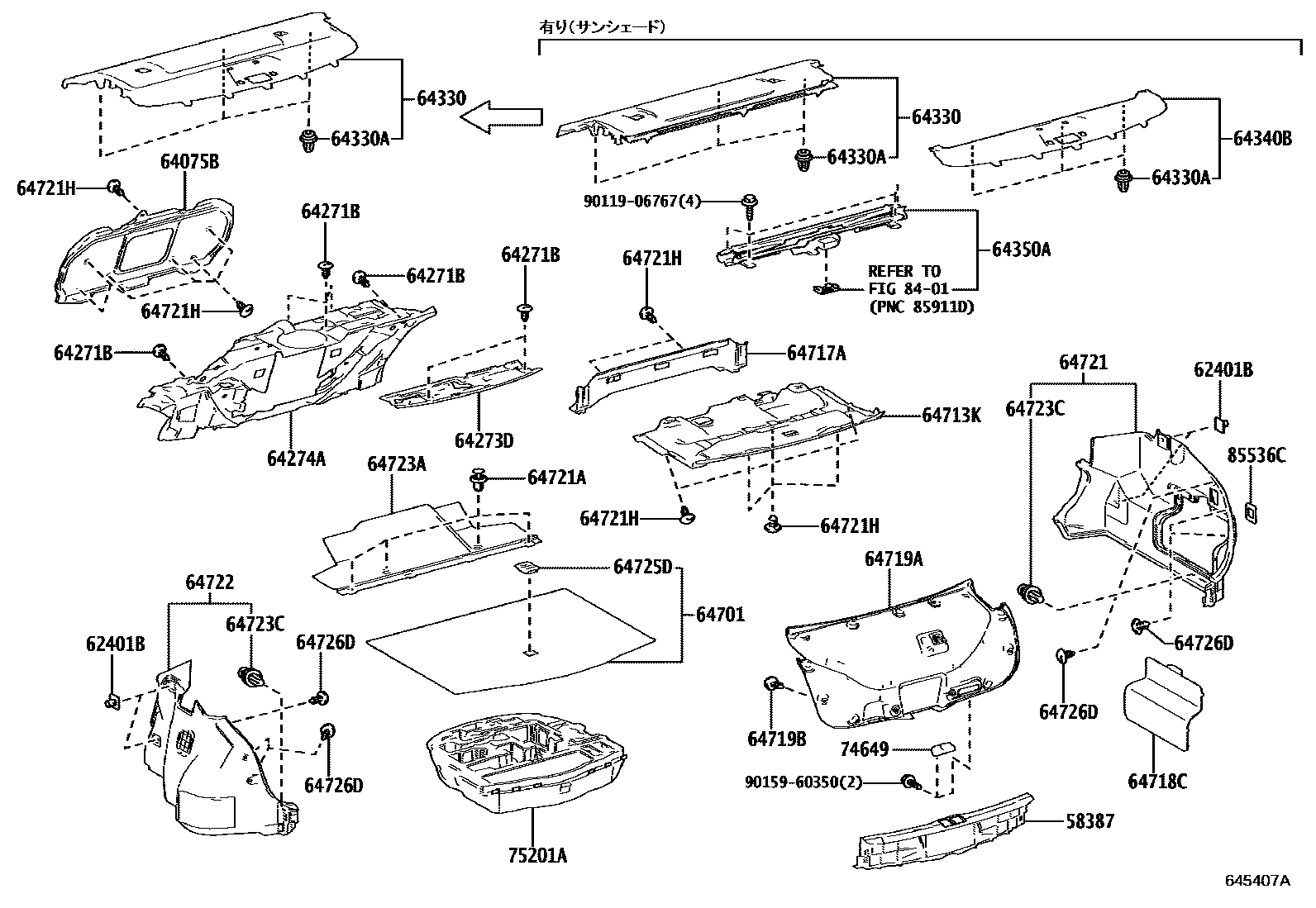

Toyota CROWN CROSSOVER — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM2#
BLACK,TRIM0#,2#
62401BFASTENER, HOOK
64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM2#
BLACK,TRIM0#,2#
64271BCLIP(FOR ROOM PARTITION BOARD)
64273DPAD, ROOM PARTITION, NO.1
64274APAD, ROOM PARTITION, NO.2
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64350ASHADE ASSY, REAR WINDOW
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM2#
BLACK,TRIM0#,2#
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
BLACK,TRIM2#
BLACK,TRIM0#,2#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM2#
BLACK,TRIM0#,2#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM2#
BLACK,TRIM0#,2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721HCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM2#
BLACK,TRIM0#,2#
64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER
BLACK,TRIM2#
BLACK,TRIM0#,2#
64723CCLIP, LUGGAGE COMPARTMENT TRIM COVER
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726DCLIP, LUGGAGE TRIM, REAR
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
75201ABOX, TOOL
8401
85536CBEZEL, POWER OUTLET SOCKET
BLACK,TRIM2#
BLACK,TRIM0#,2#
9011906767
9015960350
30 parts on this diagram · 3 diagrams in section
