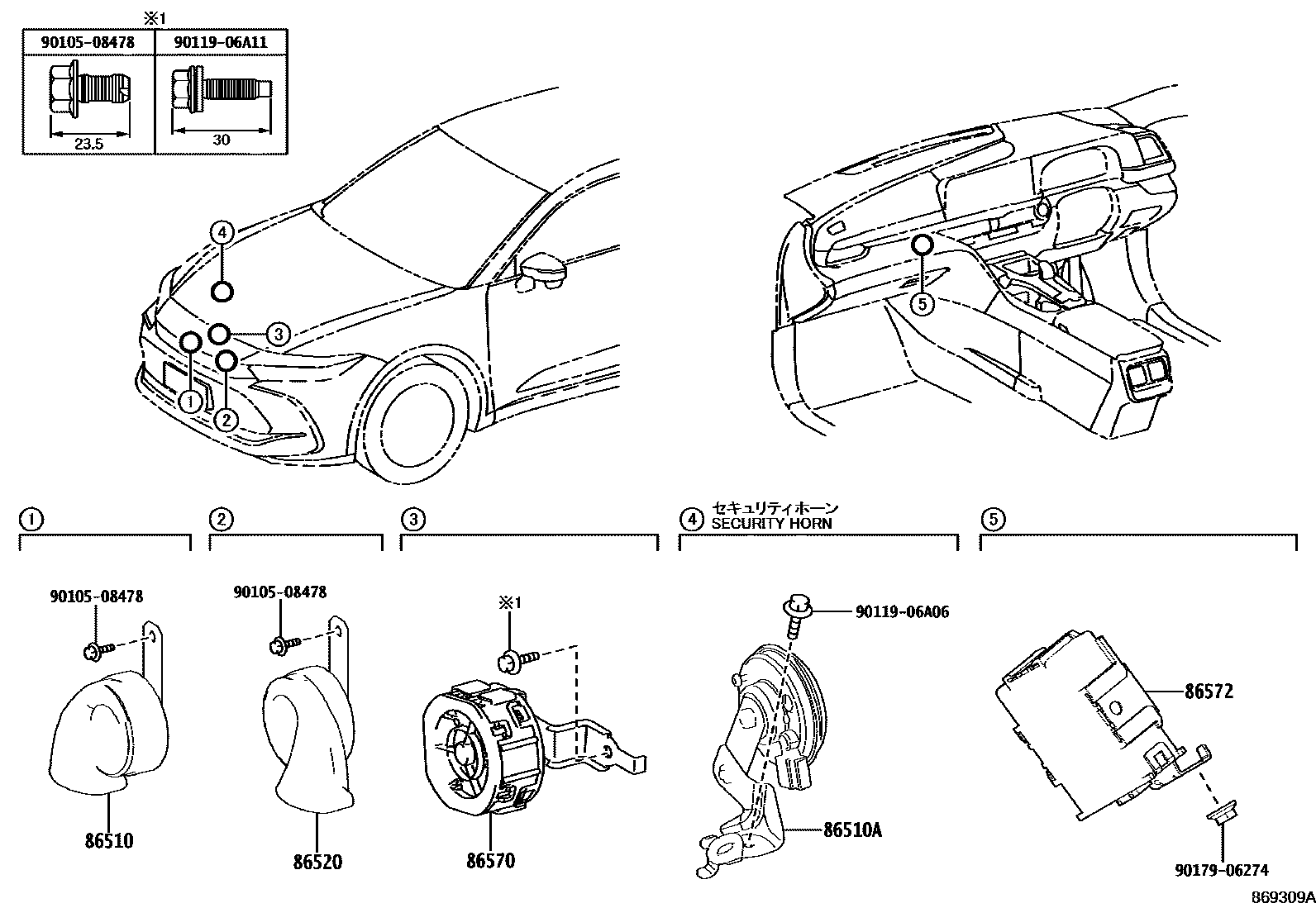

Toyota CROWN CROSSOVER — HORN

86510HORN ASSY, HIGH PITCHED

main86510-30740iAZSH35,TZSH35¥2,480202209

86510AHORN ASSY, SECURITY

main86560-33060iAZSH35,TZSH35¥2,190202209

86520HORN ASSY, LOW PITCHED

main86520-30650iAZSH35,TZSH35¥2,480202209

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-30110iAZSH35,TZSH35202404

main86570-42030iAZSH35,TZSH35202209-202404

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-30110iAZSH35,TZSH35202209-202404

main865H2-30090iAZSH35,TZSH35¥8,800202404

9010508478

main90105-08478¥80

9011906A06

main90119-06A06¥60

9011906A11

main90119-06A11¥60

9017906274

main90179-06274¥70

9 parts on this diagram · 1 diagram in section
