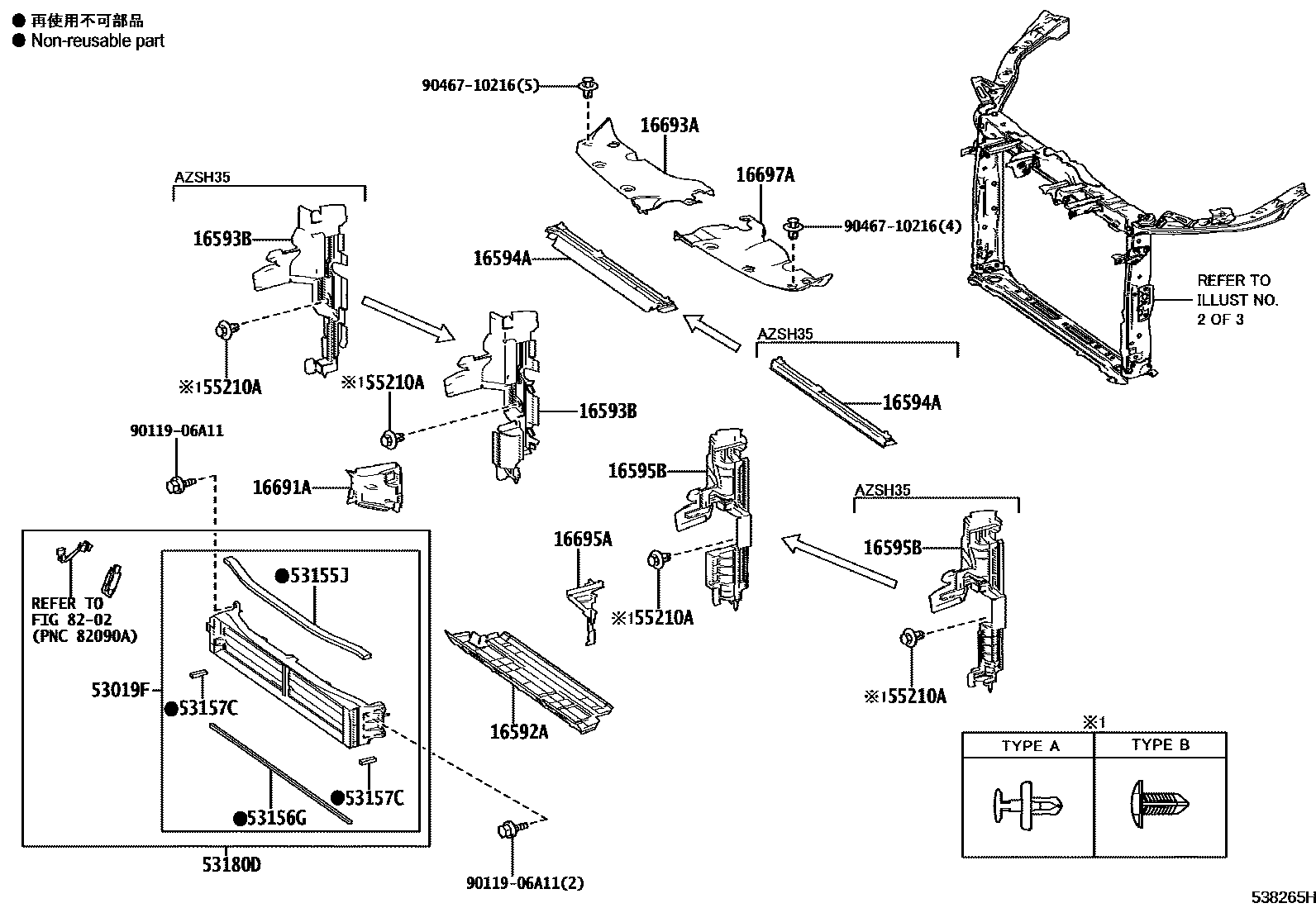

Toyota CROWN CROSSOVER — FRONT FENDER APRON & DASH PANEL

0001 1�������&��������������� 0002 1�����������&���������� 0003 1���������

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25060iA25AFXS,T24AFTS..AZSH35,TZSH35¥3,850202209

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25300iA25AFXS..AZSH35¥3,850202209

main16593-25310iT24AFTS..TZSH35¥3,850202209

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020iT24AFTS..TZSH35¥2,380202209-202501

main16594-25040iA25AFXS..AZSH35¥1,540202209

main16594-25050iT24AFTS..TZSH35202501

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25290iA25AFXS..AZSH35¥3,850202209

main16595-25300iT24AFTS..TZSH35¥3,850202209

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25160iA25AFXS,T24AFTS..AZSH35,TZSH35¥1,440202209

16693APLATE, RADIATOR SIDE AIR GUIDE, REAR RH

main16693-25030iA25AFXS,T24AFTS..AZSH35,TZSH35¥3,980202209

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25160iA25AFXS,T24AFTS..AZSH35,TZSH35¥1,440202209

16697APLATE, RADIATOR SIDE AIR GUIDE, REAR LH

main16697-25030iA25AFXS,T24AFTS..AZSH35,TZSH35¥4,500202209

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-33020iAZSH35¥9,100202209

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-33120iAZSH35¥550202209

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-33010iAZSH35¥370202209

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-33010iAZSH35¥370202209

53180DSHUTTER ASSY, RADIATOR

main53180-33090iAZSH35¥22,600202209-202303

sub53180-33091¥22,700

main53180-33091iAZSH35¥22,700202304-202311

sub53180-33092¥20,600

main53180-33092iAZSH35¥20,600202312

55210INSULATOR ASSY, DASH PANEL

main55210-30550iAZSH35,TZSH35¥17,200202209-202405

sub55210-30551¥15,600

main55210-30551iAZSH35,TZSH35¥15,600202406

55210ACLIP

main90467-07220iAZSH35,TZSH35¥80202209

main90467-08186-C3iAZSH35,TZSH35202209

sub90467-08186¥120

8202

9011906A11

main90119-06A11¥60

9046710216

main90467-10216¥100

18 parts on this diagram · 3 diagrams in section
