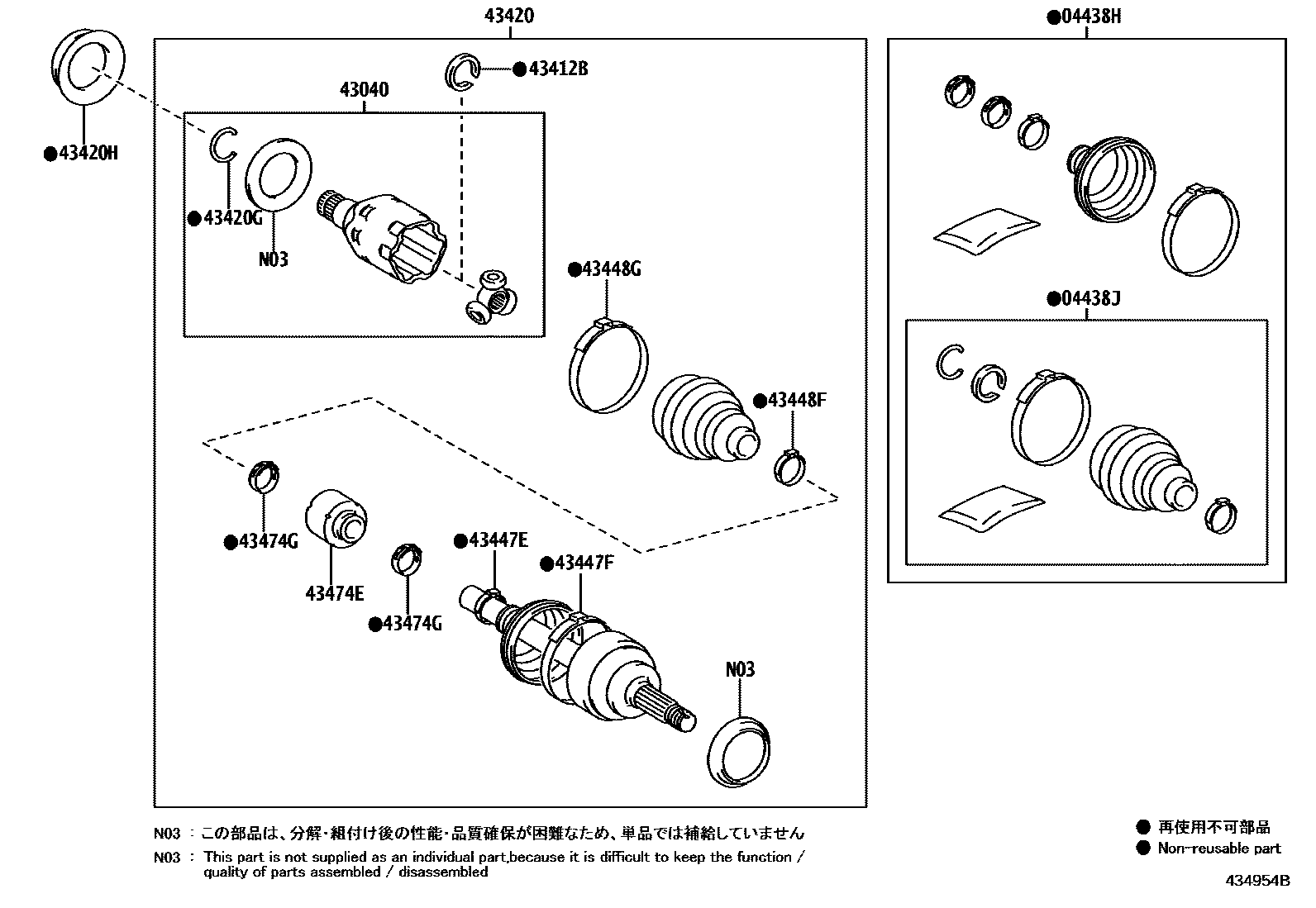

Toyota CROWN CROSSOVER — FRONT DRIVE SHAFT

0001 1������� 0002 1������ 0003 1������� 0004 1������ 0005 1

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-28170iAZSH35¥6,700202209

main04428-48150iTZSH35¥7,500202209-202304

sub04428-48170¥6,700

main04428-48170iTZSH35¥6,700202305

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-28160iAZSH35¥4,150202209

main04438-48170iTZSH35¥4,150202209

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-28060iAZSH35¥14,300202209

main43040-48070iTZSH35¥13,000202209

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-28010iAZSH35¥40202209

main43425-42040iTZSH35¥40202209

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-30060iTZSH35¥47,100202209

main43420-30070iAZSH35¥51,900202209-202409

sub43420-30071¥47,100

main43420-30071iAZSH35¥47,100202410

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-42060iTZSH35¥40202209

main90521-33002iAZSH35¥100202209

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50058iAZSH35,TZSH35¥610202209

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-28050iAZSH35¥360202209

main42345-48240iTZSH35¥380202209

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-48280iTZSH35¥670202209

main42345-78090iAZSH35¥630202209

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-28050iAZSH35¥360202209

main42345-48240iTZSH35¥380202209

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-28040iAZSH35¥630202209

main42345-48270iTZSH35¥630202209

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-42050iAZSH35¥4,090202209

main43474-42080iTZSH35¥3,880202209

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-12090iAZSH35¥140202209

main42345-42130iTZSH35¥200202209-202304

sub42345-42250¥210

main42345-42250iTZSH35¥210202305

13 parts on this diagram · 5 diagrams in section
