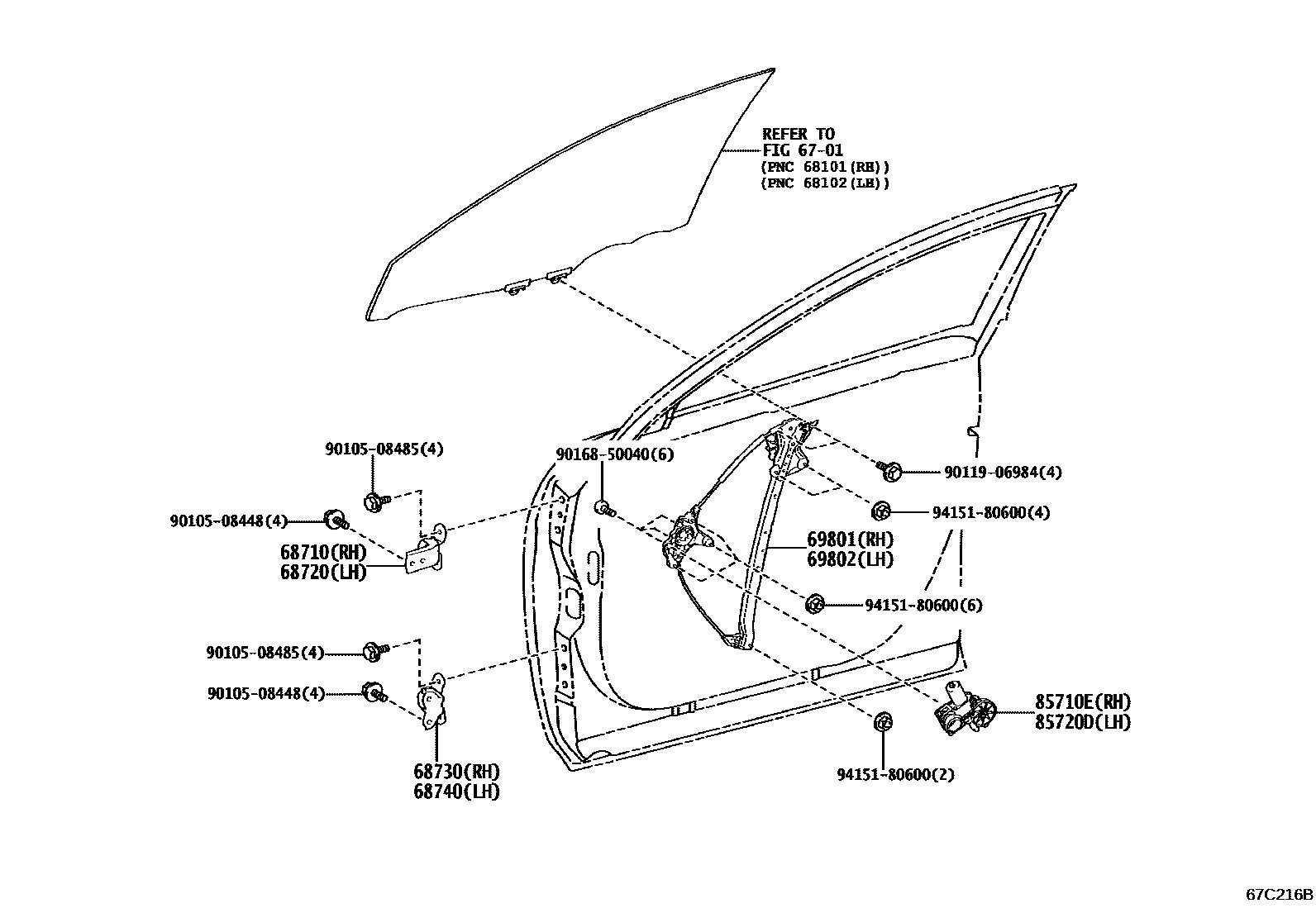

Toyota CROWN CROSSOVER — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iAZSH35,TZSH35¥2,050202209

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iAZSH35,TZSH35¥2,050202209

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iAZSH35,TZSH35¥2,240202209

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iAZSH35,TZSH35¥2,240202209

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30310iAZSH35,TZSH35¥4,560202209

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30310iAZSH35,TZSH35¥4,560202209

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30570iAZSH35,TZSH35¥12,600202209

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-30510iAZSH35,TZSH35¥12,600202209

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
