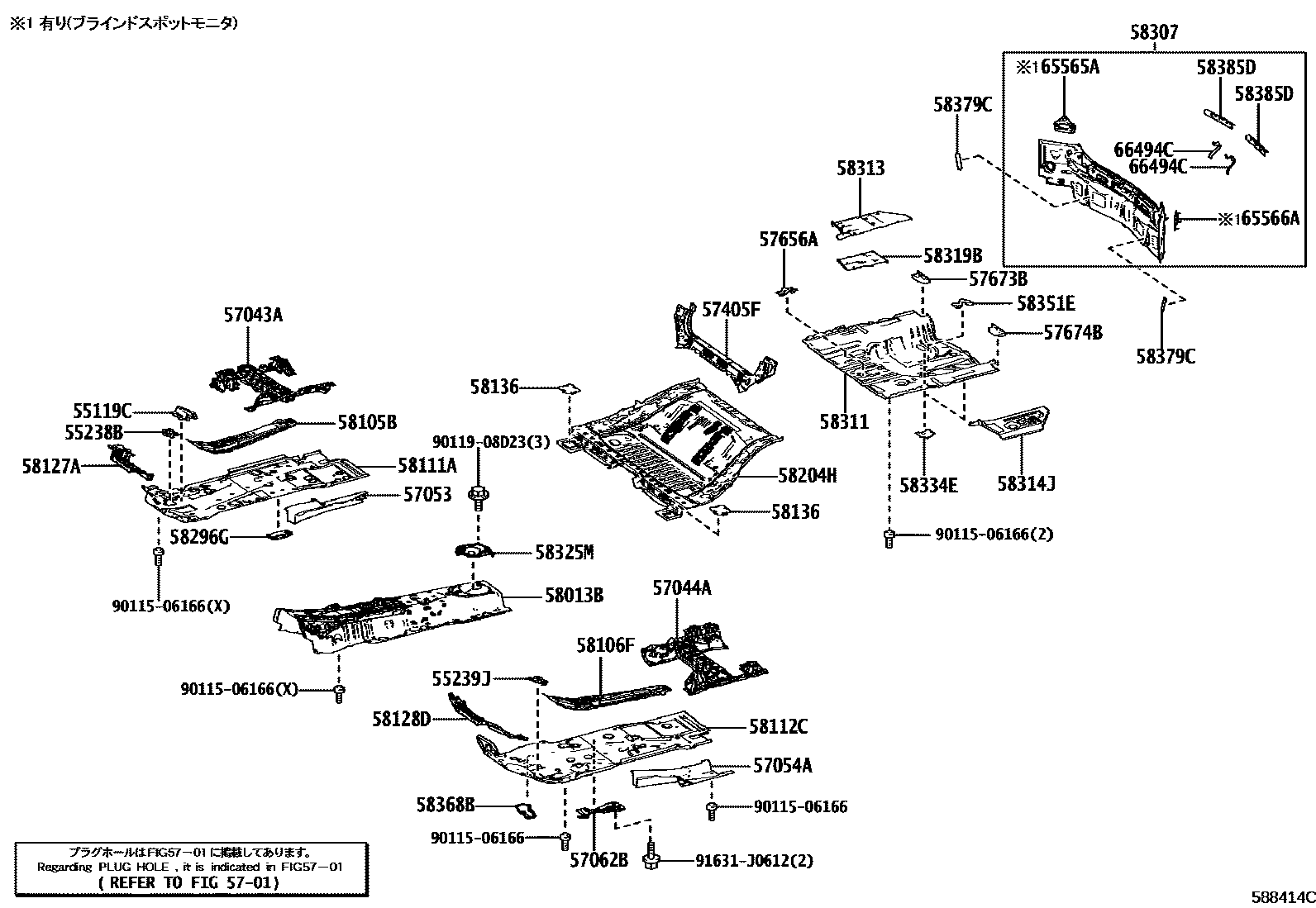

Toyota CROWN CROSSOVER — FLOOR PAN & LOWER BACK PANEL

55119CBRACKET, CLUTCH BOOSTER

main55119-42020iAZSH35,TZSH35¥820202209

55238BPLATE, DASH PANEL INSULATOR, LOWER RH

main55238-42010iAZSH35,TZSH35¥270202209

55239JPLATE, DASH PANEL INSULATOR, LOWER LH

main55239-42010iAZSH35,TZSH35¥270202209

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-30030iAZSH35,TZSH35¥12,400202209

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-30030iAZSH35,TZSH35¥12,400202209

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30100iAZSH35,TZSH35¥4,210202209

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30110iAZSH35,TZSH35¥4,840202209

57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH

main57062-78040iAZSH35,TZSH35¥1,890202209

57405FMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-30090iAZSH35,TZSH35¥8,100202209

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-30050iAZSH35,TZSH35¥620202209

57673BBRACE, REAR FLOOR NO.2 CROSSMEMBER, RH

main57673-30020iAZSH35,TZSH35¥630202209

57674BBRACE, REAR FLOOR NO.2 CROSSMEMBER, LH

main57674-30030iAZSH35,TZSH35¥630202209

58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER

main58013-30550iAZSH35,TZSH35¥37,800202209

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-78010iAZSH35,TZSH35¥9,100202209

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-78010iAZSH35,TZSH35¥9,100202209

58111APAN, FRONT FLOOR, RH

main58111-30510iAZSH35,TZSH35¥22,200202209-202302

sub58111-30511¥20,200

main58111-30511iAZSH35,TZSH35¥20,200202303

58112CPAN, FRONT FLOOR, LH

main58112-30250iAZSH35,TZSH35¥20,200202209

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-30050iAZSH35,TZSH35¥4,210202209

58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-30010iAZSH35,TZSH35¥4,750202209

58136COVER, FRONT FLOOR HOLE

main58136-42030iAZSH35,TZSH35¥270202209

58204HPAN SUB-ASSY, CENTER FLOOR, REAR

main58204-30060iAZSH35¥33,300202209-202311

sub58204-30061¥30,300

sub90333-20001¥70

main58204-30061iAZSH35¥30,300202311

main58204-30070iTZSH35¥33,300202209-202311

sub58204-30071¥30,300

sub90333-20001¥70

main58204-30071iTZSH35¥30,300202311

58296GBRACKET, FRONT FLOOR BRACE MOUNTING

main58296-30020iAZSH35,TZSH35¥1,550202209-202307

sub58296-30021¥1,410

sub90950-01A42¥100

main58296-30021iAZSH35,TZSH35¥1,410202307

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30871iAZSH35,TZSH35..RS,Z¥12,200202404

main58307-30871iAZSH35..G,X¥12,200202209

main58307-30881iAZSH35,TZSH35..RS,Z¥14,200202209-202404

�V�[�g�\���|�{�v

main58307-30881iAZSH35,TZSH35..RS,Z¥14,200202209-202404

�d�l�u�@���@�i�r�Q�[�V�����@�V�X�e���|�����i�P�Q�D�R�C���`�f�B�X�v���C�j

main58307-30881iAZSH35..G¥14,200202209-202404

�g�`���������������h�����g�`���������������E�k�������������@�o�������������h

main58307-30881iAZSH35..G¥14,200202209-202404

�g�`���������������h�����g�`���������������E�k�������������@�o�������������h���V�[�g�\���|�{�v

58311PAN, REAR FLOOR

main58311-30913iAZSH35,TZSH35¥17,300202209

58313PANEL, REAR FLOOR SIDE, RH

main58313-30220iAZSH35,TZSH35¥2,440202209

58314JPANEL, REAR FLOOR SIDE, LH

main58314-30260iAZSH35,TZSH35¥2,440202209

58319BBRACKET, REAR FLOOR SIDE PANEL

main58319-30060iAZSH35,TZSH35¥2,610202209

58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1

main58325-30110iAZSH35,TZSH35¥1,320202209

58334EREINFORCEMENT, REAR FLOOR PART PANEL, NO.2

main58334-30070iAZSH35,TZSH35¥500202209

58351EBRACKET, SPARE WHEEL CLAMP

main58351-12070iAZSH35,TZSH35¥480202209

58368BBRACKET, FUEL TUBE, NO.2

main58368-42010iAZSH35,TZSH35¥1,320202209

58379CPROTECTOR, BODY LOWER BACK

58385DBRACKET, REAR BUMPER COVER

main58385-33060iAZSH35,TZSH35¥790202209

65565APATCH, SIDE PANEL REAR END, RH

main65565-50010iAZSH35,TZSH35..RS,Z¥900202209-202404

�g�`���������������h�����g�`���������������E�k�������������@�o�������������h

main65565-50010iAZSH35,TZSH35..RS,Z¥900202209-202404

�g�`���������������h�����g�`���������������E�k�������������@�o�������������h���V�[�g�\���|�{�v

main65565-50010iAZSH35,TZSH35..RS,Z¥900202209-202404

�V�[�g�\���|�{�v

main65565-50010iAZSH35,TZSH35..RS,Z¥900202209-202404

�d�l�u�@���@�i�r�Q�[�V�����@�V�X�e���|�����i�P�Q�D�R�C���`�f�B�X�v���C�j

65566APATCH, SIDE PANEL REAR END, LH

main65565-50010iAZSH35,TZSH35..RS,Z¥900202209-202404

�g�`���������������h�����g�`���������������E�k�������������@�o�������������h

main65565-50010iAZSH35,TZSH35..RS,Z¥900202209-202404

�g�`���������������h�����g�`���������������E�k�������������@�o�������������h���V�[�g�\���|�{�v

main65565-50010iAZSH35,TZSH35..RS,Z¥900202209-202404

�V�[�g�\���|�{�v

main65565-50010iAZSH35,TZSH35..RS,Z¥900202209-202404

�d�l�u�@���@�i�r�Q�[�V�����@�V�X�e���|�����i�P�Q�D�R�C���`�f�B�X�v���C�j

66494CPLATE, LICENSE BRACKET

main66494-30010iAZSH35,TZSH35¥250202209

9011506166

main90115-06166¥90

9011908D23

main90119-08D23¥60

91631J0612

main91631-J0612¥110

40 parts on this diagram · 1 diagram in section
