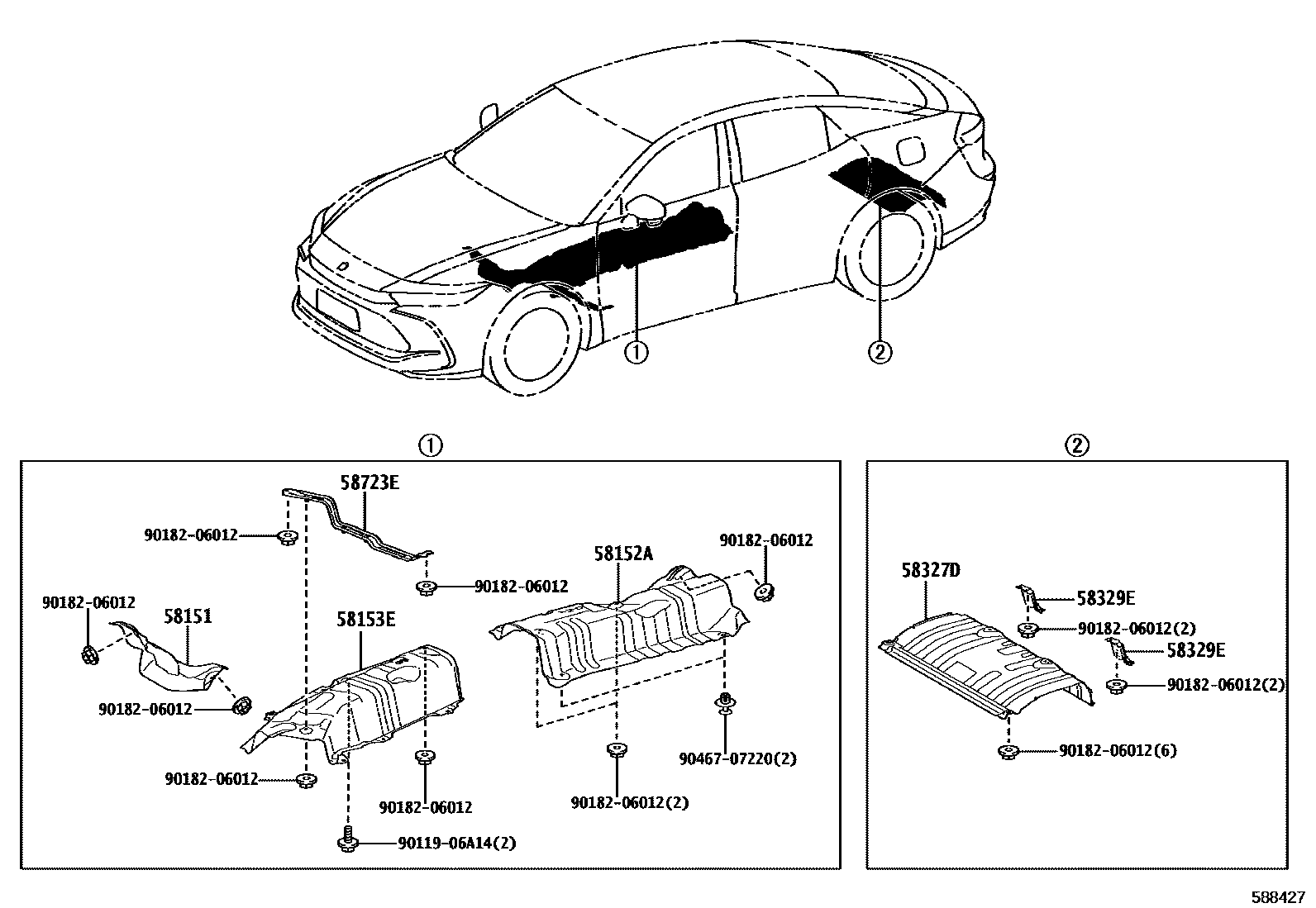

Toyota CROWN CROSSOVER — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30230iTZSH35¥2,190202209

main58151-42060iAZSH35¥2,100202209

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-30080iAZSH35,TZSH35¥4,870202209

58153EINSULATOR, FRONT FLOOR HEAT, NO.2

main58153-30050iAZSH35,TZSH35¥5,300202209

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-30110iAZSH35,TZSH35¥4,810202209

58329EINSULATOR, MAIN MUFFLER HART, REAR UPPER

main58329-30050iAZSH35,TZSH35¥820202209

58723ECUSHION, ENGINE SERVICE COVER

main58723-42040iAZSH35,TZSH35¥2,330202209

9011906A14

main90119-06A14¥60

9018206012

main90182-06012¥60

9046707220

main90467-07220¥80

9 parts on this diagram · 1 diagram in section
