Toyota CROWN CROSSOVER — ENGINE OIL COOLER

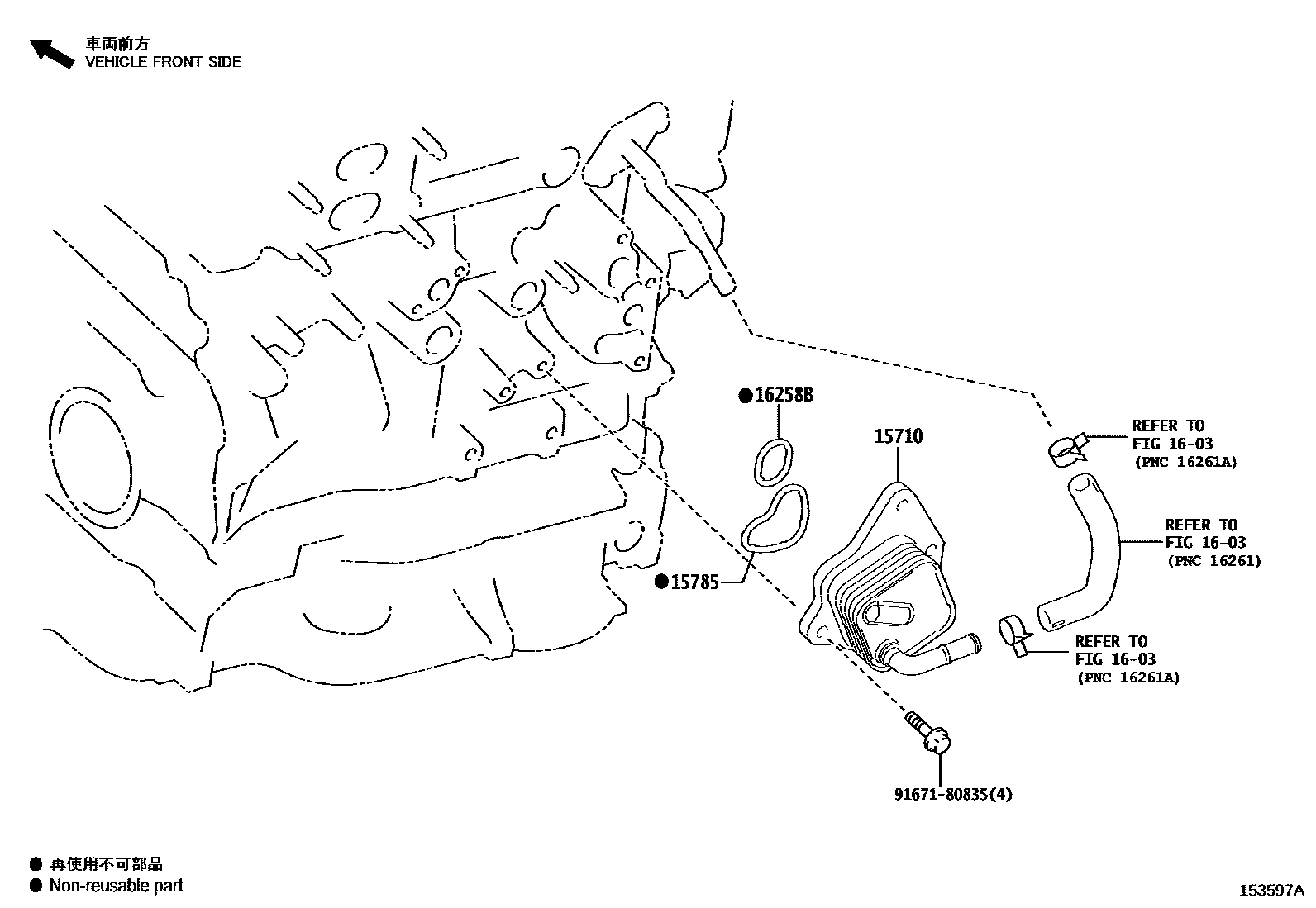

Parts diagram

15710COOLER ASSY, OIL

main15710-25040i¥26,900202209

15785GASKET, OIL COOLER

main15785-25020i¥340202209

1603

16258BGASKET, OIL COOLER PIPE

main16258-25020i¥340202209

9167180835

main91671-80835¥100

5 parts on this diagram · 1 diagram in section
