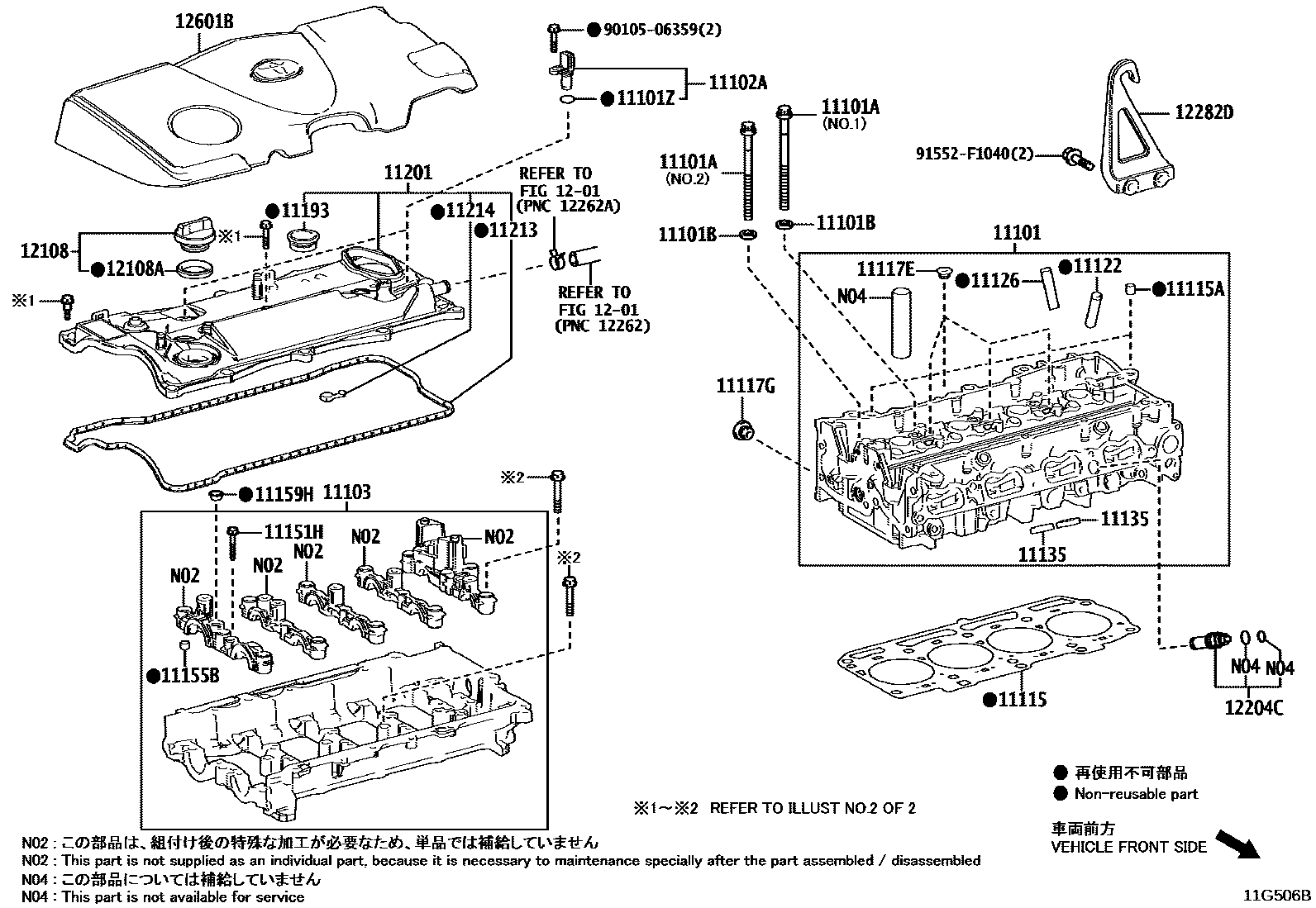

Toyota CROWN CROSSOVER — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
11103HOUSING SUB-ASSY, CAMSHAFT
11115GASKET, CYLINDER HEAD
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
11122BUSH, INTAKE VALVE GUIDE
11126BUSH, EXHAUST VALVE GUIDE
11135SEAT, EXHAUST VALVE
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12204CVALVE SUB-ASSY, VENTILATION
12282DHANGER, ENGINE, NO.2
12601BCOVER SUB-ASSY, ENGINE, NO.1
9010506359
91552F1040
28 parts on this diagram · 7 diagrams in section
