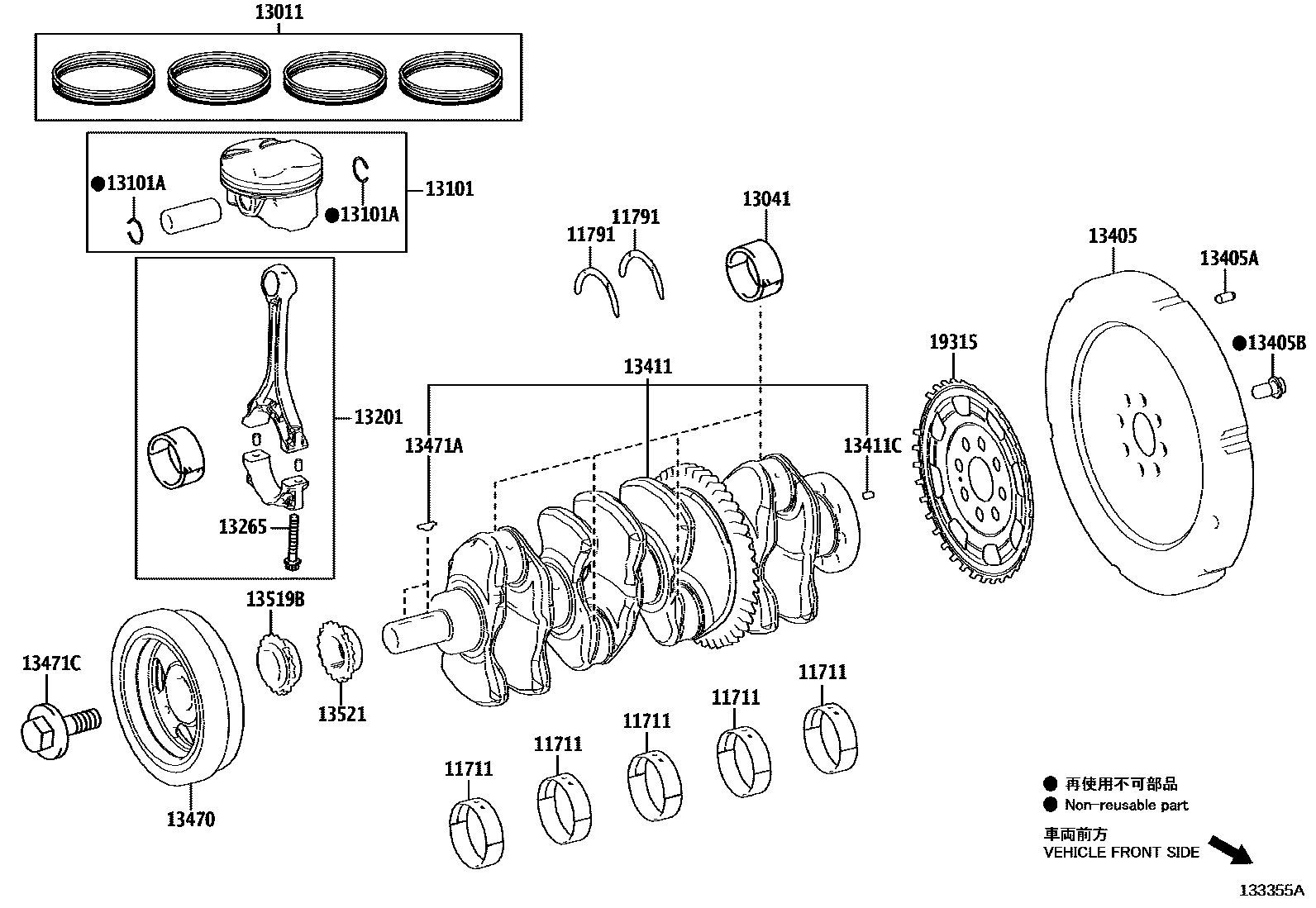

Toyota CROWN CROSSOVER — CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
11791WASHER, CRANKSHAFT THRUST, UPPER
13011RING SET, PISTON
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13470PULLEY ASSY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519BSPROCKET, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
19315PLATE, CRANK ANGLE SENSOR, NO.1
19 parts on this diagram · 2 diagrams in section
