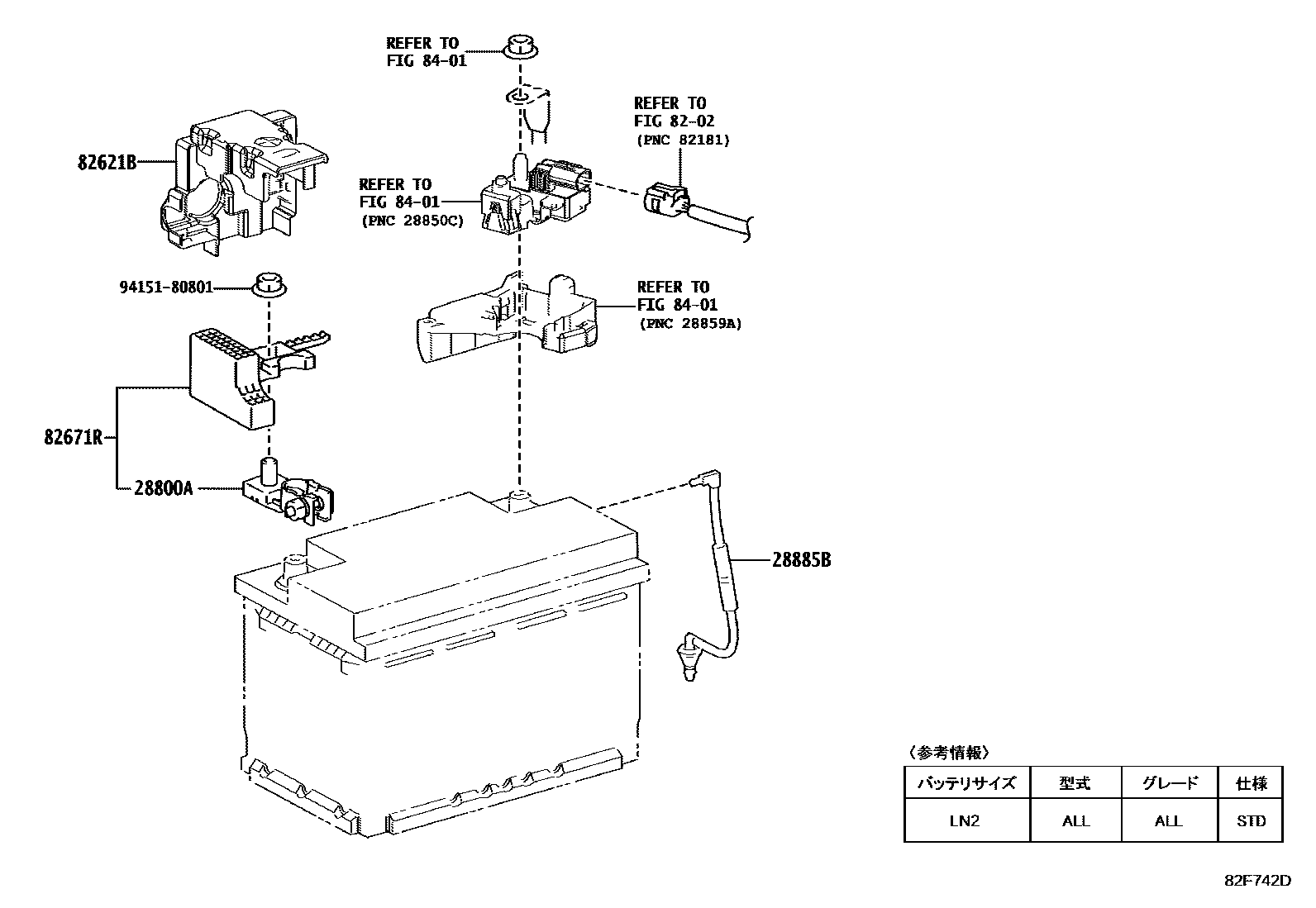

Toyota CROWN CROSSOVER — BATTERY & BATTERY CABLE

0001 112V����� 0002 1HV����� 0003 1HV����� 0004 1HV�����

28800ATERMINAL, BATTERY POSITIVE

main90982-05053iA25AFXS,T24AFTS..AZSH35,TZSH35¥860202209

28885BHOSE, BATTERY

main28885-25060iA25AFXS,T24AFTS..AZSH35,TZSH35¥1,130202209

8202

82621BCOVER, FUSIBLE LINK

main82621-30030iAZSH35¥740202209

main82621-30040iTZSH35¥740202209

82671RSTOPPER, BATTERY TERMINAL

main82670-30380iAZSH35,TZSH35¥2,030202209

8401

9415180801

main94151-80801¥80

7 parts on this diagram · 4 diagrams in section
