Toyota COROLLA — PARTIAL ENGINE ASSEMBLY

0001 1 0002 1

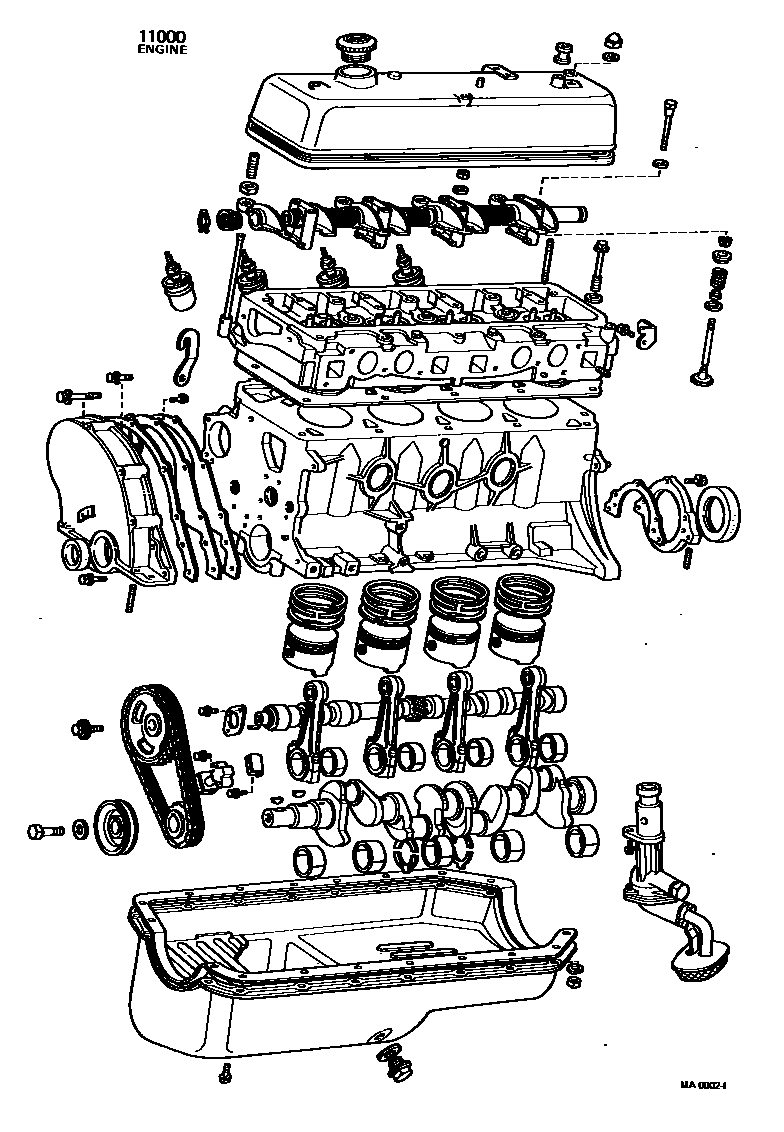

11000ENGINE ASSY, PARTIAL

main19000-24190i3KC..KE3#197408-197508

sub19000-24191

sub11293-24053

main19000-24191i3KC..KE3#,50..DLX,STD197508-197705

sub19000-24192

sub12302-19015

sub33119-12021

main19000-24191i3KC..KE30..USA197701-197705

CANADA SPEC.

sub19000-24192

sub12302-19015

sub33119-12021

main19000-24192i3KC..KE30..USA197705-197708

CANADA SPEC.

main19000-24193i3KC..KE30,50..CND197708-197710

sub19000-24194

main19000-24194i3KC..KE30,50..CND197710-197908

main19000-24260i3KC..KE30..USA197608-197705

sub19000-24261

sub12302-19015

sub33119-12021

main19000-24261i3KC..KE30..USA197705-197708

main19000-24262i3KC..KE30..USA197708-197710

sub19000-24263

main19000-24263i3KC..KE30..USA197710-197908

main19000-26080i2TC..TE3#..DLX,STD197408-197512

sub19000-26081

sub16100-25012

sub16129-25010

main19000-26081i2TC..TE3#,51..DLX,STD197512-197607

sub19000-26082

sub90116-10013

main19000-26082i2TC..TE3#,51..DLX,SPL,STD197608-197701

CANADA SPEC.

main19000-26082i2TC..TE3#,51..DLX,STD197607-197608

main19000-26083i2TC..TE3#,51197701-197708

CANADA SPEC.

main19000-26084i2TC..TE3#,51..CND197708-197908

main19000-26090i2TC..TE3#197408-197512

CALIFORNIA SPEC.

sub19000-26091

sub16100-25012

sub16129-25010

main19000-26091i2TC..TE3#197512-197607

CALIFORNIA SPEC.

sub19000-26092

main19000-26092i2TC..TE3#197607-197701

CALIFORNIA SPEC.

sub19000-26082

main19000-26100i2TC..TE37..USA197508-197512

sub19000-26101

sub16100-25012

sub16129-25010

main19000-26101i2TC..TE37..USA197512-197607

sub19000-26102

sub90116-10013

main19000-26102i2TC..TE37..USA197608-197701

CANADA SPEC.

main19000-26102i2TC..TE37..USA197607-197608

main19000-26110i2TC..TE3#197508-197512

CALIFORNIA SPEC.

sub19000-26111

sub16100-25012

sub16129-25010

main19000-26111i2TC..TE3#197512-197607

CALIFORNIA SPEC. W/OK MONITOR

sub19000-26112

main19000-26112i2TC..TE3#197607-197701

CALIFORNIA SPEC. W/OK MONITOR

sub19000-26102

main19000-26190i2TC..TE3#,51197608-197701

sub19000-26191

main19000-26191i2TC..TE3#,51197701-197708

sub19000-26193

sub17351-26170

sub90340-18001

main19000-26192i2TC..TE3#,51..USA197708-197908

sub19000-26194

sub17351-26190

sub90340-18001

main19000-26200i2TC..TE3#,51197608-197701

W/OK MONITOR

sub19000-26201

sub17351-26170

sub90340-18001

main19000-26290i2TC..TE3#,51..USA197708-197808

CAL.& H.A.

sub19000-26292

sub17351-26170

sub90340-18001

main19000-26291i2TC..TE3#,51..USA197808-197908

CALIFORNIA SPEC.

sub19000-26293

sub17351-26200

sub90340-18001

1 parts on this diagram · 2 diagrams in section
