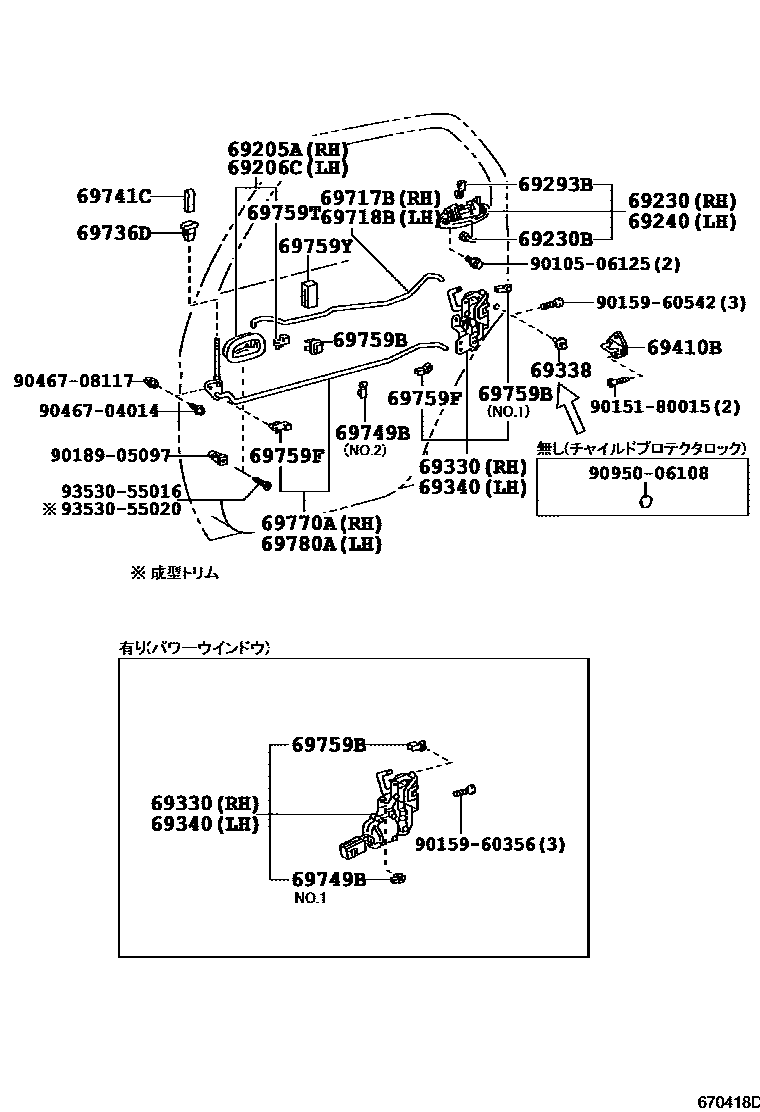

Toyota COROLLA — REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-12130-02iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

sub69205-12130¥2,010

sub69205-28060¥2,000

main69205-12130-03iCE106,EE102,106..05S;AE100,104,109,CE100,104,108,109,EE101,103,104,107,108..DX,GL,L,LX199106-199704

SHADOW GRAY,TRIM1#

sub69205-12130¥2,010

sub69205-28060¥2,000

main69205-12130-04iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

sub69205-12130¥2,010

sub69205-28060¥2,000

main69205-12130-P0iCE106,107,EE102..05S;AE109,CE102,105,108,109,EE103,104199704

SHADOW GRAY,TRIM1#

sub69205-12130¥2,010

sub69205-28060¥2,000

main69207-12020-02iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub69207-12020¥2,010

main69207-12020-03iAE100,104,CE100,104,EE101..LX199205-199305

sub69207-12020¥2,010

main69207-12020-03iAE100,101,104,CE100,104,EE101..(4DS,WG)..(BZT,G,GT,LT,SEG,SEL,XE)199106-199704

SHADOW GRAY,TRIM1#

sub69207-12020¥2,010

main69207-12020-04iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub69207-12020¥2,010

main69207-12020-04iAE100,104,CE100,104,EE101..LX199205-199305

sub69207-12020¥2,010

main69207-12020-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub69207-12020¥2,010

main69207-12020-P0iAE101199705-200008

SHADOW GRAY,TRIM1#

sub69207-12020¥2,010

main69207-12020-P0iAE100,104..LT200004-200008

sub69207-12020¥2,010

main69207-12020-P0iAE100,104..LT199904-200004

sub69207-12020¥2,010

main69207-12020-P0iAE100,104..4FC..LT199807

sub69207-12020¥2,010

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-12130-02iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

sub69206-12130¥2,010

sub69206-28070¥2,000

main69206-12130-03iCE106,EE102,106..05S;AE100,104,109,CE100,104,108,109,EE101,103,104,107,108..DX,GL,L,LX199106-199704

SHADOW GRAY,TRIM1#

sub69206-12130¥2,010

sub69206-28070¥2,000

main69206-12130-04iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

sub69206-12130¥2,010

sub69206-28070¥2,000

main69206-12130-P0iCE106,107,EE102..05S;AE109,CE102,105,108,109,EE103,104199704

SHADOW GRAY,TRIM1#

sub69206-12130¥2,010

sub69206-28070¥2,000

main69208-12020-02iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub69208-12020¥2,010

main69208-12020-03iAE100,101,104,CE100,104,EE101..(4DS,WG)..(BZT,G,GT,LT,SEG,SEL,XE)199106-199704

SHADOW GRAY,TRIM1#

sub69208-12020¥2,010

main69208-12020-03iAE100,104,CE100,104,EE101..LX199205-199305

sub69208-12020¥2,010

main69208-12020-04iAE100,104,CE100,104,EE101..LX199205-199305

sub69208-12020¥2,010

main69208-12020-04iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub69208-12020¥2,010

main69208-12020-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub69208-12020¥2,010

main69208-12020-P0iAE100,104..4FC..LT199807

sub69208-12020¥2,010

main69208-12020-P0iAE100,104..LT199904-200004

sub69208-12020¥2,010

main69208-12020-P0iAE101199705-200008

SHADOW GRAY,TRIM1#

sub69208-12020¥2,010

main69208-12020-P0iAE100,104..LT200004-200008

sub69208-12020¥2,010

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-12140iAE100,104,CE10#,EE10#..CTD,DX,GL,L,LX¥6,600199106-199704

main69230-12140iAE100,104,CE100,104,EE101..LX¥6,600199305-199505

BLACK TYPE

main69230-12140iAE109,CE102,105,106,107,108,109,EE10#¥6,600199704-200008

main69230-12150-03iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199106-199505

DARK BLUEISH GRAY M,183

sub69230-12150¥6,600

main69230-12150-03iAE100..WG199109-199505

DARK BLUEISH GRAY M,183 ,24T

sub69230-12150¥6,600

main69230-12150-03iAE100,104,CE100,104,EE101..LX199110-199305

sub69230-12150¥6,600

main69230-12150-04iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199106-199209

DARK BLUE MICA M,8J7

sub69230-12150¥6,600

main69230-12150-04iAE100,104,CE100,104,EE101..LX199110-199209

sub69230-12150¥6,600

main69230-12150-05iAE100,104,CE100,104,EE101..LX199110-199209

sub69230-12150¥6,600

main69230-12150-05iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199209

LIGHT BEIGE M,3K9

sub69230-12150¥6,600

main69230-12150-07iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199106-199505

GRAYISH GREEN M,6M3

sub69230-12150¥6,600

main69230-12150-07iAE100,104,CE100,104,EE101..LX199110-199305

sub69230-12150¥6,600

main69230-12150-08iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199106-199209

SUPER WHITE 2,040

sub69230-12150¥6,600

main69230-12150-08iAE100,104,CE100,104,EE101..LX199110-199209

sub69230-12150¥6,600

main69230-12150-13iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)199205-199209

sub69230-12150¥6,600

main69230-12150-13iAE100,104,CE100,104,EE101..LX199205-199209

SILVER MICA M,192

sub69230-12150¥6,600

main69230-12150-22iAE100,104,CE100,104,EE101..LX199110-199205

sub69230-12150¥6,600

main69230-12150-22iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

ROSE MICA M.GRAPHITE,3K5

sub69230-12150¥6,600

main69230-12150-34iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)199106-199209

RED MICA M,3K4

sub69230-12150¥6,600

main69230-12150-34iAE100,104,CE100,104,EE101..LX199110-199209

sub69230-12150¥6,600

main69230-12150-A0iAE100,104..4FC..LT199807

sub69230-12150¥6,600

main69230-12150-A0iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199209-200008

SUPER WHITE 2,040

sub69230-12150¥6,600

main69230-12150-A0iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199209-199305

sub69230-12150¥6,600

main69230-12150-B0iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)199209-199305

sub69230-12150¥6,600

main69230-12150-B0iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)199209-199505

SILVER MICA M,192

sub69230-12150¥6,600

main69230-12150-B3iAE100,104,CE100199505-199705

BLUEISH GRAY ME.,182

sub69230-12150¥6,600

main69230-12150-B5iAE100,104..4FC..LT199807

sub69230-12150¥6,600

main69230-12150-B5iAE100,101,104,CE100,101199605-200008

SILVER ME,199

sub69230-12150¥6,600

main69230-12150-B6iAE100,104,CE101199804-200008

CRYSTAL SILVER PEARL,2EX

sub69230-12150¥6,600

main69230-12150-C0iAE101199605-199705

BLACK M,2CD ,205

sub69230-12150¥6,600

main69230-12150-C0iAE101199707-199804

BLACK M,2DB ,205

sub69230-12150¥6,600

main69230-12150-C0iAE100,104..4FC..LT199807

sub69230-12150¥6,600

main69230-12150-C0iAE100,104..LT199904-200004

sub69230-12150¥6,600

main69230-12150-C0iAE100,104..LT200004-200008

sub69230-12150¥6,600

main69230-12150-C0iAE101199804-200008

BLACK M,2DB

sub69230-12150¥6,600

main69230-12150-C1iAE101199705-199707

BLACK M,2DB ,205

sub69230-12150¥6,600

main69230-12150-D0iAE100,104..LT199904-200004

sub69230-12150¥6,600

main69230-12150-D0iAE100,104..4FC..LT199807

sub69230-12150¥6,600

main69230-12150-D0iAE100,104..LT200004-200008

sub69230-12150¥6,600

main69230-12150-D2iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)199209-199305

sub69230-12150¥6,600

main69230-12150-D2iAE100..4FC..G199301-199303

sub69230-12150¥6,600

main69230-12150-D2iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)199209-199305

SILVER MICA M,3K4

sub69230-12150¥6,600

main69230-12150-D2iAE100..G199308-199404

sub69230-12150¥6,600

main69230-12150-D2iAE100..WG199405-199505

SILVER MICA M,28W

sub69230-12150¥6,600

main69230-12150-D2iAE10#,CE100199505-199605

SILVER MICA M,2AF

sub69230-12150¥6,600

main69230-12150-D2iAE100,104,CE100199605-199705

SILVER MICA M,2CA

sub69230-12150¥6,600

main69230-12150-D4iAE100,104,CE100,104,EE101..LX199209-199505

LT BEIGE ME,3K9

sub69230-12150¥6,600

main69230-12150-D4iAE100,104,CE100,104,EE101..LX199209-199305

sub69230-12150¥6,600

main69230-12150-D6iAE100,104,CE100199705-199804

MAGENTA MC.,2DC

sub69230-12150¥6,600

main69230-12150-D6iAE100,104,CE101199804-200008

MAGENTA MC.,3L3

sub69230-12150¥6,600

main69230-12150-G1iAE100,101,104,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE)199305-199705

MD GRAISHGREEN MC.GR,6N1

sub69230-12150¥6,600

main69230-12150-G5iAE100,101,104,CE100199605-199705

DK GREEN MICA,2CB

sub69230-12150¥6,600

main69230-12150-G5iAE100..WG199405-199505

DK GREEN MICA,20Z

sub69230-12150¥6,600

main69230-12150-G5iAE10#,CE100199505-199605

DK GREEN MICA,2AJ

sub69230-12150¥6,600

main69230-12150-J1iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199209-199305

DARK BLUE MICA M,8J7

sub69230-12150¥6,600

main69230-12150-J1iAE100,104,CE100,104,EE101..LX199209-199305

sub69230-12150¥6,600

main69230-12150-J4iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199305-199505

DARK BLUE MICA M.,8G5

sub69230-12150¥6,600

main69230-12150-J7iAE100,104,CE100199705-199804

DARK BLUE MC.,2DD ,8K8

sub69230-12150¥6,600

main69230-12150-J7iAE100,104..LT199512-199704

sub69230-12150¥6,600

main69230-12150-J8iAE10#,CE100199505-199605

BLUE MICA M.,2AK

sub69230-12150¥6,600

main69230-12150-J8iAE100,104,CE100199605-199705

BLUE MICA M.,2CC

sub69230-12150¥6,600

main69230-12150-Q2iAE100,104..G199612-199704

sub69230-12150¥6,600

main69230-12150-Q3iAE100,101,104,CE100,101199705-200008

DK.GREEN M.M.,2CK

sub69230-12150¥6,600

main69230-12150-R2iAE100,104,CE101199804-200008

BLUE M.M.,2EY ,8L5

sub69230-12150¥6,600

main69230-42030iAE109,CE10#,EE10#¥6,600200008-200206

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90080-54005iAE109,CE102,105,106,107,108,109,EE10#¥60199704-200008

main90541-04014iEE102..3FC..02S;EE102,103..5F..(DX,DXJ)¥100199106-199704

main90541-04014iEE103..GL;EE102..4F..02S;AE10#,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ)..05S¥100199704

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-12140iAE100,109,CE100,106,108,109,EE10#..CTD,DX,DXJ,GL,L¥6,600199106-199704

main69240-12140iAE100,104,CE100,104,EE101..LX¥6,600199305-199505

BLACK TYPE

main69240-12140iAE109,CE102,105,106,107,108,109,EE10#¥6,600199704-200008

main69240-12150-03iAE100,104,CE100,104,EE101..LX199110-199305

sub69240-12150¥6,600

main69240-12150-03iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)199106-199505

DARK BLUEISH GRAY M,183

sub69240-12150¥6,600

main69240-12150-03iAE100..WG199109-199505

DARK BLUEISH GRAY M,183 ,24T

sub69240-12150¥6,600

main69240-12150-04iAE100,104,CE100,104,EE101..LX199110-199209

sub69240-12150¥6,600

main69240-12150-04iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199106-199209

DARK BLUE MICA M,8J7

sub69240-12150¥6,600

main69240-12150-05iAE100,104,CE100,104,EE101..LX199110-199209

sub69240-12150¥6,600

main69240-12150-05iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199209

LIGHT BEIGE M,3K9

sub69240-12150¥6,600

main69240-12150-07iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE)199106-199505

GRAYISH GREEN M,6M3

sub69240-12150¥6,600

main69240-12150-07iAE100,104,CE100,104,EE101..LX199110-199305

sub69240-12150¥6,600

main69240-12150-08iAE100,104,CE100,104,EE101..LX199110-199209

sub69240-12150¥6,600

main69240-12150-08iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199106-199209

SUPER WHITE 2,040

sub69240-12150¥6,600

main69240-12150-13iAE100,104,CE100,104,EE101..LX199205-199209

sub69240-12150¥6,600

main69240-12150-13iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)199205-199209

SILVER MICA M,192

sub69240-12150¥6,600

main69240-12150-22iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

ROSE MICA M.GRAPHITE,3K5

sub69240-12150¥6,600

main69240-12150-22iAE100,104,CE100,104,EE101..LX199110-199205

sub69240-12150¥6,600

main69240-12150-34iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)199106-199209

RED MICA M,3K4

sub69240-12150¥6,600

main69240-12150-34iAE100,104,CE100,104,EE101..LX199110-199209

sub69240-12150¥6,600

main69240-12150-A0iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199209-199305

sub69240-12150¥6,600

main69240-12150-A0iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199209-200008

SUPER WHITE 2,040

sub69240-12150¥6,600

main69240-12150-A0iAE100,104..4FC..LT199807

sub69240-12150¥6,600

main69240-12150-B0iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)199209-199505

SILVER MICA M,192

sub69240-12150¥6,600

main69240-12150-B0iAE10#,CE100,104,EE101..4DS..(GT,SEG,SEL,XE)199209-199305

sub69240-12150¥6,600

main69240-12150-B3iAE100,104,CE100199505-199705

BLUEISH GRAY ME.,182

sub69240-12150¥6,600

main69240-12150-B5iAE100,101,104,CE100,101199605-200008

SILVER ME,199

sub69240-12150¥6,600

main69240-12150-B5iAE100,104..4FC..LT199807

sub69240-12150¥6,600

main69240-12150-B6iAE100,104,CE101199804-200008

CRYSTAL SILVER PEARL,2EX

sub69240-12150¥6,600

main69240-12150-C0iAE100,104..4FC..LT199807

sub69240-12150¥6,600

main69240-12150-C0iAE101199804-200008

BLACK M,2DB

sub69240-12150¥6,600

main69240-12150-C0iAE100,104..LT199904-200004

sub69240-12150¥6,600

main69240-12150-C0iAE101199707-199804

BLACK M,2DB ,205

sub69240-12150¥6,600

main69240-12150-C0iAE101199605-199705

BLACK M,2CD ,205

sub69240-12150¥6,600

main69240-12150-C0iAE100,104..LT200004-200008

sub69240-12150¥6,600

main69240-12150-C1iAE101199705-199707

BLACK M,2DB ,205

sub69240-12150¥6,600

main69240-12150-D0iAE100,104..LT200004-200008

sub69240-12150¥6,600

main69240-12150-D0iAE100,104..4FC..LT199807

sub69240-12150¥6,600

main69240-12150-D0iAE100,104..LT199904-200004

sub69240-12150¥6,600

main69240-12150-D2iAE100,104,CE100,104,EE101..LX199209-199305

SILVER MICA M,3K4

sub69240-12150¥6,600

main69240-12150-D2iAE100..G199308-199404

sub69240-12150¥6,600

main69240-12150-D2iAE100,104,CE100,104,EE101..LX199209-199305

sub69240-12150¥6,600

main69240-12150-D2iAE100..WG199405-199505

SILVER MICA M,28W

sub69240-12150¥6,600

main69240-12150-D2iAE10#,CE100199505-199605

SILVER MICA M,2AF

sub69240-12150¥6,600

main69240-12150-D2iAE100,104,CE100199605-199705

SILVER MICA M,2CA

sub69240-12150¥6,600

main69240-12150-D2iAE100..4FC..G199301-199303

sub69240-12150¥6,600

main69240-12150-D4iAE100,104,CE100,104,EE101..LX199209-199305

sub69240-12150¥6,600

main69240-12150-D4iAE10#,CE100,104,EE101..SEG,SEL,XE199209-199505

LT BEIGE ME,3K9

sub69240-12150¥6,600

main69240-12150-D6iAE100,104,CE100199705-199804

MAGENTA MC.,2DC

sub69240-12150¥6,600

main69240-12150-D6iAE100,104,CE101199804-200008

MAGENTA MC.,3L3

sub69240-12150¥6,600

main69240-12150-G1iAE100,101,104,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE)199305-199705

MD GRAISHGREEN MC.GR,6N1

sub69240-12150¥6,600

main69240-12150-G5iAE100,101,104,CE100199605-199705

DK GREEN MICA,2CB

sub69240-12150¥6,600

main69240-12150-G5iAE100..WG199405-199505

DK GREEN MICA,20Z

sub69240-12150¥6,600

main69240-12150-G5iAE10#,CE100199505-199605

DK GREEN MICA,2AJ

sub69240-12150¥6,600

main69240-12150-J1iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,SEG,SEL,XE)199209-199305

DARK BLUE MICA M,8J7

sub69240-12150¥6,600

main69240-12150-J1iAE100,104,CE100,104,EE101..LX199209-199305

sub69240-12150¥6,600

main69240-12150-J4iAE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE)199305-199505

DARK BLUE MICA M.,8G5

sub69240-12150¥6,600

main69240-12150-J6iAE100,104..LT199512-199704

sub69240-12150¥6,600

main69240-12150-J6iAE100,104,CE100199705-199804

DARK BLUE MC,2DD ,8K8

sub69240-12150¥6,600

main69240-12150-J8iAE10#,CE100199505-199605

BLUE MICA M.,2AK

sub69240-12150¥6,600

main69240-12150-J8iAE100,104,CE100199605-199705

BLUE MICA M.,2CC

sub69240-12150¥6,600

main69240-12150-Q2iAE100,104..G199612-199704

sub69240-12150¥6,600

main69240-12150-Q3iAE100,101,104,CE100,101199705-200008

DK.GREEN M.M.,2CK

sub69240-12150¥6,600

main69240-12150-R2iAE100,104,CE101199804-200008

BLUE M.M.,2EY ,8L5

sub69240-12150¥6,600

main69240-42030iAE109,CE10#,EE10#¥6,600200008-200206

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-01050iAE109,CE102,105,106,107,108,109,EE10#¥90199704-200008

main69293-01060iAE109,CE102,105,106,107,108,109,EE10#¥90199704-200008

main69293-12030iAE10#,CE10#,EE10#..4DS,V,WG¥160199106

main69293-12040iAE10#,CE10#,EE10#..4DS,V,WG¥160199106

69330LOCK ASSY, REAR DOOR, RH

main69305-12010iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,XE¥7,800199106

main69305-12030iAE10#,CE100,104..G,GT,LT,XE¥15,100199106-200008

main69305-12040iAE10#,CE100,104..SEG,SEL¥15,100199106-199505

69338KNOB, CHILD PROTECTOR LOCK LEVER

main69338-12020iEE102..(3FC,5F)..02S;CE106,107,EE102,106..05S;AE10#,CE100,101,102,104,105,108,109,EE101,103,104,107,108..4DS,V,WG¥790199106

69340LOCK ASSY, REAR DOOR, LH

main69306-12010iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,XE¥7,800199106

main69306-12030iAE100,101,104,CE100,101,104,EE101..(4DS,WG)..(BZT,G,GT,LT,LX,XE)¥15,100199106-200008

main69306-12040iAE10#,CE100,104..SEG,SEL¥15,100199106-199505

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070iAE10#,CE10#,EE10#..4DS,V,WG¥1,710199106-199305

main69410-87001iAE10#,CE10#,EE10#..4DS,V,WG¥710199305

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-12050iAE10#,CE10#,EE10#..4DS,V,WG¥510199106

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-12060iAE10#,CE10#,EE10#..4DS,V,WG¥510199106

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-12100iEE108¥680199109-199401

main69736-12100iEE108¥680199109-199804

main69736-12100iAE109,CE106,108,109,EE102,103,104..DX,L¥680199401-199704

main69736-12100iEE103..3FC..GL;CE106,109,EE107..GL;EE102,103..5F..(DX,GL);AE100,101,104,CE100,101,102,104,105,107,EE101..(4DS,V,WG)..(BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,XE)¥680199106

main69751-12020-03iCE106,108,109,EE106,107,108..CTD,DX,L199109-199206

SHADOW GRAY,TRIM1#

sub69751-20031¥330

sub69751-12020¥240

main69751-12060-B0iAE109,CE105,107,EE102,103..DX,DXJ199206-200008

SHADOW GRAY,TRIM1#

sub69751-12060¥300

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-87003-02iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub69741-87003¥340

main69741-87003-13iCE108199109-199401

sub69741-87003¥340

main69741-87003-13iCE108199109-199704

sub69741-87003¥340

main69741-87003-13iCE106,109,EE107..GL;AE10#,CE100,104,EE101..(4DS,WG)..(DX,G,GT,LT,LX,SEG,XE)199106-199704

SHADOW GRAY,TRIM1#

sub69741-87003¥340

main69741-87003-14iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub69741-87003¥340

main69741-87003-B6iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub69741-87003¥340

main69741-87003-P0iAE100,104..LT199904-200004

sub69741-87003¥340

main69741-87003-P0iAE100,104..4FC..LT199807

sub69741-87003¥340

main69741-87003-P0iAE109,CE106,108,109,EE10#..DX,L199704-199705

sub69741-87003¥340

main69741-87003-P0iEE102,103..5F..DX200008

sub69741-87003¥340

main69741-87003-P0iAE100,104..LT200004-200008

sub69741-87003¥340

main69741-87003-P0iCE106,109,EE103..GL199704

SHADOW GRAY,TRIM1#

sub69741-87003¥340

main69741-90K00iCE102,EE104¥360200008

sub69741-89102¥340

sub69741-12040¥390

sub69741-89104¥410

main69741-90K00-43iCE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L199109-199605

GRAY,TRIM1#

sub69741-90K00¥360

sub69741-89102¥340

sub69741-12040¥390

sub69741-89104¥410

main69741-90K00-B2iAE109,CE105,107,EE102,103..DX,DXJ199605-200008

SHADOW GRAY,TRIM1#

sub69741-90K00¥360

sub69741-89102¥340

sub69741-12040¥390

sub69741-89104¥410

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12040iAE10#,CE10#,EE10#..4DS,V,WG¥300199106

main69749-12070iEE103..5F;EE103..3FC..GL;CE102,107..DXJ,GL,L;AE109,CE105,EE102,104..3FC,5F¥80199704-200008

main69749-50020iCE10#¥180199804-200008

69759BSNAP, REAR DOOR LOCK CYLINDER

main69749-50020iEE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..4DS,V,WG¥180199106

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20020iAE10#,CE10#,EE10#..4DS,V,WG¥260199106

main69759-20030iAE10#,CE10#,EE10#..4DS,V,WG¥250199106

main69759-20040iAE10#,CE10#,EE10#..4DS,V,WG¥220199106

main69759-20050iAE10#,CE10#,EE10#..4DS,V,WG¥160199106

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-22040iCE106,107,EE102,106..05S;AE10#,CE100,101,102,104,105,108,109,EE101,103,104,107,108..4DS,V,WG¥250199106

main69759-22050iCE106,107,EE102,106..05S;AE10#,CE100,101,102,104,105,108,109,EE101,103,104,107,108..4DS,V,WG¥250199106

69759YSILENCER, REAR DOOR LOCK LINK

main69759-20390iEE103..5F;EE103..3FC..GL;CE102,107..DXJ,GL,L;AE109,CE105,EE102,104..3FC,5F¥460199601-200008

60 X 40

main69759-30021iCE106,108,109,EE10#..CTD,DX,DXJ,L¥250199505-199511

main69759-30021iAE10#,CE100,106,109,EE103..G,GL,LT¥250199505-200008

80 X 40

main69759-30021iAE10#,CE10#,EE10#..4DS,V,WG¥250199106-199505

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-12050iAE10#,CE10#,EE10#..4DS,V,WG¥680199106

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-12050iAE10#,CE10#,EE10#..4DS,V,WG¥740199106

9010506125

main90105-06125¥120

9015180015

main90151-80015¥110

9015960356

main90159-60356¥120

9015960542

main90159-60542¥110

9018905097

main90189-05097¥80

9046704014

main90467-04014¥160

9046708117

main90467-08117¥90

9095006108

main90950-06108¥50

9353055016

main93530-55016¥90

9353055020

main93530-55020¥90

31 parts on this diagram · 1 diagram in section
