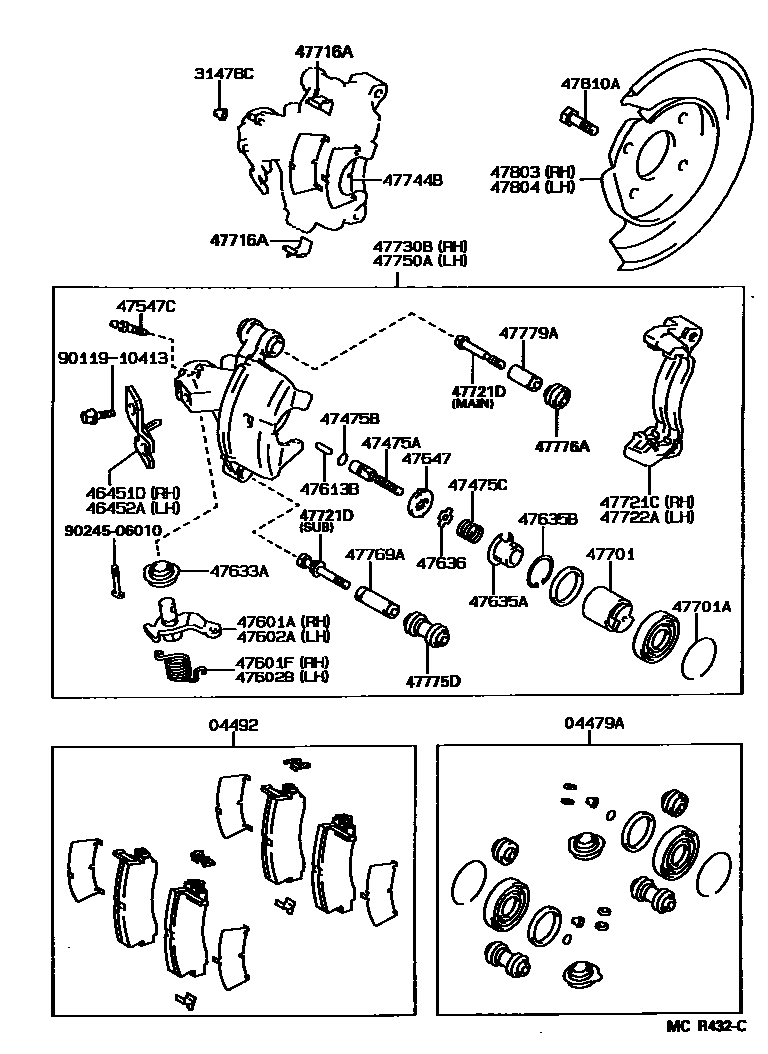

Toyota COROLLA — REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12130iAE101..GT¥3,290199106-199505

sub04479-12190¥3,290

main04479-12190iAE101¥3,290199605

04492PAD KIT, DISC BRAKE, REAR

main04492-12080iAE101..GT¥9,700199106-199205

sub04466-12080¥8,800

main04492-12090iAE101..GT¥9,200199205-199505

sub04466-12010¥8,800

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAE101..BZT,GT¥160199106

46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH

main46451-12030iAE101..BZT,GT¥970199106

46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH

main46452-12020iAE101..BZT,GT¥970199106

47475ABOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)

main47475-12030iAE101..BZT,GT¥1,300199106

47475BRING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)

main90301-09007iAE101..BZT,GT¥260199106

47475CSPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)

main90501-23051iAE101..BZT,GT¥240199106

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAE101..BZT,GT¥200199106

47601ACRANK SUB-ASSY, PARKING BRAKE, RH

main47601-12020iAE101..GT¥1,810199106-199505

sub47601-12030¥1,030

main47601-12030iAE101¥1,030199605

47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)

main90508-32021iAE101..BZT,GT¥380199106

47602ACRANK SUB-ASSY, PARKING BRAKE, LH

main47602-12020iAE101..GT¥1,810199106-199505

sub47602-12030¥1,030

main47602-12030iAE101¥1,030199605

47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)

main90508-32020iAE101..BZT,GT¥380199106

47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)

main47613-12020iAE101..BZT,GT¥610199106

47633ABOOT, PARKING BRAKE CRANK

main47633-12010iAE101..BZT,GT¥880199106

47635ARETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47635-12020iAE101..BZT,GT¥550199106

47635BRING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)

main90521-32002iAE101..BZT,GT¥170199106

47636PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47636-12010iAE101..BZT,GT¥390199106

47647STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)

main47647-12020iAE101..BZT,GT¥400199106

47701PISTON SUB-ASSY, REAR DISC BRAKE

main47701-12030iAE101..BZT,GT¥5,800199106

47701ARING, SET(FOR DISC BRAKE PISTON, REAR)

main90522-43004iAE101..BZT,GT¥210199106

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-12020iAE101..BZT,GT¥390199106

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-12190iAE101..BZT,GT¥5,400199106

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90109-08098iAE101..BZT,GT¥500199106

���W�|�P�D�Q�T�o�w�T�U�|�P�T,���C��

main90119-08431iAE101..BZT,GT¥220199106

���W�|�P�D�Q�T�o�w�U�Q�|�Q�O,�T�u

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-12190iAE101..BZT,GT¥5,400199106

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-12430iAE101..GT¥41,600199106-199505

sub47730-12460¥53,800

main47730-12460iAE101¥53,800199605

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-12080iAE101..BZT,GT¥260199106-199705

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-12430iAE101..GT¥41,600199106-199505

sub47750-12460¥53,800

main47750-12460iAE101¥53,800199605

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iAE101..BZT,GT¥680199106

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010iAE101..BZT,GT¥780199106

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12010iAE101..GT¥390199106-199505

sub47776-12020¥80

main47776-12020iAE101¥80199605

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010iAE101..BZT,GT¥870199106

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-12060iAE101..BZT,GT¥1,260199106

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-12060iAE101..BZT,GT¥1,260199106

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10167iAE101..BZT,GT¥210199106

9011910413

main90119-10413¥200

9024506010

main90245-06010¥240

37 parts on this diagram · 2 diagrams in section
