Toyota COROLLA — PARTIAL ENGINE ASSEMBLY

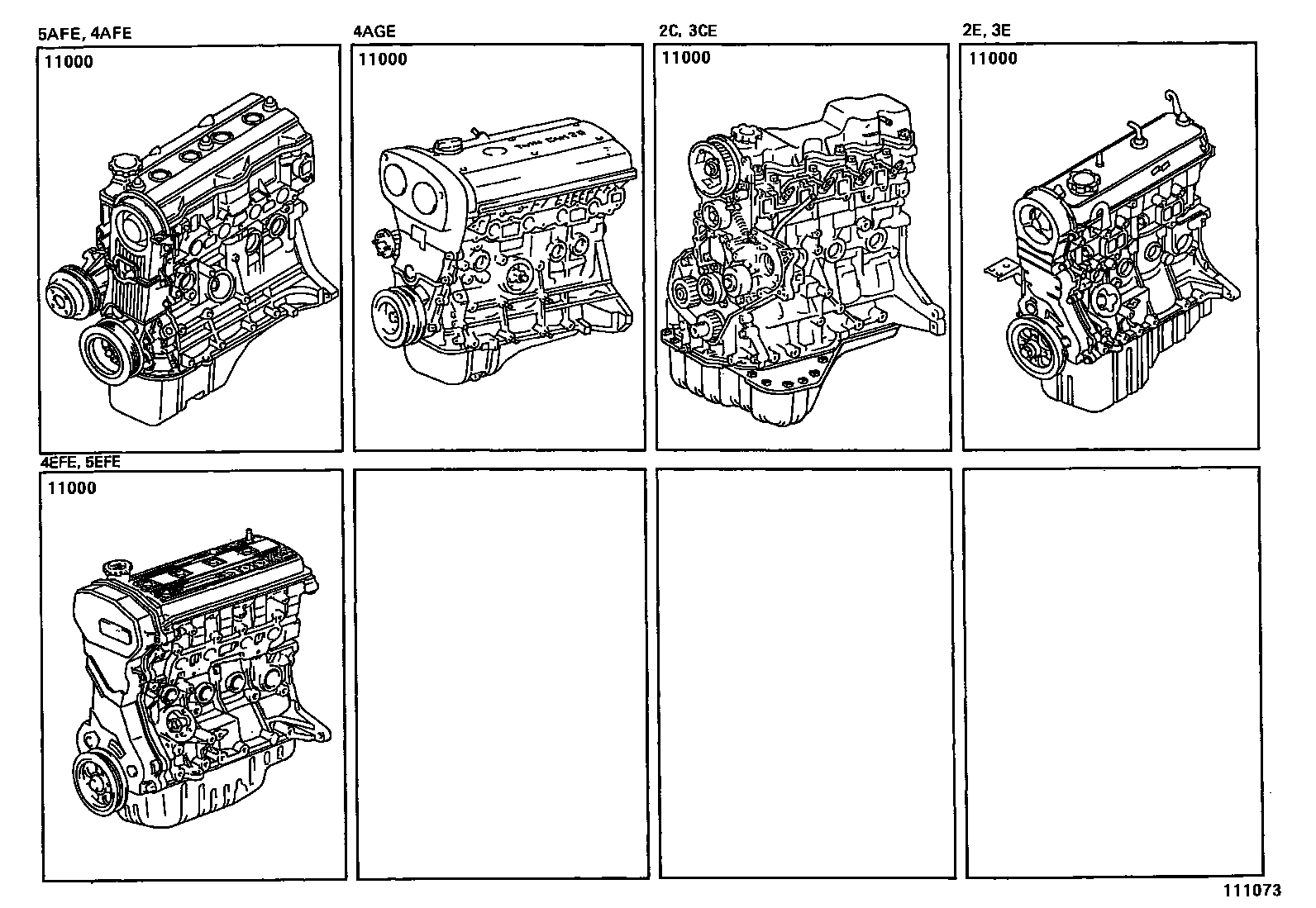

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-11530i¥480,000199106-199505
sub19000-11531¥481,000
sub15301-11050¥1,010
main19000-11531i¥481,000199505-199704
main19000-11540i¥408,000199109-199401
main19000-11570i¥446,000199109-199401
main19000-11600i¥532,000199401-199508
sub19000-11601¥533,000
sub15301-11050¥1,010
main19000-11601i¥533,000199508-199704
main19000-11770i¥483,000199704-200206
main19000-11790i¥533,000199704-200206
main19000-1A080i¥532,000199106-199505
main19000-1A090i¥559,000199106-199505
main19000-1A100i¥559,000199109-199704
main19000-1A100i¥559,000199704-199705
main19000-1A120i¥618,000199106-199505
main19000-1A400i¥619,000199605-200008
main19000-1A410i¥533,000199505-200008
main19000-1A550i¥560,000199704-199705
main19000-1A550i¥560,000199705-200206
main19000-64600i¥634,000199106-199305
sub19000-64601¥634,000
sub90105-16064¥510
sub90560-16025¥590
main19000-64600i¥634,000199305-199401
sub19000-64601¥634,000
sub90105-16064¥510
sub90560-16025¥590
main19000-64610i¥634,000199109-199305
sub19000-64611¥634,000
sub90105-16064¥510
sub90560-16025¥590
main19000-64610i¥634,000199305-199401
sub19000-64611¥634,000
sub90105-16064¥510
sub90560-16025¥590
main19000-64720i¥634,000199401-199504
sub19000-64721¥634,000
main19000-64720i¥634,000199305-199401
sub19000-64721¥634,000
main19000-64721i¥634,000199504-199508
sub19000-64722¥634,000
sub90105-16064¥510
sub90560-16025¥590
main19000-64770i¥634,000199305-199401
sub19000-64771¥634,000
main19000-64770i¥634,000199401-199504
sub19000-64771¥634,000
main19000-64771i¥634,000199504-199508
sub19000-64772¥634,000
sub90105-16064¥510
sub90560-16025¥590
main19000-64870i¥638,000199505-199508
sub19000-64871¥638,000
sub90105-16064¥510
sub90560-16025¥590
main19000-64870i¥638,000199508-199804
sub19000-64871¥638,000
sub90105-16064¥510
sub90560-16025¥590
main19000-64880i¥638,000199508-199804
sub19000-64881¥638,000
sub90105-16064¥510
sub90560-16025¥590
main19000-6A190i¥667,000199804-199808
sub19000-6A191¥667,000
sub90105-16064¥510
sub90560-16025¥590
main19000-6A191i¥667,000199808-200206
main19000-6A200i¥667,000199804-199808
sub19000-6A201¥667,000
sub90105-16064¥510
sub90560-16025¥590
main19000-6A201i¥667,000199808-200206

1 parts on this diagram · 1 diagram in section
