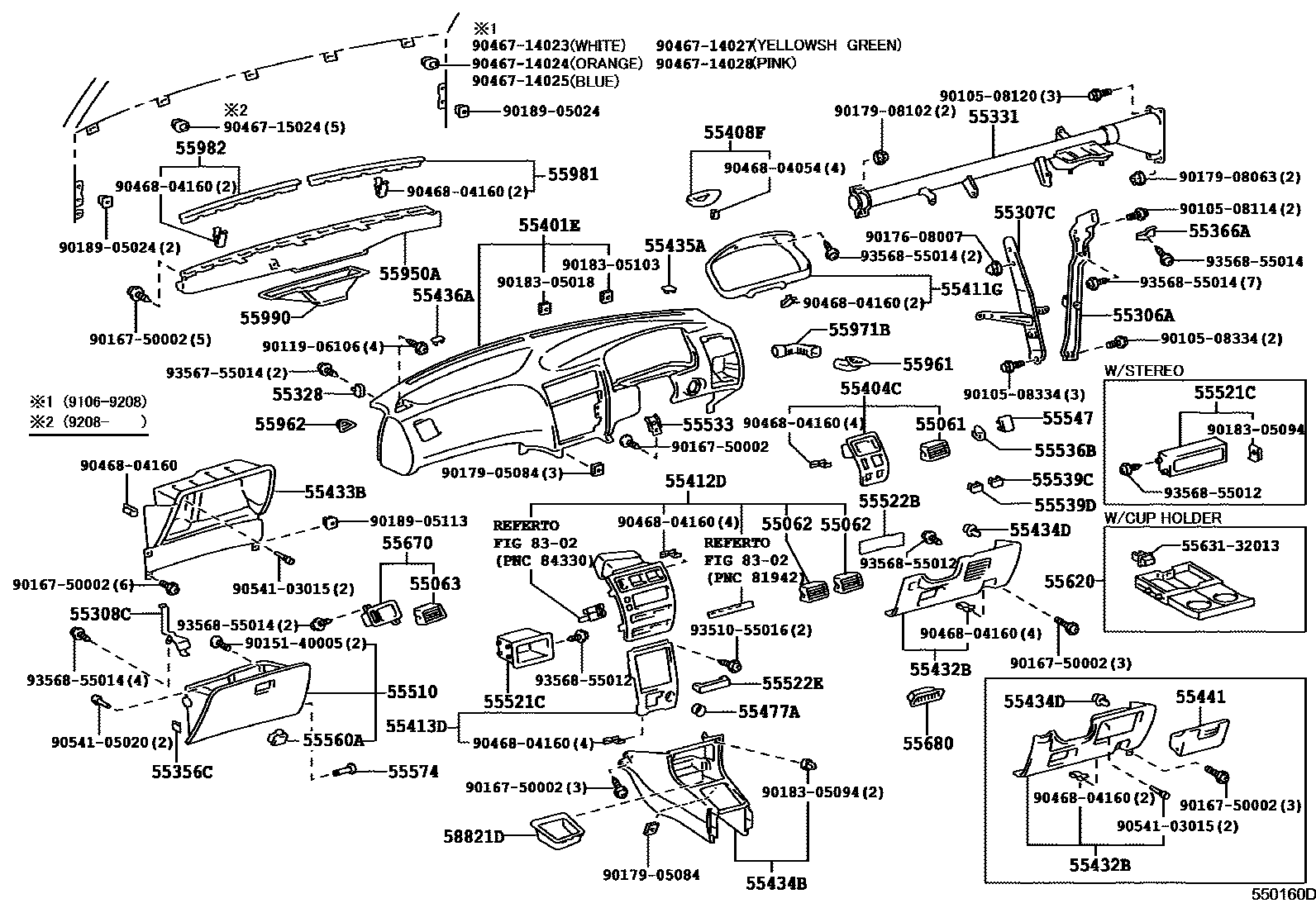

Toyota COROLLA — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55061REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1

main55061-12150iAE10#,CE10#,EE10#¥1,480199106

55062REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2

main55062-12060iAE10#,CE10#,EE10#¥1,440199106

55063REGISTER SUB-ASSY, INSTRUMENT, NO.3

main55063-12050-B0iAE100,104..LT200004-200008

sub55063-12050¥1,480

main55063-12050-B0iAE10#,CE10#,EE10#199106-199705

SHADOW GRAY,TRIM1#

sub55063-12050¥1,480

main55063-12050-B0iAE100,104..LT199904-200004

sub55063-12050¥1,480

main55063-12050-B0iAE100,104..4FC..LT199807

sub55063-12050¥1,480

main55063-12050-B2iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub55063-12050¥1,480

main55063-12050-J0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55063-12050¥1,480

main55063-12050-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199205-199505

TAUPE,TRIM9#

sub55063-12050¥1,480

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12150iAE10#,CE10#,EE10#¥3,450199106-199305

sub55306-12200¥3,460

main55306-12200iAE10#,CE10#,EE10#¥3,460199305

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12200iAE10#,CE10#,EE10#¥2,870199106-199610

sub55307-12201¥2,870

main55307-12201iAE10#,CE10#,EE10#¥2,870199610

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12180iAE10#,CE10#,EE10#¥980199106-199704

main55308-12180iEE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE109,CE102,105,106,107,108,109,EE104¥980199705

main55308-12230iAE10#,CE10#,EE10#¥810199610-199704

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12060iAE10#,CE10#,EE10#¥330199106

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12240iAE10#,CE10#,EE10#¥17,300199106-199704

sub55330-12241¥17,300

main55330-12241iAE109,CE102,105,106,107,108,109,EE10#¥17,300199704

main55330-12330iAE100,101,104,CE100,108,EE10#¥17,300199610-199705

sub55330-12331¥17,300

main55330-12331iAE109,CE106,109¥17,300199704-199705

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12060iAE10#,CE10#,EE10#¥260199106-199301

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-12040iAE10#,CE10#,EE10#¥300199106

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-12300-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199311

TAUPE,TRIM9#

sub55401-12370¥61,300

sub55404-12610¥4,320

sub55404-12620¥4,300

main55401-12300-P0iAE10#,CE10#,EE10#199106-199311

SHADOW GRAY,TRIM1#

sub55401-12370¥61,300

sub55404-12610¥4,320

sub55404-12620¥4,300

main55401-12300-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55401-12370¥61,300

sub55404-12610¥4,320

sub55404-12620¥4,300

main55401-12350-B0iAE101..3DS..GT199205-199311

sub55401-12350¥61,200

sub55401-12390¥61,300

sub55404-12610¥4,320

main55401-12370-B0iAE10#,CE10#,EE10#199311-199503

SHADOW GRAY,TRIM1#

sub55401-12460¥61,500

main55401-12370-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199311-199503

TAUPE,TRIM9#

sub55401-12460¥61,500

main55401-12381iEE102,103..4F¥61,300199704-200006

main55401-12381-B0iAE109,CE102,105,107,EE10#200006

SHADOW GRAY,TRIM1#

main55401-12390-B0iAE101..3DS..GT199311-199505

sub55401-12391¥61,300

main55401-12460-B0iAE10#,CE10#,EE10#199503-200006

SHADOW GRAY,TRIM1#

sub55401-12381¥61,300

main55401-12460-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199503-199505

TAUPE,TRIM9#

sub55401-12381¥61,300

main55401-12500-B0iAE100,104..4FC..LT199807

main55401-12500-B0iAE10#,CE10#,EE10#199610-199705

main55401-12500-B0iAE100,104..LT199904-200004

main55401-12500-B0iAE100,104..LT200004-200008

main55401-12500-B1iAE100,104,CE100199705-200008

main55401-12500-B1iCE101199804-200008

DK. CHARCOAL,TRIM1#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-12570iAE10#,CE10#,EE10#¥4,300199106-199311

sub55404-12610¥4,320

main55404-12610iAE10#,CE10#,EE10#¥4,320199311-199705

main55404-12700iAE101¥5,500199705-200008

sub55404-12610¥4,320

main55404-12710iAE100,104..4FC..G¥8,800199804-199904

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-12020-B0iAE101..3DS..GT199205-199505

SHADOW GRAY,TRIM1#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-12870iAE10#,CE10#,EE10#¥4,210199106

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-12480iAE100,104,CE10#,EE10#..DX,GL,L,LT,LX,XE¥16,100199106-199205

main55405-12480iCE106,EE106..CTD¥16,100199109-199305

main55405-12480iAE100,104,CE100,104..SEL,XE¥16,100199205-199305

main55405-12500iAE10#,CE100¥16,100199205-199605

main55405-12500iAE10#,CE100,104..G,GT,SEG,SEL¥16,100199106-199505

main55405-12520iAE10#,CE100..G¥16,100199505-199605

main55405-12540iEE106..4F..DX¥16,100199205-199305

main55405-12540iCE106,EE106..CTD¥16,100199109-199305

main55405-12660iAE10#,CE100,104..SJ,XE¥16,100199205-199305

main55405-12700iEE101;AE100,104,CE10#,EE106,107,108..DX,GL,L,LT,LX¥16,100199305-199605

main55405-12700iCE106,EE102,106..CTD,DXJ¥16,100199305-199605

main55405-12710iCE106,EE102,106..CTD,DXJ¥16,100199305-199605

main55405-12710iEE106..4F..DX¥16,100199305-199401

main55405-12710iEE102..4F..DX¥16,100199401-199605

main55405-12720iAE10#,CE100,104..SJ,XE¥16,100199305-199605

main55405-12720iEE104..5F¥16,100199508-199605

main55405-12770iAE100..LT¥16,100199605-199705

main55405-12770iAE109;EE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S¥16,100199605-199804

main55405-12770iEE102..3FC..02S;EE102,103..5F..(DX,DXJ)¥16,100200008

main55405-12780iAE100,104,CE100..G¥16,100199605-199804

main55405-12800iAE100,101,104,CE100¥16,100199605-199804

main55405-12820iCE106,EE102..MTM..DX¥16,100199605-200008

main55405-12820iCE106,EE102..CTD,DXJ¥16,100199605-199708

main55405-12840iAE100,104,CE100..LT¥16,100199605-199804

main55405-12840iEE104..5F¥16,100199605-199705

main55405-12890iAE101¥17,800199705-199804

main55405-1A090iAE101¥17,800199705-199804

main55405-1A100iAE100,104..G¥16,100199804-200008

main55405-1A110iAE100,104¥16,100199804-200008

main55405-1A110iCE101¥16,100199804-200008

main55405-1A120iAE101¥17,800199804-200008

main55405-1A130iAE101¥17,800199804-200008

main55405-1A140iEE104¥16,100199804

main55405-1A150iCE101..LT¥16,100199804-200008

main55405-1A160iAE100,104..4FC..G¥28,600199804-199904

55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-12420iAE100,104,109,CE10#,EE10#¥1,800199106-199705

main55413-12490iAE101¥2,660199705-200008

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-12310-B0iAE100,101,104,CE100,104,EE101..BZT,G,GT,LT,SEG,SEL,SJ,XE199106-200008

SHADOW GRAY,TRIM1#

sub55432-12430¥8,200

sub55432-12310¥8,200

main55432-12310-B0iAE100,104,CE100,104,EE101..DX,LX199109-199505

sub55432-12430¥8,200

sub55432-12310¥8,200

main55432-12310-B1iAE100,104,CE100199705-199804

DK.CHARCOAL,TRIM1#

sub55432-12430¥8,200

sub55432-12310¥8,200

main55432-12310-J0iAE100,104,CE100,104,EE101..LX199109-199305

sub55432-12430¥8,200

sub55432-12310¥8,200

main55432-12310-J0iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55432-12430¥8,200

sub55432-12310¥8,200

main55432-12310-K0iAE100,104,CE100,104,EE101..LX199109-199505

sub55432-12430¥8,200

sub55432-12310¥8,200

main55432-12310-K0iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub55432-12430¥8,200

sub55432-12310¥8,200

main55432-12320-K0iAE100,104..4FC..SEL199109-199505

main55432-12320-K0iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

main55432-12320-K0iAE100..3FC..LX199308-199505

main55432-12320-P0iAE100,104..4FC..SEL199109-199505

main55432-12320-P0iAE100..3FC..LX199308-199505

main55432-12320-P0iAE100,104,109,CE100,102,104,105,106,107,108,109,EE10#..CTD,DX,DXJ,GL,L,LX199106

SHADOW GRAY,TRIM1#

main55432-12320-W3iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

main55432-12320-W3iAE100,104..4FC..SEL199109-199305

main55432-12370-B0iEE106..4F199201-199401

main55432-12430-B0iAE100,104,CE101199804-200008

DK.CHARCOAL,TRIM1#

sub55432-12430¥8,200

main55432-12430-B1iAE100,104..LT200004-200008

sub55432-12430¥8,200

main55432-12430-B1iAE100,104..4FC..LT199807

sub55432-12430¥8,200

main55432-12430-B1iAE100,104..LT199904-200004

sub55432-12430¥8,200

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-12090-B0iAE101,109,CE102,105,106,107,108,109,EE10#199106-200206

SHADOW GRAY,TRIM1#

sub55433-12090¥13,500

main55433-12090-B0iAE100,104..4FC..LT199807

sub55433-12090¥13,500

main55433-12090-B0iAE100,104..LT199904-200004

sub55433-12090¥13,500

main55433-12090-B0iAE100,104..LT200004-200008

sub55433-12090¥13,500

main55433-12090-B1iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub55433-12090¥13,500

main55433-12090-J0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55433-12090¥13,500

main55433-12090-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub55433-12090¥13,500

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-12100-K0iAE100,101,CE100,EE101..LX,SEG,SEL,XE199106-199401

TAUPE,TRIM9#

sub55434-12101¥14,700

main55434-12100-P0iAE100,101,CE100,106,108,EE10#199106-199401

SHADOW GRAY,TRIM1#

sub55434-12101¥14,700

main55434-12100-W3iAE100,101,CE100,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55434-12101¥14,700

main55434-12101-B0iAE100,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub55434-12101¥14,700

main55434-12101-K0iAE100,101,CE100,EE101..LX,SEG,SEL,XE199401-199505

TAUPE,TRIM9#

sub55434-12101¥14,700

main55434-12101-P0iAE100..LT199904-200004

sub55434-12101¥14,700

main55434-12101-P0iAE100,101,CE100,106,108,EE10#199401-199705

SHADOW GRAY,TRIM1#

sub55434-12101¥14,700

main55434-12101-P0iAE100..LT200004-200008

sub55434-12101¥14,700

main55434-12101-P0iAE100..4FC..LT199807

sub55434-12101¥14,700

main55434-12110-K0iAE104,CE104199109-199401

TAUPE,TRIM9#

sub55434-12111¥14,700

main55434-12110-P0iAE104,CE104,109199109-199401

SHADOW GRAY,TRIM1#

sub55434-12111¥14,700

main55434-12110-W3iAE104,CE104199109-199305

DARK BLUE,TRIM8#

sub55434-12111¥14,700

main55434-12111-B0iAE104199705-200008

DK.CHARCOAL,TRIM1#

sub55434-12111¥14,700

main55434-12111-K0iAE104,CE104199401-199505

TAUPE,TRIM9#

sub55434-12111¥14,700

main55434-12111-P0iAE104..LT200004-200008

sub55434-12111¥14,700

main55434-12111-P0iAE104,109,CE104,109199401-199705

SHADOW GRAY,TRIM1#

sub55434-12111¥14,700

main55434-12111-P0iAE104..LT199904-200004

sub55434-12111¥14,700

main55434-12111-P0iAE104..4FC..LT199807

sub55434-12111¥14,700

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90467-07073-B3iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub90467-07073¥120

main90467-07073-B4iAE109,CE106,108,109,EE10#199704-199705

SHADOW GRAY,TRIM1#

sub90467-07073¥120

main90467-07073-B4iAE100,104..LT199904-200004

sub90467-07073¥120

main90467-07073-B4iAE100,104..LT200004-200008

sub90467-07073¥120

main90467-07073-B4iAE100,104..4FC..LT199807

sub90467-07073¥120

main90467-07073-C0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199305-199505

BLACK,TRIM1#,9#

sub90467-07073¥120

main90467-07073-C0iAE10#,CE100,106,108,109,EE10#..BZT,CTD,DX,DXJ,G,GL,GT,L,LT,SJ199106-199704

BLACK,TRIM1#

sub90467-07073¥120

main90467-07073-C0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

BLACK,TRIM1#,8#,9#

sub90467-07073¥120

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-12010-C0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199310-199505

BLACK,TRIM1#,9#

sub55435-12010¥670

main55435-12010-C0iAE10#,CE100,101,102,105,106,107,108,109,EE10#..BZT,CTD,DX,DXJ,G,GL,GT,L,LT,SJ199310

BLACK,TRIM1#

sub55435-12010¥670

main55435-12010-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199310

TAUPE,TRIM9#

sub55435-12010¥670

main55435-12010-P0iAE10#,CE10#,EE10#..CTD,DX,G,GL,GT,L,LT,LX,SEL,SJ,XE199106-199310

SHADOW GRAY,TRIM1#

sub55435-12010¥670

main55435-12010-P0iAE100,104..4FC..LT199807

sub55435-12010¥670

main55435-12010-W3iAE100,104,CE100,104,EE101..LX,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55435-12010¥670

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-12020-C0iAE100,104,CE100,104,EE101..LX,SEL,XE199310-199505

BLACK,TRIM1#

sub55436-12020¥670

main55436-12020-C0iAE100,104,CE100,104,EE101..LX,SEL,XE199310-199505

BLACK,TRIM1#,9#

sub55436-12020¥670

main55436-12020-K0iAE100,104,CE100,104,EE101..LX,SEL,XE199106-199310

TAUPE,TRIM9#

sub55436-12020¥670

main55436-12020-P0iAE10#,CE10#,EE10#..CTD,DX,GL,L,LT,LX,SEL,SJ,XE199106-199310

SHADOW GRAY,TRIM1#

sub55436-12020¥670

main55436-12020-P0iAE100,104..4FC..LT199807

sub55436-12020¥670

main55436-12020-W3iAE100,104,CE100,104,EE101..LX,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55436-12020¥670

55441BOX, INSTRUMENT PANEL

main55440-12030-B0iAE100,104..LT199904-200004

sub55440-12030¥2,960

main55440-12030-B0iAE10#,CE100,EE101..GT,SEG,SEL,XE199106-200008

SHADOW GRAY,TRIM1#

sub55440-12030¥2,960

main55440-12030-B0iAE100,104..4FC..LT199807

sub55440-12030¥2,960

main55440-12030-B0iAE100,104..LT200004-200008

sub55440-12030¥2,960

main55440-12030-B1iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub55440-12030¥2,960

main55440-12030-J0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55440-12030¥2,960

main55440-12030-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub55440-12030¥2,960

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-12100iAE10#,CE10#,EE10#¥250199106

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12310-B0iAE10#,CE10#,EE10#199106-199308

SHADOW GRAY,TRIM1#

sub55550-12310¥13,500

main55550-12310-B1iAE100,101,104,CE100199308-199705

SHADOW GRAY,TRIM16

sub55550-12310¥13,500

main55550-12310-B1iAE100,101,104,CE100199704-199705

SHADOW GRAY,TRIM1#

sub55550-12310¥13,500

main55550-12310-B1iAE100,104..LT199904-200004

sub55550-12310¥13,500

main55550-12310-B1iAE100,104..LT200004-200008

sub55550-12310¥13,500

main55550-12310-B1iAE100,104..4FC..LT199807

sub55550-12310¥13,500

main55550-12310-B2iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub55550-12310¥13,500

main55550-12310-J0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55550-12310¥13,500

main55550-12310-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199308

TAUPE,TRIM9#

sub55550-12310¥13,500

main55550-12310-K1iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199308-199505

TAUPE,TRIM9#

sub55550-12310¥13,500

55521CCOVER, STEREO OPENING

main55521-12140iAE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,SJ,XE¥620199106-200008

main55521-16030iAE101..3DS¥1,580199205-200008

main55521-16040iEE102..3FC..02S;EE102,103..5F..(DX,DXJ)¥3,240200008

sub55521-36020¥3,240

main55521-16040iEE103..GL;EE102..4F..02S;AE10#,CE10#,EE101,104,106,107,108;EE102,103..(3FC,4F)..(DX,DXJ)..05S¥3,240199106

sub55521-36020¥3,240

55522BCOVER, RADIO TUNER OPENING

main55522-32010iAE100,101,104,CE100,101..3DS,WG¥1,620199205-200008

sub55522-20070¥1,690

55522ECOVER, CUP HOLDER OPENING

main55522-12110iAE10#,CE100,102,104,105,106,107,108,109,EE10#..CTD,DX,DXJ,GL,L,LX,SJ¥1,320199106-199405

55533COVER, AUTO CLOCK HOLE

main55533-12130iCE106,107,EE102,106..CTD,DXJ¥760199109

55536BCOVER, LIGHT CONTROL SWITCH HOLE

main55536-12010iAE10#,CE10#,EE10#¥660199106

55539CCOVER, SPARE SWITCH HOLE

main55539-12110iAE10#,CE10#,EE10#¥600199106-199804

55539DCOVER, SPARE SWITCH HOLE

main55539-12110iAE104..5F;AE100,101,CE10#,EE10#¥600199106-199805

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-12020iAE10#,CE10#,EE10#¥660199106-199705

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-12080-02iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub55560-12080¥1,410

main55560-12080-03iAE10#,CE10#,EE10#199106-199208

SHADOW GRAY,TRIM1#

sub55560-12080¥1,410

main55560-12080-04iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55560-12080¥1,410

main55560-12080-B5iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub55560-12080¥1,410

main55560-12080-P0iAE109,CE106,108,109,EE10#199208-199705

SHADOW GRAY,TRIM1#

sub55560-12080¥1,410

main55560-12080-P0iAE100,104..LT199904-200004

sub55560-12080¥1,410

main55560-12080-P0iAE100,104..LT200004-200008

sub55560-12080¥1,410

main55560-12080-P0iAE100,104..4FC..LT199807

sub55560-12080¥1,410

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iAE10#,CE10#,EE10#¥160199106

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-12020iAE10#,CE10#,EE103,104,107,108..G,GL,GT,L,LT,SEG,SEL199106-199405

main55620-12050iAE100,101,104,CE10#,EE101,103,104..BZT,G,GL,GT,L,LT,LX,SEG,SEL,XE¥3,500199405-200008

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-12150-B0iAE101,109,CE102,105,106,107,108,109,EE10#199407-199705

SHADOW GRAY,TRIM1#

sub55670-12150¥5,200

main55670-12150-B0iAE100,104..LT199904-200004

sub55670-12150¥5,200

main55670-12150-B0iAE100,104..LT200004-200008

sub55670-12150¥5,200

main55670-12150-B0iAE100,104..4FC..LT199807

sub55670-12150¥5,200

main55670-12150-B1iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub55670-12150¥5,200

main55670-12150-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub55670-12150¥5,200

main55670-12150-P0iAE10#,CE10#,EE10#199106-199407

SHADOW GRAY,TRIM1#

sub55670-12150¥5,200

main55670-12150-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55670-12150¥5,200

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-12050iAE10#,CE100,104..G,GT,SEG,SEL,SJ,XE¥2,060199302-199305

main55680-12050-K0iAE10#,CE100,104..SEG,SEL199106-199302

TAUPE,TRIM9#

sub55680-12050¥2,060

main55680-12050-P0iAE10#,CE100,104..G,GT,SEG,SEL199106-199302

SHADOW GRAY,TRIM1#

sub55680-12050¥2,060

main55680-12050-W3iAE10#,CE100,104..SEG,SEL,XE199106-199302

DARK BLUE,TRIM8#

sub55680-12050¥2,060

55950ANOZZLE ASSY, DEFROSTER

main55950-12140iAE10#,CE10#,EE10#¥8,000199106-199208

sub55950-12170¥7,900

main55950-12170iAE10#,CE10#,EE10#¥7,900199208

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12180-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub55961-12180¥1,160

main55961-12180-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub55961-12180¥1,160

main55961-12180-P0iAE100,104..LT200004-200008

sub55961-12180¥1,160

main55961-12180-P0iAE100,104..LT199904-200004

sub55961-12180¥1,160

main55961-12180-P0iAE10#,CE10#,EE10#199106-199705

SHADOW GRAY,TRIM1#

sub55961-12180¥1,160

main55961-12180-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55961-12180¥1,160

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12160-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub55962-12160¥890

main55962-12160-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub55962-12160¥890

main55962-12160-P0iAE100,104..LT199904-200004

sub55962-12160¥890

main55962-12160-P0iAE10#,CE10#,EE10#199106-199705

SHADOW GRAY,TRIM1#

sub55962-12160¥890

main55962-12160-P0iAE100,104..LT200004-200008

sub55962-12160¥890

main55962-12160-P0iAE100,104..4FC..LT199807

sub55962-12160¥890

main55962-12160-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55962-12160¥890

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-12110iAE10#,CE10#,EE10#¥510199106

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12050iAE10#,CE10#,EE10#¥2,060199106

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-12050iAE10#,CE10#,EE10#¥2,060199106

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-12010iAE10#,CE10#,EE10#¥2,350199106

58821DPANEL, CONSOLE, UPPER FRONT

main58821-12050-B0iAE100,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub58821-12050¥1,730

main58821-12050-K0iAE100,101,CE100,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub58821-12050¥1,730

main58821-12050-P0iAE100..LT199904-200004

sub58821-12050¥1,730

main58821-12050-P0iAE100,101,CE100,106,108,EE10#199106-199705

SHADOW GRAY,TRIM1#

sub58821-12050¥1,730

main58821-12050-P0iAE100..LT200004-200008

sub58821-12050¥1,730

main58821-12050-P0iAE100..4FC..LT199807

sub58821-12050¥1,730

main58821-12050-W3iAE100,101,CE100,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub58821-12050¥1,730

main58821-12060-B0iAE104199705-200008

DK.CHARCOAL,TRIM1#

sub58821-12060¥2,150

main58821-12060-K0iAE104,CE104199109-199505

TAUPE,TRIM9#

sub58821-12060¥2,150

main58821-12060-P0iAE104,109,CE104,109199109-199705

SHADOW GRAY,TRIM1#

sub58821-12060¥2,150

main58821-12060-P0iAE104..LT200004-200008

sub58821-12060¥2,150

main58821-12060-P0iAE104..LT199904-200004

sub58821-12060¥2,150

main58821-12060-P0iAE104..4FC..LT199807

sub58821-12060¥2,150

main58821-12060-W3iAE104,CE104199109-199305

DARK BLUE,TRIM8#

sub58821-12060¥2,150

8302

5563132013ARM,UNDER TRAY DOOR CHECK

main55631-32013¥210

9010508114

main90105-08114¥140

9010508120

main90105-08120¥90

9010508334

main90105-08334¥110

9011906106

main90119-06106¥70

9015140005

main90151-40005¥90

9016750002

main90167-50002¥120

9017608007

main90176-08007¥220

9017905084

main90179-05084¥160

9017908063

main90179-08063¥160

9017908102

main90179-08102¥160

9018305018

main90183-05018¥130

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9018905024

main90189-05024¥130

9018905113

main90189-05113¥130

9046714023

main90467-14023¥190

9046714024

main90467-14024¥190

9046714025

main90467-14025¥190

9046714027

main90467-14027¥190

9046714028

main90467-14028¥190

9046715024

main90467-15024¥110

9046804054

main90468-04054¥120

9046804160

main90468-04160¥90

9054103015

main90541-03015¥110

9054105020

main90541-05020¥110

9351055016

main93510-55016¥60

9356755014

main93567-55014¥110

9356855012

main93568-55012¥60

9356855014

main93568-55014¥70

77 parts on this diagram · 2 diagrams in section
