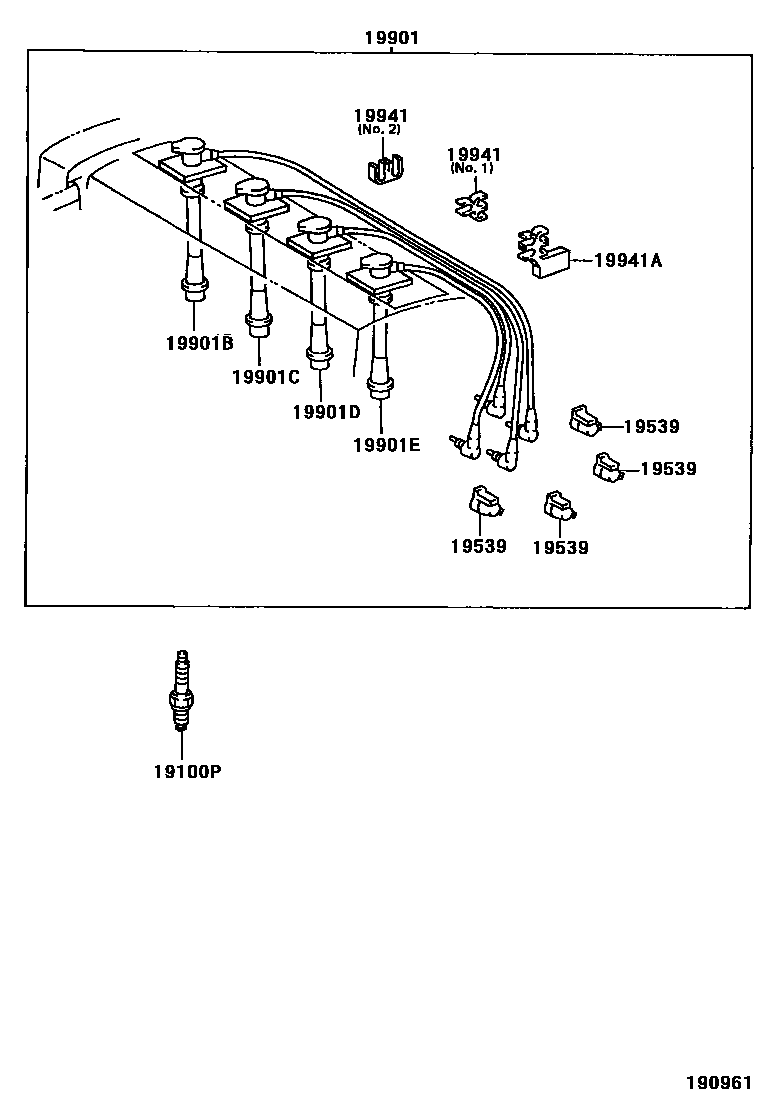

Toyota COROLLA — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

19100PPLUG, SPARK

main90919-01091i2E,3E..EE106,107,108¥450199109-199401

main90919-01104i2E,3E..EE106,107,108¥450199109-199401

main90919-01164i4EFE,5EFE..EE101,102,103,104¥520199106-199704

main90919-01178i4AGE..AE101¥1,500199106

sub90919-01210¥1,700

main90919-01179i4AGE..AE101¥1,500199106

main90919-01192i4EFE,5EFE..EE10#¥660199704

19539HOLDER, RESISTIVE CODE, NO.4

main19532-50010i2E,3E..EE106,107,108¥680199106-199401

main19539-11010i4AFE,5AFE..AE10#¥590199106

main19539-11010i2E,3E..EE106,107,108¥590199109-199401

main19539-11020i4EFE,5EFE..EE10#¥580199405-199704

main19539-11020i4EFE,5EFE..EE10#¥580199704

main19539-11030i4EFE,5EFE..EE10#¥590199405-199704

main19539-16010i4AGE..AE101¥590199106

main19539-46010i4AGE..AE101¥540199106

main19539-46010i4AFE,5AFE..AE10#¥540199106

main19539-50010i4EFE,5EFE..EE101,102,103,104¥400199106-199405

main19539-50010i4AGE..AE101¥400199106

main19539-70010i4EFE,5EFE..EE101,102,103,104¥410199106-199405

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21520i4AGE..AE101¥11,200199106-199505

sub90919-29235¥11,200

main90919-21592i4AGE..AE101¥8,600199605

sub90919-29275¥8,600

main90919-22325i4EFE,5EFE..EE10#¥6,100199407-199505

sub90919-22418¥6,100

main90919-22327i4AFE,5AFE..AE10#¥11,700199106

sub90919-22419¥11,700

main90919-22329i2E,3E..EE106,107,108¥7,700199109-199401

main90919-22373i4EFE,5EFE..EE10#¥8,600199505-199704

sub90919-22420¥8,600

main90919-22395i4EFE,5EFE..EE10#¥9,300199704

main90919-22399i4EFE,5EFE..EE101,102,103,104¥6,100199106-199407

sub90919-22421¥6,100

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15199i4EFE,5EFE..EE10#¥1,710199407-199505

sub90919-15586¥1,710

main90919-15207i4AGE..AE101¥2,370199106

sub90919-15582¥2,370

main90919-15211i4AFE,5AFE..AE10#¥2,530199106

sub90919-15590¥2,530

main90919-15216i2E,3E..EE106,107,108¥1,670199109-199401

main90919-15423i4EFE,5EFE..EE10#¥2,290199505-199704

sub90919-15594¥2,290

main90919-15510i4EFE,5EFE..EE10#¥2,230199704

main90919-15543i4EFE,5EFE..EE101,102,103,104¥1,700199106-199407

sub90919-15597¥1,700

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15200i4EFE,5EFE..EE10#¥1,510199407-199505

sub90919-15587¥1,510

main90919-15206i4AGE..AE101¥2,370199106

sub90919-15583¥2,370

main90919-15210i4AFE,5AFE..AE10#¥2,370199106

sub90919-15591¥2,370

main90919-15217i2E,3E..EE106,107,108¥1,520199109-199401

main90919-15424i4EFE,5EFE..EE10#¥2,100199505-199704

sub90919-15595¥2,100

main90919-15511i4EFE,5EFE..EE10#¥2,230199704

main90919-15544i4EFE,5EFE..EE101,102,103,104¥1,700199106-199407

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15201i4EFE,5EFE..EE10#¥1,510199407-199505

sub90919-15588¥1,510

main90919-15205i4AGE..AE101¥2,190199106

sub90919-15584¥2,190

main90919-15209i4AFE,5AFE..AE10#¥2,370199106

sub90919-15592¥2,370

main90919-15218i2E,3E..EE106,107,108¥1,520199109-199401

main90919-15425i4EFE,5EFE..EE10#¥2,100199505-199704

sub90919-15596¥2,100

main90919-15512i4EFE,5EFE..EE10#¥2,080199704

main90919-15545i4EFE,5EFE..EE101,102,103,104¥1,490199106-199407

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15202i4EFE,5EFE..EE10#¥1,400199407-199704

sub90919-15589¥1,400

main90919-15204i4AGE..AE101¥2,190199106

sub90919-15585¥2,190

main90919-15208i4AFE,5AFE..AE10#¥2,370199106

sub90919-15593¥2,370

main90919-15219i2E,3E..EE106,107,108¥1,330199109-199401

main90919-15513i4EFE,5EFE..EE10#¥2,080199704

main90919-15550i4EFE,5EFE..EE101,102,103,104¥1,490199106-199407

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00561i4AFE,5AFE..AE10#¥160199106

main90464-00637i2E,3E..EE106,107,108¥170199109-199401

main90464-00655i4AFE,5AFE..AE10#¥220199106

main90929-01258i4EFE,5EFE..EE101,102,103,104¥540199106

19941ACLAMP(FOR RESISTIVE CORD)

main90464-00559i4EFE,5EFE..EE101,102,103,104¥260199106-199705

main90929-01273i4AFE,5AFE..AE10#¥280199106

9 parts on this diagram · 7 diagrams in section
