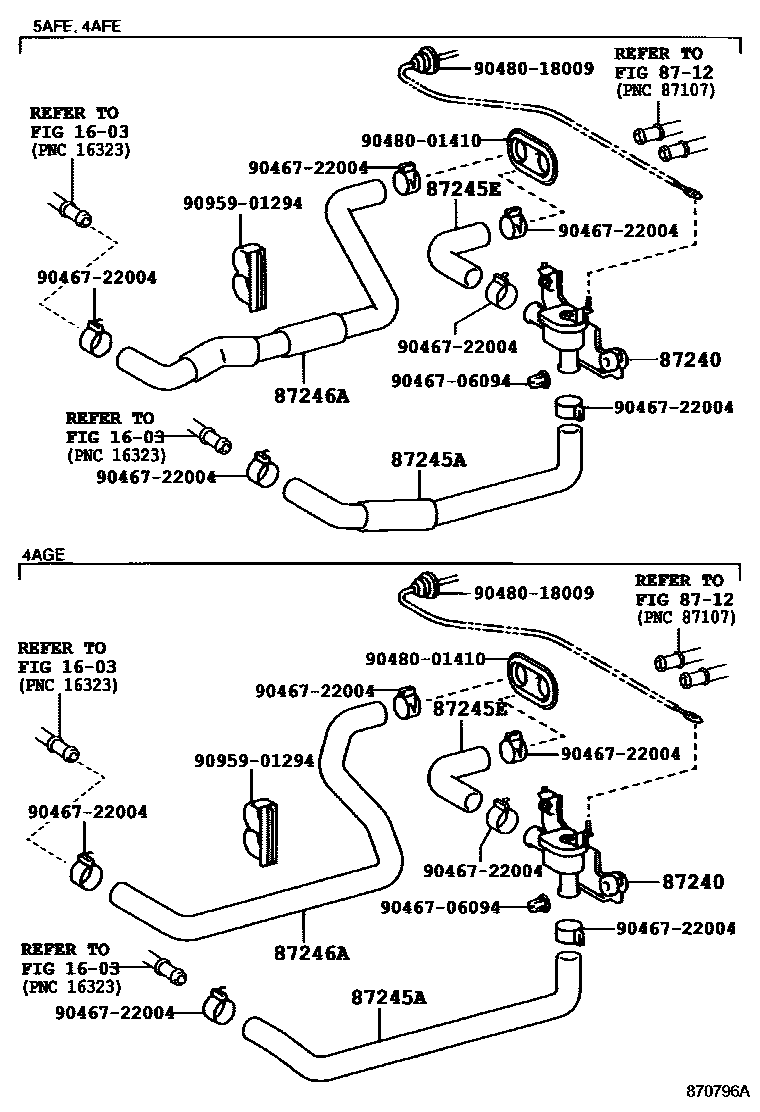

Toyota COROLLA — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603

8712

87240VALVE ASSY, HEATER WATER

main87240-12250iAE10#,CE10#,EE10#¥3,220199106

87245AHOSE, HEATER WATER, INLET A

main87245-1A170iCE10#¥1,350199106-199503

���� �����

main87245-1A450iEE10#¥1,960199106-199503

sub87245-1A680¥1,970

main87245-1A470iAE10#..DX,G,LT,LX,SEG,SEL,SJ,XE¥1,810199106-199503

sub87245-1A640¥1,810

main87245-1A490iAE101..GT¥2,030199106-199503

sub87245-1A660¥2,030

main87245-1A640iAE10#..DX,G,LT,LX,SEG,SEL,SJ,XE¥1,810199503

main87245-1A660iAE101¥2,030199605-200008

main87245-1A680iEE10#¥1,970199503

main87245-1A690iCE10#¥1,360199503

���� �����

87245EHOSE, HEATER WATER, INLET E

main87245-1A440iAE10#,CE10#,EE10#¥790199106

87246AHOSE, HEATER WATER, OUTLET A

main87245-1A211iEE10#¥2,410199106-199503

sub87245-1A670¥2,420

main87245-1A460iAE10#..DX,G,LT,LX,SEG,SEL,SJ,XE¥2,110199106-199503

sub87245-1A630¥2,120

main87245-1A480iAE101..GT¥2,640199106-199503

sub87245-1A650¥2,640

main87245-1A510iCE10#¥1,530199106-199503

���� �����

main87245-1A630iAE10#..DX,G,LT,LX,SEG,SEL,SJ,XE¥2,120199503

main87245-1A670iEE10#¥2,420199503

main87245-1A700iCE10#¥1,530199503

���� �����

main87245-1A750iAE101..BZT,GT¥2,640199503-200008

9046706094

main90467-06094¥130

9046722004

main90467-22004¥330

9048001410

main90480-01410

9048018009

main90480-18009¥190

9095901294

main90959-01294¥0

11 parts on this diagram · 4 diagrams in section
