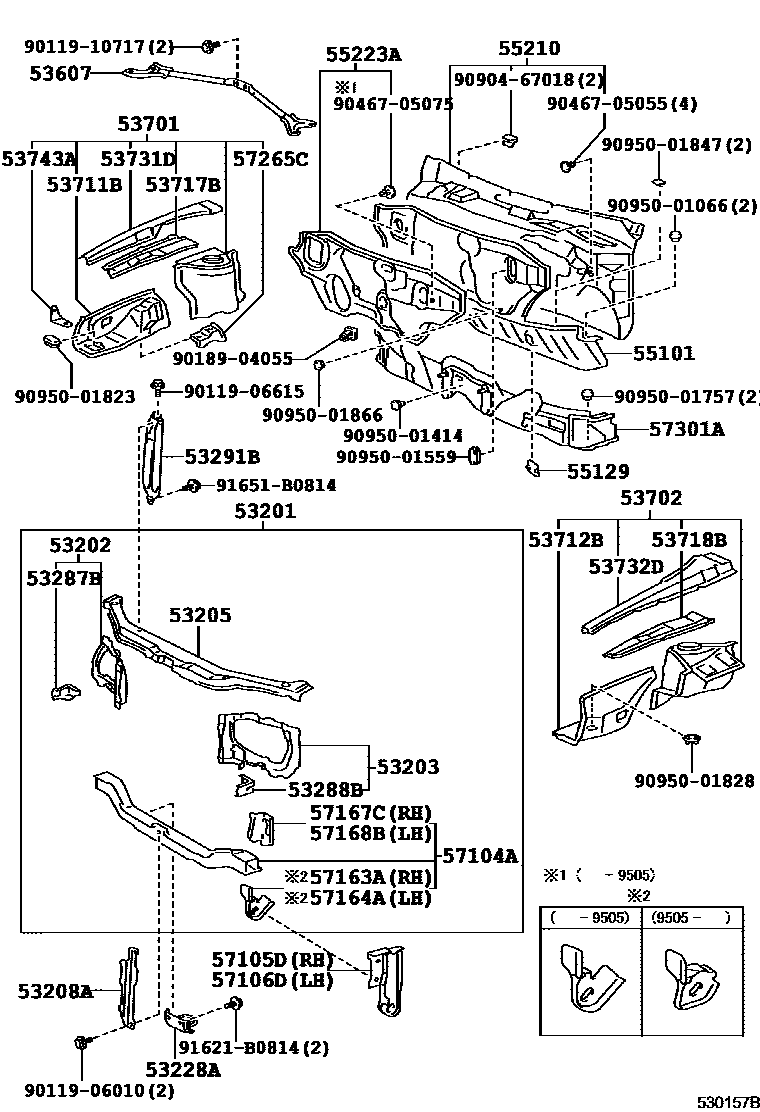

Toyota COROLLA — FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-1A030iAE10#,CE10#,EE10#¥31,200199106-199505

sub53201-1A070¥31,200

main53201-1A031iAE109,CE102,105,106,107,108,109,EE10#¥31,400199505-199705

main53201-1A180iAE100,101,104,CE100,101¥31,500199705-200008

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-12320iAE10#,CE10#,EE10#¥2,990199112

main53211-12900iAE10#,CE10#,EE10#¥3,010199106-199112

sub53202-12320¥2,990

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12280iAE10#,CE10#,EE10#¥2,990199112

main53212-12900iAE10#,CE10#,EE10#¥3,010199106-199112

sub53203-12280¥2,990

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-12100iAE10#,CE10#,EE10#¥10,600199112-199705

sub53205-12110¥10,600

main53205-12110iAE109,CE106,108,109,EE10#¥10,600199704-199705

main53216-12933iAE10#,CE10#,EE10#¥10,600199106-199112

sub53205-12100¥10,600

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-12200iAE10#,CE10#,EE10#¥1,640199106

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-12130iAE10#,CE10#,EE10#¥1,000199106

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-12030iAE10#,CE10#,EE10#¥480199106

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-12030iAE10#,CE10#,EE10#¥480199106

53291BPLATE, RADIATOR COVER

main53291-12100iAE100,EE101;AE101..4DS..4FC;AE101,104,EE102,103,104,106,107,108..MTM¥1,280199106-199508

53607BRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH

main53607-12030iAE101..GT¥10,200199106-199412

sub53607-12040¥10,300

main53607-12040iAE101¥10,300199605-200008

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-1A040iAE10#,CE10#,EE10#¥25,900199106-199411

sub53701-1A041¥25,900

main53701-1A041iAE10#,CE10#,EE10#¥25,900199411-199505

sub53701-1A052¥25,800

main53701-1A050iAE10#,CE100,104,EE101¥25,900199106-199411

sub53701-1A051¥25,900

main53701-1A051iAE10#,CE100,104,EE101¥25,900199411-199505

sub53701-1A052¥25,800

main53701-1A052iAE10#,CE10#,EE10#¥25,800199505

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-1A040iAE10#,CE10#,EE10#¥25,900199106-199411

sub53702-1A041¥25,900

main53702-1A041iAE10#,CE10#,EE10#¥25,900199411-199505

sub53702-1A042¥25,800

sub90119-06390¥70

sub90119-06770¥130

main53702-1A042iAE10#,CE10#,EE10#¥25,800199505

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12220iAE10#,CE10#,EE10#¥6,100199106-199411

sub53711-12221¥6,100

main53711-12221iAE10#,CE10#,EE10#¥6,100199411-199505

sub53711-12902¥6,300

main53711-12902iAE10#,CE10#,EE10#¥6,300199505

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12180iAE10#,CE10#,EE10#¥6,100199106-199411

sub53712-12181¥6,100

main53712-12181iAE10#,CE10#,EE10#¥6,100199411-199505

sub53712-12182¥6,100

sub90119-06390¥70

sub90119-06770¥130

main53712-12182iAE10#,CE10#,EE10#¥6,100199505

53717BGUSSET, FENDER APRON, RH

main53717-12050iAE10#,CE10#,EE10#¥2,260199106-199501

sub53717-12051¥2,270

main53717-12051iAE10#,CE10#,EE10#¥2,270199501

53718BGUSSET, FENDER APRON, LH

main53718-12050iAE10#,CE10#,EE10#¥2,260199106-199501

sub53718-12051¥2,270

main53718-12051iAE10#,CE10#,EE10#¥2,270199501

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12150iAE10#,CE10#,EE10#¥3,980199106

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12130iAE10#,CE10#,EE10#¥3,980199106

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-12040iAE100,101,104,CE100,104,EE101¥1,310199106-199804

55101PANEL SUB-ASSY, DASH

main55101-1A270iAE101,CE100,106,108..4FC..(DX,GL,GT,L,LX,SEL,XE)¥29,700199106-199505

sub55101-1A271¥29,700

sub90115-06165¥110

main55101-1A280iAE101,CE100..5F..(DX,GT,LX,SEL,XE)¥29,700199106-199505

sub55101-1A451¥30,000

sub90115-05066¥100

sub90115-06165¥110

sub90333-25003¥70

main55101-1A450iAE100,EE10#..MTM..(CTD,DX,DXJ,GL,L,LT,LX,XE)¥29,700199106-199505

main55101-1A451iEE102..3FC..02S;AE100,101,CE100,101,102,106,107,108,EE10#..MTM¥30,000199109-199603

main55101-1A480iAE10#,EE101..ATM..(DX,LX,SEG,SEL,XE)¥29,700199106-199505

main55101-1A481iAE100..4FC..(G,SEL);AE101,104..4FC..(SEG,SEL,SJ,XE)¥29,700199109-199505

main55101-1A521iCE100,106,108..5F..(CTD,DX,GL,L,LT)¥29,700199505-199603

sub55101-1A451¥30,000

sub90333-25003¥70

main55101-1E380iAE104,109..4FC¥30,000199505

sub55101-1A451¥30,000

sub90333-40001¥100

main55101-1E390iAE104,109,CE105,109..5F¥30,000199505-199508

55129COVER, DASH PANEL HOLE

main55129-12030iAE100..ATM;AE100..5F..SEL;AE101,CE100,EE101..3FC,4FC,5F¥480199106-199109

55210INSULATOR ASSY, DASH PANEL

main55210-12360iAE10#,CE10#,EE10#¥19,400199106

55223AINSULATOR, DASH PANEL, OUTER

main55223-12070iAE101,CE10#..CTD,DX,GL,GT,L,LX,SEL,XE¥6,700199106-199505

sub55223-12071¥6,700

main55223-12071iAE101,CE10#¥6,700199505-199905

sub55223-12072¥4,630

main55223-12072iAE101,CE10#¥4,630199905

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-12010iAE10#,CE10#,EE10#¥12,000199408-199505

PLANT M12

main57104-12010iAE10#,CE10#,EE10#¥12,000199106-199408

main57104-12020iAE10#,CE10#,EE10#¥13,900199408-199505

PLANT A31,32,B11,K21

sub57104-12010¥12,000

main57104-12050iAE10#,CE10#,EE10#¥13,800199505-199705

main57104-12080iAE100,101,104,CE100,101¥12,000199705-200008

57105DPLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-12050iAE10#,CE10#,EE10#¥2,170199106-199505

sub57105-12051¥2,100

sub90159-60500¥70

sub90189-06006¥100

main57105-12100iAE10#,CE10#,EE10#¥2,170199505-200008

main57105-12120iAE100,101,104,CE100,101¥2,410199705-199910

sub57105-12121¥2,410

main57105-12130iAE100,101,104,CE101¥2,420199910-200008

main57105-12150iAE109,CE10#,EE10#¥2,230200008

57106DPLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-12050iAE10#,CE10#,EE10#¥2,170199106-199505

sub57106-12051¥2,100

sub90159-60500¥70

sub90189-06006¥100

main57106-12100iAE10#,CE10#,EE10#¥2,170199505-200008

main57106-12110iAE100,101,104,CE100,101¥2,420199705-200008

main57106-13010iAE109,CE10#,EE10#¥2,320200008

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-12110iAE10#,CE10#,EE10#¥2,150199106-199505

main57163-12120iAE10#,CE10#,EE10#¥1,920199505-199705

main57163-12130iAE100,101,104,CE100,101¥2,120199705-200008

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-12060iAE10#,CE10#,EE10#¥2,150199106-199505

main57164-12070iAE10#,CE10#,EE10#¥1,920199505-199705

main57164-12080iAE100,101,104,CE100,101¥2,120199705-200008

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-12100iAE10#,CE10#,EE10#¥1,350199106

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-12100iAE10#,CE10#,EE10#¥1,350199106

57265CBRACKET, ENGINE MOUNTING, RH

main57265-12050iAE10#,CE10#,EE10#¥1,360199106

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-12120iAE10#,CE10#,EE10#¥34,700199106-199505

sub57301-12180¥40,100

sub90119-14048¥210

main57301-12130iAE101..3DS..GT¥34,700199205-199505

sub57301-12170¥39,600

main57301-12180iAE10#,CE10#,EE10#¥40,100199505

9011906010

main90119-06010¥90

9011906615

main90119-06615¥160

9011910717

main90119-10717¥180

9018904055

main90189-04055¥90

9046705055

main90467-05055¥240

9046705075

main90467-05075¥220

9090467018

main90904-67018¥320

9095001066

main90950-01066¥210

9095001414

main90950-01414¥200

9095001559

main90950-01559¥190

9095001757

main90950-01757¥200

9095001823

main90950-01823¥540

9095001828

main90950-01828¥240

9095001847

main90950-01847¥170

9095001866

main90950-01866¥120

91621B0814

main91621-B0814¥140

91651B0814

main91651-B0814¥120

49 parts on this diagram · 1 diagram in section
