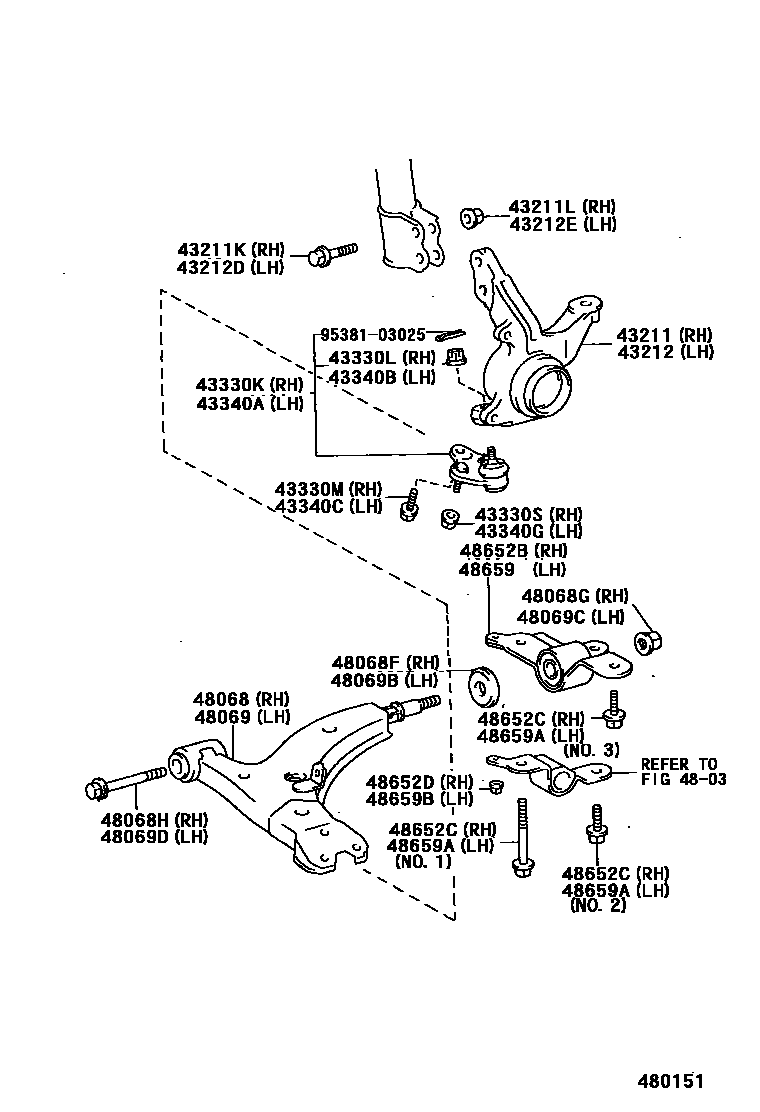

Toyota COROLLA — FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0003 1 0005 1 0006 1��(�-��- ����� ��������)

43211KNUCKLE, STEERING, RH

main43211-12180iAE101..3DS..GT¥18,000199205-199505

main43211-12200iCE100,106..CTD,DX¥18,700199106-199505

sub43211-12340¥16,700

main43211-12220iAE100,101,CE100,106,108,EE10#¥18,700199106-199505

sub43211-12330¥18,700

main43211-12230iCE100..DX¥18,700199106-199505

sub43211-12320¥18,000

sub90389-16020¥130

main43211-12240iAE100,101,CE100,EE101¥18,700199106-199505

sub43211-12300¥18,700

sub90389-16020¥130

main43211-12250iAE104,CE104,109¥18,700199109-199505

sub43211-12370¥18,000

main43211-12260iAE104,CE104¥18,700199109-199505

sub43211-12380¥18,000

main43211-12290iAE100,CE100,106,108,EE10#¥18,000199505-199605

main43211-12300iAE100,101,CE100¥18,700199505-199804

main43211-12310iEE102;CE106,107..CTD,DXJ¥18,000199505

main43211-12320iEE102;CE107..DXJ¥18,000199804

main43211-12370iAE104,CE109¥18,000199505-199605

main43211-12380iAE104¥18,000199505-199804

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iAE10#,CE10#,EE10#¥410199408

main90105-15004iAE100,101,CE100,EE101..4DS¥330199106-199211

main90105-15005iAE10#,CE10#,EE10#¥330199106-199211

main90105-15006iAE10#,CE10#,EE10#¥330199106-199211

main90105-15007iAE10#,CE10#,EE10#¥500199106-199408

sub90105-15001¥410

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001iAE10#,CE10#,EE10#¥350199106

43212KNUCKLE, STEERING, LH

main43212-12140iAE101..3DS..GT¥18,000199205-199505

main43212-12160iCE100,106,108..CTD,DX,L¥18,700199106-199505

sub43212-12300¥18,700

main43212-12180iCE100,106..GL,LX,SEL,XE;AE100,101,EE101,103,104,106,107,108..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE¥18,700199205-199505

sub43212-12290¥18,700

main43212-12180iCE100,106,108,EE102..CTD,DX,DXJ,L¥18,700199106-199505

sub43212-12290¥18,700

main43212-12180iAE100,101,EE10#;CE100,106..GL,LX,SEL,XE¥18,700199106-199205

sub43212-12290¥18,700

main43212-12190iAE100,CE100,EE101..DX¥18,700199106-199505

sub43212-12280¥18,000

sub90389-16020¥130

main43212-12200iCE100..DX,SEL¥18,700199106-199505

sub43212-12260¥18,700

sub90389-16020¥130

main43212-12200iCE100..LX,XE¥18,700199106-199505

sub43212-12260¥18,700

sub90389-16020¥130

main43212-12210iAE104,CE104,109¥18,700199109-199505

sub43212-12330¥18,000

main43212-12220iAE104,CE104¥18,700199109-199505

sub43212-12340¥18,000

main43212-12250iCE102,106,107,108,EE10#¥18,000199505-199605

main43212-12260iAE100,101,CE101,102,107,EE10#¥18,700199505-199804

main43212-12270iCE106,108,EE102..CTD,DX,DXJ,L¥18,000199505-199704

main43212-12280iEE102;CE107..DXJ¥18,000199804

main43212-12330iAE109,CE105,109¥18,000199505-199605

main43212-12340iAE104¥18,000199505-199804

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iAE10#,CE10#,EE10#¥410199408

main90105-15004iAE100,101,CE100,EE101..4DS¥330199106-199211

main90105-15005iAE100,101,CE100,EE101..4DS¥330199106-199211

main90105-15006iAE100,101,CE100,EE101..4DS¥330199106-199211

main90105-15007iAE10#,CE10#,EE10#¥500199106-199408

sub90105-15001¥410

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001iAE10#,CE10#,EE10#¥350199106

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19095iAE10#,CE10#,EE10#¥4,800199106-199505

main43330-19115iAE10#,CE10#,EE10#¥5,300199505

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAE10#,CE10#,EE10#¥110199106

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12156iAE10#,CE10#,EE10#¥190199106

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12070iAE10#,CE10#,EE10#¥260199106

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19095iAE10#,CE10#,EE10#¥4,800199106-199505

main43330-19115iAE10#,CE10#,EE10#¥5,300199505

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAE10#,CE10#,EE10#¥110199106

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12156iAE10#,CE10#,EE10#¥190199106

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12070iAE10#,CE10#,EE10#¥260199106

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12130iAE100,104,CE10#,EE10#¥14,200199106-199508

main48068-12140iAE101¥14,200199106-199505

main48068-12160iAE100,109,CE10#,EE10#¥16,500199505-199508

main48068-12180iAE101¥16,300199605-199610

sub48068-12181¥16,500

main48068-12181iAE101¥16,500199610-200008

main48068-12190iAE104¥16,300199505-199506

sub48068-12191¥16,600

main48068-12191iAE104¥16,600199506-200008

main48605-12090iAE101..3DS..GT¥20,200199205-199505

sub48605-12200¥20,200

48068FRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90948-02152iAE10#,CE10#,EE10#¥310199106-199508

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-10075iAE101..3DS..GT¥160199205-199505

ATTACHMENT SIDE

main90179-14006iCE106,108,109,EE10#¥230199106-199508

main90179-14053iAE101..3DS..GT¥260199205-199505

CONTROL ARM SIDE

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-10327iAE101..3DS..GT¥240199205-199505

main90119-14023iAE101..3DS..GT¥520199205-199505

main90119-14023iAE10#,CE10#,EE10#¥520199106

main90119-14041iAE10#,CE100¥610199505-199508

main90119-14041iAE101..3DS..GT¥610199205-199505

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12130iCE106,108,109,EE10#¥14,200199106-199508

main48069-12140iAE101¥14,200199106-199505

main48069-12160iAE100,CE100¥16,500199505-199508

main48069-12180iAE101¥16,300199605-199610

sub48069-12181¥16,500

main48069-12181iAE101¥16,500199610-200008

main48069-12190iAE104¥16,300199505-199506

sub48069-12191¥16,600

main48069-12191iAE104¥16,600199506-200008

main48606-12080iAE101..3DS..GT¥20,200199205-199505

sub48606-12190¥20,200

48069BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90948-02152iCE106,108,109,EE10#¥310199106-199508

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-10075iAE101..3DS..GT¥160199205-199505

ATTACHMENT SIDE

main90179-14006iCE106,108,109,EE10#¥230199106-199508

main90179-14053iAE101..3DS..GT¥260199205-199505

CONTROL ARM SIDE

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-10327iAE101..3DS..GT¥240199205-199505

main90119-14023iAE101..3DS..GT¥520199205-199505

main90119-14023iAE10#,CE10#,EE10#¥520199106

main90119-14041iAE10#,CE100¥610199505-199508

main90119-14041iAE101..3DS..GT¥610199205-199505

48652BBRACKET, FRONT LOWER ARM, RH

main48075-12010iAE101..GT¥2,830199106-199505

main48075-12030iAE100,104,CE10#,EE10#¥2,830199106-199205

sub48075-12031¥2,830

main48075-12031iAE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE¥2,830199205-199508

main48075-12040iAE100,EE101,102,103,104¥1,970199305-199508

main48652-12030iAE101..3DS..GT¥2,800199205-199505

main48652-12060iAE100,CE100¥1,630199505-199705

main48652-12070iAE104¥2,340199505-199508

main48652-12100iAE100,CE100,101,EE10#¥2,430199704-199705

48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)

main90109-10168iAE109,CE106,108,109,EE10#¥410199704-199705

main90119-10692iEE103..5F..DX;EE102..3FC..02S;CE10#,EE102..4FC,5F¥220199804

main90119-10692iEE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE10#,CE100,104,106,108,109,EE101,104,106,107,108¥220199106

main90119-12125iEE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE10#,CE100,104,106,108,109,EE101,104,106,107,108¥260199106

main90119-12125iEE103..5F..DX;EE102..3FC..02S;CE10#,EE102..4FC,5F¥260199804

main90119-12238iEE103..GL;EE102..4F..02S;AE10#,CE10#,EE101,104,106,107,108;EE102,103..(3FC,4F)..(DX,DXJ)..05S¥410199106

main90119-12238iEE102..3FC..02S;EE102,103..5F..(DX,DXJ)¥410200008

48652DNUT(FOR FRONT LOWER ARM BRACKET RH)

main90179-08072iAE10#,CE10#,EE10#¥80199106-199408

main90179-08072iAE101..3DS..GT¥80199205-199408

main90179-08145iAE101..3DS..GT¥100199408-199505

sub90179-08123¥160

main90179-08145iAE10#,CE10#,EE10#¥100199408

sub90179-08123¥160

48659BRACKET, FRONT LOWER ARM, LH

main48076-12010iAE101¥2,830199106-199505

main48076-12030iAE100,104,CE10#,EE10#¥2,830199106-199205

sub48076-12031¥2,830

main48076-12031iAE10#,CE10#,EE10#..CTD,DX,G,GL,L,LT,LX,SEG,SEL,SJ,XE¥2,830199205-199508

main48076-12040iAE100,EE101,102,103,104¥1,970199305-199508

main48659-12030iAE101..3DS..GT¥2,800199205-199505

main48659-12060iAE100,CE100,EE10#¥1,630199505-199705

main48659-12070iAE104¥2,340199505-199508

main48659-12100iAE100,CE100,101,EE10#¥2,430199704-199705

48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)

main90109-10168iAE109,CE106,108,109,EE10#¥410199704-199705

main90119-10692iEE103..5F..DX;EE102..3FC..02S;CE10#,EE102..4FC,5F¥220199804

main90119-10692iEE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE10#,CE100,104,106,108,109,EE101,104,106,107,108¥220199106

main90119-12125iEE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE10#,CE100,104,106,108,109,EE101,104,106,107,108¥260199106

main90119-12125iEE103..5F..DX;EE102..3FC..02S;CE10#,EE102..4FC,5F¥260199804

main90119-12238iEE103..GL;EE102..4F..02S;AE10#,CE10#,EE101,104,106,107,108;EE102,103..(3FC,4F)..(DX,DXJ)..05S¥410199106

main90119-12238iEE102..3FC..02S;EE102,103..5F..(DX,DXJ)¥410200008

48659BNUT(FOR FRONT LOWER ARM BRACKET LH)

main90179-08072iAE10#,CE10#,EE10#¥80199106-199408

main90179-08072iAE101..3DS..GT¥80199205-199408

main90179-08145iAE101..3DS..GT¥100199408-199505

sub90179-08123¥160

main90179-08145iAE10#,CE10#,EE10#¥100199408

sub90179-08123¥160

9538103025

main95381-03025¥130

30 parts on this diagram · 4 diagrams in section
