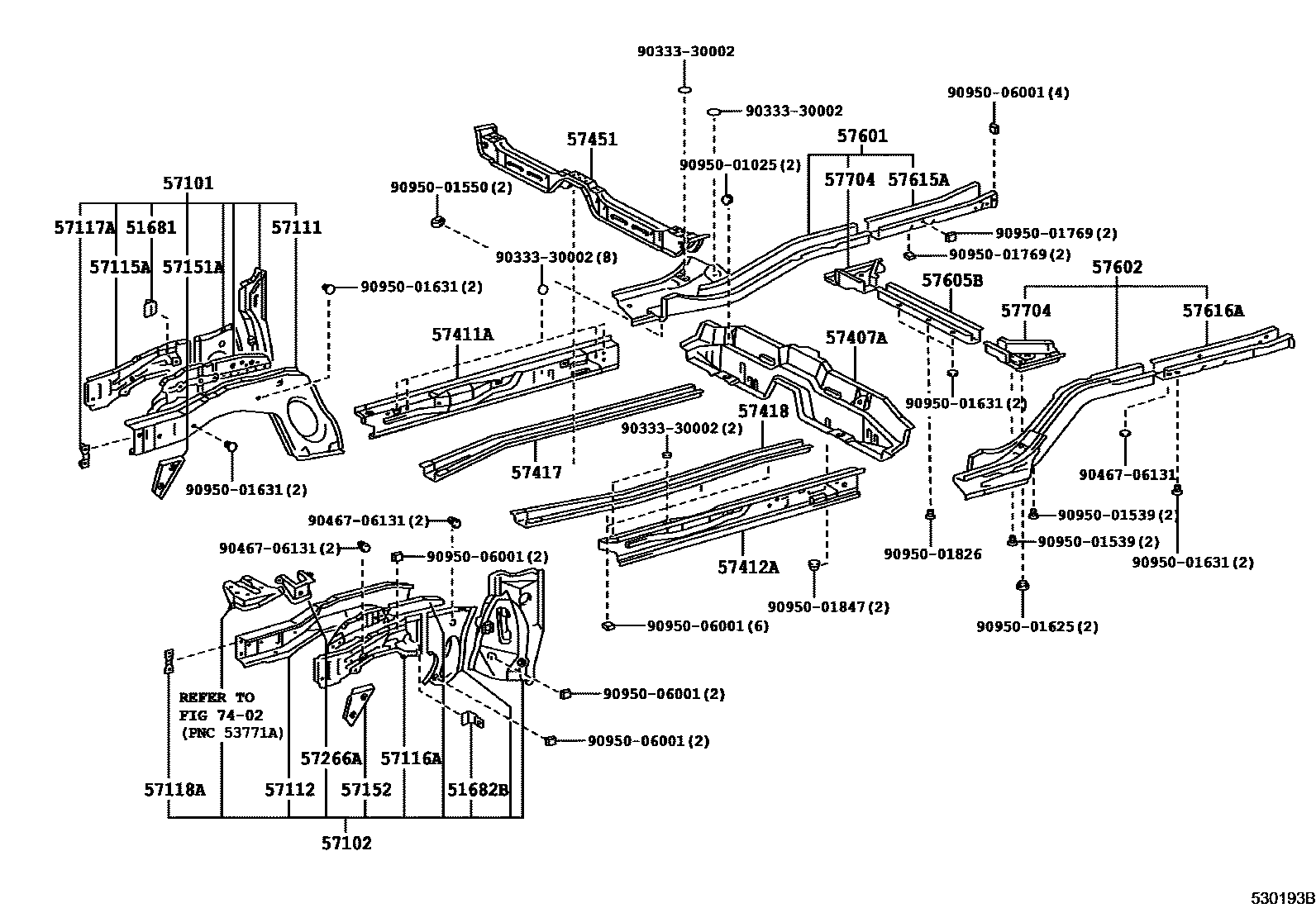

Toyota COROLLA — FLOOR SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1 0015 1

51681BRACKET, FLEXIBLE HOSE

main51681-12050iAE10#,CE10#,EE10#¥740199106

main51681-12060iAE101..3DS..GT¥820199205-199505

��(*SSS)

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-12050iAE101..3DS..GT¥820199205-199505

��(*SSS)

main51682-12060iAE10#,CE10#,EE10#¥740199106

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-12440iCE10#,EE10#¥37,900199106-199505

sub57101-12441¥37,900

sub57151-12100¥1,740

sub90115-06243¥80

sub90179-06070¥180

main57101-12441iCE100¥37,900199704-199705

main57101-12441iCE10#,EE10#¥37,900199505-199704

main57101-12450iAE10#¥37,900199106-199505

sub57101-12451¥37,900

sub57151-12100¥1,740

sub90115-06243¥80

sub90179-06070¥180

main57101-12451iAE10#¥37,900199505-199704

main57101-12451iAE100,101,104¥37,900199704-199705

main57101-12460iAE101..3DS..GT¥37,900199205-199505

��(*SSS)

sub57101-12461¥37,500

sub57151-12100¥1,740

sub90115-06243¥80

sub90179-06070¥180

main57101-12780iAE109¥42,200199704-199709

sub57101-12948¥42,200

main57101-12941iCE102,105,106,107,108,109,EE10#¥42,200199704-200008

sub57101-1A911¥37,900

main57101-12942iAE100,101,104¥42,200199705-200008

sub57101-1A912¥37,900

main57101-12943iCE100,101¥42,200199705-200008

sub57101-1A913¥37,900

main57101-12948iAE109¥42,200199709-200008

sub57101-1A910¥37,900

main57101-1A914iAE109¥37,900200008

main57101-1A915iCE10#,EE10#¥37,900200008

main57101-1A916iAE109¥37,900200008

��(ABS)

main57101-1A917iCE10#,EE10#¥37,900200008

��(ABS)

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12400iCE10#¥42,700199106-199505

sub57102-12401¥42,200

sub57152-12070¥1,740

sub90115-06243¥80

sub90179-06070¥180

main57102-12401iCE10#¥42,200199505-199704

main57102-12410iAE10#,EE10#¥42,700199106-199505

sub57102-12411¥42,200

sub57152-12070¥1,740

sub90115-06243¥80

sub90119-06202¥180

sub90179-06070¥180

sub91651-60640¥0

main57102-12411iAE10#,EE10#¥42,200199505-199704

main57102-12420iAE101..3DS..GT¥42,700199205-199505

��(*SSS)

sub57102-12421¥42,100

sub57152-12070¥1,740

sub90115-06243¥80

sub90119-06202¥180

sub90179-06070¥180

sub91651-60640¥0

main57102-12954iAE109,EE10#¥44,200199704-200008

sub57102-1A910¥40,100

main57102-12955iCE102,105,106,107,108,109¥44,200199704-200008

sub57102-1A911¥40,100

main57102-12956iAE100,101,104¥44,200199705-200008

sub57102-1A912¥40,100

main57102-12957iCE100,101¥44,200199705-200008

sub57102-1A913¥40,100

main57102-12963iCE10#¥44,200200008

��(ABS)

main57102-1A914iAE109,EE10#¥40,100200008

main57102-1A915iCE10#¥40,100200008

main57102-1A916iAE109,EE10#¥40,100200008

��(ABS)

57111MEMBER, FRONT SIDE, RH

main57111-12200iAE10#,CE10#,EE10#¥15,300199106-199505

sub57111-12201¥14,900

sub57016-12050¥10,500

sub57016-12060¥10,800

main57111-12201iAE10#,CE10#,EE10#¥14,900199505

57112MEMBER, FRONT SIDE, LH

main57112-12140iAE10#,CE10#,EE10#¥15,300199106-199505

sub57112-12141¥14,700

sub57017-12030¥10,300

sub57017-12040¥10,300

main57112-12141iAE10#,CE10#,EE10#¥14,700199505-199701

sub57112-12142¥14,900

sub57208-12111¥2,410

sub57208-12121¥2,570

main57112-12142iAE10#,CE10#,EE10#¥14,900199701

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12060iAE10#,CE10#,EE10#¥4,670199106

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12060iAE10#,CE10#,EE10#¥4,670199106

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-12110iAE10#,CE10#,EE10#¥480199106

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57117-12110iAE10#,CE10#,EE10#¥480199106

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-12100iAE10#,CE10#,EE10#¥1,740199106-199505

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-12070iAE10#,CE10#,EE10#¥1,740199106-199505

57266ABRACKET, ENGINE MOUNTING, LH

main57208-12100iAE10#,EE10#¥2,410199106-199505

main57208-12110iCE10#¥2,410199106-199701

sub57208-12111¥2,410

main57208-12111iCE10#¥2,410199701-199705

main57208-12120iAE10#,EE10#¥2,550199505-199701

sub57208-12121¥2,570

main57208-12121iAE10#,EE10#¥2,570199701-199705

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-12040iAE100,101,CE100,EE101¥13,100199106-199705

main57407-12050iAE104,CE104¥11,900199109-200008

main57407-12070iAE100,101,CE100,101¥17,200199705-200008

main57407-13060iCE102,106,107,108,EE102,103,104,106,107,108¥11,900199109-200008

sub57407-13062¥11,900

main57407-13061iEE106..4F¥12,000199201-199401

��(LPG)

main57407-13062iCE102,107,EE10#¥11,900200008

main57407-13070iAE109,CE105,109¥10,600199109

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-12460iAE10#,CE10#,EE10#..4DS,V,WG¥13,400199106-200008

main57401-12461iAE109,CE10#,EE10#¥17,800200008

main57401-12480iAE101..3DS¥13,600199205-199505

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-12460iAE10#,CE10#,EE10#..4DS,V,WG¥13,400199106-200008

main57402-12461iAE109,CE10#,EE10#¥17,800200008

main57402-12480iAE101..3DS¥13,600199205-199505

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-12100iAE10#,CE10#,EE10#¥8,000199106-199704

sub57417-13010¥7,800

main57417-12100iAE100,101,104,CE100¥8,000199704-199705

sub57417-13010¥7,800

main57417-13010iAE10#,CE10#,EE10#¥7,800199705

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-12060iAE100,101,104,CE100¥7,900199704-199705

sub57418-13010¥7,800

main57418-12060iAE10#,CE10#,EE10#¥7,900199106-199704

sub57418-13010¥7,800

main57418-13010iAE10#,CE10#,EE10#¥7,800199705

57451MEMBER, FRONT FLOOR CROSS

main57451-12130iAE100,101,CE100,106,108,EE10#¥7,900199106-199505

sub57451-12131¥8,900

sub64606-20091¥4,560

sub64606-20161¥4,530

main57451-12131iAE100,101,CE100,101,102,106,107,108,EE10#¥8,900199505-200008

main57451-12140iAE104,CE104,109¥8,800199109-199505

sub57451-12141¥9,100

sub64606-20091¥4,560

sub64606-20161¥4,530

main57451-12141iAE104,109,CE105,109¥9,100199505-200008

main57451-12153iCE102,107,EE10#¥9,400200008

main57451-12170iAE109,CE105¥7,900200008

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12860iAE104,CE104¥35,400199109-199505

main57601-12923iAE100..WG¥39,800199305-199411

main57601-12923iAE100..G,LT,LX,SEL¥39,800199411-199505

��(*66)

main57601-12924iAE100,101,CE100¥39,800199505-199704

main57601-12926iAE100,101,CE100,EE101..4DS¥39,800199106-199305

main57601-12927iAE100..WG¥39,800199109-199305

sub57601-12923¥39,800

sub57615-12901¥8,700

sub57703-12060¥4,080

main57601-12927iAE100..LX,SEL¥39,800199108-199305

���� ���

sub57601-12923¥39,800

sub57615-12901¥8,700

sub57703-12060¥4,080

main57601-12931iAE100,101,CE100,EE101..4DS,WG¥39,600199411-199505

sub57601-13901¥39,600

main57601-12931iAE100,101,CE100,EE101..4DS¥39,600199305-199411

sub57601-13901¥39,600

main57601-13140iCE102,106,107,108,EE102,103,104,106,107,108¥37,500199109-200008

sub57601-13141¥37,500

main57601-13141iCE102,107,EE10#¥37,500200008

main57601-13160iAE109,CE105,109¥37,500199109-200008

sub57601-13161¥37,500

main57601-13161iAE109,CE105¥37,500200008

main57601-13180iEE106..4F¥47,200199109-199401

��(LPG)

main57601-13900iAE104¥39,600199505-199704

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12740iAE104,CE104¥35,400199109-199505

main57602-12926iAE100,101,CE100¥35,400199505-199704

main57602-12926iAE100..LX,SEL¥35,400199411-199505

��(*66)

main57602-12929iAE100,101,CE100,EE101..4DS,WG¥39,800199106-199305

main57602-12929iAE100..WG¥39,800199305-199411

main57602-12929iAE100..WG¥39,800199411-199505

��(*66)

main57602-12934iAE100,101,CE100,EE101..4DS,WG¥39,600199411-199505

main57602-12934iAE100,101,CE100,EE101..4DS¥39,600199305-199411

main57602-13120iCE102,106,107,108,EE102,103,104,106,107,108¥37,500199109-200008

sub57602-13121¥37,500

main57602-13121iCE102,107,EE10#¥37,500200008

sub57602-13361¥37,400

main57602-13150iAE109,CE105,109¥39,800199109-200008

sub57602-13151¥39,800

main57602-13151iAE109,CE105¥39,800200008

main57602-13170iEE106..4F¥47,200199109-199401

��(LPG)

main57602-13360iCE102,107,EE10#¥37,400199804-200008

��(ABS)

sub57602-13361¥37,400

main57602-13361iCE102,107,EE10#¥37,400200008

��(ABS)

main57602-13900iAE104¥39,600199505-199605

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12130iAE100,101,CE100,EE101..DX,G,LT,LX,SEG,SEL,XE¥3,510199106-199305

sub57605-12150¥3,490

sub91661-B0820¥160

main57605-12140iAE104,CE104¥7,800199109-200008

main57605-12150iAE101..4DS..GT¥3,490199106-199305

main57605-12150iAE100,101,CE100,101,EE101..4DS,WG¥3,490199305-200008

main57605-12170iAE101..3DS¥4,950199205-199505

main57605-13040iAE109,CE105,109¥13,300199109

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-12110iAE100..LX,SEL¥8,700199411-199505

��(*66)

sub57615-13030¥8,700

main57615-12120iAE101..3DS¥6,500199205-199505

main57615-12901iAE10#,CE100,104,EE101..4DS,WG¥8,700199106-199505

sub57615-12903¥8,700

main57615-12903iAE100,101,104,CE100¥8,700199505-199704

main57615-12903iAE100,104,CE100¥8,700199704-200008

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-12120iAE100..LX,SEL¥8,700199411-199505

��(*66)

sub57616-13030¥8,700

main57616-12130iAE101..3DS¥6,500199205-199505

main57616-12901iAE10#,CE100,104,EE101..4DS,WG¥8,700199106-199505

sub57616-12905¥8,700

main57616-12905iAE100,101,104,CE100¥8,700199505-199704

main57616-12905iAE100,101,104,CE100,101¥8,700199705-200008

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57695-12030iAE100,101,CE100,101,EE101¥4,090199305-200008

�E��

main57696-12030iAE100,101,CE100,101,EE101¥4,090199305-200008

����

main57703-12060iAE100,101,CE100,EE101¥4,080199106-199305

�E��

main57703-12060iAE101..3DS..GT¥4,080199305-199505

��(�-��-����� ��������),�E��

main57704-12080iAE100,101,CE100,EE101¥4,080199106-199305

����

main57704-12080iAE101..3DS..GT¥4,080199305-199505

��(�-��-����� ��������),����

7402

9033330002

main90333-30002¥70

9046706131

main90467-06131¥200

9095001025

main90950-01025¥240

9095001539

main90950-01539¥110

9095001550

main90950-01550¥130

9095001625

main90950-01625¥200

9095001631

main90950-01631¥120

9095001769

main90950-01769¥200

9095001826

main90950-01826¥110

9095001847

main90950-01847¥170

9095006001

main90950-06001¥170

37 parts on this diagram · 13 diagrams in section
