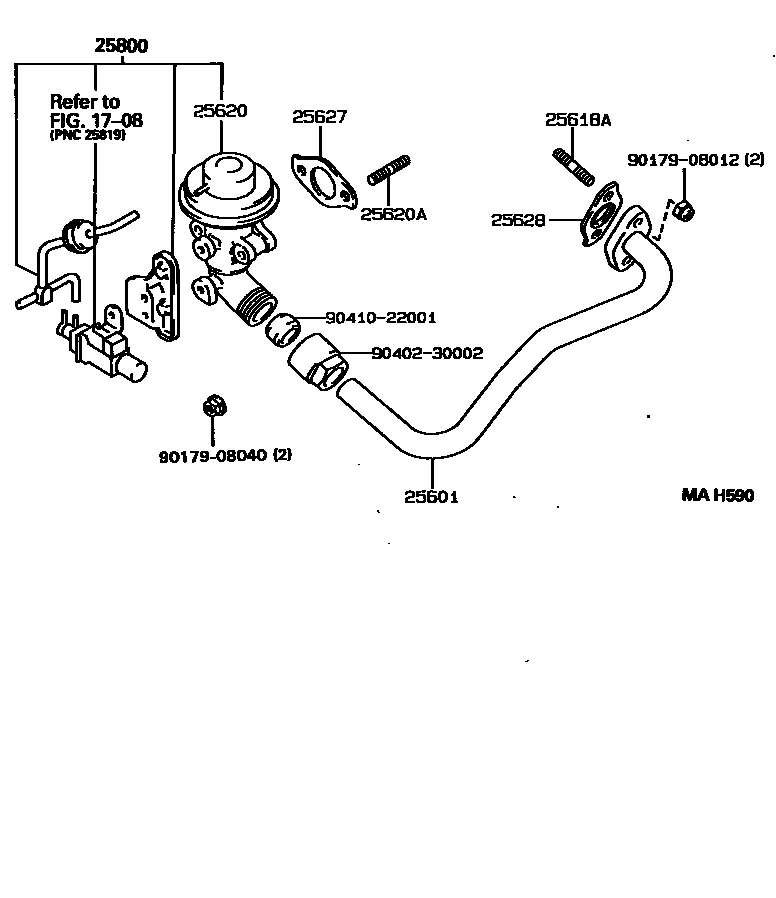

Toyota COROLLA — EXHAUST GAS RECIRCULATION SYSTEM

1708

25601PIPE SUB-ASSY, EGR, NO.1

main25601-64030i2C..CE106..4FC;2C..CE100,104,108..DX,L,LX,SEL,XE¥6,300199106-199508

sub25601-64031¥6,300

main25601-64070i2C..CE100¥5,400199505-199707

sub25601-64071¥5,400

main25601-64071i2C..CE106..4FC;2C,3CE..CE100,101,102,105,107,108¥5,400199707

25618ABOLT, STUD(FOR EGR INLET)

main92122-60822i2C..CE106..4FC;2C,3CE..CE100,101,102,104,105,107,108¥170199106-199401

25620VALVE ASSY, EGR

main25620-64080i2C..CE100,104,108¥19,600199106-199804

main25620-64150i2C..CE100..5F¥19,500199505-199804

main25620-64200i3CE..CE10#¥19,400199804

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08198i2C..CE100,104,108¥240199106-199401

25627GASKET, EGR VALVE

main25627-64030i2C..CE100,104,108¥430199106-199401

25628GASKET, EGR INLET

main25628-64030i2C..CE100,104,108¥1,260199106-199401

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-64060i2C..CE100,104,108¥27,400199106-199804

main25800-64090i2C..CE100,108..5F¥27,400199505-199804

main25800-64160i3CE..CE10#¥29,300199804

9017908012

main90179-08012¥230

9017908040

main90179-08040¥100

9040230002

main90402-30002¥820

9041022001

main90410-22001¥200

12 parts on this diagram · 1 diagram in section
