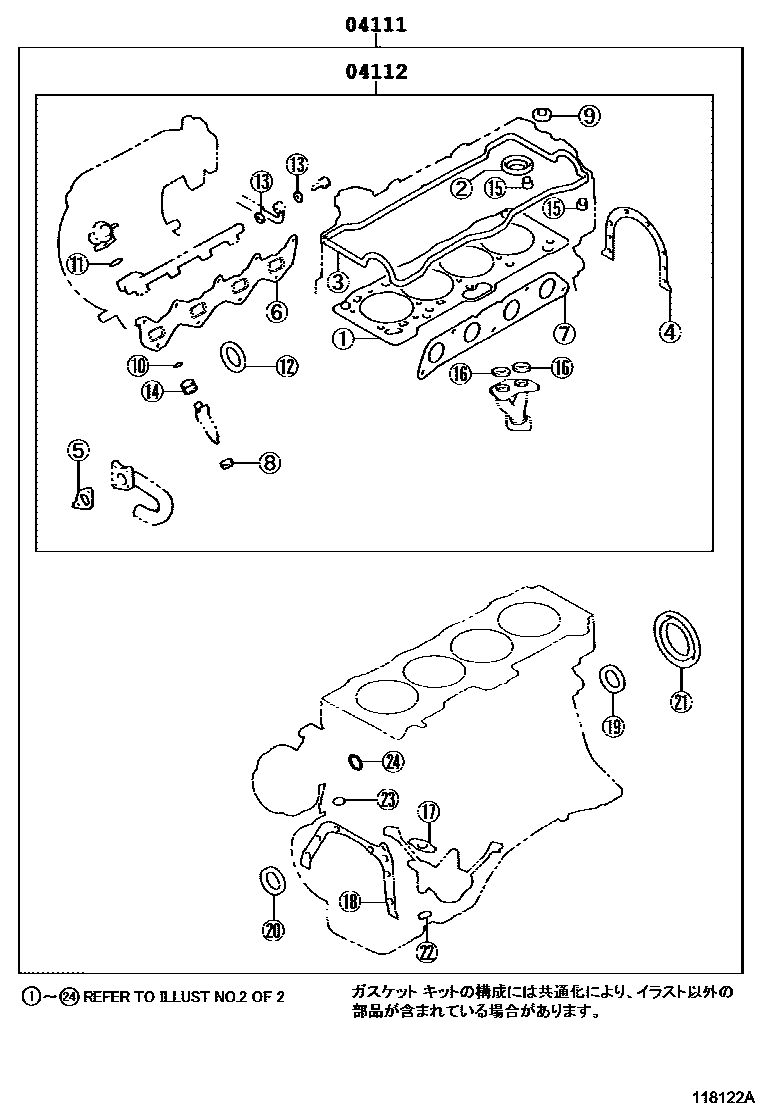

Toyota COROLLA — ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-11024i2E..EE106¥25,200199109-199309

sub04111-11025¥25,200

main04111-11025i2E..EE106¥25,200199309-199401

sub04111-11026¥25,300

main04111-11054i3E..EE107,108¥30,800199109-199401

main04111-11090i4EFE..EE101¥30,300199106-199307

sub04111-11091¥30,300

main04111-11091i4EFE..EE101¥30,300199307-199309

sub04111-11092¥30,300

main04111-11092i4EFE..EE101,102¥30,300199309-199508

sub04111-11140¥25,600

main04111-11132i5EFE..EE103,104¥27,400199401-199508

sub04111-11150¥25,600

main04111-11141i4EFE..EE102..4F..02S;4EFE..EE102..(3FC,4F)..05S¥25,900199508

main04111-11151i5EFE..EE103,104;4EFE..EE102..5F;4EFE..EE102..3FC..02S¥25,900199508

main04111-16210i4AGE..AE101¥36,000199106-199408

sub04111-16211¥36,000

main04111-16211i4AGE..AE101¥36,000199408-199505

main04111-16220i5AFE..AE100¥27,400199106-199408

sub04111-16221¥27,600

main04111-16221i5AFE..AE100¥27,600199408

main04111-16230i4AFE..AE101,104¥28,600199106-199408

sub04111-16231¥28,700

main04111-16231i4AFE..AE101,104,109¥28,700199408

main04111-16330i4AGE..AE101¥35,900199605

main04111-64125i2C..CE10#¥35,600199106-199305

sub04111-64127¥35,600

main04111-64125i2C..CE106,108,109¥35,600199305-199401

sub04111-64127¥35,600

main04111-64200i2C..CE10#¥35,500199401-199504

sub04111-64201¥35,500

main04111-64200i2C..CE100,104¥35,500199305-199401

sub04111-64201¥35,500

main04111-64201i2C..CE10#..CTD,DX,GL,L,LX,SEL,XE¥35,500199504-199508

sub04111-64202¥35,600

main04111-64290i2C..CE10#¥35,200199508-199511

sub04111-64291¥35,200

main04111-64290i2C..CE100¥35,200199505-199508

sub04111-64291¥35,200

main04111-64291i2C..CE10#¥35,200199511-199704

sub04111-64292¥35,200

main04111-64292i2C..CE10#¥35,200199704-199708

sub04111-64293¥28,300

sub11115-64140¥7,100

main04111-64293i2C..CE10#¥28,300199708-199804

sub04111-64294¥28,200

main04111-64380i3CE..CE10#¥37,100199804-199805

sub04111-64381¥37,100

main04111-64381i3CE..CE10#¥37,100199805-199811

sub04111-64382¥37,100

main04111-64382i3CE..CE10#¥37,100199811-199906

sub04111-64383¥37,100

main04111-64383i3CE..CE10#¥37,100199906

04112GASKET KIT, ENGINE VALVE GRIND

main04112-11012i2E..EE106¥16,500199109-199401

main04112-11043i3E..EE107,108¥20,000199109-199401

main04112-11080i4EFE..EE101¥21,200199106-199307

sub04112-11081¥21,200

main04112-11081i4EFE..EE101,102¥21,200199307-199508

sub04112-11120¥21,900

main04112-11101i5EFE..EE103,104¥20,900199401-199508

sub04112-11130¥21,900

main04112-11121i4EFE..EE102..4F..02S;4EFE..EE102..(3FC,4F)..05S¥21,900199508

main04112-11131i5EFE..EE103,104;4EFE..EE102..5F;4EFE..EE102..3FC..02S¥21,900199508

main04112-16210i4AGE..AE101¥23,800199106-199505

main04112-16220i5AFE..AE100¥23,700199106

main04112-16230i4AFE..AE101,104,109¥21,600199106

main04112-16330i4AGE..AE101¥30,600199605

main04112-64103i2C..CE106,108,109¥21,400199305-199401

sub04112-64106¥21,400

main04112-64103i2C..CE10#¥21,400199106-199305

sub04112-64106¥21,400

main04112-64140i2C..CE10#¥21,400199401-199504

sub04112-64141¥21,400

main04112-64140i2C..CE100,104¥21,400199305-199401

sub04112-64141¥21,400

main04112-64141i2C..CE10#..CTD,DX,GL,L,LX,SEL,XE¥21,400199504-199508

sub04112-64142¥21,500

main04112-64220i2C..CE10#¥21,200199508-199511

sub04112-64221¥21,400

main04112-64220i2C..CE100¥21,200199505-199508

sub04112-64221¥21,400

main04112-64221i2C..CE10#¥21,400199511-199704

sub04112-64222¥21,400

main04112-64222i2C..CE10#¥21,400199704-199708

sub04112-64223¥14,200

sub11115-64140¥7,100

main04112-64223i2C..CE10#¥14,200199708-199804

sub04112-64224¥14,200

main04112-64290i3CE..CE10#¥27,800199804-199906

sub04112-64291¥27,800

main04112-64291i3CE..CE10#¥27,800199906

2 parts on this diagram · 16 diagrams in section
