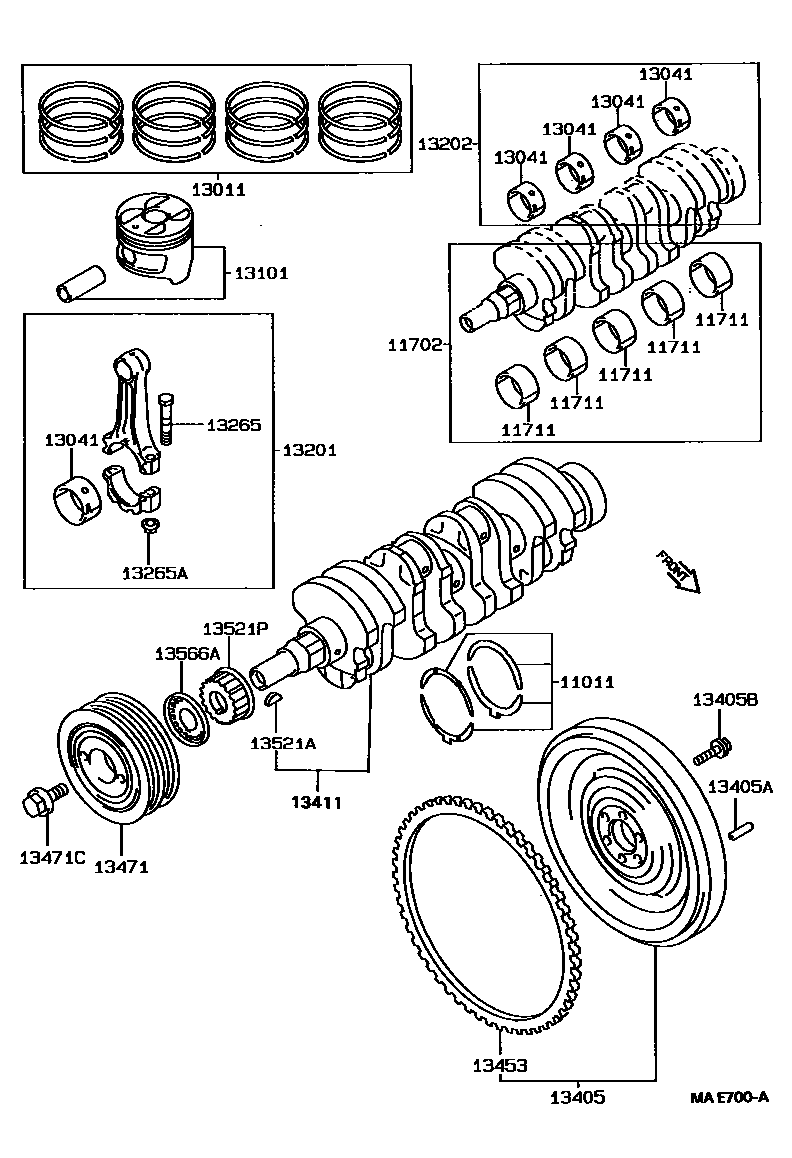

Toyota COROLLA — CRANKSHAFT & PISTON

0001 1 0002 1 0003 1 0004 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-10010i2E,4EFE..EE101,102,106¥1,890199106

main11011-11010i3E,5EFE..EE103,104,107,108¥1,950199109

main11011-15010i4A#,5AFE..AE10#¥2,030199106-199712

sub11011-15020¥2,070

main11011-15020i4A#,5AFE..AE10#¥2,070199712

sub11011-15021¥2,070

main11011-64010i2C,3CE..CE10#¥2,270199106

main11012-10020i2E,4EFE..EE101,102,106¥2,500199106-199705

main11012-11010i3E,5EFE..EE103,104,107,108¥2,500199109

main11012-64010i2C,3CE..CE10#¥2,780199106

main11013-64010i2C,3CE..CE10#¥2,780199106

11702BEARING SET, CRANKSHAFT

main11704-10011i2E,4EFE..EE101,102,106¥22,100199106-199601

sub11704-10012¥19,200

main11704-10012i4EFE..EE102¥19,200199601

main11704-11011i3E..EE107,108¥22,100199109-199210

sub11704-11012¥22,300

main11704-11012i3E,5EFE..EE103,104,107,108¥22,300199210

main11704-16010i4A#,5AFE..AE10#¥22,300199106

main11704-27021i3CE..CE10#¥20,200199812-200101

sub11704-27022¥20,100

main11704-27022i3CE..CE10#¥20,100200101

sub11704-27023¥22,300

main11704-64040i2C..CE10#¥22,100199106-199412

sub11704-64070¥22,100

main11704-64070i2C..CE10#¥22,100199412-199509

sub11704-64071¥22,100

main11704-64071i2C,3CE..CE10#¥22,100199509-199812

sub11704-27021¥20,200

11711BEARING, CRANKSHAFT

main11701-10011-01i2E,4EFE..EE101,102,106199106-199601

MARK 1

sub11701-10012¥3,110

main11701-10011-02i2E,4EFE..EE101,102,106199106-199601

MARK 2

sub11701-10012¥3,110

main11701-10011-03i2E,4EFE..EE101,102,106199106-199601

MARK 3

sub11701-10012¥3,110

main11701-10012-01i4EFE..EE102199601

MARK 1

main11701-10012-02i4EFE..EE102199601

MARK 2

main11701-10012-03i4EFE..EE102199601

MARK 3

main11701-10012-04i4EFE..EE102199601

MARK 4

main11701-10012-05i4EFE..EE102199601

MARK 5

main11701-11011-01i3E..EE107,108199109-199210

MARK 1

sub11701-11012¥3,160

main11701-11011-02i3E..EE107,108199109-199210

MARK 2

sub11701-11012¥3,160

main11701-11011-03i3E..EE107,108199109-199210

MARK 3

sub11701-11012¥3,160

main11701-11011-04i3E..EE107,108199109-199210

MARK 4

sub11701-11012¥3,160

main11701-11011-05i3E..EE107,108199109-199210

MARK 5

sub11701-11012¥3,160

main11701-11012-01i3E,5EFE..EE103,104,107,108199210

MARK 1

main11701-11012-02i3E,5EFE..EE103,104,107,108199210

MARK 2

main11701-11012-03i3E,5EFE..EE103,104,107,108199210

MARK 3

main11701-11012-04i3E,5EFE..EE103,104,107,108199210

MARK 4

main11701-11012-05i3E,5EFE..EE103,104,107,108199210

MARK 5

main11701-16010-01i4A#,5AFE..AE10#199106

MARK 1

main11701-16010-02i4A#,5AFE..AE10#199106

MARK 2

main11701-16010-03i4A#,5AFE..AE10#199106

MARK 3

main11701-16010-04i4A#,5AFE..AE10#199106

MARK 4

main11701-16010-05i4A#,5AFE..AE10#199106

MARK 5

main11701-27011-01i3CE..CE10#199812-200101

MARK 1

sub11701-27012¥3,370

main11701-27011-02i3CE..CE10#199812-200101

MARK 2

sub11701-27012¥3,370

main11701-27011-03i3CE..CE10#199812-200101

MARK 3

sub11701-27012¥3,370

main11701-27011-04i3CE..CE10#199812-200101

MARK 4

sub11701-27012¥3,370

main11701-27011-05i3CE..CE10#199812-200101

MARK 5

sub11701-27012¥3,370

main11701-27012-01i3CE..CE10#200101

MARK 1

sub11701-27013¥3,370

main11701-27012-02i3CE..CE10#200101

MARK 2

sub11701-27013¥3,370

main11701-27012-03i3CE..CE10#200101

MARK 3

sub11701-27013¥3,370

main11701-27012-04i3CE..CE10#200101

MARK 4

sub11701-27013¥3,370

main11701-27012-05i3CE..CE10#200101

MARK 5

sub11701-27013¥3,370

main11701-64040-01i2C..CE10#199106-199412

MARK 1

sub11701-64070¥2,870

main11701-64040-02i2C..CE10#199106-199412

MARK 2

sub11701-64070¥2,870

main11701-64040-03i2C..CE10#199106-199412

MARK 3

sub11701-64070¥2,870

main11701-64070-01i2C..CE10#199412-199509

MARK 1

sub11701-64071¥2,870

main11701-64070-02i2C..CE10#199412-199509

MARK 2

sub11701-64071¥2,870

main11701-64070-03i2C..CE10#199412-199509

MARK 3

sub11701-64071¥2,870

main11701-64071-01i2C,3CE..CE10#199509-199812

MARK 1

sub11701-27011¥3,370

main11701-64071-02i2C,3CE..CE10#199509-199812

MARK 2

sub11701-27011¥3,370

main11701-64071-03i2C,3CE..CE10#199509-199812

MARK 3

sub11701-27011¥3,370

main11701-64071-04i2C,3CE..CE10#199509-199812

MARK 4

sub11701-27011¥3,370

main11701-64071-05i2C,3CE..CE10#199509-199812

MARK 5

sub11701-27011¥3,370

13011RING SET, PISTON

main13011-11043i2E..EE106¥13,200199109-199205

sub13011-11063¥13,200

main13011-11063i2E..EE106¥13,200199205-199401

sub13011-11072¥13,200

main13011-11090i3E..EE107,108¥15,900199109-199401

main13011-11121i4EFE..EE101¥15,300199106-199302

sub13011-11122¥15,300

main13011-11122i4EFE..EE101,102¥15,300199302-199704

main13011-11140i5EFE..EE103,104¥16,000199401

main13011-11170i4EFE..EE102¥16,000199704

main13011-15100i5AFE..AE100¥15,900199106-199505

main13011-15120i5AFE..AE100¥16,900199505

main13011-16230i4AGE..AE101¥16,100199106-199505

main13011-16260i4AFE..AE101,104¥17,000199106-199402

sub13011-16300¥17,000

main13011-16300i4AFE..AE104¥17,000199402-199705

main13011-16340i4AFE..AE104,109¥10,700199704-199705

main13011-16350i4AGE..AE101¥16,900200004

main13011-16360i4AGE..AE101¥16,900199605-200004

sub13011-16350¥16,900

main13011-64190i2C..CE10#¥24,400199106-199209

main13011-64191i2C..CE10#¥20,200199209-199310

sub13011-64212¥20,200

main13011-64212i2C,3CE..CE10#¥20,200199310-199810

sub13011-64213¥20,100

main13011-64213i3CE..CE10#¥20,100199810

main13013-11043i2E..EE106¥13,200199109-199205

sub13013-11063¥15,300

main13013-11063i2E..EE106¥15,300199205-199401

sub13013-11072¥15,300

main13013-11090i3E..EE107,108¥15,900199109-199401

main13013-15100i5AFE..AE100¥9,900199106-199505

main13013-15120i5AFE..AE100¥20,100199505

main13013-16230i4AGE..AE101¥16,100199106-199505

main13013-16260i4AFE..AE101,104¥24,900199106-199402

sub13013-16300¥17,100

main13013-16300i4AFE..AE104¥17,100199402-199705

main13013-16340i4AFE..AE109¥17,000199704-199705

main13013-16350i4AGE..AE101¥20,200200004

main13013-16360i4AGE..AE101¥20,200199605-200004

sub13013-16350¥20,200

main13013-64190i2C..CE10#¥24,400199106-199209

main13013-64191i2C..CE10#¥24,100199209-199310

sub13013-64212¥24,100

main13013-64212i2C,3CE..CE10#¥24,100199310-199810

sub13013-64213¥24,000

main13013-64213i3CE..CE10#¥24,000199810

13041BEARING, CONNECTING ROD

main13041-10020-01i2E,4EFE..EE101,102,106199106

MARK 1

main13041-10020-02i2E,4EFE..EE101,102,106199106

MARK 2

main13041-10020-03i2E,4EFE..EE101,102,106199106

MARK 3

main13041-11010-01i3E,5EFE..EE103,104,107,108199109

MARK 1

main13041-11010-02i3E,5EFE..EE103,104,107,108199109

MARK 2

main13041-11010-03i3E,5EFE..EE103,104,107,108199109

MARK 3

main13041-15030-01i4AFE,5AFE..AE10#199106

MARK 1

sub13041-15031¥2,500

main13041-15030-02i4AFE,5AFE..AE10#199106

MARK 2

sub13041-15031¥2,500

main13041-15030-03i4AFE,5AFE..AE10#199106

MARK 3

sub13041-15031¥2,500

main13041-16070-01i4AGE..AE101199106-199208

MARK 1

sub13041-16071¥1,190

main13041-16070-02i4AGE..AE101199106-199208

MARK 2

sub13041-16071¥1,190

main13041-16070-03i4AGE..AE101199106-199208

MARK 3

sub13041-16071¥1,190

main13041-16071-01i4AGE..AE101199208-199505

MARK 1

main13041-16071-02i4AGE..AE101199208-199505

MARK 2

main13041-16071-03i4AGE..AE101199208-199505

MARK 3

main13041-16110-01i4AGE..AE101199605

MARK 1

main13041-16110-02i4AGE..AE101199605

MARK 2

main13041-16110-03i4AGE..AE101199605

MARK 3

main13041-64041-01i2C..CE10#199106-199412

MARK 1

sub13041-64070¥1,940

main13041-64041-02i2C..CE10#199106-199412

MARK 2

sub13041-64070¥1,940

main13041-64041-03i2C..CE10#199106-199412

MARK 3

sub13041-64070¥1,940

main13041-64070-01i2C..CE10#199412-199509

MARK 1

sub13041-64071¥1,940

main13041-64070-02i2C..CE10#199412-199509

MARK 2

sub13041-64071¥1,940

main13041-64070-03i2C..CE10#199412-199509

MARK 3

sub13041-64071¥1,940

main13041-64071-01i2C..CE10#199509-199603

MARK 1

main13041-64071-02i2C..CE10#199509-199603

MARK 2

main13041-64071-03i2C..CE10#199509-199603

MARK 3

main13041-64071-04i2C..CE10#199509-199603

MARK 4

main13041-64071-05i2C..CE10#199509-199603

MARK 5

main13041-64072-01i2C,3CE..CE10#199603

MARK 1

sub13041-64073¥4,000

main13041-64072-02i2C,3CE..CE10#199603

MARK 2

sub13041-64073¥4,000

main13041-64072-03i2C,3CE..CE10#199603

MARK 3

sub13041-64073¥4,000

main13041-64072-04i2C,3CE..CE10#199603

MARK 4

sub13041-64073¥4,000

main13041-64072-05i2C,3CE..CE10#199603

MARK 5

sub13041-64073¥4,000

13101PISTON SUB-ASSY, W/PIN

main13101-11031-01i2E..EE106199109-199205

sub13101-11090¥3,950

main13101-11031-02i2E..EE106199109-199205

sub13101-11090¥3,950

main13101-11031-03i2E..EE106199109-199205

sub13101-11090¥3,950

main13101-11081-01i3E..EE107,108199109-199401

main13101-11081-02i3E..EE107,108199109-199401

main13101-11081-03i3E..EE107,108199109-199401

main13101-11090-01i2E..EE106199205-199401

sub13101-11091¥6,300

main13101-11090-02i2E..EE106199205-199401

sub13101-11091¥6,300

main13101-11090-03i2E..EE106199205-199401

sub13101-11091¥6,300

main13101-11100-01i4EFE..EE101,102199106-199601

sub13101-11101¥6,700

main13101-11100-02i4EFE..EE101,102199106-199601

sub13101-11101¥6,700

main13101-11100-03i4EFE..EE101,102199106-199601

sub13101-11101¥6,700

main13101-11101-01i4EFE..EE102199601

main13101-11101-02i4EFE..EE102199601

main13101-11101-03i4EFE..EE102199601

main13101-11121-01i5EFE..EE103,104199704

main13101-11121-02i5EFE..EE103,104199704

main13101-11121-03i5EFE..EE103,104199704

main13101-11130-01i5EFE..EE103,104199401-199601

sub13101-11131¥6,700

main13101-11130-02i5EFE..EE103,104199401-199601

sub13101-11131¥6,700

main13101-11130-03i5EFE..EE103,104199401-199601

sub13101-11131¥6,700

main13101-11131-01i5EFE..EE103,104199601-199704

main13101-15050-01i5AFE..AE100199106

main13101-15050-02i5AFE..AE100199106

main13101-15050-03i5AFE..AE100199106

main13101-16140-01i4AGE..AE101199106-199505

main13101-16140-02i4AGE..AE101199106-199505

main13101-16140-03i4AGE..AE101199106-199505

main13101-16160-01i4AFE..AE101,104,109199106

main13101-16160-02i4AFE..AE101,104,109199106

main13101-16160-03i4AFE..AE101,104,109199106

main13101-16220-01i4AGE..AE101199605

main13101-16220-02i4AGE..AE101199605

main13101-16220-03i4AGE..AE101199605

main13101-64140-01i2C..CE10#199106-199209

main13101-64140-02i2C..CE10#199106-199209

main13101-64140-03i2C..CE10#199106-199209

main13101-64141-01i2C..CE10#199209-199804

main13101-64141-02i2C..CE10#199209-199804

main13101-64141-03i2C..CE10#199209-199804

main13101-64200-01i3CE..CE10#199804

main13101-64200-02i3CE..CE10#199804

main13101-64200-03i3CE..CE10#199804

main13103-11031i2E..EE106¥5,900199109-199205

sub13103-11090¥6,300

main13103-11081i3E..EE107,108¥5,900199109-199401

main13103-11090i2E..EE106¥6,300199205-199401

sub13103-11091¥6,300

main13103-15050i5AFE..AE100¥6,700199106

main13103-16140i4AGE..AE101¥7,100199106-199505

main13103-16160i4AFE..AE101,104,109¥7,100199106

main13103-16220i4AGE..AE101¥8,500199605

main13103-64140i2C..CE10#¥17,300199106-199209

main13103-64141i2C..CE10#¥10,800199209-199804

main13103-64200i3CE..CE10#¥13,900199804

13201ROD SUB-ASSY, CONNECTING

main13201-19075i2E,4EFE..EE101,102,106¥9,800199106-199512

sub13201-19076¥9,800

main13201-19076i4EFE..EE102¥9,800199512

main13201-19087i3E,5EFE..EE103,104,107,108¥11,400199109-199608

sub13201-19088¥11,400

main13201-19088i5EFE..EE103,104¥11,400199608-199704

main13201-19117i5EFE..EE103,104¥11,600199704

main13201-19125i4AGE..AE101¥11,600199106-199110

sub13201-19126¥11,800

main13201-19126i4AGE..AE101¥11,800199110-199505

main13201-19135i4AFE,5AFE..AE10#¥9,200199106

sub13201-19176¥9,100

main13201-19155i4AGE..AE101¥11,900199605

main13201-64031i2C..CE10#¥14,200199509-199603

main13201-64032i2C,3CE..CE10#¥14,500199603

main13201-69076i2C..CE10#¥15,500199212-199509

main13201-69115i2C..CE10#¥16,100199106-199212

sub13201-69076¥15,500

13202BEARING SET, CONNECTING ROD

main13204-10020i2E,4EFE..EE101,102,106¥12,400199106

main13204-11010i3E,5EFE..EE103,104,107,108¥12,400199109

main13204-15030i4AFE,5AFE..AE10#¥12,400199106

sub13204-15031¥13,000

main13204-16070i4AGE..AE101¥10,900199106-199208

sub13204-16071¥6,800

main13204-16071i4AGE..AE101¥6,800199208-199505

main13204-16110i4AGE..AE101¥10,300199605

main13204-64041i2C..CE10#¥12,400199106-199412

sub13204-64070¥12,400

main13204-64070i2C..CE10#¥12,400199412-199509

sub13204-64071¥12,400

main13204-64071i2C..CE10#¥12,400199509-199603

main13204-64072i2C,3CE..CE10#¥9,800199603

sub13204-64073¥9,800

13265BOLT, CONNECTING ROD

main13265-10020i2E,4EFE..EE101,102,106¥520199106-199512

sub13265-10022¥540

main13265-10021i3E,5EFE..EE103,104,107,108¥520199109-199504

sub13265-10022¥540

main13265-10022i5EFE..EE103,104¥540199504-199512

main13265-15030i4AFE,5AFE..AE10#¥480199106

main13265-16030i4AGE..AE101¥500199106

main13265-49015i2C..CE10#¥680199106-199501

main13265-49045i2C,3CE..CE10#¥810199501

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-08014i2E,3E,4EFE,5EFE..EE10#¥200199106

main90179-09008i4A#,5AFE..AE10#¥160199106

main90179-10042i2C,3CE..CE10#¥160199106

13405FLYWHEEL SUB-ASSY

main13405-11031i2E,4EFE..EE101,102,106..MTM¥20,000199106

main13405-11041i3E,5EFE..EE103,104,107,108..MTM¥20,100199109

main13405-15090i4AFE,5AFE..AE100,101..5F¥23,900199106

main13405-16030i4AGE..AE101..5F¥21,700199106-199505

main13405-16070i4AFE..AE104,109..5F¥21,900199109

main13405-16110i4AGE..AE101..MTM¥23,800199605

main13405-64020i2C..CE100,106,108..5F¥29,600199106-199804

main13405-64060i3CE..CE101,102,107..5F¥30,400199804

main13405-64070i2C,3CE..CE104,105,109¥41,800199109

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i2C,3CE..CE10#..5F¥120199106

main90250-08120i4A#,5AFE..AE10#..MTM¥140199106

13405BBOLT, FLYWHEEL SETTING

main90105-10042i4AFE,5AFE..AE10#..5F¥110199106

main90105-10071i2C,3CE..CE10#..5F¥380199106

main90105-10076i4AGE..AE101..MTM¥350199106

main90105-10138i2E,3E,4EFE,5EFE..EE10#..MTM¥180199106

13411CRANKSHAFT

main13401-11040i3E,5EFE..EE103,104,107,108¥86,200199109

main13401-11050i2E,4EFE..EE101,102,106¥75,500199106-199601

sub13401-11051¥75,900

main13401-11051i4EFE..EE102¥75,900199601

main13401-16020i4AGE..AE101¥90,100199106

main13411-02901i4AFE..AE104,109¥54,400199610-199709

main13411-15050i5AFE..AE100¥83,200199106-199108

sub13411-15900¥83,000

main13411-15900i5AFE..AE100¥83,000199108

sub13411-02910¥82,400

main13411-16040i4AFE..AE101¥86,500199106-199108

sub13411-16900¥86,000

main13411-16900i4AFE..AE101,104,109¥86,000199108-199709

main13411-16900i4AFE..AE104,109¥86,000199709

main13411-64901i2C..CE10#¥119,000199106-199206

sub13411-64904¥126,000

main13411-64904i2C..CE10#¥126,000199206-199509

sub13411-64911¥119,000

sub90105-16064¥510

sub90560-16025¥590

main13411-64906i2C..CE10#¥126,000199509-199703

sub13411-64908¥126,000

main13411-64907i3CE..CE10#¥133,000199804-199808

sub13411-64912¥133,000

sub90105-16064¥510

sub90560-16025¥590

main13411-64908i2C..CE10#¥126,000199703-199804

sub13411-64910¥126,000

sub90105-16064¥510

sub90560-16025¥590

main13411-64912i3CE..CE10#¥133,000199808

13453GEAR, FLYWHEEL RING

main13453-10010i4A#,5AFE..AE10#..MTM¥4,560199106

main13453-10030i2E,3E,4EFE,5EFE..EE10#..MTM¥6,700199106

main13453-64011i2C,3CE..CE100,101,102,106,107,108..5F¥16,000199106

main13453-64050i2C,3CE..CE104,105,109¥11,600199109

13471PULLEY, CRANKSHAFT

main13408-11012i2E,3E,4EFE,5EFE..EE10#¥13,200199106-199710

sub13470-11030¥12,000

main13408-64060i2C..CE10#¥20,600199106-199804

main13408-64130i3CE..CE10#¥21,000199804

main13470-11030i4EFE,5EFE..EE10#¥12,000199710

main13470-15110i5AFE..AE100¥24,700199106-199305

sub13470-15120¥21,000

main13470-16030i4AGE..AE101¥16,200199106-199505

main13470-16100i4AFE..AE104,109¥24,700199305-199705

main13470-16120i4AGE..AE101¥21,700199605

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12051i2E,3E,4EFE,5EFE..EE10#¥380199106

main90105-14089i2C,3CE..CE10#¥400199106-199808

main90105-16064i3CE..CE10#¥510199808-199907

sub90105-16079¥500

main90105-16079i3CE..CE10#¥500199907

main90119-12127i4AGE..AE101¥240199106

main90119-12230i4AFE,5AFE..AE10#¥510199106-199701

sub90119-12314¥390

main90119-12314i4AFE,5AFE..AE100,104,109¥390199701

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i2E,3E,4EFE,5EFE..EE10#¥110199106-199107

main90280-06001i3CE..CE10#¥310199808

main95161-20519i4AGE..AE101¥100199106-199202

main95161-20622i2C..CE10#¥270199106-199206

sub95161-30622¥280

main95161-30622i2C,3CE..CE10#¥280199206-199808

13521PPULLEY, CRANKSHAFT TIMING

main13521-11010i2E,3E..EE106,107,108¥2,590199109-199401

main13521-11020i4EFE,5EFE..EE101,102,103,104¥2,590199106-199704

main13521-11030i4EFE,5EFE..EE10#¥2,590199704

main13521-15020i4AFE,5AFE..AE10#¥2,780199106

main13521-16010i4AGE..AE101¥1,390199106-199505

main13521-16060i4AGE..AE101¥2,320199605

main13521-64011i2C,3CE..CE10#¥2,440199106

13566AGUIDE, TIMING BELT

main13566-10011i2E,3E..EE106,107,108¥310199109-199401

main13566-11020i4EFE,5EFE..EE101,102,103,104¥570199106

main13566-15010i4AGE..AE101¥210199106

main13566-15020i4AFE,5AFE..AE10#¥630199106

main13566-64011i2C,3CE..CE10#¥590199106

20 parts on this diagram · 4 diagrams in section
