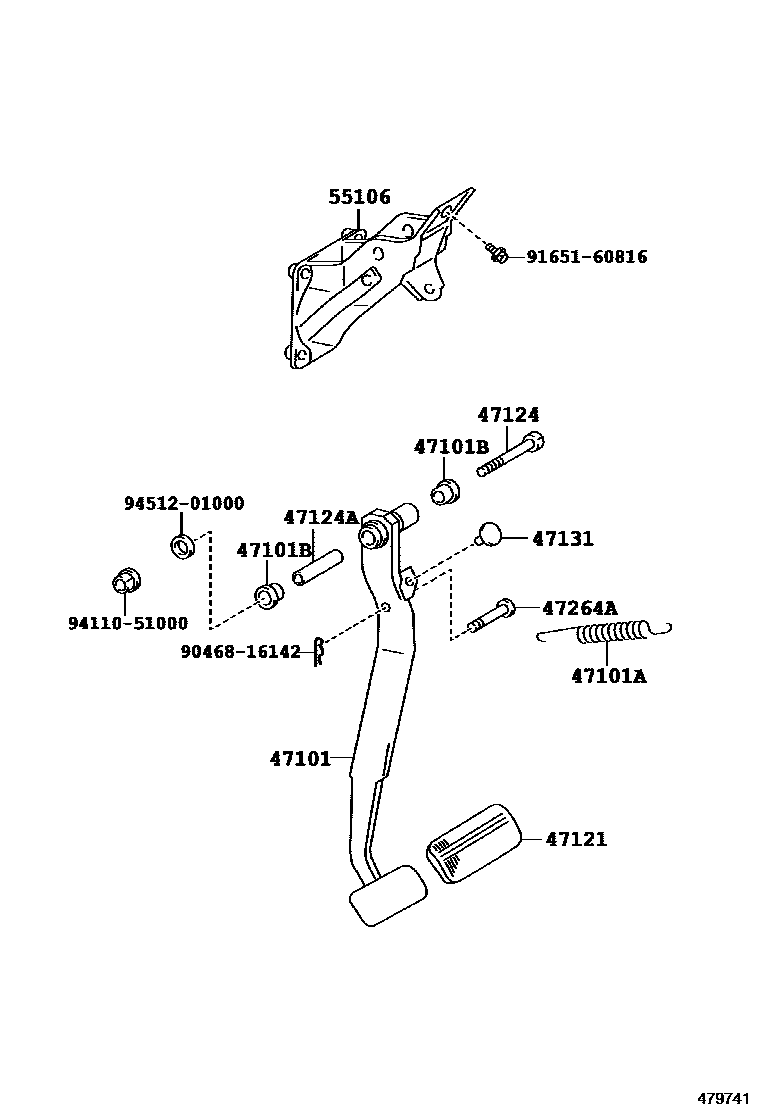

Toyota COROLLA — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12480iAE10#,CE100,106,108,EE10#..ATM¥3,210199106-199505

main47101-12490iAE10#,CE10#,EE10#..MTM¥3,030199106-199505

main47101-12510iAE100,101,104..5F¥2,620199505-199705

main47101-12520iAE100,101,104..4FC¥2,790199505-199705

main47101-12530iAE10#,CE10#,EE10#..MTM¥2,600199704-199705

main47101-12540iAE10#,CE100,101,102,106,107,108,EE10#..ATM¥2,780199704-199705

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14037iAE10#,CE10#,EE10#¥260199106

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iAE10#,CE10#,EE10#¥120199106

47121PAD, BRAKE PEDAL

main31321-12040iAE10#,CE10#,EE10#..MTM¥380199106

main47121-12020iAE10#,CE100,101,102,106,107,108,EE10#..ATM¥430199106

47124SHAFT, BRAKE PEDAL

main90101-10015iAE10#,CE10#,EE10#¥160199106-199705

main90101-10039iAE109,CE106,108,109,EE10#¥160199704-199705

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAE10#,CE10#,EE10#¥370199106

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAE10#,CE10#,EE10#¥110199106

47264APIN(FOR PUSH ROD)

main47148-12020iAE10#,CE10#,EE10#¥250199106-199210

main47148-12020iAE10#,CE10#,EE10#¥250199505-199705

WAVE WASHER 1 PIECES

main47148-12040iAE100,101,104¥250199212-199705

WAVE WASHER 3 PIECES

main47148-12040iAE10#,CE10#,EE10#¥250199210-199212

main47148-12050iAE10#,CE10#,EE10#¥240199212-199505

WAVE WASHER 2 PIECES

main47148-12060iAE109,CE106,108,109,EE10#¥360199704-199705

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12600iAE10#,CE10#,EE10#¥2,690199106-199508

main55106-12620iAE10#,CE100¥2,660199505-199705

main55106-12640iAE109,CE106,108,109,EE10#¥3,350199704-199705

9046816142

main90468-16142¥70

9165160816

main91651-60816¥100

9411051000

main94110-51000¥130

9451201000

main94512-01000¥90

13 parts on this diagram · 1 diagram in section
