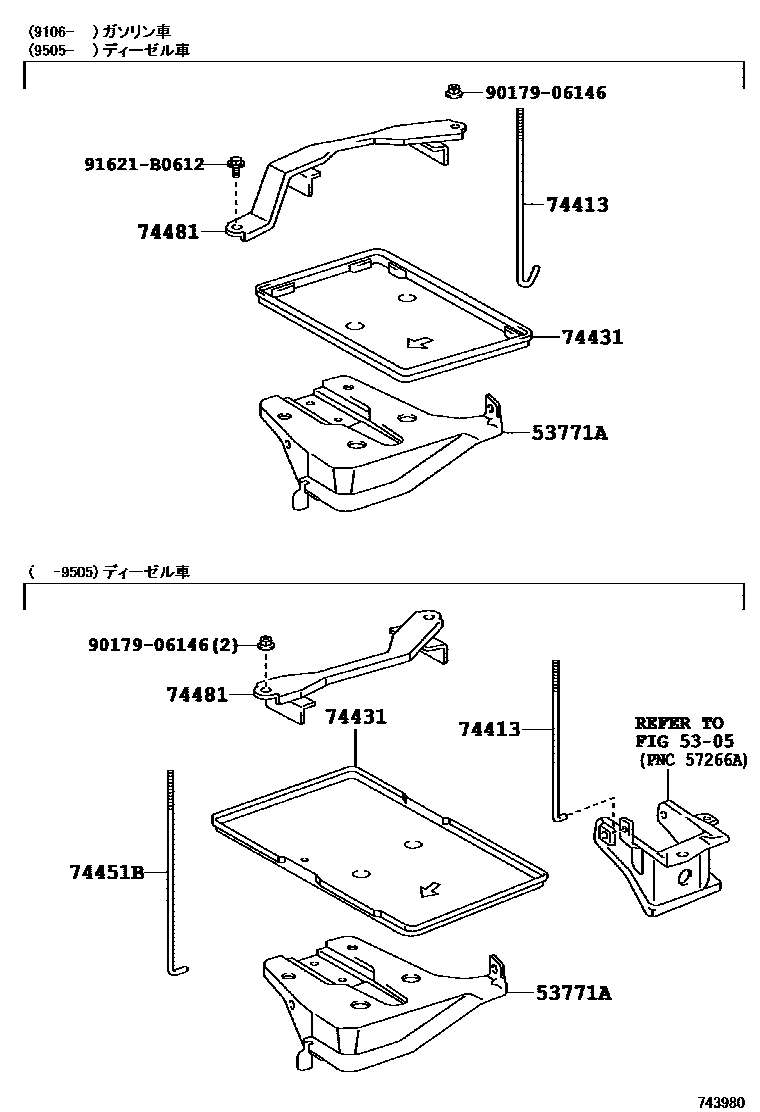

Toyota COROLLA — BATTERY CARRIER

5305

53771ASUPPORT, BATTERY CARRIER

main53706-12020iCE10#¥2,970199505-199705

main53706-12030iCE10#¥2,970199704-199705

main53771-12090iAE10#,EE10#¥2,970199106-199505

main53771-12110iCE10#¥2,960199108-199505

sub53706-12020¥2,970

main53771-12120iAE100,101,104¥2,920199505-199705

main53771-13010iAE109,EE10#¥3,030199704-199705

74413BOLT, BATTERY CLAMP

main74451-12060iAE10#,EE10#¥520199106-199504

sub74451-12061¥520

main74451-12061iAE10#,EE10#¥520199504

main74451-12080iCE10#¥640199106-199504

sub74451-12081¥620

main74451-12081iCE10#¥620199504-199705

main74451-12090iCE10#¥300199704-199705

74431TRAY, BATTERY

main74431-12020iEE106,107,108..MTM;AE10#,EE101,102,103,104¥1,830199106

main74431-12040iCE10#¥2,800199106

main74431-12050iCE10#..5F¥2,590199804

sub74431-12051¥2,590

main74431-12060iEE106..3FC;AE10#,EE101,102,103,104,107,108¥2,220199106

main74431-12060iEE106..4F¥2,220199109-199401

74451BBOLT, BATTERY CLAMP

main74451-12070iCE10#¥750199106-199505

74481CLAMP, BATTERY HOLD DOWN

main74404-12290iEE106,107,108..MTM;AE10#,EE101,102,103,104¥2,270199106

main74404-12300iCE10#¥2,190199106-199505

main74404-12310iCE100¥2,490199505-199705

main74404-12330iEE106..4F¥2,270199109-199401

main74404-12330iEE106..3FC;AE10#,EE101,102,103,104,107,108¥2,270199106

main74404-12360iCE10#¥2,370199704-199711

sub74404-12361¥2,370

main74404-12361iCE10#¥2,370199711

9017906146

main90179-06146¥100

91621B0612

main91621-B0612¥120

8 parts on this diagram · 1 diagram in section
