Toyota COROLLA — AIR BAG

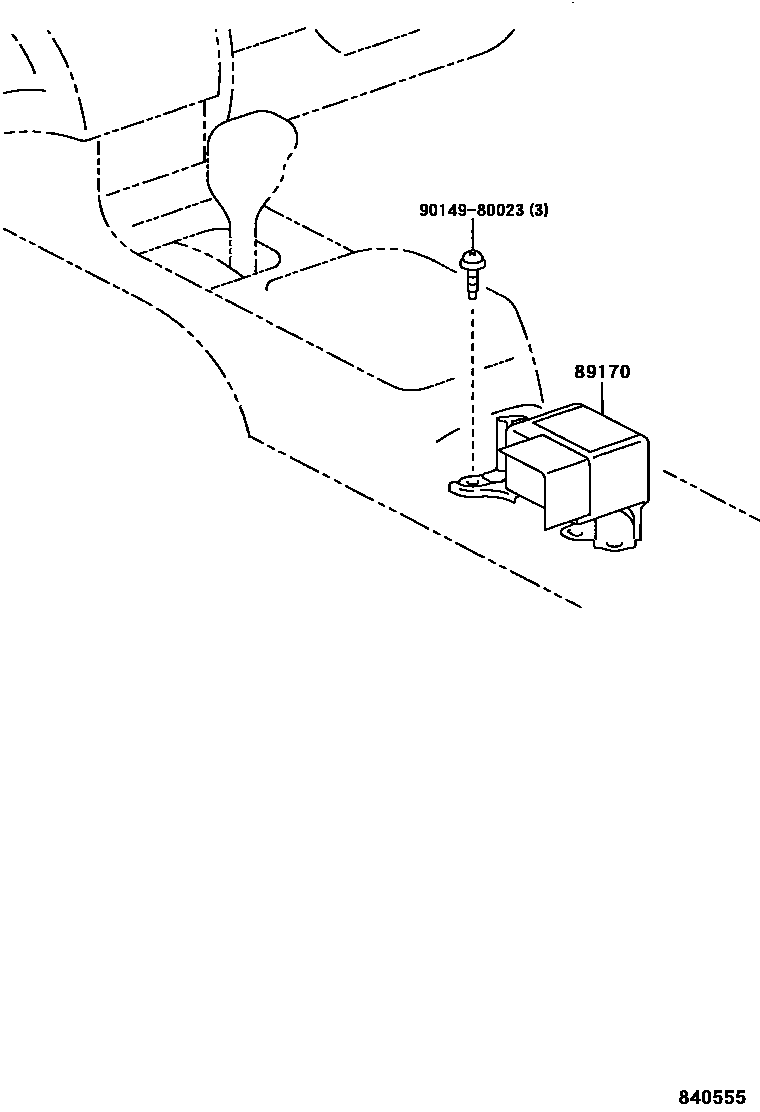

89170SENSOR ASSY, AIRBAG

main89170-12061iAE100,101,104,CE100¥113,000199610-199705

main89170-12170iAE100,101,CE100,101¥120,000199705-199911

sub89170-12171¥113,000

main89170-12171iAE100,101,CE101¥113,000199911-200008

main89170-12180iAE104¥120,000199705-199911

sub89170-12181¥113,000

main89170-12181iAE104¥113,000199911-200008

main89170-12190iCE102,106,107,108,EE10#¥120,000199704-199911

sub89170-12191¥113,000

main89170-12191iCE102,107,EE10#¥113,000199911-200206

main89170-12200iAE109,CE105,109¥120,000199704-199911

sub89170-12201¥120,000

main89170-12201iAE109,CE105¥120,000199911-200206

sub89170-12202¥113,000

main89170-12220iCE102,107,EE10#¥64,700199804-199911

sub89170-12221¥113,000

main89170-12221iCE102,107,EE10#¥113,000199911-200206

main89170-12230iAE109,CE105¥64,700199804-199911

sub89170-12231¥113,000

main89170-12231iAE109,CE105¥113,000199911-200206

9014980023

main90149-80023¥120

2 parts on this diagram · 1 diagram in section
