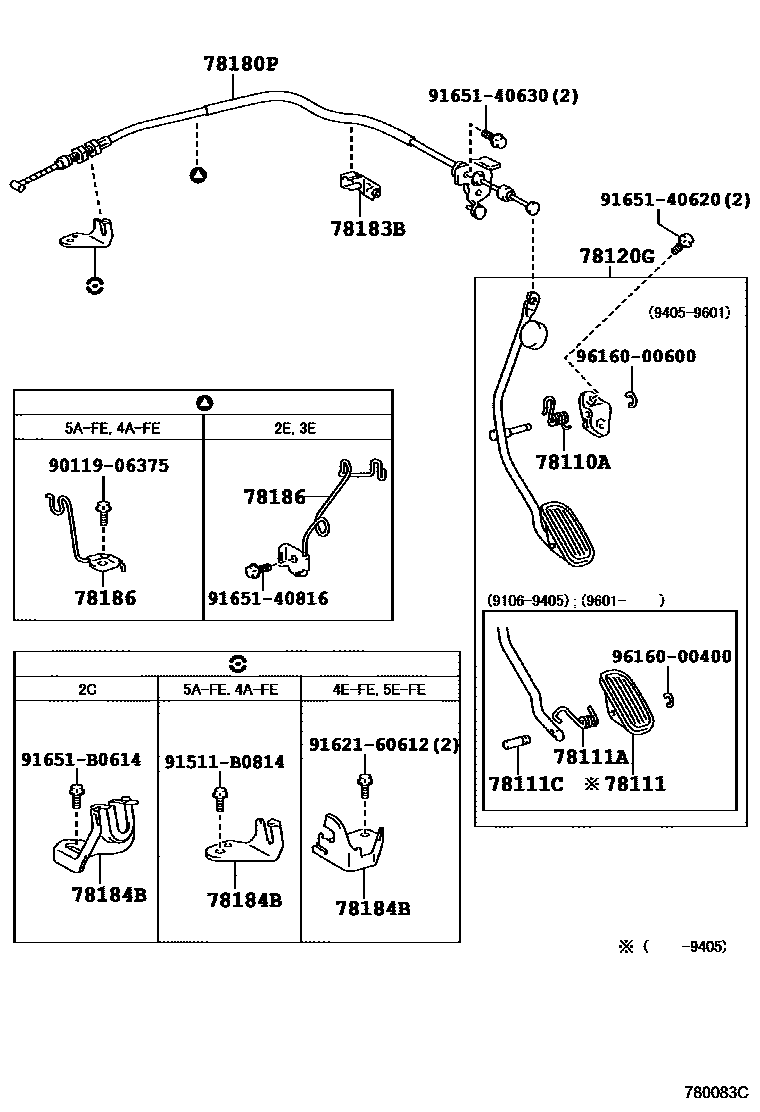

Toyota COROLLA — ACCELERATOR LINK

0001 1 0003 1 0004 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iEE102..3FC..05S;EE106,107,108..MTM;CE100,106,108,EE103,104..ATM;AE10#,EE101..(3FC,4FC,5F)..(DX,G,LT,LX,SEG,SEL,SJ,XE)¥550199201

main90508-18025iEE107,108..MTM;CE100,106,108,EE106..4F,4FC;AE10#,EE101..DX,G,LT,LX,SEG,SEL,XE¥550199106-199201

main90508-18398iAE101,EE106,107,108..ATM..(CTD,DX,GL,GT,L)¥130199106-199401

main90508-18398iAE101..4FC¥130199605-200008

main90508-26036iEE102..3FC..02S;AE101,CE100,104,106,108,109,EE101,102,103,104..MTM..(BZT,CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEL,XE)¥540199201

main90508-26036iAE101,CE10#..5F..(CTD,DX,GL,GT,L,LX,SEL,XE)¥540199106-199201

main90959-03195iCE10#..5F¥270199804

TYPE A:���������

main90959-03196iCE101,102,107..4FC¥230199804

TYPE A:���������

main90959-03197iCE10#..5F¥240199804

TYPE B:���������

main90959-03198iCE101,102,107..4FC¥240199804

TYPE B:���������

78111PEDAL, ACCELERATOR

main78111-32010iAE109,CE106,108,109,EE10#¥650199704-199705

main78111-32010iAE10#,CE10#,EE10#¥650199106-199405

main78111-32010iAE10#,CE10#,EE10#¥650199705

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iAE10#,CE10#,EE10#¥160199106-199405

main90508-18050iAE10#,CE10#,EE10#¥160199601

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE10#,CE10#,EE10#¥230199601-199704

main90249-05001iCE106,108,109,EE10#..MTM¥230199704-199705

L=36.5

main90249-05001iAE10#,CE100,106,108,109,EE10#¥230199705

L=36.5

main90249-05001iCE10#¥230199804

main90249-05001iAE10#,CE10#,EE10#¥230199106-199405

main90249-08066iEE102..3FC..02S;AE101,CE100,106,108,109,EE10#..MTM¥260199705

�������U�R

main90249-08066iCE106,108,109,EE10#..MTM¥260199704-199705

�������U�R

78120GROD ASSY, ACCELERATOR PEDAL

main78010-12130iCE10#..5F¥16,800199804

main78010-12140iCE101,102,107..4FC¥16,800199804

main78120-12150iAE101,CE10#..5F..(CTD,DX,GL,GT,L,LX,SEL,XE)¥3,670199106-199201

main78120-12150iEE102..3FC..02S;AE101,CE100,106,108,109,EE10#..MTM¥3,670199601

main78120-12150iAE101,CE10#,EE101,102,103,104..MTM..(CTD,DX,DXJ,GL,GT,L,LX,SEL,XE)¥3,670199201-199405

main78120-12151iAE101,CE10#,EE10#..MTM..(CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEL,XE)¥3,650199405-199601

sub78120-12150¥3,670

main78120-12160iEE107,108..MTM;CE100,106,108,EE106..4F,4FC;AE10#,EE101..DX,G,LT,LX,SEG,SEL,XE¥3,670199106-199201

main78120-12160iEE106,107,108..MTM;CE100,106,108,EE103,104..ATM;AE10#,EE101,102..(3FC,4FC,5F)..(DX,DXJ,G,LT,LX,SEG,SEL,SJ,XE)¥3,670199201-199405

main78120-12160iAE100,104,109;EE102..3FC..05S;CE100,106,108,EE103,104..ATM¥3,670199601

main78120-12161iCE100,106,108,EE103,104..ATM;AE10#,EE101,102..(3FC,4FC,5F)..(DX,DXJ,G,LT,LX,SEG,SEL,SJ,XE)¥3,650199405-199601

sub78120-12160¥3,670

main78120-12170iAE101,EE106,107,108..ATM..(CTD,DX,GL,GT,L)¥3,680199106-199405

main78120-12170iAE101..4FC¥3,680199605-200008

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1A250iCE100,106,108..4FC¥4,330199106-199804

main78180-1A370iEE106¥5,500199109-199401

main78180-1A400iEE107,108¥5,300199109-199401

main78180-1A410iAE101..5F..GT¥4,320199106-199305

main78180-1A420iAE10#..DX,G,LT,LX,SEG,SEL,SJ,XE¥3,090199106

main78180-1A440iEE101,102,103,104¥4,730199106-199704

main78180-1A460iAE101..4FC..GT¥4,330199106-199305

main78180-1A460iAE101..BZT,GT¥4,330199305-199804

main78180-1A461iAE101¥4,320199804-200008

main78180-1A490iCE10#..5F¥2,730199106-199804

main78180-1A640iEE10#¥2,960199704

main78180-1A650iCE101,102,107..4FC¥4,320199804

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12160iCE101,102,107..4FC;AE10#,CE100,104,106,108,109,EE10#..BZT,CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE¥460199305

main78183-12160iAE10#,CE10#,EE10#¥460199106-199305

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78024-32140iCE10#¥2,170199106-199804

main78184-10080iEE101,102,103,104¥720199106-199705

main78184-12280iAE10#..DX,G,LT,LX,SEG,SEL,SJ,XE¥750199106

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12290iAE10#..DX,G,LT,LX,SEG,SEL,SJ,XE¥310199106

main78186-12300iEE106,107,108¥470199109-199401

9011906375

main90119-06375¥70

91511B0814

main91511-B0814¥90

9162160612

main91621-60612¥230

9165140620

main91651-40620¥70

9165140630

main91651-40630¥80

9165140816

main91651-40816¥80

91651B0614

main91651-B0614¥100

9616000400

main96160-00400¥120

9616000600

main96160-00600¥80

18 parts on this diagram · 3 diagrams in section
