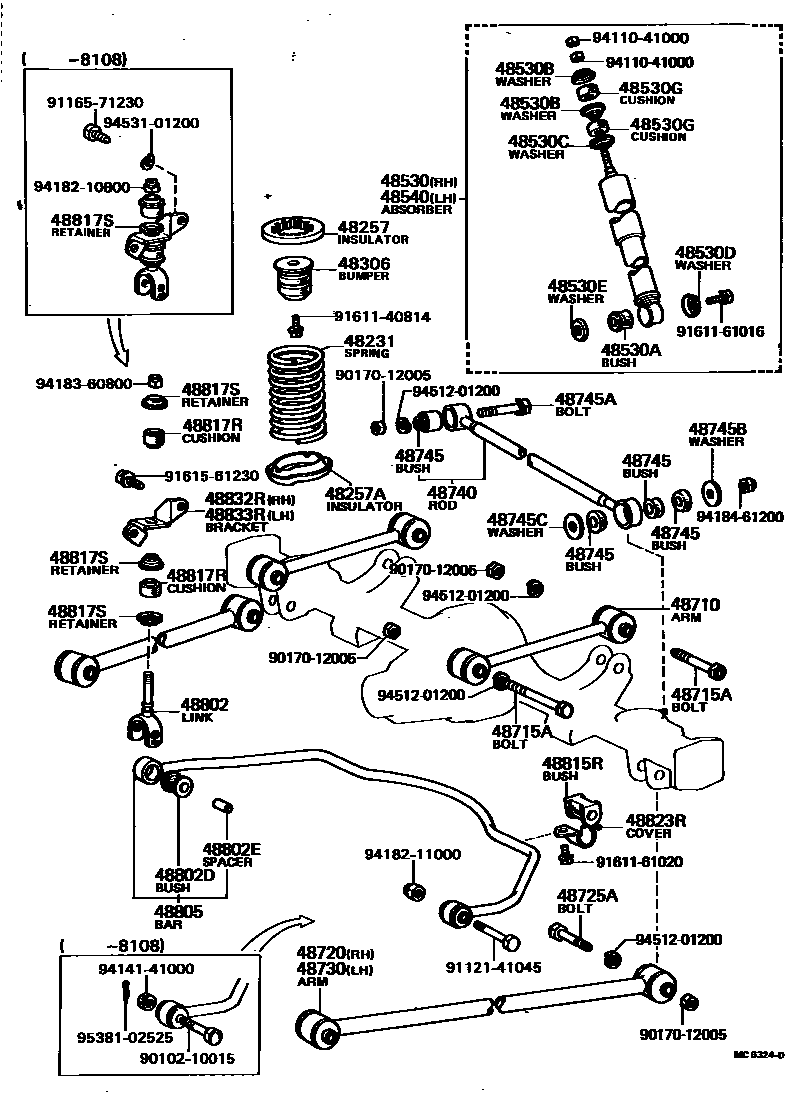

Toyota COROLLA — REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48231SPRING, COIL, REAR

main48231-12060iTE72..SDZ;TE71..GT,SR197908-198410

main48231-12080iCE70,KE70,TE7#..SED..(EUR,GEN,SA,SAA)¥12,700197908-198502

main48231-12100iTE7#..(CP,LB)..(DX,SE,XE)¥12,700197908-198406

main48231-12110iKE70..CP..EUG;KE70..(CP,LB)..GEN;KE70..LB..(3FC,4F)..EUG197908-198305

48257INSULATOR, REAR COIL SPRING

main48257-12020iAE71,CE70,KE70,TE7#..CP,LB,SED¥930197908-198502

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-12010iAE71,CE70,KE70,TE7#..CP,LB,SED¥870197908-198502

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030iAE71,CE70,KE70,TE7#..CP,LB,SED¥1,090197908-198502

main48341-19025iAE71,KE70..2D..ARL¥2,170197908-198707

main48341-19035iAE71,TE71..(DV,WG)..(GEN,SA);KE70..(DV,WG)..4F..(GEN,SA,SAA)¥2,330198108-198707

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-12260iAE71,KE70..SA¥7,100198511-198707

sub48531-19666¥7,100

main48531-13111iAE71,CE70,KE70..(3FC,5F)..(EUR,GEN)¥8,100198511-198707

sub48531-19646¥8,100

main48531-13130iKE70..4F..GEN¥8,100198511-198707

sub48531-19865¥8,100

main48531-19596iTE71..RHD..XE..EUG¥7,000198108-198401

sub48531-19666¥7,100

main48531-19605iTE7#..CP,LB,SED¥6,800197908-198204

main48531-19606iTE7#..(GT,SE,SR)..(ARL,EUR,GEN)¥7,000198108-198406

sub48531-19666¥7,100

main48531-19635iKE70,TE71..(DV,WG)..GEN¥8,100197908-198108

sub48531-19646¥8,100

main48531-19645iKE70..(DV,WG)..EUR¥8,100197908-198108

sub48531-19635¥8,100

main48531-19646iAE71,KE70..WG..(3FC,5F)..GEN¥8,100198108-198511

sub48531-19647¥8,100

main48531-19665iKE70..CP,LB,SED¥6,800197908-198204

sub48531-19666¥7,100

main48531-19666iKE70..(CP,LB,SED)..(EUR,GEN,SAA)¥7,100198108-198511

sub48531-19667¥7,100

main48531-19865iKE70..(DV,WG)..4F..(GEN,SAA)¥8,100198108-198511

sub48531-19866¥8,100

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iAE71,CE70,KE70,TE7#¥670197908-198506

main90385-16004iAE71,CE70,KE70¥620198506-198707

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002iAE71,CE70,KE70,TE7#¥170197908-198707

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02007iAE71,CE70,KE70,TE7#¥170197908-198707

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-02047iKE70,TE71..(LB,SED)..SAA¥540198108-198308

RH

main90948-02047iTE71..LB..LHD..4F;KE70..SED..LHD..4F..4D..GEN¥540198012-198108

RH,SAUDI ARABIA SPEC

main90948-03012iTE71..LB..LHD..4F;KE70..SED..LHD..4F..4D..GEN¥100198012-198108

LH,SAUDI ARABIA SPEC

main90948-03012iKE70,TE71..(LB,SED)..SAA¥100198108-198308

LH

main90948-03012iAE71,CE70,KE70,TE7#..ARL,EUR,GEN,SA¥100197908-198707

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iAE71,CE70,KE70,TE7#¥200197908-198707

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01003iKE70,TE7#¥220197908-198707

main90948-01003iAE71,CE70,KE70,TE7#..CP,LB,SED¥220198105-198502

UPR

main90948-01018iKE70,TE7#..CP,LB,SED¥230198010-198105

main90948-01018iAE71,CE70,KE70,TE7#..CP,LB,SED¥230198105-198502

LWR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-12260iAE71,KE70..SA¥7,100198511-198707

sub48531-19666¥7,100

main48531-13111iAE71,CE70,KE70..(3FC,5F)..(EUR,GEN)¥8,100198511-198707

sub48531-19646¥8,100

main48531-13130iKE70..4F..GEN¥8,100198511-198707

sub48531-19865¥8,100

main48531-19596iTE71..XE..EUG¥7,000198108-198401

sub48531-19666¥7,100

main48531-19605iTE7#..CP,LB,SED¥6,800197908-198205

main48531-19606iTE7#..(GT,SE,SR)..(ARL,EUR,GEN)¥7,000198108-198406

sub48531-19666¥7,100

main48531-19635iKE70,TE71..(DV,WG)..GEN¥8,100197908-198108

sub48531-19646¥8,100

main48531-19645iKE70..(DV,WG)..EUR¥8,100197908-198108

sub48531-19635¥8,100

main48531-19646iAE71,KE70..2D..ARL¥8,100198108-198511

sub48531-19647¥8,100

main48531-19665iKE70..SA¥6,800197908-198204

sub48531-19666¥7,100

main48531-19666iKE70..LB..LHD..GEN;KE70..(CP,SED)..LHD;KE70..LB..(3FC,4F)..EUG;KE70..(CP,LB,SED)..RHD..(EUR,GEN,SA)¥7,100198108-198511

sub48531-19667¥7,100

main48531-19865iKE70,TE71..(DV,WG)..(GEN,SA,SAA)¥8,100198108-198511

sub48531-19866¥8,100

48710ARM ASSY, UPPER CONTROL

main48710-12010iTE71..LHD..XE;TE71..XE..GEN;TE7#..2D..(DX,SE)..(EUR,GEN,SA,SAA)¥6,000197908-198502

main48710-12020iTE71..4F..EUG;TE7#..(CP,LB)..(3FC,5F)..(ARL,EUR,GEN)¥6,000197908-198406

sub48710-12110¥6,100

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90101-12044iAE71,CE70,KE70,TE7#..CP,LB,SED¥370197908-198502

L=77

main90101-12045iAE71,CE70,KE70,TE7#..CP,LB,SED¥540197908-198502

L=149

48720ARM ASSY, LOWER CONTROL, RH

main48720-12020iAE71,CE70,KE70,TE7#..CP,LB,SED¥7,900197908-198502

48725ABOLT(FOR LOWER CONTROL ARM)

main90101-12044iAE71,CE70,KE70,TE7#..CP,LB,SED¥370197908-198502

48730ARM ASSY, LOWER CONTROL, LH

main48720-12020iAE71,CE70,KE70,TE7#..CP,LB,SED¥7,900197908-198502

48740ROD ASSY, REAR LATERAL CONTROL

main48740-12010iKE70,TE7#..(CP,LB,SED)..(ARL,GEN)¥6,700197908-198004

main48740-12020iKE70,TE7#..(CP,LB,SED)..EUR¥5,800197908-198004

sub48740-12021¥6,700

main48740-12021iAE71,CE70,KE70,TE7#..CP,LB,SED¥6,700198004-198502

48745BUSH, LATERAL CONTROL ROD

main48706-14010iAE71,CE70,KE70,TE7#..CP,LB,SED¥930197908-198502

ROD X BODY

main90385-20001iAE71,CE70,KE70,TE7#..CP,LB,SED¥240197908-198502

ROD X HOUSING,L=15

main90386-20001iAE71,CE70,KE70,TE7#..CP,LB,SED¥300197908-198502

ROD X HOUSING,L=12

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90101-12032iAE71,CE70,KE70,TE7#..CP,LB,SED¥260197908-198502

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12010iAE71,CE70,KE70,TE7#..CP,LB,SED¥390197908-198502

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iAE71,CE70,KE70,TE7#..CP,LB,SED¥240197908-198502

48802LINK SUB-ASSY, STABILIZER

main48802-14020iTE71..GT,SR¥610197908-198108

main48802-14040iKE70..SED..ARL;TE7#..(GT,SE,SR)..(ARL,EUR,GEN)¥880198108-198502

48802DBUSH, STABILIZER LINK

main90385-11021iKE70..LB..5F..EUG;AE71,KE70..SED..ARL¥240197908-198410

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iTE71..GT,SR¥140197908-198410

48805BAR SUB-ASSY, REAR STABILIZER

main48805-14020iTE72..ARL¥11,500198010-198108

sub48805-14090¥11,800

main48805-14030iTE71..GT,SR¥9,800197908-198108

sub48805-14100¥10,000

main48805-14090iTE71..LHD..XE;TE71..XE..GEN;TE72..(SE,XE)..(ARL,EUR);TE71..(CP,LB,SED)..(DX,GL,GT,SR)..(EUR,GEN)¥11,800198108-198410

main48805-14100iCE70¥10,000198210-198305

48815RBUSH, STABILIZER(FOR REAR)

main48815-14050iTE71..(CP,SED)..(EUR,GEN);TE7#..LB..(3FC,5F)..(ARL,EUR,GEN)¥590198010-198410

main48815-14060iTE71..GT,SR¥600197908-198305

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010iTE71..XE..GEN¥210198108-198410

main48817-30010iTE72..ARL;TE71..GT,SR¥170197908-198108

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02015iTE72..ARL;TE71..GT,SR¥90197908-198108

T=1.2

main90948-02024iKE70..SED..ARL;TE7#..(GT,SE,SR)..(ARL,EUR,GEN)¥180198108-198410

T=1.2

main90948-02025iKE70..LB..5F..EUG;AE71,KE70..SED..ARL¥200198108-198410

T=1.0

main90948-02032iTE71..GT,SR¥200197908-198108

T=1.6

48823RCOVER, STABILIZER LINK(FOR REAR)

main48832-22020iTE71..LB..(3FC,5F);TE71..(CP,SED)..(EUR,GEN);CE70,TE72..(LB,SED)..(ARL,EUR)¥300197908-198410

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-12010iTE71..GT,SR¥800197908-198108

main48832-12011iKE70..SED..ARL;TE7#..(GT,SE,SR)..(ARL,EUR,GEN)¥820198108-198410

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48833-12010iTE71..GT,SR197908-198108

main48833-12011iKE70..SED..ARL;TE7#..(GT,SE,SR)..(ARL,EUR,GEN)¥820198108-198410

9010210015

main90102-10015¥260

9017012005

main90170-12005¥90

9112141045

main91121-41045¥190

9116571230

main91165-71230¥200

9161140814

main91611-40814¥130

9161161016

main91611-61016¥270

9161161020

main91611-61020¥240

9161561230

main91615-61230¥180

9411041000

main94110-41000¥160

9414141000

main94141-41000¥180

9418210800

main94182-10800¥230

9418211000

main94182-11000¥170

9418360800

main94183-60800¥80

9418461200

main94184-61200¥90

9451201200

main94512-01200¥100

9453101200

main94531-01200¥80

9538102525

main95381-02525¥120
