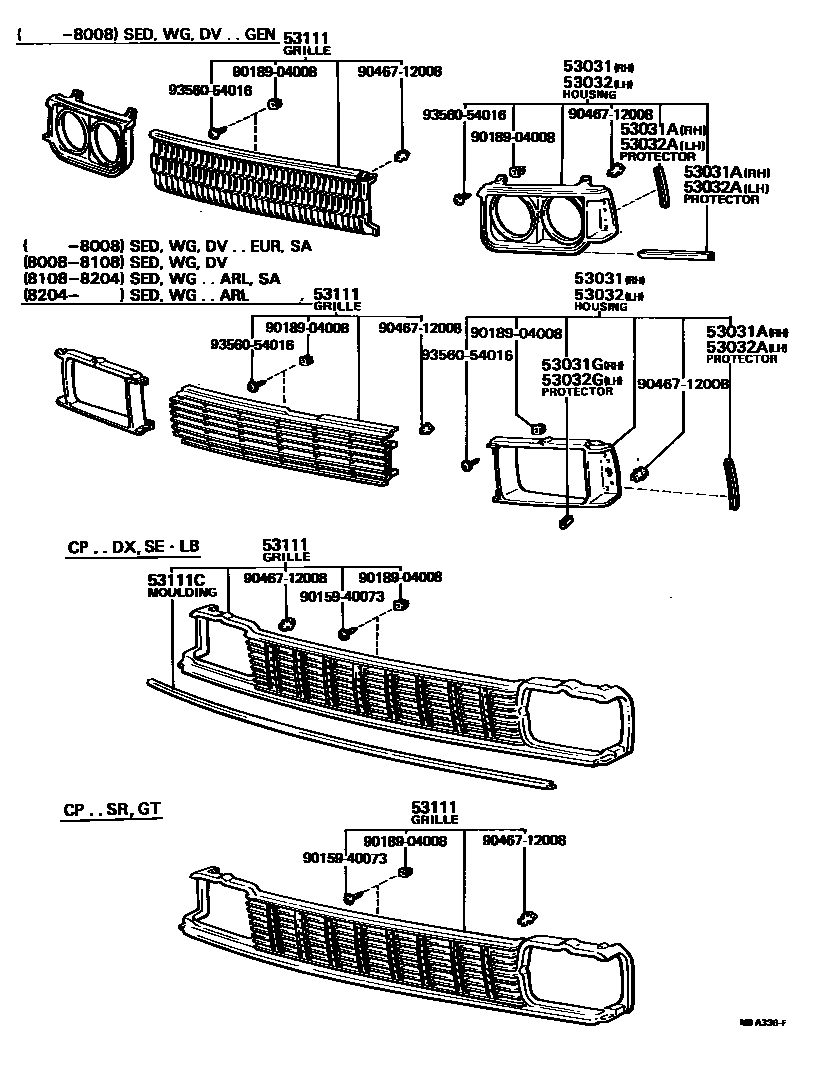

Toyota COROLLA — RADIATOR GRILLE

0001 1 0004 1 0010 1

53031HOUSING, HEADLAMP, RH

main53131-12250iKE70,TE71..(DV,SED,WG)..GEN¥5,800197908-198008

main53131-12290iKE70..4D..ARL¥5,800198204-198305

main53131-12290iKE70,TE7#..DV,SED,WG¥5,800198008-198108

main53131-12290iKE70,TE7#..(DV,SED,WG)..(EUR,SA)¥5,800197908-198008

main53131-12290iKE70,TE7#..(SED,WG)..(ARL,SA)¥5,800198108-198204

main53131-12320iKE70,TE7#..CP,LB¥7,900198204-198406

main53131-12320iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)¥7,900198108-198204

53031APROTECTOR, HEADLAMP DOOR, RH

main53138-12040iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)¥630198108-198204

main53138-12040iKE70,TE7#..CP,LB¥630198204-198406

main53139-12060iKE70,TE71..(DV,SED,WG)..GEN197908-198008

LOWER

sub53139-12090

main53169-12010iKE70,TE7#..DV,SED,WG¥270197908-198108

SIDE

main53169-12010iKE70,TE7#..(SED,WG)..(ARL,SA)¥270198108-198204

main53169-12010iKE70..4D..ARL¥270198204-198305

53031GPROTECTOR, HEADLAMP DOOR NO.2, RH

main53139-12070iKE70,TE7#..(SED,WG)..(ARL,SA)198108-198204

main53139-12070iKE70,TE7#..(DV,SED,WG)..(EUR,SA)197908-198008

main53139-12070iKE70,TE7#..DV,SED,WG198008-198108

main53139-12070iKE70..4D..ARL198204-198305

53032HOUSING, HEADLAMP, LH

main53132-12160iKE70,TE71..(DV,SED,WG)..GEN¥5,800197908-198008

main53132-12200iKE70..4D..ARL¥5,800198204-198305

main53132-12200iKE70,TE7#..DV,SED,WG¥5,800198008-198108

main53132-12200iKE70,TE7#..(SED,WG)..(ARL,SA)¥5,800198108-198204

main53132-12200iKE70,TE7#..(DV,SED,WG)..(EUR,SA)¥5,800197908-198008

main53132-12230iKE70,TE7#..CP,LB¥7,900198204-198406

main53132-12230iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)¥7,900198108-198204

53032APROTECTOR, HEADLAMP DOOR, LH

main53139-12060iKE70,TE71..(DV,SED,WG)..GEN197908-198008

LOWER

sub53139-12090

main53139-12110iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)198108-198204

main53139-12110iKE70,TE7#..CP,LB198204-198406

main53169-12010iKE70,TE7#..DV,SED,WG¥270197908-198108

SIDE

main53169-12010iKE70,TE7#..(SED,WG)..(ARL,SA)¥270198108-198204

main53169-12010iKE70..4D..ARL¥270198204-198305

53032GPROTECTOR, HEADLAMP DOOR NO.2, LH

main53139-12070iKE70..4D..ARL198204-198305

main53139-12070iKE70,TE7#..(DV,SED,WG)..(EUR,SA)197908-198008

main53139-12070iKE70,TE7#..DV,SED,WG198008-198108

main53139-12070iKE70,TE7#..(SED,WG)..(ARL,SA)198108-198204

53111GRILLE, RADIATOR

main53100-12130iCE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA,SAA)¥19,300198204-198305

main53100-12130iKE70,TE71..(DV,SED,WG)..(EUR,GEN,SAA)¥19,300198108-198204

main53100-12130iKE70..SAA¥19,300198305-198308

main53100-12140iKE70..2D..ARL198108-198309

main53100-12170iAE71,KE70..GL..ARL¥18,000198305-198410

sub53100-12250¥17,800

main53100-12250iAE71..STD¥17,800198309-198406

main53100-12250iAE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA)¥17,800198305-198707

main53101-12440iKE70,TE7#..LB¥24,400197908-198108

main53101-12440iTE7#..SE..SA¥24,400198108-198204

main53101-12450iTE71..CP..5F197908-198108

main53111-12400iKE70,TE71..(DV,SED,WG)..GEN¥16,500197908-198008

main53111-12450iKE70,TE7#..DV,SED,WG¥16,500198008-198108

main53111-12450iKE70..4D..ARL¥16,500198204-198305

main53111-12450iKE70,TE7#..(SED,WG)..(ARL,SA)¥16,500198108-198204

main53111-12450iKE70,TE7#..(DV,SED,WG)..(EUR,SA)¥16,500197908-198008

main53111-12530iKE70,TE7#..CP,LB¥16,000198204-198406

main53111-12530iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)¥16,000198108-198204

53111CMOULDING, RADIATOR GRILLE, UPPER

main75512-12090iKE70,TE71..CP..DX197908-198108

main75512-12090iTE7#..SE..SA198108-198204

9015940073

main90159-40073¥160

9018904008

main90189-04008¥130

9046712008

main90467-12008¥180

9356054016

main93560-54016¥60

12 parts on this diagram · 3 diagrams in section
