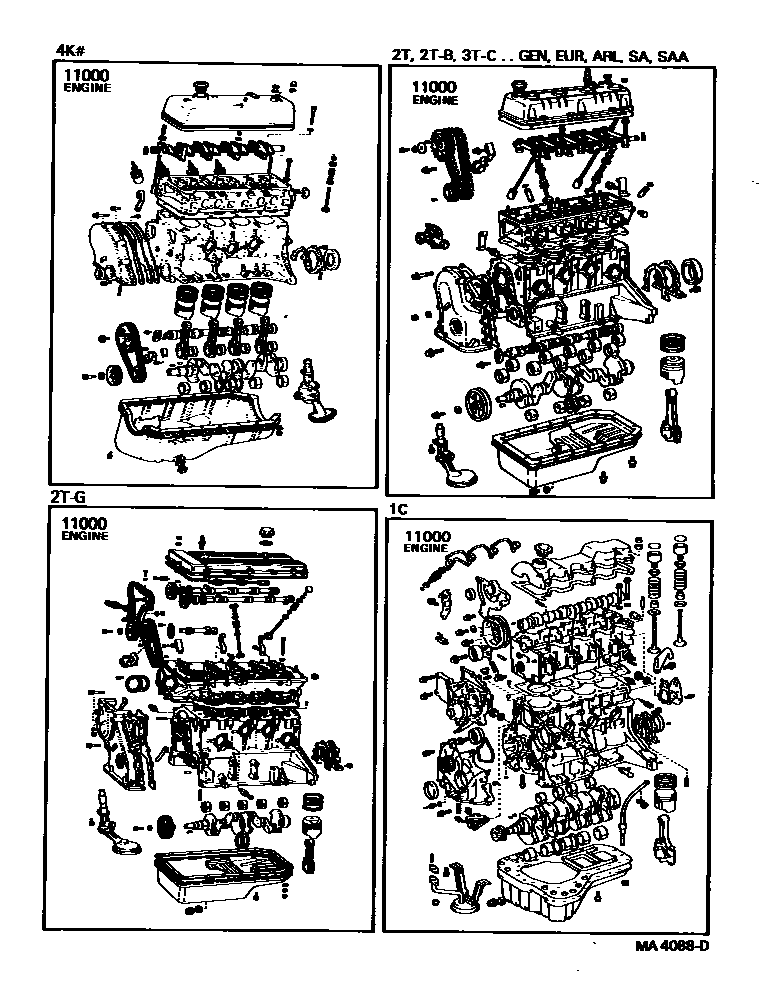

Toyota COROLLA — PARTIAL ENGINE ASSEMBLY

0001 1 0002 1

11000ENGINE ASSY, PARTIAL

main19000-13050i4KC..KE70197908-198108

main19000-13080i4K..KE70..EUR,GEN197908-198108

sub19000-13081¥335,000

sub13471-13020¥3,910

main19000-13140i4K..KE70..GEN,SA,SAA¥337,000198108-198707

sub19000-13141

main19000-13150i4K..KE70..EUG¥337,000198108-198707

sub19000-13151

main19000-13160i4KC..KE70..EUR¥337,000198108-198707

sub19000-13161

main19000-13170i4KC..KE70..2D..ARL198108-198309

main19000-16070i4A#..AE71198305-198707

main19000-26134i2T..TE71197908-198108

main19000-26136i2T..TE71198108-198207

main19000-26139i2T..TE71¥403,000198207-198305

sub19000-26136

main19000-26144i2TB..TE71..EUR,GEN197908-198207

main19000-26146i2TB..TE71198207-198305

main19000-26243i2TG..TE71197908-198207

main19000-26244i2TG..TE71198207-198305

main19000-28070i3TC..TE72197908-198207

main19000-28072i3TC..TE72¥451,000198207-198305

sub19000-28070

main19000-64020i1C..CE70198210-198303

sub19000-64022¥603,000

sub16261-64011¥1,410

main19000-64022i1C..CE70¥603,000198303-198307

sub19000-64023

main19000-64023i1C..CE70198307-198508

main19000-64260i1C..CE70198508-198608

main19000-64261i1C..CE70198608-198707

1 parts on this diagram · 2 diagrams in section
