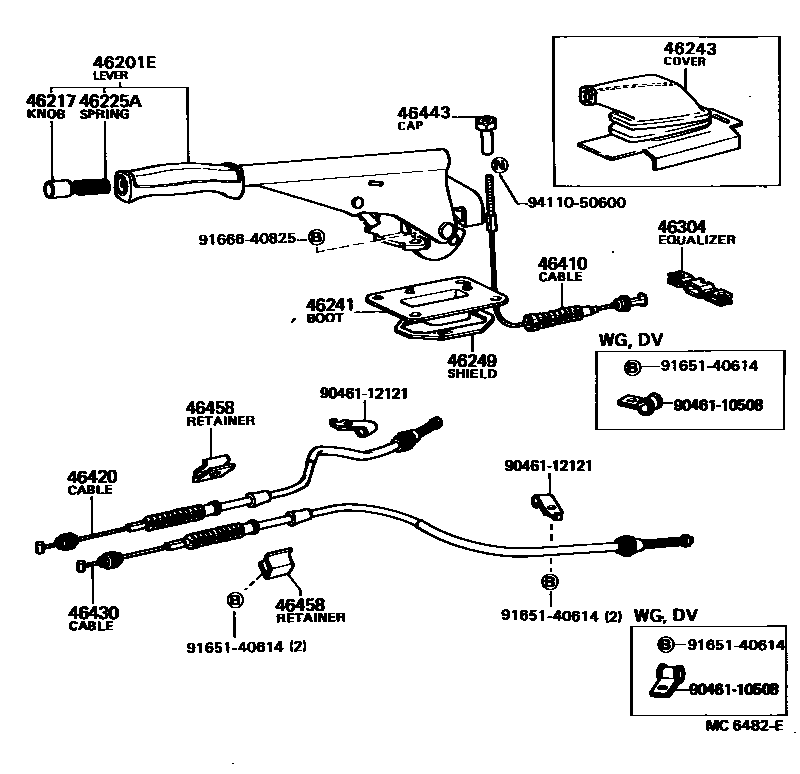

Toyota COROLLA — PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12050iKE70,TE7#..EUR¥3,130197908-198108

sub46201-10030¥3,250

main46201-12070-01iKE70,TE71..(DX,GL)..GEN198305-198308

BLACK,BLACK,TRIM0#,2#,4#,8#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-01iKE70,TE7#..ARL,GEN,SA197908-198108

BLACK,BLACK,TRIM0#,2#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-01iCE70,KE70,TE7#198108-198305

BLACK,BLACK,TRIM0#,2#,4#,8#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-01iKE70,TE71..SAA198305-198308

BLACK,BLACK,TRIM0#,2#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-01iKE70..2D..ARL198305-198309

BLACK,BLACK,TRIM2#,4#,8#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-02iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198308

MAROON,RED/MAROON,TRIM3#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-03iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198308

GRAY,GRAY,TRIM1#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-04iKE70,TE7#..(DX,GL,GT,SE,SR,XE,XL)..(ARL,GEN,SA)197908-198108

BLUE,BLUE,TRIM8#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-04iKE70,TE7#..DX,GL,GT,SE,SR,XE,XL198108-198112

BLUE,BLUE,TRIM8#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-05iKE70,TE7#..(SED,WG)..(DX,GL,XL)..(GEN,SA)197908-198108

BEIGE,BEIGE,TRIM4#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-05iKE70..(DX,GL)..ARL198108-198305

BEIGE,BEIGE,TRIM4#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-05iKE70,TE7#..(DX,GL)..SA198108-198204

BEIGE,BEIGE,TRIM4#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-06iKE70,TE71..(DX,GL)..GEN198305-198308

DARK BROWN,BROWN,TRIM4#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-06iKE70,TE7#..(CP,LB)..(ARL,GEN,SA)197908-198108

DARK BROWN,BROWN,TRIM4#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-06iKE70,TE7#..(DX,GL,GT,SR,XE,XL)..(EUR,GEN,SAA)198108-198204

DARK BROWN,BROWN,TRIM8#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-06iTE71..SE;TE72..SE,XE198108-198305

DARK BROWN,BROWN,TRIM4#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-06iCE70,KE70,TE7#..(DX,GL,GT,SR,XE,XL)..(EUR,GEN,SA,SAA)198204-198305

DARK BROWN,BROWN,TRIM4#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-14iKE70,TE71..(DX,GL)..GEN198305-198308

BLUE,BLUE,TRIM8#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-14iKE70,TE7#..DX,GL,GT,SE,SR,XE,XL198112-198204

BLUE,BLUE,TRIM8#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12070-14iTE72..(DX,SE)..(ARL,EUR);CE70,KE70,TE71..(DX,GL,GT,SR,XE,XL)..(ARL,EUR,GEN,SAA)198204-198305

BLUE,BLUE,TRIM8#

sub46201-12071¥3,250

sub46241-12051¥620

main46201-12071-01iKE70,TE71..(DX,GL)..GEN198308-198406

BLACK,BLACK,TRIM0#,2#

sub46201-12072¥3,110

main46201-12071-01iKE70,TE7#..SA198308-198501

BLACK,BLACK,TRIM0#,2#,4#,8#

sub46201-12072¥3,110

main46201-12071-01iAE71,KE70..4D..ARL198308-198410

BLACK,BLACK,TRIM0#,2#

sub46201-12072¥3,110

main46201-12071-02iCE70,KE70..(DV,WG)..(EUR,GEN)198308-198408

MAROON,RED/MAROON,TRIM3#

sub46201-12072¥3,110

main46201-12071-02iAE71..STD198309-198406

MAROON,RED/MAROON,TRIM3#

sub46201-12072¥3,110

main46201-12071-03iAE71..STD198309-198406

GRAY,GRAY,TRIM1#

sub46201-12072¥3,110

main46201-12071-03iCE70,KE70..(DV,WG)..(EUR,GEN)198308-198501

GRAY,GRAY,TRIM1#

sub46201-12072¥3,110

main46201-12071-04iAE71,KE70..SED..ARL198308-198408

BLUE,BLUE,TRIM8#

sub46201-12072¥3,110

main46201-12071-04iKE70,TE71..(DX,GL)..GEN198308-198406

BLUE,BLUE,TRIM8#

sub46201-12072¥3,110

main46201-12071-06iAE71,KE70..ARL198408-198410

DARK BROWN,BROWN,TRIM4#

sub46201-12072¥3,110

main46201-12071-06iKE70,TE7#..SA198308-198408

DARK BROWN,BROWN,TRIM4#

sub46201-12072¥3,110

main46201-12071-06iKE70,TE71..(DX,GL)..GEN198308-198406

DARK BROWN,BROWN,TRIM4#

sub46201-12072¥3,110

main46201-12071-06iKE70,TE71..SA198408-198501

DARK BROWN,BROWN,TRIM4#

sub46201-12072¥3,110

main46201-12071-16iCE70,KE70..EUR,GEN198408-198501

BROWN,BROWN,TRIM4#

sub46201-12072¥3,110

main46201-12072-01iAE71,KE70,TE71..SA198501-198707

BLACK,BLACK,TRIM2#

sub46201-12072¥3,110

main46201-12072-03iAE71,CE70,KE70..EUR,GEN198501-198707

GRAY,GRAY,TRIM1#

sub46201-12072¥3,110

main46201-12072-06iAE71,KE70,TE71..SA198501-198707

DARK BROWN,DARK BROWN,TRIM4#

sub46201-12072¥3,110

main46201-12072-16iCE70,KE70..EUR,GEN198501-198707

BROWN,BROWN,TRIM4#

sub46201-12072¥3,110

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iKE70,TE7#..ARL,GEN,SA197908-198108

BLACK,BLACK,TRIM0#,2#,4#,8#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-01iAE71,KE70,TE7#..SA198305-198707

BLACK,BLACK,TRIM0#,2#,4#,8#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-01iAE71,KE70..4D..ARL198305-198410

BLACK,BLACK,TRIM0#,2#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-01iCE70,KE70,TE7#198108-198305

BLACK,BLACK,TRIM0#,2#,4#,8#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-01iKE70,TE71..SAA198305-198308

BLACK,BLACK,TRIM0#,2#,4#,8#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-01iKE70..2D..ARL198305-198309

BLACK,BLACK,TRIM2#,4#,8#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-01iKE70,TE71..(DX,GL)..GEN198305-198406

BLACK,BLACK,TRIM0#,2#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-04iKE70,TE7#..DX,GL,GT,SE,SR,XE,XL198108-198112

BLUE,BLUE,TRIM8#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-04iKE70,TE7#..(DX,GL,GT,SE,SR,XE,XL)..(ARL,GEN,SA)197908-198108

BLUE,BLUE,TRIM8#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-14iAE71,KE70..SED..ARL198305-198408

BLUE,BLUE,TRIM8#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-14iKE70,TE7#..(DX,GL,GT,SE,SR,XE,XL)..(ARL,GEN,SA,SAA)198112-198204

BLUE,BLUE,TRIM8#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-14iTE72..(DX,SE)..(ARL,EUR);CE70,KE70,TE71..(DX,GL,GT,SR,XE,XL)..(ARL,EUR,GEN,SAA)198204-198305

BLUE,BLUE,TRIM8#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-14iKE70,TE71..DX..SAA198305-198308

BLUE,BLUE,TRIM8#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-14iKE70,TE71..(DX,GL)..GEN198305-198406

BLUE,BLUE,TRIM8#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-16iKE70,TE7#..(DX,GL)..SA198108-198204

BROWN,BROWN,TRIM4#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-16iKE70..(DX,GL)..ARL198108-198305

BROWN,BROWN,TRIM4#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-16iKE70,TE7#..(SED,WG)..(DX,GL,XL)..(GEN,SA)197908-198108

BROWN,BROWN,TRIM4#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-22iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198408

MAROON,RED/MAROON,TRIM3#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-22iAE71..STD198309-198406

MAROON,RED/MAROON,TRIM3#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-23iAE71,CE70,KE70..(DV,WG)..(EUR,GEN)198305-198707

GRAY,GRAY,TRIM1#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-23iAE71..STD198309-198406

GRAY,GRAY,TRIM1#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-26iKE70,TE71..(DX,GL)..GEN198305-198406

DARK BROWN,BROWN,TRIM4#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-26iKE70,TE71..DX..SAA198305-198308

DARK BROWN,BROWN,TRIM4#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-26iCE70,KE70,TE7#..(DX,GL,GT,SR,XE,XL)..(EUR,GEN,SA,SAA)198204-198305

DARK BROWN,BROWN,TRIM4#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-26iTE71..SE;TE72..SE,XE198108-198305

DARK BROWN,BROWN,TRIM4#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-26iKE70,TE7#..(DX,GL,GT,SR,XE,XL)..(EUR,GEN,SAA)198108-198204

DARK BROWN,BROWN,TRIM4#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-26iAE71,KE70..4D..ARL198305-198410

DARK BROWN,BROWN,TRIM4#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-26iKE70,TE7#..(CP,LB)..(ARL,GEN,SA)197908-198108

DARK BROWN,BROWN,TRIM4#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-26iAE71,KE70,TE7#..SA198305-198707

DARK BROWN,BROWN,TRIM4#

sub46217-10020¥240

sub46217-20020¥300

main46217-10020-56iAE71,CE70,KE70..EUR,GEN198408-198707

BROWN,BROWN,TRIM4#

sub46217-10020¥240

sub46217-20020¥300

main46217-12010iKE70,TE7#..EUR¥240197908-198108

sub46217-10020¥240

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iAE71,CE70,KE70,TE7#¥160197908-198707

46241BOOT, PARKING BRAKE LEVER

main46241-12050iAE71,CE70,KE70,TE7#¥640197908-198308

sub46241-12051¥620

main46241-12051iAE71,CE70,KE70,TE7#¥620198308-198707

46243COVER, PARKING BRAKE LEVER

main46243-14031iCE70,KE70..2D¥1,560198508-198707

46249SHIELD, PARKING BRAKE HOLE

main46249-22020iAE71,CE70,KE70,TE7#¥240197908-198707

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iAE71,CE70,KE70,TE7#¥320197908-198707

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12070iAE71,CE70,KE70,TE7#¥2,000197908-198707

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12210iTE71..(CP,LB,SED)..(DX,GL,SE,SR,XE)..(GEN,SAA)¥4,520197908-198305

sub46420-12211¥4,500

main46420-12211iAE71,KE70,TE71..(LB,SED)..(ARL,GEN,SAA)¥4,500198305-198410

main46420-12230iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)¥4,500197908-198305

main46420-12230iKE70,TE71..(LB,SED)..SA;TE72..(GL,SE,XE)..(EUR,SA)¥4,500198007-198502

main46420-13010iKE70,TE71..(DV,WG)..(ARL,EUR,GEN,SAA)¥4,360197908-198305

sub46420-13011¥4,360

main46420-13011iAE71,KE70..(DV,WG)..(ARL,EUR,GEN,SAA)¥4,360198305-198707

main46420-13030iTE71..(DV,WG)..SA¥4,980198204-198305

sub46420-13031¥4,980

main46420-13031iCE70,TE71..DV,WG¥4,980198305-198707

main46420-13031iAE71,KE70..(DV,WG)..SA¥4,980198406-198707

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12110iTE71..(CP,LB,SED)..(DX,GL,SE,SR,XE)..(GEN,SAA)¥4,520197908-198305

sub46430-12111¥4,500

main46430-12111iAE71,KE70,TE71..(LB,SED)..(ARL,GEN,SAA)¥4,500198305-198410

main46430-12130iKE70,TE71..(LB,SED)..SA;TE72..(GL,SE,XE)..(EUR,SA)¥4,500198007-198502

main46430-12130iTE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)¥4,500197908-198305

main46430-13010iKE70,TE71..(DV,WG)..(ARL,EUR,GEN,SAA)¥4,520197908-198305

sub46430-13011¥4,510

main46430-13011iAE71,KE70..(DV,WG)..(ARL,EUR,GEN,SAA)¥4,510198305-198707

main46430-13030iTE71..(DV,WG)..SA¥4,520198204-198305

sub46430-13031¥4,510

main46430-13031iCE70,TE71..DV,WG¥4,510198305-198707

main46430-13031iAE71,KE70..(DV,WG)..SA¥4,510198406-198707

46443CAP, CABLE ADJUSTING

main46443-12040iAE71,CE70,KE70,TE7#¥230197908-198707

46458RETAINER, CABLE

main46458-20020iAE71,CE70,KE70,TE7#¥270197908-198707

sub46458-50010¥340

9046110508

main90461-10508¥240

9046112121

main90461-12121¥240

9165140614

main91651-40614¥160

9166640825

main91666-40825¥140

9411050600

main94110-50600¥120

17 parts on this diagram · 1 diagram in section
