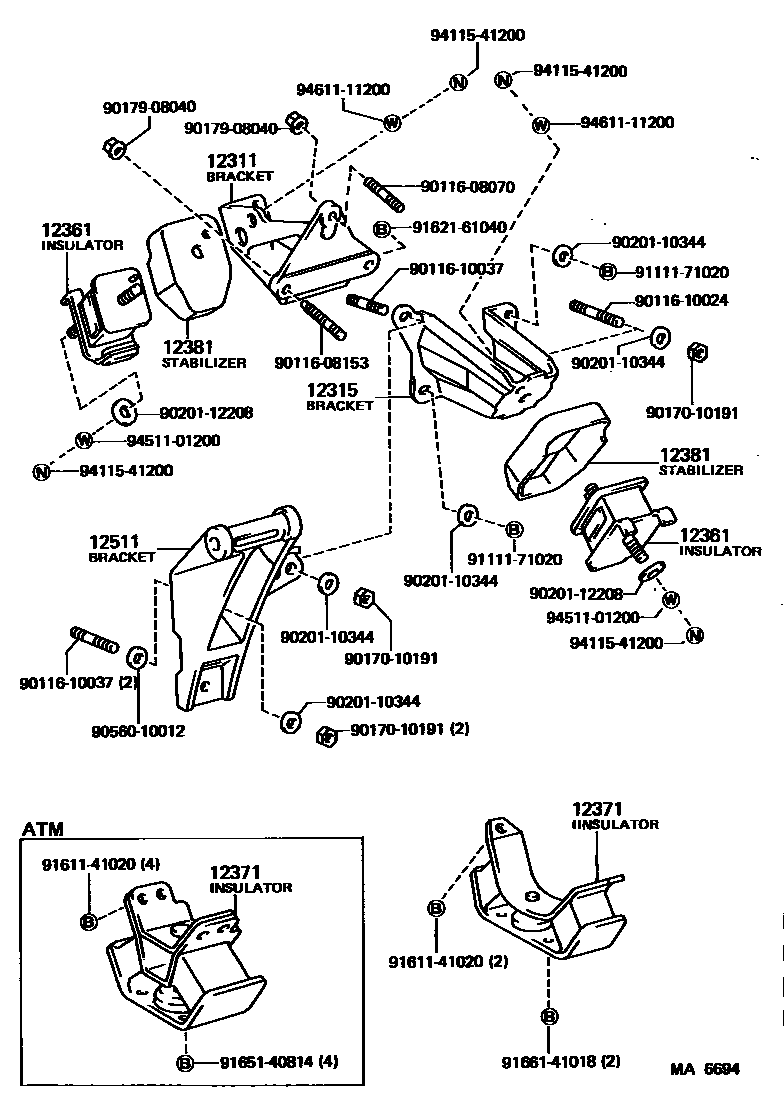

Toyota COROLLA — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-13020i4K#..KE70¥5,300197908-198707

main12311-15090i4A#..AE71¥3,480198305-198707

main12311-25050i2TG..TE71¥3,480197908-198001

sub12311-25051¥3,840

main12311-25051i2TG..TE71¥3,840198001-198305

main12311-25060i2T,3TC..TE7#¥3,510197908-197911

sub12311-25061

main12311-26051i2TB..TE71¥3,020197908-198001

sub12311-26052

main12311-26060i2TB..TE71¥3,480198001-198008

main12311-26060i2T,2TB,3T#..TE7#¥3,480197911-198502

main12311-64010i1C..CE70¥3,330198210-198707

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-12013i4KC..KE70;4K..KE70..RHD;4K..KE70..SED..LHD..4F..4D;4K..KE70..SED..4F..2D..EUG;4K..KE70..(CP,DV,LB,WG)..LHD;4K..KE70..SED..LHD..(3FC,5F)¥8,600198304-198707

main12302-13042i4K#..KE70¥5,400197908-198108

sub12302-13043

main12302-13043i4K#..KE70198108-198304

sub12302-12013¥8,600

main12312-25040i2TB,2TG..TE71197908-198001

main12312-25041i2TG..TE71¥4,290198001-198305

main12312-25050i3TC..TE72..SDN;2T,2TB..TE71..EUR,GEN198204-198305

main12312-25050i2T,3TC..TE7#197908-198001

main12312-25050i2T,2TB,3T#..TE7#..EUR,GEN,SA,SAA198001-198204

main12312-25060i3TC..TE72..ARL198001-198204

main12312-25060i2T,3T..TE7#..SA;3TC..TE72..SE,XE198204-198305

main12312-25060i2T,3T..TE7#198305-198502

main12315-15060i4A#..AE71¥3,560198305-198707

main12315-64010i1C..CE70¥3,400198210-198707

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-15040i4A#..AE71¥3,030198305-198707

main12361-18010i2T,2TB,3T#..TE7#¥5,300197908-198502

MARUYASU OR TOKAIGOMU

main12361-18020i2T,2TB,3T#..TE7#¥5,300197908-198502

TOYOGOMU

main12361-25014i2TG..TE71¥3,700197908-198305

main12361-64022i1C..CE70¥6,600198210-198707

sub12361-64023¥6,700

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-13010i4K..KE70..2FC¥2,330197908-198108

main12371-13030i4K..KE70..CP..5F;4K..KE70..CP..LHD..4F;4K#..KE70..(DV,LB,SED,WG)..MTM¥4,510197908-198707

main12371-16010i4A#..AE71..MTM¥5,200198305-198707

main12371-16020i4AC..AE71..3FC¥4,650198305-198410

main12371-16020i4A..AE71..GEN¥4,650198508-198707

main12371-33010i2T#,3T#..TE7#..MTM¥3,610197908-198502

main12371-34020i2T,3T..TE7#..ATM¥2,960197908-198401

main12371-34030i1C..CE70¥4,580198210-198707

main12371-34030i4K..KE70..3FC¥4,580198108-198406

12381STABILIZER, ENGINE MOUNTING

main12381-15040i4A#..AE71¥930198305-198707

main12381-18010i2T,2TB,3T#..TE7#¥1,580197908-198502

LH,MARUYASU OR TOKAIGOMU

main12381-18020i2T,2TB,3T#..TE7#197908-198502

LH,TOYOGOMU

main12381-18030i2T,2TB,3T#..TE7#197908-198502

RH,MARUYASU OR TOKAIGOMU

main12381-18040i2T,2TB,3T#..TE7#197908-198502

RH,TOYOGOMU

main12381-25010i2TG..TE71¥1,040197908-198305

main12381-64010i1C..CE70¥1,970198210-198707

sub12381-64011¥1,970

12511BRACKET, ALTERNATOR, NO.1

main12511-15011i4A#..AE71¥3,790198305-198707

main12511-24011i4K#..KE70¥3,060197908-198707

main12511-25010i2T#,3T#..TE7#¥1,780197908-198502

main12511-64011i1C..CE70¥3,060198210-198707

9011608070

main90116-08070¥210

9011608153

main90116-08153¥140

9011610024

main90116-10024¥210

9011610037

main90116-10037¥260

9017010191

main90170-10191¥110

9017908040

main90179-08040¥100

9020110344

main90201-10344¥110

9020112208

main90201-12208¥190

9056010012

main90560-10012¥190

9111171020

main91111-71020¥170

9161141020

main91611-41020¥180

9162161040

main91621-61040¥170

9165140814

main91651-40814¥180

9166141018

main91661-41018¥250

9411541200

main94115-41200¥300

9451101200

main94511-01200¥200

9461111200

main94611-11200¥160

23 parts on this diagram · 5 diagrams in section
