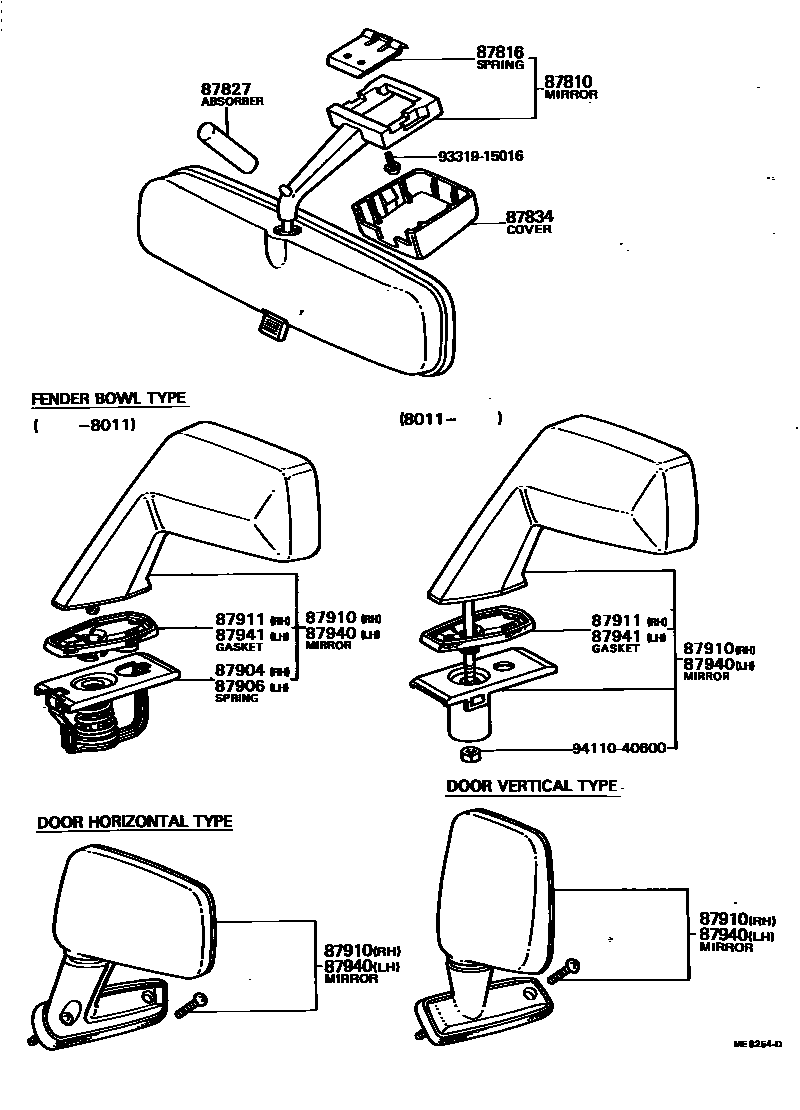

Toyota COROLLA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BLACK,BLACK,TRIM0#,2#,4#,8#
BLACK,BLACK,TRIM0#,2#
BLACK,BLACK,TRIM0#,2#,4#,8#
MAROON,RED/MAROON,TRIM3#
MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM0#,2#,4#,8#
GRAY,GRAY,TRIM0#,2#,4#,8#
DARK BROWN,BROWN,TRIM4#
DARK BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
NON GLARE TYPE,BLACK,BLACK,TRIM0#,2#
NON GLARE TYPE,BLACK,BLACK,TRIM0#,2#,4#,8#
NON GLARE TYPE,BLUE,BLUE,TRIM8#
NON GLARE TYPE,LIGHT BROWN,BROWN,TRIM4#
NON GLARE TYPE,MAROON,RED/MAROON,TRIM3#
NON GLARE TYPE,GRAY,GRAY,TRIM0#,2#,4#,8#
NON GLARE TYPE,GRAY,GRAY,TRIM0#,2#,4#,8#
NON GLARE TYPE,DARK BROWN,BROWN,TRIM4#
NON GLARE TYPE,DARK BROWN,BROWN,TRIM4#
NON GLARE TYPE,LIGHT BROWN,BROWN,TRIM4#
NON GLARE TYPE,LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
NON GLARE TYPE,BEIGE,BROWN,TRIM4#
NON GLARE TYPE,BEIGE,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM0#,2#,4#,8#
GRAY,GRAY,TRIM0#,2#,4#,8#
GRAY,GRAY,TRIM0#,2#,4#,8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM0#,2#,4#,8#
NON GLARE TYPE,MAROON,RED/MAROON,TRIM3#
NON GLARE TYPE,GRAY,GRAY,TRIM0#,2#,4#,8#
NON GLARE TYPE,GRAY,GRAY,TRIM0#,2#,4#,8#
NON GLARE TYPE,GRAY,GRAY,TRIM0#,2#,4#,8#
NON GRARE TYPE,BROWN,BROWN,TRIM4#
NON GLARE TYPE,GRAY,GRAY,TRIM0#,2#,4#,8#
NON GRARE TYPE,BROWN,BROWN,TRIM4#
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
L=35,W/SUN ROOF
L=35
L=35
L=30
L=27
L=27
L=27
L=27
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87904SPRING SUB-ASSY, OUTER MIRROR, RH
FENDER BOWL TYPE
87906SPRING SUB-ASSY, OUTER MIRROR, LH
FENDER BOWL TYPE
87910MIRROR ASSY, OUTER REAR VIEW, RH
FENDER BOWL TYPE
DOOR HORIZONTAL TYPE
DOOR HORIZONTAL TYPE
DOOR HORIZONTAL TYPE
DOOR HORIZONTAL TYPE
DOOR HORIZONTAL TYPE
*RCM
*RCM,SWEDEN CAMPAIGN
*RCM
*RCM
*RCM
*RCM
*RCM
DOOR VERTICAL TYPE
87911GASKET, OUTER REAR VIEW MIRROR, RH
FENDER BOWL TYPE
FENDER BOWL TYPE
87940MIRROR ASSY, OUTER REAR VIEW, LH
FENDER BOWL TYPE
DOOR HORIZONTAL TYPE
DOOR HORIZONTAL TYPE
*RCM
*RCM,SWEDEN CAMPAIGN
*RCM
*RCM
*RCM
*RCM
*RCM
DOOR VERTICAL TYPE
87941GASKET, OUTER REAR VIEW MIRROR, LH
FENDER BOWL TYPE
FENDER BOWL TYPE
9331915016
9411040600
12 parts on this diagram · 2 diagrams in section
