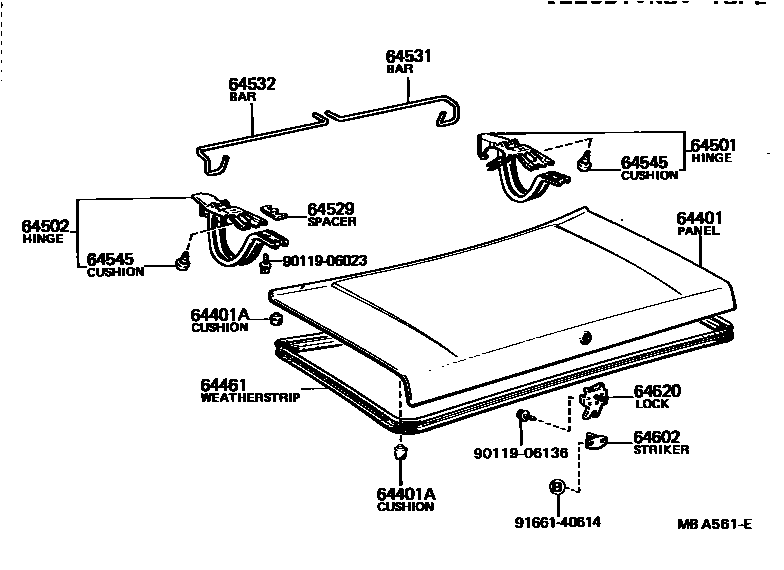

Toyota COROLLA — LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-12906iAE71,CE70,KE70,TE7#..SED¥28,100197908-198502

sub64401-12909¥27,800

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-07003iAE71,CE70,KE70,TE7#..SED¥230197908-198502

FR

main90541-09114iAE71,CE70,KE70,TE7#..SED¥130197908-198502

RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12100iAE71,CE70,KE70,TE7#..SED¥5,800197908-198502

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-12140iAE71,CE70,KE70,TE7#..SED¥2,990197908-198502

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-12140iAE71,CE70,KE70,TE7#..SED¥2,990197908-198502

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iAE71,CE70,KE70,TE7#..SED¥650197908-198502

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12110iAE71,CE70,KE70,TE7#..SED¥850197908-198502

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12090iAE71,CE70,KE70,TE7#..SED¥850197908-198502

64545CUSHION, LUGGAGE DOOR HINGE

main90541-09013iKE70,TE71..SED¥230197908-198006

main90541-09014iAE71,CE70,KE70,TE7#..SED¥230198006-198502

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iAE71,CE70,KE70,TE7#..SED¥1,030197908-198502

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12020iCE70,KE70,TE7#..SED¥1,860197908-198502

main64610-20030iTE72..GL¥2,770198305-198404

9011906023

main90119-06023¥120

9011906136

main90119-06136¥130

9166140614

main91661-40614¥120

14 parts on this diagram · 2 diagrams in section
