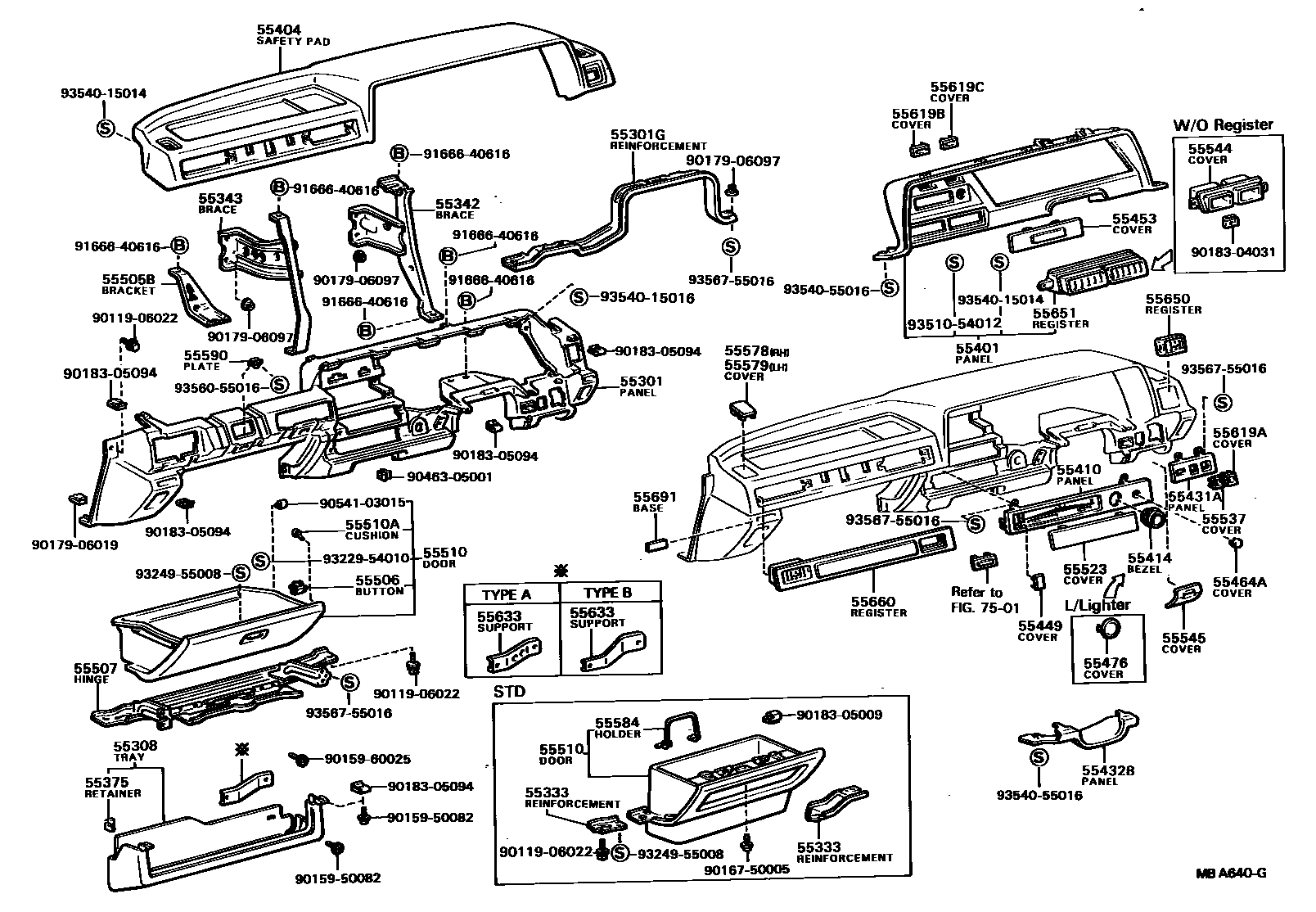

Toyota COROLLA — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0004 1 0007 1 0008 1 0009 1 0010 1 0012 1 0014 1 0015 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-12150-01iKE70..2D..ARL198108-198508

BLACK,BLACK,TRIM2#

main55311-12150-01iTE71..RHD..4D..GEN;KE70..(DV,SED,WG)..RHD..(2FC,4F);KE70..(SED,WG)..RHD..5F..(EUR,GEN)197908-198305

BLACK,BLACK,TRIM0#,2#

main55311-12150-03iCE70,KE70..(DV,WG)..RHD..(EUR,GEN)198305-198707

GRAY,GRAY,TRIM1#

main55311-12150-04iCE70,KE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)197908-198309

BLUE,BLUE,TRIM8#

main55311-12150-06iAE71,TE71..(DV,WG)..SA;KE70..RHD..(STD,XL)..(GEN,SA)198108-198508

D-BROWN,BROWN,TRIM4#

main55311-12150-15iTE71..RHD..4D;KE70,TE72..(DX,GL)..SA;KE70..(DV,SED,WG)..RHD..(EUR,GEN)197908-198204

BEIGE,BEIGE,TRIM4#

main55311-12150-25iCE70,KE70..(DV,WG)..RHD..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

main55311-12150-26iAE71,CE70,KE70..RHD198508-198707

BROWN,LIGHT BROWN,TRIM4#

main55311-12170-01iKE70,TE7#..(CP,LB)..RHD197908-198406

BLACK,BLACK,TRIM0#,2#

main55311-12170-04iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)197908-198305

BLUE,BLUE,TRIM8#

main55311-12170-06iKE70,TE7#..(CP,LB)..RHD197908-198406

D-BROWN,BROWN,TRIM4#

main55311-12180-01iKE70..LHD..GEN198305-198508

BLACK,BLACK,TRIM2#

main55311-12180-01iKE70..SAA197908-198308

BLACK,BLACK,TRIM0#,2#

main55311-12180-03iCE70,KE70..LHD..(EUR,GEN)198305-198707

GRAY,GRAY,TRIM1#

main55311-12180-04iKE70..SAA197908-198308

BLUE,BLUE,TRIM8#

main55311-12180-05iKE70,TE71..(DV,SED,WG)..LHD197908-198108

BEIGE,BEIGE,TRIM4#

main55311-12180-06iKE70..SAA198108-198508

D-BROWN,BROWN,TRIM4#

main55311-12180-25iCE70,KE70..LHD..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

main55311-12180-26iAE71,CE70,KE70..LHD198508-198707

BEIGE,LIGHT BROWN,TRIM4#

main55311-12190-01iKE70,TE7#..(CP,LB)..LHD197908-198308

BLACK,BLACK,TRIM0#,2#

main55311-12190-04iKE70,TE7#..(CP,LB)..LHD197908-198308

BLUE,BLUE,TRIM8#

main55311-12190-06iKE70,TE7#..(CP,LB)..LHD197908-198308

D-BROWN,BROWN,TRIM4#

55301GREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL

main55305-12050iKE70,TE7#..(DV,SED,WG)..RHD¥2,640197908-198107

sub55305-12051¥2,650

sub91651-40616¥60

main55305-12051iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD¥2,650198107-198707

main55305-12060iKE70,TE7#..(CP,LB)..RHD197908-198406

main55305-12070iKE70,TE71..(DV,SED,WG)..LHD¥2,640197908-198107

sub55305-12071¥2,650

sub91651-40616¥60

main55305-12071iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD¥2,650198107-198707

main55305-12080iKE70,TE7#..(CP,LB)..LHD197908-198308

main55305-12090iCE70..RHD198210-198305

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-12080-01iAE71,KE70..(DX,GL)..ARL197908-198508

BLACK,BLACK,TRIM0#,2#

sub55601-12080¥1,830

main55601-12080-02iKE70..WG..RHD..4D..(EUR,GEN)198305-198409

MAROON,RED/MAROON,TRIM3#

sub55601-12080¥1,830

main55601-12080-03iCE70,KE70..WG..RHD..4D..(EUR,GEN)198305-198707

GRAY,GRAY,TRIM1#

sub55601-12080¥1,830

main55601-12080-04iKE70,TE71..(SED,WG)..RHD..(DX,GL,XL)..(EUR,GEN)197908-198305

BLUE,BLUE,TRIM8#

sub55601-12080¥1,830

main55601-12080-05iKE70..(DX,GL)..ARL197908-198305

BEIGE,BEIGE,TRIM4#

sub55601-12080¥1,830

main55601-12080-06iAE71,KE70,TE7#..4D..SA198108-198508

D-BROWN,BROWN,TRIM4#

sub55601-12080¥1,830

main55601-12080-16iCE70,KE70..RHD..4D..(EUR,GEN)198409-198707

BROWN,BROWN,TRIM4#

sub55601-12080¥1,830

main55601-12090-01iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)197908-198406

BLACK,BLACK,TRIM0#,2#

sub55601-12090¥2,390

main55601-12090-04iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)197908-198305

BLUE,BLUE,TRIM8#

sub55601-12090¥2,390

main55601-12090-06iKE70,TE7#..(CP,LB)..RHD197908-198406

D-BROWN,BROWN,TRIM4#

sub55601-12090¥2,390

main55601-12100-01iKE70..LHD..4F..(DX,XL)197908-198508

BLACK,BLACK,TRIM0#,2#

sub55601-12100¥1,810

main55601-12100-02iCE70,KE70..LHD..4D..(EUR,GEN)198305-198409

MAROON,RED/MAROON,TRIM3#

sub55601-12100¥1,810

main55601-12100-03iCE70,KE70..LHD..4D..(EUR,GEN)198305-198707

GRAY,GRAY,TRIM1#

sub55601-12100¥1,810

main55601-12100-04iCE70,KE70,TE71..(SED,WG)..LHD..(DX,GL,XL)197908-198308

BLUE,BLUE,TRIM8#

sub55601-12100¥1,810

main55601-12100-05iKE70,TE71..(SED,WG)..LHD..(DX,XL)197908-198108

BEIGE,BEIGE,TRIM4#

sub55601-12100¥1,810

main55601-12100-06iCE70,KE70,TE71..(SED,WG)..LHD..(DX,GL,XL)198108-198508

D-BROWN,BROWN,TRIM4#

sub55601-12100¥1,810

main55601-12100-16iAE71,CE70,KE70..LHD..(DX,XL)198409-198707

BROWN,BROWN,TRIM4#

sub55601-12100¥1,810

main55601-12110-01iKE70,TE7#..(CP,LB)..LHD197908-198308

BLACK,BLACK,TRIM0#,2#

sub55601-12110¥2,390

main55601-12110-04iKE70,TE7#..(CP,LB)..LHD197908-198308

BLUE,BLUE,TRIM8#

sub55601-12110¥2,390

main55601-12110-06iKE70,TE7#..(CP,LB)..LHD197908-198308

D-BROWN,BROWN,TRIM4#

sub55601-12110¥2,390

55333REINFORCEMENT, INSTRUMENT PANEL, NO.3

main55333-12060iKE70,TE71..RHD..STD..GEN197908-198707

RH

main55333-12080iCE70,KE70,TE71..LHD..STD197908-198707

LH

main55334-12020iKE70,TE71..4F..SA197908-198707

LH

main55334-12030iCE70,KE70,TE71..LHD..STD197908-198707

RH

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-12030iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD¥1,750197908-198707

main55307-12040iKE70,TE7#..(CP,LB)..RHD197908-198204

main55307-12041iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198406

main55307-12050iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD¥1,740197908-198707

main55307-12060iKE70,TE7#..(CP,LB)..LHD197908-198108

main55307-12061iKE70,TE7#..(CP,LB)..LHD198108-198308

55343BRACE, INSTRUMENT PANEL, NO.3

main55308-12100iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD¥1,980197908-198707

main55308-12110iKE70,TE7#..(CP,LB)..RHD197908-198204

main55308-12111iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198406

main55308-12120iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD¥1,630197908-198707

main55308-12130iKE70,TE7#..(CP,LB)..LHD197908-198108

main55308-12131iKE70,TE7#..(CP,LB)..LHD198108-198308

55375RETAINER, INSTRUMENT PANEL UNDER TRAY, UPPER

main55375-12010iAE71,CE70,KE70,TE7#..(DX,GL,GT,SE,SR,XE,XL)..(EUR,GEN,SA,SAA)¥240197908-198707

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55410-12530-03iTE71..RHD..4D..GEN197908-198108

GRAY,GRAY,TRIM2#

sub55410-12530¥9,500

main55410-12530-03iTE71..RHD..4D..GEN197908-198108

GRAY,GRAY,TRIM0#,2#

sub55410-12530¥9,500

main55410-12530-04iKE70..(DV,WG)..RHD..GEN197908-198108

BLUE,BLUE,TRIM8#

sub55410-12530¥9,500

main55410-12530-06iTE7#..4D..SA197908-198204

BROWN,BROWN,TRIM4#

sub55410-12530¥9,500

main55410-12600-03iKE70..RHD..5F..4D..GEN;KE70..SED..RHD..(2FC,4F)..(GEN,SA)197908-198204

GRAY,GRAY,TRIM0#,2#

sub55410-12600¥16,500

main55410-12600-04iKE70..SED..RHD..GEN197908-198108

BLUE,BLUE,TRIM8#

sub55410-12600¥16,500

main55410-12600-06iKE70..DX..SA;KE70..SED..RHD..(EUR,GEN)197908-198108

BROWN,BROWN,TRIM4#

sub55410-12600¥16,500

main55410-12600-16iKE70..DX..SA198108-198204

BROWN,BROWN,TRIM4#

sub55410-12600¥16,500

main55410-12610-03iKE70..RHD..EUG197908-198108

GRAY,GRAY,TRIM0#,2#

sub55410-12610¥16,500

main55410-12610-04iKE70..RHD..EUG197908-198108

BLUE,BLUE,TRIM8#

sub55410-12610¥16,500

main55410-12610-06iKE70..RHD..EUG197908-198108

BROWN,BROWN,TRIM4#

sub55410-12610¥16,500

main55410-12630iTE71..RHD..2D..DX..GEN197908-198108

main55410-12631iTE7#..RHD..2D..(ARL,EUR,GEN)198108-198406

main55410-12640iTE71..XE..GEN;TE71..RHD..DX..EUG197908-198003

main55410-12641iTE7#..SE..SA198003-198204

main55410-12650iTE71..RHD..SR197908-198108

main55410-12651iKE70..RHD..2D..DX198108-198305

main55410-12660iKE70..(CP,LB)..RHD197908-198108

main55410-12661iTE72..(SE,XE)..(EUR,SA)198204-198401

main55410-12700-03iTE71..LHD..4D197908-198108

GRAY,GRAY,TRIM2#

sub55410-12700¥10,900

main55410-12700-03iKE70..(DV,WG)..LHD..GEN197908-198108

GRAY,GRAY,TRIM0#,2#

sub55410-12700¥10,900

main55410-12700-04iTE71..LHD..4D197908-198108

BLUE,BLUE,TRIM8#

sub55410-12700¥10,900

main55410-12700-06iTE71..LHD..4D197908-198108

BROWN,BROWN,TRIM4#

sub55410-12700¥10,900

main55410-12720-03iKE70..(DV,SED,WG)..LHD..EUR197908-198108

GRAY,GRAY,TRIM0#,2#

sub55410-12720¥10,900

main55410-12720-03iKE70..SED..LHD..GEN197908-198108

W/RADIO,GRAY,GRAY,TRIM0#,2#

sub55410-12720¥10,900

main55410-12720-04iKE70..SED..LHD..GEN197908-198108

BLUE,BLUE,TRIM8#

sub55410-12720¥10,900

main55410-12720-04iKE70..SED..LHD..GEN197908-198108

W/RADIO,BLUE,BLUE,TRIM8#

sub55410-12720¥10,900

main55410-12720-06iKE70..SED..LHD..GEN197908-198108

W/RADIO,BROWN,BROWN,TRIM4#

sub55410-12720¥10,900

main55410-12720-06iKE70..SED..LHD..GEN197908-198108

BROWN,BROWN,TRIM4#

sub55410-12720¥10,900

main55410-12730iTE7#..LHD..2D..DX197908-198108

main55410-12740iTE71..LHD..(SE,XE)197908-198003

main55410-12741iTE71..LHD..(SE,XE)198003-198108

main55410-12750iTE71..LHD..(GT,SR)197908-198108

main55410-12751iTE7#..(CP,LB)..LHD198108-198308

main55410-12760iTE72..ARL197908-198003

main55410-12761iTE72..ARL198003-198108

main55410-12770iKE70..(CP,LB)..LHD197908-198108

main55410-12771iKE70..(CP,LB)..LHD198108-198305

main55410-12780-03iKE70..(DV,SED,WG)..LHD..EUR197908-198008

GRAY,GRAY,TRIM1#

sub55410-12781¥10,200

sub55522-12091

main55410-12780-04iKE70..(DV,SED,WG)..LHD..EUR197908-198008

BLUE,BLUE,TRIM8#

sub55410-12781¥10,200

sub55522-12091

main55410-12780-06iKE70..(DV,SED,WG)..LHD..EUR197908-198008

BROWN,BROWN,TRIM4#

sub55410-12781¥10,200

sub55522-12091

main55410-12781-03iKE70..(DV,SED,WG)..LHD..EUR198008-198108

GRAY,GRAY,TRIM0#,2#

sub55410-12781¥10,200

main55410-12781-04iKE70..(DV,SED,WG)..LHD..EUR198008-198108

BLUE,BLUE,TRIM8#

sub55410-12781¥10,200

main55410-12781-16iKE70..(DV,SED,WG)..LHD..EUR198008-198108

BROWN,BROWN,TRIM4#

sub55410-12781¥10,200

main55410-12830iKE70..SED..RHD;KE70..WG..RHD..EUG¥9,800198108-198707

main55410-12830iKE70..SED..ARL;KE70..RHD..STD..EUG;KE70..RHD..4D..(DX,GL,STD)..(EUR,GEN,SA)¥9,800198305-198707

W/REGISTER

main55410-12840iCE70,TE71..(DV,SED,WG)..RHD¥9,300198108-198707

main55410-12840iKE70..(DV,WG)..RHD..4F..(GEN,SA)¥9,300198305-198707

W/REGISTER

main55410-12850iKE70..LHD..EUR;KE70..SED..LHD..(GEN,SAA)¥11,800198108-198305

main55410-12850iKE70..LHD..EUR¥11,800198305-198707

W/REGISTER

main55410-12860iKE70..(DV,WG)..LHD..(GEN,SAA)¥9,900198108-198305

main55410-12860iCE70..LHD¥9,900198305-198707

W/REGISTER

main55410-12880iTE72..GL198204-198404

main55410-1A120iKE70..SED..GEN198305-198406

W/O REGISTER

main55410-1A130iKE70..LHD..EUG198305-198707

W/O REGISTER

main55410-1A140iKE70..RHD..4F..(STD,XL)..GEN198305-198707

W/O REGISTER

main55410-1A150iCE70..LHD198305-198707

W/O REGISTER

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-12090-01iKE70,TE7#..(DV,SED,WG)..RHD..(GEN,SA)197908-198508

BLACK,BLACK,TRIM0#,2#

sub55401-12090¥44,800

main55401-12090-01iKE70..(DV,WG)..ARL198305-198309

BLACK,BLACK,TRIM2#

sub55401-12090¥44,800

main55401-12090-02iAE71..STD198305-198409

MAROON,RED/MAROON,TRIM3#

sub55401-12090¥44,800

main55401-12090-03iAE71,CE70,KE70..RHD198305-198707

GRAY,GRAY,TRIM1#

sub55401-12090¥44,800

main55401-12090-04iKE70..2D..ARL197908-198309

BLUE,BLUE,TRIM8#

sub55401-12090¥44,800

main55401-12090-06iKE70..(DV,WG)..ARL198108-198508

D-BROWN,BROWN,TRIM4#

sub55401-12090¥44,800

main55401-12090-15iTE71..RHD..4D;KE70,TE72..(DX,GL)..SA;KE70..(DV,SED,WG)..RHD..(EUR,GEN)197908-198305

BEIGE,BEIGE,TRIM4#

sub55401-12090¥44,800

main55401-12090-16iCE70,KE70..RHD..(EUR,GEN)198409-198707

BROWN,BROWN,TRIM4#

sub55401-12090¥44,800

main55401-12100-01iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)197908-198108

BLACK,BLACK,TRIM0#,2#

sub55401-12101

main55401-12100-04iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)197908-198108

BLUE,BLUE,TRIM8#

sub55401-12101

main55401-12100-06iTE7#..SE..SA197908-198110

D-BROWN,BROWN,TRIM4#

sub55401-12101

main55401-12101-01iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198406

BLACK,BLACK,TRIM0#,2#

main55401-12101-04iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198305

BLUE,BLUE,TRIM8#

main55401-12101-06iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198406

D-BROWN,BROWN,TRIM4#

main55401-12110-01iKE70..LHD..GEN198305-198508

BLACK,BLACK,TRIM2#

main55401-12110-01iCE70,KE70,TE71..(DV,SED,WG)..LHD197908-198305

BLACK,BLACK,TRIM0#,2#

main55401-12110-02iCE70,KE70..LHD..(EUR,GEN)198305-198409

MAROON,RED/MAROON,TRIM3#

main55401-12110-03iAE71,CE70,KE70..LHD198305-198707

GRAY,GRAY,TRIM1#

main55401-12110-04iKE70..SAA197908-198308

BLUE,BLUE,TRIM8#

main55401-12110-05iKE70,TE71..(DV,SED,WG)..LHD197908-198108

BEIGE,BEIGE,TRIM4#

main55401-12110-06iKE70..SAA198108-198508

D-BROWN,BROWN,TRIM4#

main55401-12110-16iAE71,CE70,KE70..LHD198409-198707

BROWN,BROWN,TRIM4#

main55401-12120-01iKE70,TE7#..(CP,LB)..LHD197908-198108

BLACK,BLACK,TRIM0#,2#

sub55401-12121

main55401-12120-04iKE70,TE7#..(CP,LB)..LHD197908-198108

BLUE,BLUE,TRIM8#

sub55401-12121

main55401-12120-06iKE70,TE7#..(CP,LB)..LHD197908-198108

D-BROWN,BROWN,TRIM4#

sub55401-12121

main55401-12121-01iKE70,TE7#..(CP,LB)..LHD198108-198308

BLACK,BLACK,TRIM0#,2#

main55401-12121-04iKE70,TE7#..(CP,LB)..LHD198108-198308

BLUE,BLUE,TRIM8#

main55401-12121-06iKE70,TE7#..(CP,LB)..LHD198108-198308

D-BROWN,BROWN,TRIM4#

55410PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55413-12250iKE70..SED..RHD..(EUR,GEN)¥2,560197908-198707

BLACK

main55413-12260iKE70..(DV,WG)..RHD..4F..GEN197908-198707

BLACK

main55413-12270iKE70,TE71..WG..RHD..GEN197908-197912

W/RR WIPER

main55413-12271iKE70,TE71..WG..RHD..(GEN,SA)197912-198707

W/RR WIPER

main55413-12271iTE71..SA198204-198707

SILVER

main55413-12290iKE70..WG..RHD..EUG¥2,970197911-197912

W/RR WIPER

sub55413-12291¥2,930

main55413-12291iKE70..DX..SA¥2,930198108-198707

SILVER

sub55413-12250¥2,560

main55413-12291iKE70..WG..5F..GEN¥2,930197912-198707

W/RR WIPER

sub55413-12250¥2,560

main55413-12291iAE71..SA¥2,930198501-198707

sub55413-12250¥2,560

main55413-12300iTE7#..4D..SA198007-198204

WOODY

main55413-12310iAE71..GEN¥2,560197908-198707

BLACK

main55413-12320iKE70..(DV,WG)..LHD..(GEN,SAA)¥1,290197908-198707

BLACK

main55413-12380iTE72..GL198204-198404

55414BEZEL, CIGAR LIGHTER HOLE

main55477-12050iAE71,CE70,KE70,TE7#..DV,SED,WG¥680197908-198707

55431APANEL, INSTRUMENT PANEL FINISH

main55431-12030iKE70,TE71..2D..SA¥1,750197908-198707

BLACK

main55431-12050iKE70..STD..SA¥1,740197908-198508

BLACK

main55431-12130iKE70..LHD..EUR;KE70..SED..LHD..(GEN,SAA)¥2,830197908-198206

BLACK

sub55431-12350¥2,840

sub55617-10010¥320

main55431-12140iCE70,TE71..(SED,WG)..LHD¥1,740197908-198707

BLACK

main55431-12160iKE70,TE71..WG..RHD..GEN¥2,830197908-197912

W/RR WIPER

sub55431-12161¥2,860

main55431-12161iKE70,TE71..WG..RHD..GEN¥2,860197912-198707

W/RR WIPER

main55431-12161iCE70..RHD..DX¥2,860198204-198707

SILVER

main55431-12180iTE7#..4D..SA198007-198204

WOODY

main55431-12200iKE70..WG..RHD..EUG¥2,830197911-197912

W/RR WIPER

sub55431-12201¥2,860

main55431-12201iKE70..WG..RHD..EUG¥2,860197912-198707

main55431-12240iKE70..DX..SA198108-198502

SILVER

main55431-12300iTE71..SED..SA198204-198502

SILVER

main55431-12330iTE72..GL198204-198404

WOODY

main55431-12350iAE71..GEN¥2,840198206-198707

BLACK

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-12050-01iKE70..STD..SA197908-198508

BLACK,BLACK,TRIM0#,2#

sub55432-12050¥2,250

main55432-12050-01iAE71,KE70..WG..ARL198309-198508

BLACK,BLACK,TRIM2#

sub55432-12050¥2,250

main55432-12050-03iKE70..WG..5F..GEN198305-198707

GRAY,GRAY,TRIM1#

sub55432-12050¥2,250

main55432-12050-04iKE70..SED..RHD..(ARL,EUR,GEN)197908-198309

BLUE,BLUE,TRIM8#

sub55432-12050¥2,250

main55432-12050-06iKE70..WG..RHD..EUG198108-198508

D-BROWN,BROWN,TRIM4#

sub55432-12050¥2,250

main55432-12050-15iKE70..DX..SA197908-198305

BEIGE,BEIGE,TRIM4#

sub55432-12050¥2,250

main55432-12050-16iKE70..5F..GEN198508-198707

BROWN,BROWN,TRIM4#

sub55432-12050¥2,250

main55432-12050-25iAE71..STD198305-198508

BEIGE,BEIGE,TRIM4#

sub55432-12050¥2,250

main55432-12060-01iCE70,TE71..(DV,SED,WG)..RHD197908-198501

BLACK,BLACK,TRIM0#,2#

sub55432-12060¥2,250

main55432-12060-01iKE70..(DV,WG)..RHD..4F..(GEN,SA)197908-198508

BLACK,BLACK,TRIM2#

sub55432-12060¥2,250

main55432-12060-03iCE70..RHD198305-198707

GRAY,GRAY,TRIM1#

sub55432-12060¥2,250

main55432-12060-04iKE70..(DV,WG)..RHD..GEN197908-198305

BLUE,BLUE,TRIM8#

sub55432-12060¥2,250

main55432-12060-06iKE70..(DV,WG)..RHD..GEN198108-198508

D-BROWN,BROWN,TRIM4#

sub55432-12060¥2,250

main55432-12060-15iKE70..(DV,WG)..RHD..GEN197908-198204

BEIGE,BEIGE,TRIM4#

sub55432-12060¥2,250

main55432-12060-16iKE70..RHD..4F198508-198707

BROWN,BROWN,TRIM4#

sub55432-12060¥2,250

main55432-12060-25iCE70..RHD198305-198508

BEIGE,BEIGE,TRIM4#

sub55432-12060¥2,250

main55432-12070-01iTE7#..RHD..2D..(ARL,EUR,GEN)197908-198108

BLACK,BLACK,TRIM0#,2#

main55432-12070-04iTE7#..RHD..2D..(ARL,EUR,GEN)197908-198108

BLUE,BLUE,TRIM8#

main55432-12070-06iTE7#..SE..SA197908-198204

D-BROWN,BROWN,TRIM4#

main55432-12071-01iTE7#..RHD..2D..(ARL,EUR,GEN)198108-198406

BLACK,BLACK,TRIM0#,2#

main55432-12071-04iTE7#..RHD..2D..(ARL,EUR,GEN)198108-198305

BLUE,BLUE,TRIM8#

main55432-12071-06iTE7#..RHD..2D..(ARL,EUR,GEN)198108-198406

D-BROWN,BROWN,TRIM4#

main55432-12080-01iKE70..(CP,LB)..RHD197908-198108

BLACK,BLACK,TRIM0#,2#

main55432-12080-04iKE70..(CP,LB)..RHD197908-198108

BLUE,BLUE,TRIM8#

main55432-12080-06iKE70..(CP,LB)..RHD197908-198108

D-BROWN,BROWN,TRIM4#

main55432-12081-01iKE70..RHD..2D..DX198108-198305

BLACK,BLACK,TRIM0#,2#

main55432-12081-04iKE70..RHD..2D..DX198108-198305

BLUE,BLUE,TRIM8#

main55432-12081-06iKE70..RHD..2D..DX198108-198305

D-BROWN,BROWN,TRIM4#

main55432-12090-01iKE70..SED..SAA197908-198308

BLACK,BLACK,TRIM0#,2#

sub55432-12090¥2,250

main55432-12090-03iAE71..GEN198305-198707

GRAY,GRAY,TRIM1#

sub55432-12090¥2,250

main55432-12090-04iKE70..LHD..EUR;KE70..SED..LHD..(GEN,SAA)197908-198308

BLUE,BLUE,TRIM8#

sub55432-12090¥2,250

main55432-12090-05iKE70..LHD..EUR;KE70..SED..LHD..GEN197908-198108

BEIGE,BEIGE,TRIM4#

sub55432-12090¥2,250

main55432-12090-06iKE70..SED..SAA198108-198308

D-BROWN,BROWN,TRIM4#

sub55432-12090¥2,250

main55432-12090-16iAE71..GEN198508-198707

BROWN,BROWN,TRIM4#

sub55432-12090¥2,250

main55432-12090-25iKE70..LHD..EUR198305-198508

BEIGE,BEIGE,TRIM4#

sub55432-12090¥2,250

main55432-12100-01iKE70..(DV,WG)..LHD..(GEN,SAA)197908-198508

BLACK,BLACK,TRIM2#

sub55432-12100¥2,250

main55432-12100-01iCE70,TE71..(SED,WG)..LHD197908-198305

BLACK,BLACK,TRIM0#,2#

sub55432-12100¥2,250

main55432-12100-03iCE70..LHD198305-198707

GRAY,GRAY,TRIM1#

sub55432-12100¥2,250

main55432-12100-04iCE70,TE71..(SED,WG)..LHD197908-198308

BLUE,BLUE,TRIM8#

sub55432-12100¥2,250

main55432-12100-05iTE71..LHD..4D197908-198108

BEIGE,BEIGE,TRIM4#

sub55432-12100¥2,250

main55432-12100-06iCE70,TE71..(SED,WG)..LHD198108-198508

D-BROWN,BROWN,TRIM4#

sub55432-12100¥2,250

main55432-12100-16iCE70..LHD198508-198707

BROWN,BROWN,TRIM4#

sub55432-12100¥2,250

main55432-12100-25iCE70..LHD198305-198508

BEIGE,BEIGE,TRIM4#

sub55432-12100¥2,250

main55432-12110-01iTE7#..LHD..2D197908-198108

BLACK,BLACK,TRIM0#,2#

sub55432-12110¥1,610

main55432-12110-04iTE7#..LHD..2D197908-198108

BLUE,BLUE,TRIM8#

sub55432-12110¥1,610

main55432-12110-06iTE7#..LHD..2D197908-198108

D-BROWN,BROWN,TRIM4#

sub55432-12110¥1,610

main55432-12111-01iTE7#..(CP,LB)..LHD198108-198308

BLACK,BLACK,TRIM0#,2#

sub55432-12111¥1,610

main55432-12111-04iTE7#..(CP,LB)..LHD198108-198308

BLUE,BLUE,TRIM8#

sub55432-12111¥1,610

main55432-12111-06iTE7#..(CP,LB)..LHD198108-198308

D-BROWN,BROWN,TRIM4#

sub55432-12111¥1,610

main55432-12120-01iKE70..(CP,LB)..LHD197908-198108

BLACK,BLACK,TRIM0#,2#

sub55432-12120

main55432-12120-04iKE70..(CP,LB)..LHD197908-198108

BLUE,BLUE,TRIM8#

sub55432-12120

main55432-12120-06iKE70..(CP,LB)..LHD197908-198108

D-BROWN,BROWN,TRIM4#

sub55432-12120

main55432-12121-01iKE70..(CP,LB)..LHD198108-198305

BLACK,BLACK,TRIM0#,2#

sub55432-12121¥1,610

main55432-12121-04iKE70..(CP,LB)..LHD198108-198305

BLUE,BLUE,TRIM8#

sub55432-12121¥1,610

main55432-12121-06iKE70..(CP,LB)..LHD198108-198305

D-BROWN,BROWN,TRIM4#

sub55432-12121¥1,610

main55432-12130-01iTE72..(SE,XE)..(EUR,SA)198204-198401

BLACK,BLACK,TRIM0#,2#

main55432-12130-06iTE72..(SE,XE)..(EUR,SA)198204-198401

D-BROWN,BROWN,TRIM4#

main55432-12160-01iTE72..GL198204-198404

BLACK,BLACK,TRIM0#,2#

sub55432-12160¥2,240

main55432-12160-06iTE72..GL198204-198404

D-BROWN,BROWN,TRIM4#

sub55432-12160¥2,240

55449COVER, COOLER SWITCH HOLE

main55538-12030iAE71,CE70,KE70,TE7#..DV,SED,WG¥610197908-198707

W/O AIR CONDITIONER

main55538-12040iAE71,KE70,TE71..(DV,SED,WG)..RHD..(ARL,GEN)¥590197908-198707

W/AIR CONDITIONER

main55538-12050iAE71,KE70,TE71..(DV,SED,WG)..LHD..(GEN,SAA)¥590197908-198707

W/AIR CONDITIONER

main55538-12060iKE70,TE71..(DV,SED,WG)..RHD..GEN198108-198707

W/COOLER,VOLUME

main55538-12070iAE71,KE70,TE71..(DV,SED,WG)..LHD..(GEN,SAA)198108-198707

W/COOLER,VOLUME

main55538-16010iKE70,TE71..(CP,LB)..LHD197908-198308

55453COVER, RADIO TUNER OPENING

main55522-12060iKE70,TE7#..(SED,WG)..RHD..(EUR,SA)¥1,360197908-198204

main55522-12090iKE70..(DV,SED,WG)..LHD..EUR¥1,470197908-198008

sub55522-12091

main55522-12091iKE70..(DV,SED,WG)..LHD..EUR198008-198108

main55522-12100iAE71,CE70,KE70,TE7#..(DV,SED,WG)..(EUR,GEN,SA,SAA)¥1,120198108-198707

55464ACOVER, CHOKE KNOB HOLE

main55617-10010-01iAE71,CE70,TE71..SED,WG197908-198707

BLACK,BLACK,TRIM0#,2#

sub55617-10010¥320

main55617-10010-04iTE72..MTM;TE71..2D..DX197908-198406

BLUE,BLUE,TRIM8#

sub55617-10010¥320

main55617-10010-16iTE72..2D;TE71..2D..DX;TE71..SE..SA197908-198406

D-BROWN,BROWN,TRIM4#

sub55617-10010¥320

55476COVER, CIGARETTE LIGHTER HOLE

main55548-12010iAE71,CE70,KE70,TE71..STD..(ARL,EUR,GEN,SAA)¥640197908-198707

55505BBRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-12060iAE71,KE70,TE7#..DV,SED,WG¥1,440197908-198707

main55378-12070iKE70,TE7#..CP,LB197908-198406

55506BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55560-12030-01iCE70,KE70,TE71..(SED,WG)..(DX,GL,XL)..(EUR,GEN,SAA)197908-198707

BLACK

sub55560-12030¥2,620

main55560-12040iKE70,TE7#..CP,LB197908-198406

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55505-12030iAE71,KE70,TE7#..(3FC,4FC,5F)..4D..SA¥5,200197908-198707

main55505-12040iKE70,TE7#..(CP,LB)..RHD197908-198406

main55505-12050iCE70,KE70,TE71..(SED,WG)..LHD..(DX,GL,XL)¥5,200197908-198707

main55505-12060iKE70,TE7#..(CP,LB)..LHD¥5,500197908-198308

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12160-01iKE70,TE71..STD..(EUR,GEN,SAA)197908-198508

BLACK,BLACK,TRIM0#,2#

sub55550-12160¥16,200

main55550-12160-01iKE70..2D..ARL198108-198309

BLACK,BLACK,TRIM2#

sub55550-12160¥16,200

main55550-12160-03iAE71..STD198305-198707

GRAY,GRAY,TRIM1#

sub55550-12160¥16,200

main55550-12160-04iKE70,TE71..STD..(EUR,GEN,SAA)197908-198309

BLUE,BLUE,TRIM8#

sub55550-12160¥16,200

main55550-12160-06iKE70..STD..(GEN,SAA)198108-198508

D-BROWN,BROWN,TRIM4#

sub55550-12160¥16,200

main55550-12160-15iKE70,TE71..STD..(EUR,GEN)197908-198108

BEIGE,BEIGE,TRIM4#

sub55550-12160¥16,200

main55550-12160-16iCE70,KE70..STD198508-198707

BROWN,BROWN,TRIM4#

sub55550-12160¥16,200

main55550-12160-25iCE70,KE70..STD..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

sub55550-12160¥16,200

main55550-12170-01iKE70,TE7#..(CP,LB)..RHD197908-198406

BLACK,BLACK,TRIM0#,2#

main55550-12170-04iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)197908-198305

BLUE,BLUE,TRIM8#

main55550-12170-06iKE70,TE7#..(CP,LB)..RHD197908-198406

D-BROWN,BROWN,TRIM4#

main55550-12190-01iAE71,KE70..4D..(ARL,SAA)197908-198508

BLACK,BLACK,TRIM0#,2#

sub55550-12190¥16,200

main55550-12190-03iAE71,CE70,KE70..DX,XL198305-198707

GRAY,GRAY,TRIM1#

sub55550-12190¥16,200

main55550-12190-04iKE70..SAA197908-198308

BLUE,BLUE,TRIM8#

sub55550-12190¥16,200

main55550-12190-06iAE71,KE70,TE7#..(3FC,4FC,5F)..4D..SA198108-198508

D-BROWN,BROWN,TRIM4#

sub55550-12190¥16,200

main55550-12190-15iKE70..4D..ARL197908-198305

BEIGE,BEIGE,TRIM4#

sub55550-12190¥16,200

main55550-12190-16iAE71,CE70,KE70..DX,XL198508-198707

BROWN,BROWN,TRIM4#

sub55550-12190¥16,200

main55550-12190-25iCE70,KE70..WG..(DX,XL)..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

sub55550-12190¥16,200

main55550-12200-01iKE70,TE7#..(CP,LB)..LHD197908-198308

BLACK,BLACK,TRIM0#,2#

main55550-12200-04iKE70,TE7#..(CP,LB)..LHD197908-198308

BLUE,BLUE,TRIM8#

main55550-12200-06iKE70,TE7#..(CP,LB)..LHD197908-198308

D-BROWN,BROWN,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main55557-16010iKE70,TE7#..(SED,WG)..(DX,GL,XL)..(EUR,GEN,SA,SAA)¥230197908-198406

55523COVER, HEATER CONTROL OPENING

main55523-12050iCE70,KE70,TE71..(DV,SED,WG)..LHD..EUG¥1,470197908-198707

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55384-20011-01iKE70,TE71..(DX,STD)..SA197908-198204

BLACK

sub55384-20011¥440

main55538-14010iKE70..STD..EUR197908-198108

W/RADIO

main55539-12020iKE70,TE71..(CP,LB)..(GEN,SAA)197908-198406

main55539-12060iKE70..STD..EUG197908-198108

main55539-24010-01iKE70..2D..ARL198108-198308

BLACK

sub55539-32010¥460

sub55539-24010¥580

sub55539-14030¥640

sub55539-20030¥590

main55539-32010-01iAE71,KE70..2D..ARL198308-198707

BLACK

sub55539-32010¥460

sub55539-32030¥470

55544COVER, INSTRUMENT PANEL REGISTER HOLE

main55526-12030iKE70,TE71..(DV,SED,WG)..GEN197908-198108

main55526-12040iCE70,KE70,TE71..(DV,SED,WG)..LHD..EUG¥1,470198108-198707

55545COVER, FUSE BOX OPENING

main55540-12010-01iKE70,TE71..DV,SED,WG197908-198004

BLACK,BLACK,TRIM0#,2#

sub55545-12010¥1,320

sub74555-12020

main55540-12010-04iKE70,TE71..DV,SED,WG197908-198004

BLUE,BLUE,TRIM8#

sub55545-12010¥1,320

sub74555-12020

main55540-12010-15iKE70,TE71..DV,SED,WG197908-198004

BEIGE,BEIGE,TRIM4#

sub55545-12010¥1,320

sub74555-12020

main55540-12030-01iKE70,TE7#..CP,LB197908-198004

BLACK,BLACK,TRIM0#,2#

sub55545-12020¥850

sub74555-12020

main55540-12030-04iKE70,TE7#..CP,LB197908-198004

BLUE,BLUE,TRIM8#

sub55545-12020¥850

sub74555-12020

main55540-12030-06iKE70,TE7#..CP,LB197908-198004

D-BROWN,BROWN,TRIM4#

sub55545-12020¥850

sub74555-12020

main55545-12010-01iKE70..(DV,WG)..ARL198004-198508

BLACK,BLACK,TRIM0#,2#

sub55545-12010¥1,320

main55545-12010-03iAE71,CE70,KE70198305-198707

GRAY,GRAY,TRIM1#

sub55545-12010¥1,320

main55545-12010-04iKE70..2D..ARL198004-198309

BLUE,BLUE,TRIM8#

sub55545-12010¥1,320

main55545-12010-06iKE70..(DV,WG)..ARL198108-198508

D-BROWN,BROWN,TRIM4#

sub55545-12010¥1,320

main55545-12010-15iKE70..4D..ARL198004-198305

BEIGE,BEIGE,TRIM4#

sub55545-12010¥1,320

main55545-12010-16iAE71,CE70,KE70198508-198707

BROWN,LIGHT BROWN,TRIM4#

sub55545-12010¥1,320

main55545-12010-25iAE71..STD198305-198508

BEIGE,BEIGE,TRIM4#

sub55545-12010¥1,320

main55545-12020-01iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)198004-198406

BLACK,BLACK,TRIM0#,2#

main55545-12020-04iTE71..SAA198004-198308

BLUE,BLUE,TRIM8#

main55545-12020-06iKE70,TE7#..CP,LB198004-198406

D-BROWN,BROWN,TRIM4#

55578COVER, SIDE DEFROSTER OPENING, RH

main55578-12010-01iKE70..(DV,SED,WG)..LHD..EUG197908-198204

BLACK,BLACK,TRIM0#,2#

sub55578-12010¥1,070

main55578-12010-04iKE70,TE71..(DV,SED,WG)..GEN197908-198108

BLUE,BLUE,TRIM8#

sub55578-12010¥1,070

main55578-12010-05iKE70,TE7#..(DX,GL)..SA197908-198204

BEIGE,BEIGE,TRIM4#

sub55578-12010¥1,070

main55578-12020-01iKE70,TE71..(CP,LB)..LHD..EUG197908-198108

BLACK,BLACK,TRIM0#,2#

main55578-12020-04iKE70,TE71..(CP,LB)..LHD..EUG197908-198108

BLUE,BLUE,TRIM8#

main55578-12020-06iKE70,TE7#..(CP,LB)..(GEN,SA)197908-198204

D-BROWN,BROWN,TRIM4#

55579COVER, SIDE DEFROSTER OPENING, LH

main55578-12010-01iKE70..(DV,SED,WG)..LHD..EUG197908-198204

BLACK,BLACK,TRIM0#,2#

sub55578-12010¥1,070

main55578-12010-04iKE70,TE71..(DV,SED,WG)..GEN197908-198108

BLUE,BLUE,TRIM8#

sub55578-12010¥1,070

main55578-12010-05iTE7#..4D;KE70..DX..SA;KE70..(DV,SED,WG)..LHD..GEN;KE70..(SED,WG)..LHD..DX..EUR;KE70..(DV,SED,WG)..RHD..(EUR,GEN)197908-198204

BEIGE,BEIGE,TRIM4#

sub55578-12010¥1,070

main55578-12020-01iKE70,TE71..(CP,LB)..GEN197908-198108

BLACK,BLACK,TRIM0#,2#

main55578-12020-04iKE70,TE71..(CP,LB)..LHD..EUG197908-198108

BLUE,BLUE,TRIM8#

main55578-12020-06iKE70,TE71..(CP,LB)..LHD..EUG197908-198204

D-BROWN,BROWN,TRIM4#

55584HOLDER, MAP

main55584-12020iKE70,TE71..STD..(EUR,GEN,SA,SAA)197908-198408

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-12010iKE70,TE7#..(SED,WG)..(DX,GL,XL)..(EUR,GEN,SA,SAA)¥1,080197908-198707

55619COVER, SWITCH HOLE

main55384-20011-01iAE71,CE70,KE70,TE71..(DV,WG)..RHD198108-198707

BLACK

sub55384-20011¥440

main55469-30021iTE71..SED..LHD197908-198102

W/O RHEOSTAT SWITCH

main55539-12030iKE70,TE7#..(CP,LB)..(EUR,SA,SAA)197908-198406

W/O RHEOSTAT SWITCH

main55539-12040iKE70,TE7#..(CP,LB)..RHD197908-198406

W/O RR FOG LAMP SWITCH

main55617-10010-01iTE71..SED..LHD198102-198707

W/O RHEOSTAT SWITCH,BLACK

sub55617-10010¥320

55619ACOVER, SWITCH HOLE, NO.2

main55384-20011-01iKE70,TE71..(DX,GL)..SA;KE70..(SED,WG)..LHD..DX..EUR;KE70,TE72..(GL,STD)..(EUR,SA);KE70,TE71..(DV,SED,WG)..LHD..GEN197908-198707

W/O RR WIPER,BLACK

sub55384-20011¥440

main55534-12080-01iKE70,TE7#..(CP,LB)..DX197908-198406

W/O DOOR WARNING LAMP,BLACK,BLACK,TRIM0#,2#

main55534-12080-04iKE70,TE7#..(CP,LB)..DX197908-198308

W/O DOOR WARNING LAMP,BLUE,BLUE,TRIM8#

main55534-12080-06iKE70,TE7#..(CP,LB)..DX197908-198406

W/O DOOR WARNING LAMP,D-BROWN,BROWN,TRIM4#

main55539-12020iKE70,TE7#..(CP,LB)..(EUR,GEN,SA,SAA)197908-198406

W/O REAR WIPER SWITCH

55619BCOVER, SWITCH HOLE, NO.3

main55538-14010iKE70..RHD..EUG197908-198108

W/O RR FOG LAMP SWITCH

main55539-24010-01iKE70,TE7#..(DV,SED,WG)..(GEN,SA,SAA)198108-198308

W/O RR FOG LAMP SWITCH,BLACK

sub55539-32010¥460

sub55539-24010¥580

sub55539-14030¥640

sub55539-20030¥590

main55539-32010-01iAE71,KE70..2D..ARL198308-198707

W/O RR FOG LAMP SWITCH,BLACK

sub55539-32010¥460

sub55539-32030¥470

55619CCOVER, SWITCH HOLE, NO.4

main55539-12050iKE70,TE7#..(DV,SED,WG)..RHD..(GEN,SA)197908-198108

W/O PARKING SWITCH

55633SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2

main55632-12020iAE71,KE70,TE7#..RHD..(GEN,SA)¥860197908-198707

TYPE B

main55632-12040iAE71,CE70,KE70,TE7#..LHD197908-198707

TYPE B

main55632-12050iAE71,CE70,KE70,TE7#¥750197908-198707

TYPE A

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-12040-01iAE71,KE70..4D..ARL198305-198707

BLACK,BLACK,TRIM2#

sub55650-12040¥3,270

main55650-12040-01iKE70,TE71..(DV,SED,WG)..RHD..(ARL,EUR,GEN)197908-198508

BLACK,BLACK,TRIM0#,2#

sub55650-12040¥3,270

main55650-12040-02iAE71..STD198305-198409

MAROON,RED/MAROON,TRIM3#

sub55650-12040¥3,270

main55650-12040-04iCE70,KE70,TE71..(DV,SED,WG)..RHD..(ARL,EUR,GEN)197908-198309

BLUE,BLUE,TRIM8#

sub55650-12040¥3,270

main55650-12040-06iAE71,KE70..4D..ARL198108-198707

D-BROWN,BROWN,TRIM4#

sub55650-12040¥3,270

main55650-12040-13iAE71,CE70,KE70..RHD198305-198707

GRAY,GRAY,TRIM1#

sub55650-12040¥3,270

main55650-12040-15iKE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)197908-198305

BEIGE,BEIGE,TRIM4#

sub55650-12040¥3,270

main55650-12040-16iCE70,KE70..RHD..(EUR,GEN)198409-198707

BROWN,BROWN,TRIM4#

sub55650-12040¥3,270

main55650-12050iKE70,TE71..(CP,LB)..RHD..GEN¥3,240197908-198001

sub55650-12080

main55650-12060-01iCE70,KE70,TE71..(DV,SED,WG)..LHD197908-198305

BLACK,BLACK,TRIM0#,2#

sub55650-12060¥3,270

main55650-12060-01iKE70..LHD..(GEN,SAA)198305-198508

BLACK,BLACK,TRIM2#

sub55650-12060¥3,270

main55650-12060-02iCE70,KE70..LHD..(EUR,GEN)198305-198409

MAROON,RED/MAROON,TRIM3#

sub55650-12060¥3,270

main55650-12060-03iAE71,CE70,KE70..LHD..(EUR,GEN)198305-198707

GRAY,GRAY,TRIM1#

sub55650-12060¥3,270

main55650-12060-04iCE70,KE70,TE71..(DV,SED,WG)..LHD197908-198309

BLUE,BLUE,TRIM8#

sub55650-12060¥3,270

main55650-12060-05iKE70,TE71..(DV,SED,WG)..LHD197908-198108

BEIGE,BEIGE,TRIM4#

sub55650-12060¥3,270

main55650-12060-06iCE70,KE70,TE71..(DV,SED,WG)..LHD198108-198508

D-BROWN,BROWN,TRIM4#

sub55650-12060¥3,270

main55650-12060-16iAE71,CE70,KE70..LHD198409-198707

BROWN,BROWN,TRIM4#

sub55650-12060¥3,270

main55650-12070iKE70,TE7#..(CP,LB)..LHD¥3,270197908-198001

sub55650-12090

main55650-12080iTE71..RHD..EUG197908-198204

main55650-12081iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198406

main55650-12090iKE70..LB..4F..EUG;TE71..LB..LHD..EUG197909-198001

WEST GERMANY SPEC

sub55650-12091¥2,490

main55650-12090iKE70,TE7#..(CP,LB)..LHD198001-198108

sub55650-12091¥2,490

main55650-12091iKE70,TE7#..(CP,LB)..LHD¥2,490198108-198308

55651REGISTER, INSTRUMENT PANEL, NO.1

main55670-12020iAE71,KE70..4D..ARL¥2,110198108-198410

main55670-12020iKE70,TE7#..(DV,SED,WG)..(GEN,SA)¥2,110197908-198108

W/RADIO

main55670-12030iKE70..(DV,SED,WG)..EUR197908-198108

main55670-12060iAE71,KE70..2D..ARL¥4,600198108-198707

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-12070-03iAE71,KE70..4D..ARL197908-198410

GRAY,GRAY,TRIM0#,2#

sub55660-12070¥5,200

main55660-12070-04iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198108

BLUE,BLUE,TRIM8#

sub55660-12070¥5,200

main55660-12070-06iKE70,TE7#..(DX,GL)..SA197908-198204

BROWN,BROWN,TRIM4#

sub55660-12070¥5,200

main55660-12070-16iAE71,KE70..4D..ARL198108-198410

BROWN,BROWN,TRIM4#

sub55660-12070¥5,200

main55660-12080-03iKE70..RHD..EUG197908-198108

GRAY,GRAY,TRIM0#,2#

sub55660-12080¥4,440

main55660-12080-04iKE70..RHD..EUG197908-198108

BLUE,BLUE,TRIM8#

sub55660-12080¥4,440

main55660-12080-06iKE70..RHD..EUG197908-198108

BROWN,BROWN,TRIM4#

sub55660-12080¥4,440

main55660-12090iKE70,TE71..(CP,LB)..RHD..GEN¥6,400197908-198001

sub55660-12120¥6,400

main55660-12100-03iKE70,TE71..(DV,SED,WG)..LHD197908-198108

GRAY,GRAY,TRIM0#,2#

sub55660-12100¥4,420

main55660-12100-04iKE70,TE71..(DV,SED,WG)..LHD197908-198108

BLUE,BLUE,TRIM8#

sub55660-12100¥4,420

main55660-12100-06iKE70,TE71..(DV,SED,WG)..LHD197908-198108

BROWN,BROWN,TRIM4#

sub55660-12100¥4,420

main55660-12110iKE70,TE7#..(CP,LB)..LHD¥4,020197908-198001

sub55660-12140

main55660-12120iTE71..RHD..EUG¥6,400197908-198204

sub55660-12121

main55660-12121iKE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN)198108-198406

main55660-12130-03iKE70..SED..STD..EUG;KE70..SED..LHD..(2FC,5F)..EUG197908-198108

WEST GERMANY SPEC,GRAY,GRAY,TRIM0#,2#

sub55660-12100¥4,420

sub55660-12130¥4,440

main55660-12130-04iKE70..SED..STD..EUG;KE70..SED..LHD..(2FC,5F)..EUG197908-198108

WEST GERMANY SPEC,BLUE,BLUE,TRIM8#

sub55660-12100¥4,420

sub55660-12130¥4,440

main55660-12130-06iKE70..WG..LHD..5F197908-198108

WEST GERMANY SPEC,BROWN,BROWN,TRIM4#

sub55660-12100¥4,420

sub55660-12130¥4,440

main55660-12140iKE70..LB..4F..EUG;TE71..LB..LHD..EUG197909-198001

WEST GERMANY SPEC

sub55660-12141

main55660-12140iKE70,TE7#..(CP,LB)..LHD198001-198108

sub55660-12141

main55660-12141iKE70,TE7#..(CP,LB)..LHD198108-198308

main55660-12160-01iCE70,KE70,TE71..(DV,SED,WG)..LHD198108-198508

BLACK,BLACK,TRIM0#,2#

sub55660-12160¥4,960

main55660-12160-02iCE70,KE70..LHD..(EUR,GEN)198305-198409

MAROON,RED/MAROON,TRIM3#

sub55660-12160¥4,960

main55660-12160-03iAE71,CE70,KE70..LHD..(EUR,GEN)198305-198707

GRAY,GRAY,TRIM1#

sub55660-12160¥4,960

main55660-12160-04iKE70..SAA198108-198308

BLUE,BLUE,TRIM8#

sub55660-12160¥4,960

main55660-12160-06iCE70,KE70,TE71..(DV,SED,WG)..LHD198108-198508

D-BROWN,BROWN,TRIM4#

sub55660-12160¥4,960

main55660-12160-16iAE71,CE70,KE70..LHD198409-198707

BROWN,BROWN,TRIM4#

sub55660-12160¥4,960

main55660-12170-01iAE71,KE70,TE7#..RHD..(GEN,SA)198108-198508

BLACK,BLACK,TRIM0#,2#

sub55660-12150¥4,960

sub55660-12170¥4,950

main55660-12170-02iKE70..(DV,WG)..RHD..(EUR,GEN)198305-198409

MAROON,RED/MAROON,TRIM3#

sub55660-12150¥4,960

sub55660-12170¥4,950

main55660-12170-03iAE71..STD198305-198707

GRAY,GRAY,TRIM1#

sub55660-12150¥4,960

sub55660-12170¥4,950

main55660-12170-04iKE70..2D..ARL198108-198309

BLUE,BLUE,TRIM8#

sub55660-12150¥4,960

sub55660-12170¥4,950

main55660-12170-06iKE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)198108-198508

D-BROWN,BROWN,TRIM4#

sub55660-12150¥4,960

sub55660-12170¥4,950

main55660-12170-16iCE70,KE70..RHD..(EUR,GEN)198409-198707

BROWN,BROWN,TRIM4#

sub55660-12150¥4,960

sub55660-12170¥4,950

55691BASE, INSTRUMENT PANEL NAME

main55512-12080iAE71,CE70,KE70,TE7#..DV,SED,WG¥660197908-198707

main55691-12040iKE70,TE7#..CP,LB197908-198406

7501

9011906022

main90119-06022¥130

9015950082

main90159-50082¥130

9015960025

main90159-60025¥200

9016750005

main90167-50005¥120

9017906019

main90179-06019¥180

9017906097

main90179-06097¥320

9018304031

main90183-04031¥130

9018305009

main90183-05009¥90

9018305094

main90183-05094¥90

9046305001

main90463-05001¥120

9054103015

main90541-03015¥110

9166640616

main91666-40616¥180

9322954010

main93229-54010¥110

9324955008

main93249-55008¥60

9351054012

main93510-54012¥110

9354015014

main93540-15014¥110

9354015016

main93540-15016¥70

9354055016

main93540-55016¥70

9356055016

main93560-55016¥70

9356755016

main93567-55016¥110

60 parts on this diagram · 9 diagrams in section
