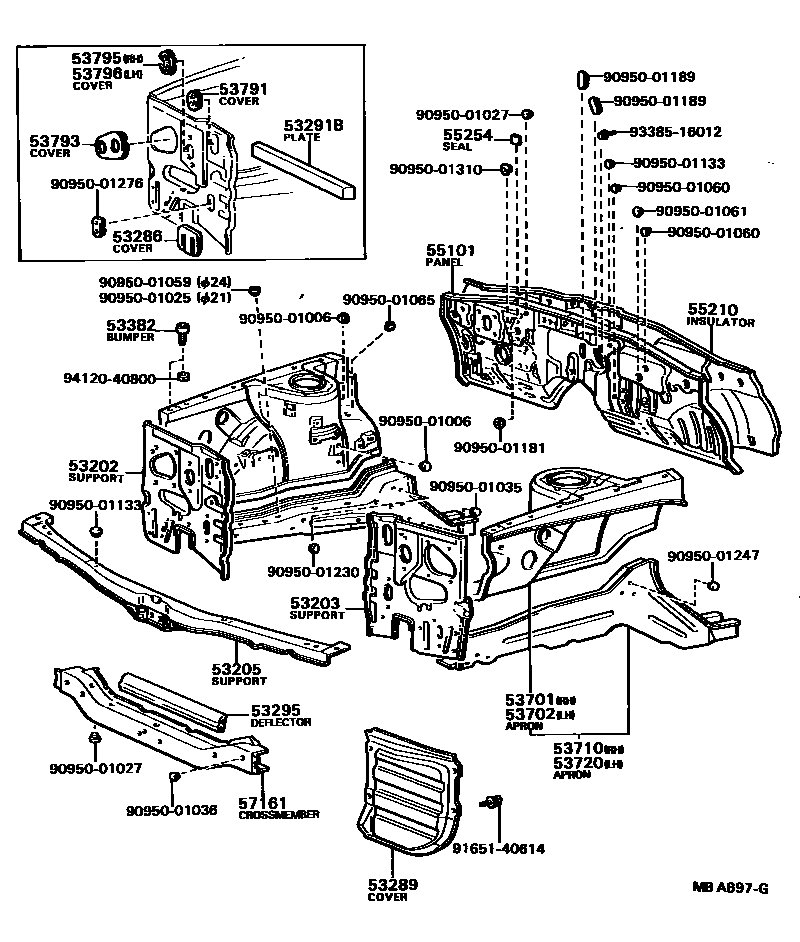

Toyota COROLLA — FRONT FENDER APRON & DASH PANEL

0001 1 0004 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-12140iKE70..2D..ARL¥12,100198108-198707

main53202-12150iKE70..EUR¥9,100198108-198707

main53202-12190iCE70¥11,700198210-198707

main53211-12100iKE70,TE7#..SA¥6,900197908-198204

main53211-12110iKE70..EUR¥6,900197908-198108

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12140iTE7#..ARL,EUR,GEN,SAA¥12,100198108-198205

sub53203-12141¥12,100

main53203-12141iKE70..2D..ARL¥12,100198205-198707

main53203-12150iKE70..EUR¥9,100198108-198707

main53203-12180iCE70¥11,700198210-198707

main53212-12080iKE70..GEN¥6,900197908-198204

main53212-12090iKE70..EUR¥6,900197908-198108

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-12900iKE70,TE7#..RHD¥10,400197908-198204

sub53216-12902¥10,400

main53216-12901iKE70,TE7#..LHD¥10,400197908-198108

sub53216-12902¥10,400

main53216-12902iAE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA¥10,400198108-198707

53286COVER, FRONT BUMPER ARM HOLE

main53285-12060iKE70,TE7#..LHD..EUR197908-198108

main53285-12070iTE71..LHD..EUG;KE70,TE72..LHD..(DX,GL,STD)..EUR¥640198108-198707

53289COVER, RADIATOR SIDE BAFFLE

main53289-12030iKE70..EUR¥2,520197908-198707

53291BPLATE, RADIATOR COVER

main53291-12030iKE70..LHD..EUR¥680197908-198707

main53291-12050iAE71,KE70..ARL,GEN,SAA¥680197908-198707

main53291-12060iCE70¥680198210-198707

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-12010iKE70..4D..ARL¥1,220198108-198410

53382BUMPER, HOOD, FRONT

main53382-12040iAE71,CE70,KE70,TE7#¥510197909-198707

main53382-20011iKE70,TE7#¥310197908-197909

sub53382-90A00¥310

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-12903iKE70,TE7#..ARL,EUR,GEN197908-198108

main53701-12904iTE71..LHD..5F..DX..GEN197908-198108

W/URETHANE BUMPER

main53701-12908iAE71,KE70,TE72..2D..ARL¥29,100198108-198707

sub53701-12918

main53701-12909iCE70¥29,100198210-198707

sub53701-12918

main53701-12910iCE70..LHD¥29,200198210-198707

COLD SPEC

sub53701-12907

sub90950-01131¥520

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-12904iKE70..LB..RHD..4F197908-198108

W/URETHANE BUMPER

sub53702-12908

main53702-12905iKE70,TE7#..ARL,EUR,GEN197908-198108

main53702-12906iTE71..RHD..5F..DX..GEN197908-198108

W/URETHANE BUMPER

main53702-12912iKE70..(STD,XL)..GEN198208-198707

W/AIR INTAKE DUCT

main53702-12912iKE70,TE71..EUG198108-198707

main53702-12914iCE70..LHD198108-198707

sub53702-12913

main53702-12915iKE70,TE71..GEN,SAA¥29,100198108-198707

sub53702-12913

main53702-12916iCE70..RHD¥29,100198210-198707

sub53702-12913

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53701-12290iKE70,TE7#..RHD197908-198108

main53701-12330iKE70..RHD..5F..4D..GEN;TE71..RHD..5F..DX..GEN197908-198108

W/URETHANE BUMPER

main53701-12390iKE70..(DV,WG)..LHD..GEN197908-198108

main53701-12391iKE70..(DV,WG)..LHD..GEN198108-198707

main53701-12400iTE71..LHD..5F..DX..GEN197908-198108

W/URETHANE BUMPER

main53701-12420iKE70..CP,LB,SED¥39,500197908-198108

main53701-12421iAE71,KE70..2D..ARL¥39,400198108-198707

main53701-12480iKE70..SED..LHD..STD..GEN198012-198108

SAUDI ARABIA SPEC

main53701-12481iKE70..LB..GEN198108-198308

W/URETHANE BUMPER

main53701-12490iTE71..LB..LHD..4F198012-198108

SAUDI ARABIA SPEC

main53701-12491iTE71..LHD..4F..2D..GEN198108-198305

W/URETHANE BUMPER

main53701-12520iTE71..GL198108-198406

W/URETHANE BUMPER

main53701-12530iKE70..RHD..4F..(STD,XL)..GEN198108-198707

main53701-12600iCE70..LHD198210-198707

main53701-12610iCE70..LHD198210-198707

COLD SPEC

main53701-12620iCE70..RHD198210-198707

main53701-12730iKE70..EUG198108-198707

W/55D23L BATTERY

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53702-12310iKE70..LB..RHD..4F;KE70..RHD..5F..4D..GEN;KE70..LHD..4F..4D..DX..GEN197908-198108

W/URETHANE BUMPER

main53702-12320iTE72..ARL;TE7#..(CP,LB,SED)..RHD..(DX,GL,SR,STD,XE)197908-198108

main53702-12340iTE71..LB..RHD..5F..GEN197908-198108

W/URETHANE BUMPER

main53702-12370iKE70,TE7#..LHD197908-198108

sub53702-12420

main53702-12371iTE71..LHD..(DX,XE)..EUG198108-198305

main53702-12371iKE70..(DV,WG)..LHD..GEN198208-198707

W/AIR INTAKE DUCT

main53702-12380iTE71..LHD..5F..DX..GEN197908-198108

W/URETHANE BUMPER

main53702-12391iKE70..2D..ARL198108-198309

main53702-12400iKE70..4D..ARL197908-198305

main53702-12401iKE70..EUG198108-198707

W/55D23L BATTERY

main53702-12410iTE7#..SE..SA¥39,500198108-198204

sub53702-12320

main53702-12410iTE7#..RHD..2D..(EUR,SA)¥39,500197911-198108

W/N50ZL

sub53702-12320

main53702-12411iKE70..RHD..4F..(STD,XL)..GEN198208-198707

W/AIR INTAKE DUCT

main53702-12411iTE71..RHD..EUG198108-198305

main53702-12421iTE71..GT..EUG¥39,400198108-198707

main53702-12480iKE70..SED..LHD..4F..4D..GEN198012-198108

SAUDI ARABIA SPEC

main53702-12481iKE70..SED..4D..(GEN,SAA)198108-198308

W/URETHANE BUMPER

main53702-12490iTE71..LHD..4F..4D..DX198012-198108

SAUDI ARABIA SPEC

main53702-12491iTE71..LHD..2D..(DX,SR)..(GEN,SAA)198108-198308

W/URETHANE BUMPER

main53702-12520iTE71..LHD..GEN¥39,400198108-198707

main53702-12540iKE70..SDN,SDZ198108-198707

main53702-12550iKE70..EUG¥39,400198108-198707

main53702-12550iKE70..(LB,SED)..GEN¥39,400198208-198406

W/AIR INTAKE DUCT

main53702-12560iTE71..RHD..(DX,SR,STD,XE)..GEN¥39,400198108-198707

main53702-12570iTE71..GL198108-198406

W/URETHANE BUMPER

main53702-12610iKE70..(LB,SED)..GEN198208-198406

W/URETHANE BUMPER,AIR DUCT

main53702-12620iCE70..RHD198210-198707

main53702-12830iAE71..STD198309-198406

main53702-1A010iAE71..GEN¥39,400198508-198707

53791COVER, COOL AIR INTAKE HOLE

main53791-12020iAE71,KE70,TE7#..ARL,GEN,SAA¥400197908-198707

LH

main53791-12020iTE7#..LHD..(EUG,SDN)¥400197908-198305

COLD SPEC

main53791-12030iAE71,KE70,TE7#..ARL,GEN,SAA¥400197908-198707

RH

53793COVER, HEADLAMP WIRE HARNESS HOLE, NO.1

main53793-12010iKE70,TE71..GEN197908-198108

main53793-12020iTE71..LHD..EUG;KE70,TE72..LHD..(DX,GL,STD)..EUR¥640198108-198707

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53795-12010iKE70,TE71..GEN197908-198305

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53795-12010iKE70,TE71..GEN197908-198305

55101PANEL SUB-ASSY, DASH

main55101-12360iTE7#..RHD197908-198202

sub55101-12520

main55101-12370iKE70..WG..RHD..EUG;KE70..(CP,LB,SED)..RHD197908-198108

main55101-12390iKE70..(DV,WG)..RHD..4F..(GEN,SA)197908-198707

main55101-12410iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..GEN197908-198101

sub55101-12411

sub31030-12042

sub55210-12171¥7,400

sub90179-08146¥180

main55101-12411iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA)198101-198707

main55101-12460iCE70,TE7#..LHD197908-198707

main55101-12470iKE70..(DV,WG)..LHD..GEN197908-198101

sub55101-12471

sub31030-12042

sub55210-12141¥7,400

sub90179-08146¥180

main55101-12471iKE70..(DV,WG)..LHD..GEN198101-198707

main55101-12500iKE70..2D..ARL198108-198707

main55101-12520iCE70,TE7#..RHD198202-198707

main55101-12531iAE71..GEN198508-198707

main55101-12830iAE71..STD198309-198707

55210INSULATOR ASSY, DASH PANEL

main55210-12100iKE70..(DV,WG)..RHD..GEN¥7,600197908-198707

main55210-12110iCE70,TE7#..RHD..MTM¥7,600197908-198707

main55210-12120iKE70..RHD..(3FC,5F);KE70..RHD..STD..EUG;KE70..RHD..4F..4D..(DX,STD)¥7,600197908-198707

main55210-12130iTE7#..RHD..ATM¥7,600197908-198401

main55210-12140iKE70..(DV,WG)..LHD..GEN197908-198101

main55210-12141iKE70..(DV,WG)..LHD..GEN¥7,400198101-198707

main55210-12150iCE70,TE7#..LHD..MTM¥7,400197908-198707

main55210-12160iTE71..LHD..3FC197908-198305

main55210-12170iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..GEN197908-198101

main55210-12171iKE70..LHD..EUR;KE70..(CP,LB,SED)..LHD..(GEN,SAA)¥7,400198101-198707

main55210-12190iAE71..GEN¥8,000198508-198707

main55210-12290iAE71..MTM¥7,300198305-198707

55254SEAL, CLUTCH WIRE HOLE

main55255-12010iKE70..ATM¥240197908-198707

57161CROSSMEMBER, FRONT

main57161-12902iKE70,TE7#¥9,200197908-198707

sub57161-12903¥9,100

main57161-12903iCE70,KE70,TE71..EUR¥9,100198209-198707

9095001006

main90950-01006¥260

9095001025

main90950-01025¥240

9095001027

main90950-01027¥160

9095001035

main90950-01035

9095001036

main90950-01036¥320

9095001059

main90950-01059¥230

9095001060

main90950-01060¥200

9095001061

main90950-01061¥240

9095001065

main90950-01065¥280

9095001133

main90950-01133¥590

9095001181

main90950-01181¥220

9095001189

main90950-01189¥240

9095001230

main90950-01230¥190

9095001247

main90950-01247¥170

9095001276

main90950-01276¥340

9095001310

main90950-01310¥400

9165140614

main91651-40614¥160

9338516012

main93385-16012¥70

9412040800

main94120-40800¥90

39 parts on this diagram · 2 diagrams in section
